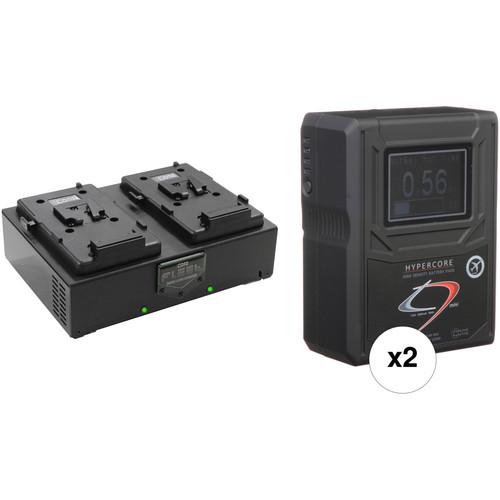

User Manual for Core SWX HC9 Mini 2-Battery Kit with Fleet D Charger Click to enlarge the picture
Contents of the user manual for the Core SWX HC9 Mini 2-Battery Kit
- Product category: On Camera Batteries Core SWX
- Brand: Core SWX
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Core SWX On Camera Batteries
|
User manual for the Core SWX HC9 Mini 2-Battery Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Core SWX product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Core SWX user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Core SWX product will considerably shorten its lifespan!
|
Product description Provide power to your portable professional video and cinema equipment with this Core SWX HyperCore HC9 Mini 2-Battery Kit and Fleet D Charger from . The two HC9 Mini batteries are compact, high-capacity lithium-ion V-mount batteries, capable of supporting up to 12-amp draws from power-hungry gear. The included Fleet D charger has two bays to replenish two batteries simultaneously. Put your batteries on to charge before a shoot, and you'll be ready to roll during production. For more details on the products included in this kit, check out the features below. - Core SWX Fleet D V-Mount 2-Bay Charger Featuring two independent charge bays, the Core SWX Fleet D V-Mount 2-Bay Charger is capable of charging two batteries simultaneously. Two 98Wh batteries can be charged in approximately 2.5 hours for quick turnaround times. Easy-to-read red and green LEDs indicate charging and battery status. Supporting 90-240 VAC input voltage, Fleet Q is worldwide compatible if you incorporate the appropriate plug adapter, sold separately. A carry-handle is recessed into the aluminum chassis for convenient transport.
- Quick Features
-
- Two independent V-mount charge bays
- Simultaneous charging
- Approximately 2.5-hour charge time
- Red and green status LEDs
- 90-240 VAC worldwide compatible input voltage
- Aluminum build
- Recessed carry handle
UPC: 184323003402 - 2 x Core SWX HyperCore HC9 Mini V-Mount Battery Whether you require low clearance to fit your camera on a gimbal or just don't want the back of your rig to be dominated by a battery, the Core SWX HyperCore HC9 Mini V-Mount Battery can handle 12-amp draws, yet is encased in a small enclosure that matches the form-factor of many popular cinema cameras on the market. This V-mount model is desiged to communicate with RED DSMC and DSMC2 cameras, as they use a different protocol than standard V-mount-equipped cameras. In addition to the V-mount power output, the HC9 features D-Tap and USB outputs. The D-Tap output can be used to power a light source, a monitor, recorder, or other part of your rig while you can connect your smartphone or other USB accessory for convenient charging. A 25-watt load on this battery will last approximately 3.5 hours. The LCD battery status display screen on the rear of the battery is backlit, and updates every few seconds to accurately reflect up-to-the-moment statistics, including runtime. UPC: 184323003648
In the Box - Fleet D V-Mount 2-Bay Charger ufurvqyafutqzqccfb
- 6 ft (1.8m) Power Cable
- Limited 3-Year Warranty
- 2 x HyperCore HC9 Mini V-Mount Battery
Table of Contents
|
Upload User Manual
Have you got an user manual for the Core SWX HC9 Mini 2-Battery Kit with Fleet D Charger in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Core SWX Fleet D V-Mount 2-Bay Charger
| Number of Bays | 2 x V-mount | | Charge Current | 3 A | | Input Voltage | 90-240 VAC, 50/60 Hz | | Material | Aluminum | | Dimensions | 8.9 x 3 x 6.2" / 22.6 x 7.6 x 15.7 cm | | Weight | 1.6 lb / 0.7 kg | | | | Box Dimensions (LxWxH) | 13.2 x 10.35 x 4.15" | - 2 x Core SWX HyperCore HC9 Mini V-Mount Battery
| Mount / Series Type | V-Mount | | Chemistry | Lithium-Ion | | Capacity (Wh) | 98 Wh | | Amp-Hours | 6.6 Ah | | Output Voltage | 14.8 VDC | | Maximum Load | 12 A | | Accessory Port | 1 x D-Tap
1 x USB Type-A | | Dimensions (W x H x D) | 3.5 x 4.7 x 1.9" / 8.9 x 11.9 x 4.8 cm | | Weight | 1.4 lb / 0.6 kg | | | | Box Dimensions (LxWxH) | 7.1 x 4.4 x 2.7" |
