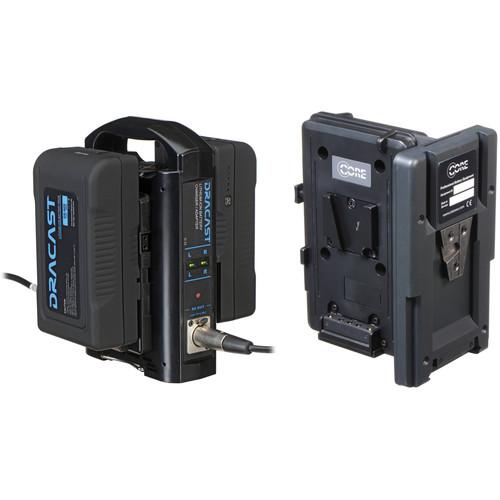

User Manual for Core SWX Hotswap Plate Kit with 2 x 90Wh Batteries & Dual Charger Click to enlarge the picture
Contents of the user manual for the Core SWX Hotswap Plate Kit with
- Product category: On Camera Batteries Core SWX
- Brand: Core SWX
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Core SWX On Camera Batteries
|
User manual for the Core SWX Hotswap Plate Kit with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Core SWX product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Core SWX user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Core SWX product will considerably shorten its lifespan!
|
Product description The Hotswap Plate Kit with 2 x 90Wh Batteries from includes a hotswap V-mount battery plate, two V-mount, lithium-ion batteries, and a dual-position charger. Each 14.8V battery features a D-Tap output port for powering accessories, and a 5-LED remaining power display. The hotswap plate enables you to conveniently change a depleted battery without needing to power down your camera. A dual charger rounds out this kit with features including a top handle, and an integrated capacity-management system to ensure fast charging. This charger does double-duty as a power supply, providing 15 VDC power for accessories via its 4-pin XLR output. - Core SWX GPTS V-Mount Hot Swap Adapter The Core SWX GPTS is a "hot swap" power adapter that mounts directly to your existing V-plate. Batteries are mounted side by side, so you can easily remove the depleted battery while leaving the other battery connected so there is never any down time. The GP-TS is outfitted with a 2-pin power port so that you are not limited to the cameras' own connector. UPC: 184323000289
- Dracast Dual Charger with Two 90Wh V-Mount Batteries The Dual Charger with Two 90Wh V-Mount Batteries from Dracast is comprised of a multi-voltage V-Mount dual charger and 2 Lithium-ion 14.8V batteries with 5 LED status displays. The dual charger can refresh a single battery or both batteries simultaneously. UPC: 610708234043
In the Box - GPTS V-Mount Hot Swap Adapter dyrauytx
- Limited 1-Year Warranty
- Dracast - Dual Charger with Two 90Wh V-Mount Batteries
Table of Contents
|
Upload User Manual
Have you got an user manual for the Core SWX Hotswap Plate Kit with 2 x 90Wh Batteries & Dual Charger in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Core SWX GPTS V-Mount Hot Swap Adapter
| | | Box Dimensions (LxWxH) | 6.0 x 5.5 x 3.5" | - Dracast DR-CH2V Dual V-Mount Battery Charger
| Power Input | Input: 90 to 240 VAC, 47 to 63 Hz | | Power Output | 4-pin XLR, 15 VDC, 4 A | | Power Consumption | 50 W | | Dimensions | 4.6 x 8.9 x 5.5" (11.7 x 22.6 x 14 cm) | | Weight | 2.2 lb (1 kg) | | | | Box Dimensions (LxWxH) | 12.3 x 10.45 x 6.75" | - Dracast 90Wh 14.8V Li-Ion V-Mount Battery
| Mount / Series Type | V-Mount | | Chemistry | Lithium-Ion | | Capacity (Wh) | 90 Wh | | Output Voltage | 14.8 VDC | | Accessory Port | 1 x D-Tap | | Operating Temperature | -4 to 122°F / -20 to 50°C | | Dimensions (W x H x D) | 6.7 x 3.9 x 1.9" / 170.0 x 100.0 x 47.0 mm | | Weight | 1.8 lb / 0.8 kg | | | | Box Dimensions (LxWxH) | 10.65 x 5.55 x 4.0" |
