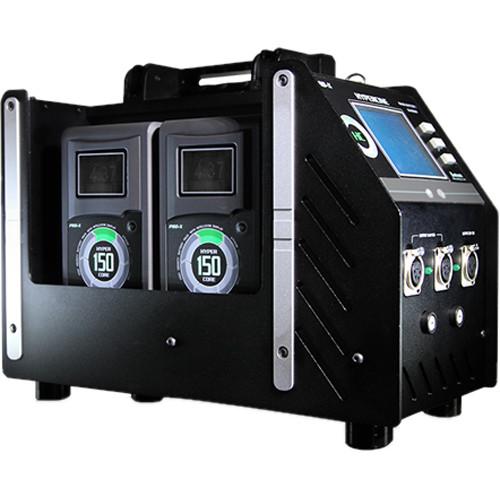

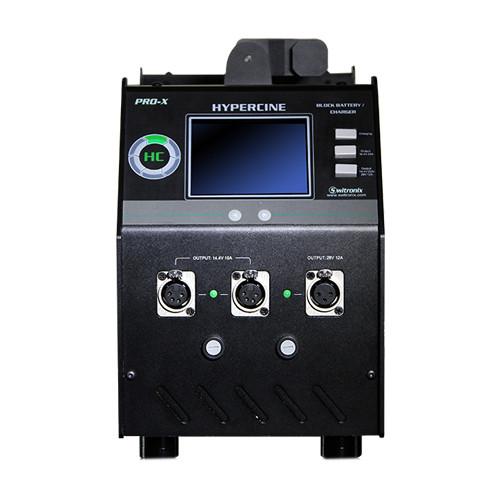

Product description The HypercineV6 600Wh Battery Pack and Charger from Core SWX features 14.4V and 28V power output for digital and film cameras. It allows you to place four brick battery packs within the device housing, transforming it into one single unit, while also offering simultaneous built-in charging. With the included four Hypercore 150 batteries installed, the unit provides 600Wh. Each battery pack is placed within a hopper style system, with locking panels, allowing you to transport the unit. With the battery packs installed, you can choose to use the dual 14.4V 4-pin XLR outputs, or simultaneously use the 14.4V outputs with the 28V 3-pin XLR output.
After using the battery pack, supply the Hypercine with 100 to 240 VAC via its AC input, and charge up the unit in 3 hours. A multifunction backlit LCD is present on the front of the unit to provide cumulative data when in discharge mode and isolated battery pack information when in charge mode.
A built-in 28V regulator ensures that proper power is provided and the low-voltage circuitry ensures that the battery packs within the housing are well protected. The Hypercine is a travel-friendly and lightweight modular system powerful enough to provide extended runtime to cameras including ARRI, Sony F65, RED, Panavision, and many more. The 28V output can also be used to power HMI and heavy draw LED lights. Note: Hypercine will only work with Smart battery packs and the four packs must be of equal capacity. - Block battery form factor
- Offers the ability to swap battery packs on the fly
- With battery packs installed, supply the Hypercine with 100 to 240 VAC via AC input, and charge up the unit within 3 hours
- Lightweight aluminum case with an elevated design provides superior protection from impact
- 14.4 V and 28V dual output provides 20A at 14.4V, 10A at 28V making it suitable for film cameras
- Protects the battery packs from discharge by shutting down and disconnects them from the Hypercine regulation and circuitry and LCD
- Accurately displays battery system status down to the milliamp
- Low voltage cut-off insures the battery pack connected to the Hypercine will not be damaged
UPC: 184323003044 In the Box Core SWX HypercineV6 600Wh Battery Pack and Charger for Cine Cameras 4 x HyperCore 150Wh 14.8V V-Mount Battery rrsvrvftdrzaettsrqdcvudcauutyys HypercineBase V-Mount HyperCore Battery Charger/Discharger Unit Limited 18-Month Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Core SWX HypercineV6 600Wh Battery Pack and Charger for Cine Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCore SWX HYPERCINEV6 Specs | Capacity | 600 Wh | | Connectors | 2 x 4-pin XLR for 14.4 V
1 x 3-pn XLR for 28 V provides dual simultaneous outputs (20 A @ 14.4 V / 10 A @ 28 V) | | Runtime | 100 W: Approximately 4 to 8 hours | | Dimensions | 14.3 x 11.3 x 7.1" (36.3 x 28.7 x 18 cm) (without handle)
14.3 x 13 x 7.1" (36.3 x 33 x 18 cm) (with handle) | | Weight | 27.1 lb (12.3 kg) (150 Wh battery packs installed) | | | | Package Weight | 32.25 lb | | Box Dimensions (LxWxH) | 19.9 x 17.4 x 15.8" |
