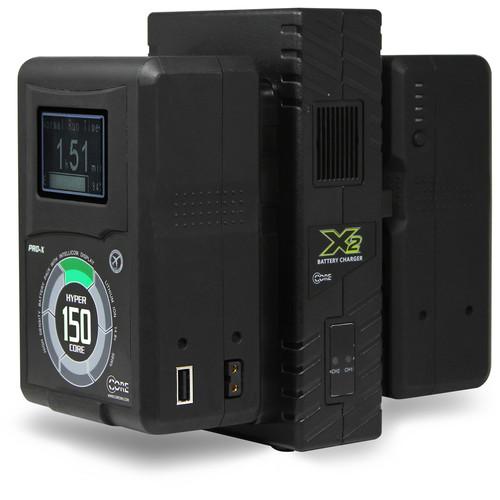

Core SWX HyperCore 150 2-Battery Kit

User Manual for Core SWX HyperCore 150 2-Battery Kit with X2S Vertical Charger

• Product category: On Camera Batteries Core SWX
• Brand: Core SWX
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Core SWX On Camera Batteries

Product description

• Core SWX X2S 2-Bay Vertical V-Mount Battery Charger
  • Core Minute Chargers
  Charge your V-Mount batteries while on-the-go with the Core SWX X2S 2-Bay Vertical V-Mount Battery Charger. Taking advantage of the same technology built into the larger fleet chargers, this slim charger can charge a single battery at a 3-amp rate or batteries in both bays simultaneously at 2 amps. Since it sits vertically with two batteries mounted, the X2S takes up less space than traditional chargers. With its 4-pin XLR output, the X2S also does double duty as a 90W power supply for cameras, lights, or other equipment that can draw from a 4-pin XLR. UPC: 184323003655
• 2 x Core SWX HyperCore 150Wh 14.8V V-Mount Battery
  • Core Minute Chargers
  The Core SWX HyperCore 150 14.8V V-Mount Battery is a 150Wh lithium-ion battery featuring high density cells designed to handle high power draws. Supporting more amperage per cell, the cells can withstand up to a 10A draw for extended periods without diminishing service life. Overall service life is rated at 1000 charge/discharge cycles. Run-time is projected at 6 hours at 25W. Safety sensors are built in that detect over/under voltage, over/under current, and above-normal temperature.

  A Intellicom backlit LCD and a 4-LED gauge provide operating run-time in hours and minutes, remaining capacity as a bar grid and percentage, and remaining charge time. An on-board fuel computer samples capacity and charge or discharge load and recomputes and refreshes the LCD display every five seconds. The HyperCore 150 works with all Core SWX chargers and dictates the best possible charge routine with regard to maximum life. It's best used with Core SWX XC-2LS and XC-2LA chargers as they'll provide faster charge times.

  A PowerTap port and USB port are available on the side for powering accessories and charging various devices. The outer jacket is made of comfortable-to-hold, non-slip rubber.
  Key Features
  • • 150Wh lithium-ion V-Mount battery
    • High density cells supporting up to a 10A draw for extended periods
    • Rated at 1000 charge/discharge cycles
    • Run-time projected at 6 hours at 25W
    • Built in safety sensors
    • Intellicom backlit LCD and 4-LED power gauge
    • Displays run-time in hours and minutes, capacity as a grid and %, and remaining charge time
    • On-board fuel computer refreshes the LCD display every five seconds
    • Dictates the best charge routine possible to the charger
    • Compatible with all Core SWX chargers
    • PowerTap port and USB port
    • Non-slip, rubberized housing
  UPC: 184323002849

• X2S 2-Bay Vertical V-Mount Battery Charger xdrsqdqyeudqcbuqrcyayuv
• Limited 3-Year Warranty

• 2 x HyperCore 150Wh 14.8V V-Mount Battery

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Core SWX X2S 2-Bay Vertical V-Mount Battery Charger

  Maximum Charge Current	1 Bay: 3 A 2 Bays: 2 A (each bay)
  4-Pin XLR DC Output	90 W (15 VDC, 6 A)
  Input Voltage	90-240 VAC, 50/60 Hz
  Dimensions	4.5 x 7.1 x 3.4" / 11.4 x 18.0 x 8.6 cm
  Weight	1.9 lb / 0.9 kg

  Box Dimensions (LxWxH)	8.0 x 5.3 x 4.9"

• 2 x Core SWX HyperCore 150Wh 14.8V V-Mount Battery

  Mount / Series Type	V-Mount
  Chemistry	Lithium-Ion
  Capacity (Wh)	150 Wh
  Output Voltage	14.8 VDC
  Maximum Load	10 A
  Accessory Port	1 x D-Tap 1 x USB Type-A
  Dimensions (W x H x D)	3.8 x 5.9 x 2.4" / 97.0 x 150.0 x 60.0 mm
  Weight	2.4 lb / 1.1 kg

  Box Dimensions (LxWxH)	8.2 x 7.0 x 4.3"
