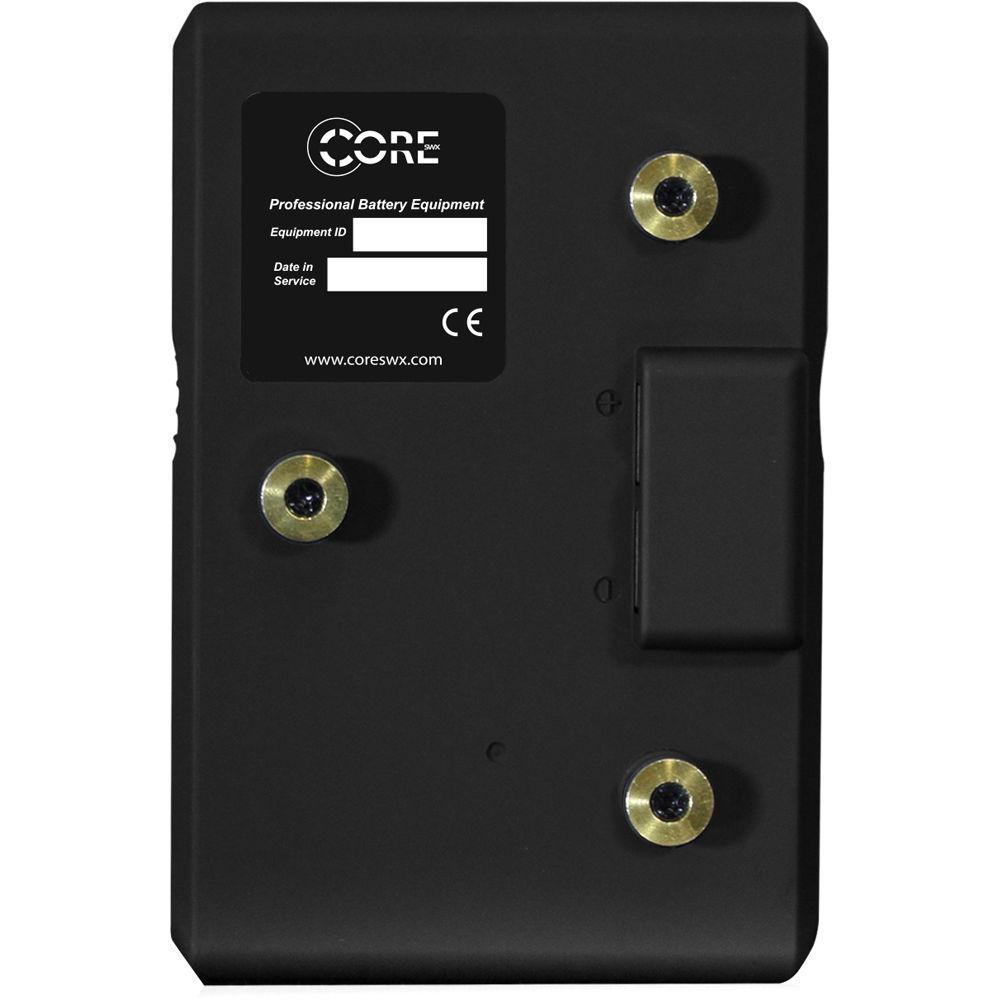

User Manual for Core SWX HyperCore 150 Gold Mount Battery Click to enlarge the picture
Contents of the user manual for the Core SWX HyperCore 150 Gold Mount
- Product category: On Camera Batteries Core SWX
- Brand: Core SWX
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Core SWX On Camera Batteries
 |
User manual for the Core SWX HyperCore 150 Gold Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Core SWX product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Core SWX user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Core SWX product will considerably shorten its lifespan!
|
Product description - HyperCore 98 & HyperCore 150
The Core SWX HyperCore 150 Gold Mount Battery is a 150Wh Lithium-Ion battery featuring high density cells designed to handle high power draws. Supporting more amperage per cell, the cells can withstand up to a 10A draw for extended periods without diminishing service life. Overall service life is rated at 1000 charge/discharge cycles. Runtime is projected at 6 hours at 25W. Safety sensors are built in that detect over/under voltage, over/under current, and above-normal temperature.The HyperCore 150 is compatible with Anton/Bauer Lithium-Ion chargers. An Intellicom backlit LCD and a 4-LED gauge provide operating runtime in hours and minutes, remaining capacity as a bar grid and percentage, and remaining charge time. An on-board fuel computer samples capacity and charge or discharge load and re-computes and refreshes the LCD display every five seconds. A D-tap port and USB port are available on the side for powering accessories and charging various devices. The outer jacket is made of comfortable-to-hold, non-slip rubber. This battery pack will charge on all Core SWX chargers. - Key Features
-
- 150 lithium-ion Gold mount battery
- Compatible with all Anton Bauer lithium-ion chargers
- High density cells supporting up to a 10A draw for extended periods
- Rated at 1000 charge/discharge cycles
- Runtime projected at 6 hours at 25W
- Built-in safety sensors

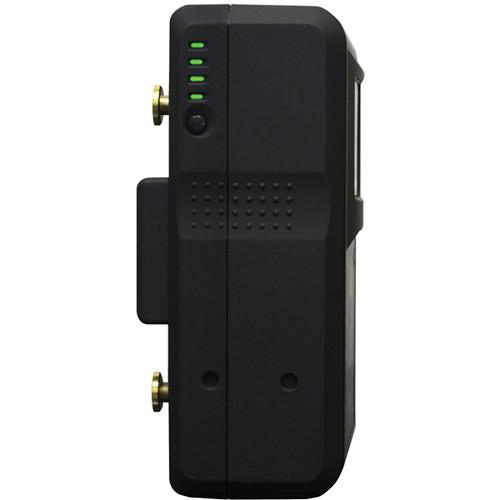

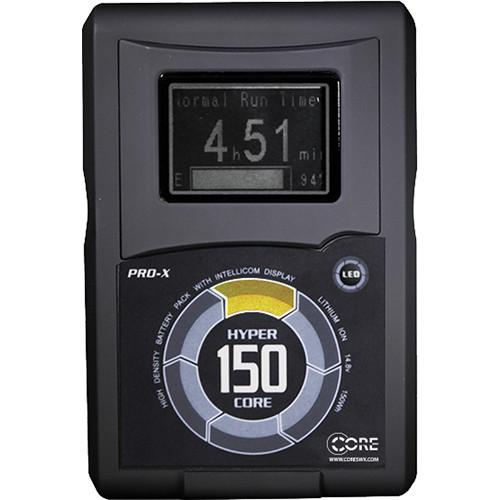

- Intellicom backlit LCD and 4-LED power gauge
- Displays runtime in hours and minutes, capacity as a grid and %, and remaining charge time
- On-board fuel computer refreshes the LCD display every five seconds

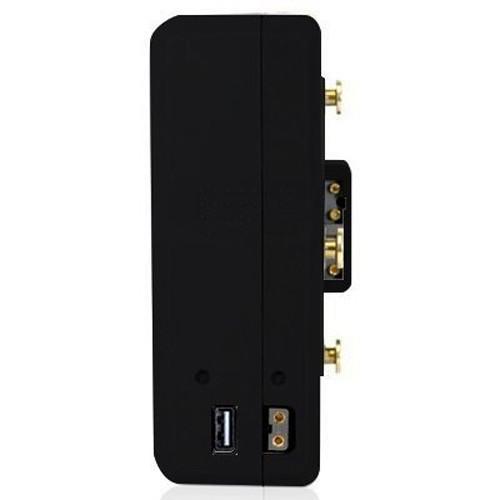

- D-Tap port and USB port
- Non-slip, rubberized housing
UPC: 184323002832 In the Box Core SWX HyperCore 150 Gold Mount Battery Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Core SWX HyperCore 150 Gold Mount Battery in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCore SWX 150 Specs | Mount / Series Type | Gold Mount | | Chemistry | Lithium-Ion | | Capacity (Wh) | 150 Wh | | Output Voltage | 14.8 VDC | | Maximum Load | 10 A | | Accessory Port | 1 x D-Tap
1 x USB Type-A | | Dimensions (W x H x D) | 3.8 x 5.9 x 2.4" / 97.0 x 150.0 x 60.0 mm | | Weight | 2 lb / 0.9 kg | | | | Package Weight | 2.42 lb | | Box Dimensions (LxWxH) | 8.0 x 7.0 x 4.2" |
