Product description - HyperCore 98 & HyperCore 150

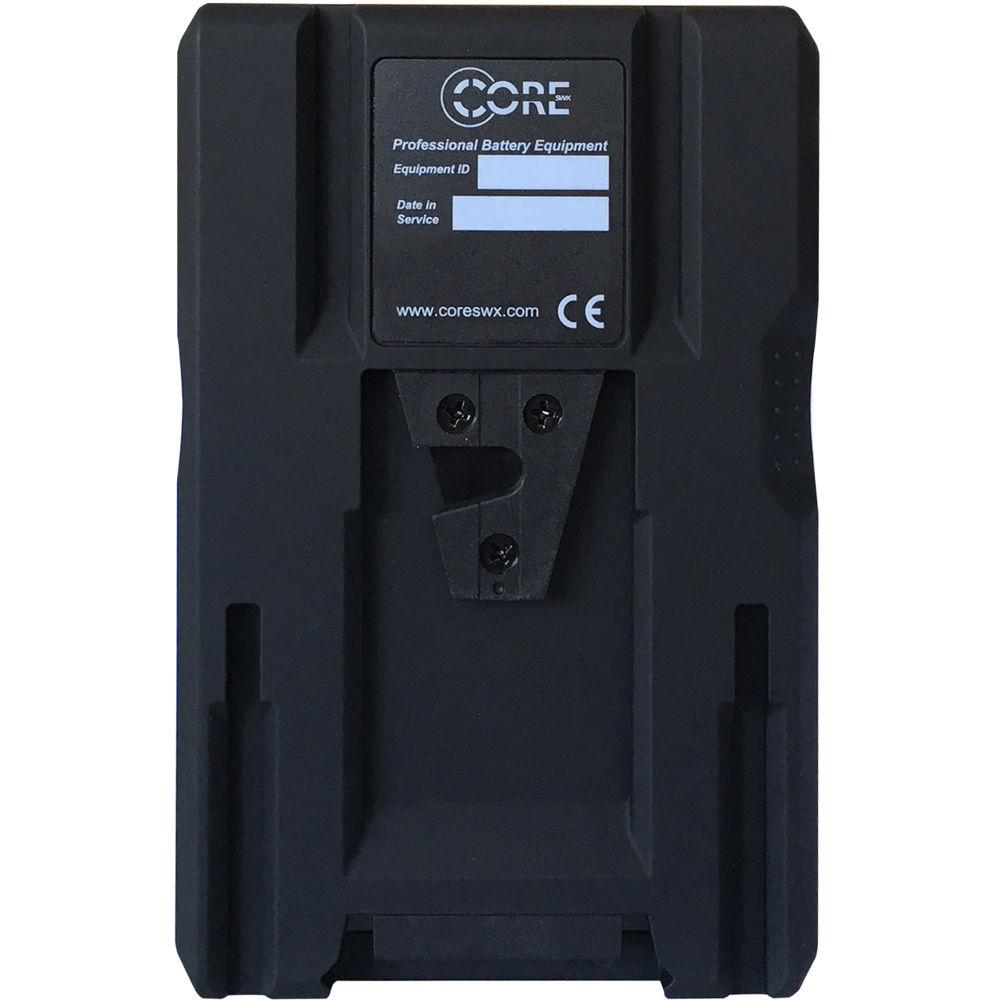

The Core SWX HyperCore 150 14.8V V-Mount Battery is a 150Wh lithium-ion battery featuring high density cells designed to handle high power draws. Supporting more amperage per cell, the cells can withstand up to a 10A draw for extended periods without diminishing service life. Overall service life is rated at 1000 charge/discharge cycles. Run-time is projected at 6 hours at 25W. Safety sensors are built in that detect over/under voltage, over/under current, and above-normal temperature.

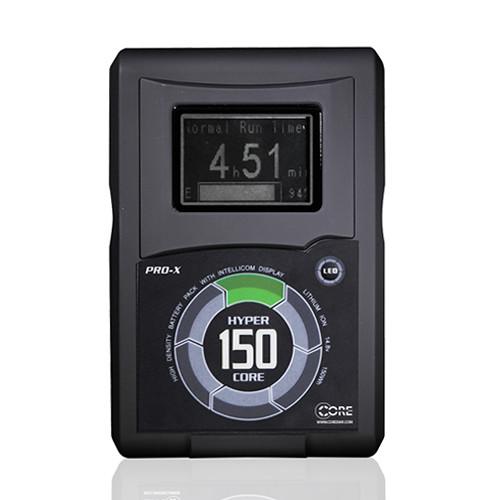

A Intellicom backlit LCD and a 4-LED gauge provide operating run-time in hours and minutes, remaining capacity as a bar grid and percentage, and remaining charge time. An on-board fuel computer samples capacity and charge or discharge load and recomputes and refreshes the LCD display every five seconds. The HyperCore 150 works with all Core SWX chargers and dictates the best possible charge routine with regard to maximum life. It's best used with Core SWX XC-2LS and XC-2LA chargers as they'll provide faster charge times.
A PowerTap port and USB port are available on the side for powering accessories and charging various devices. The outer jacket is made of comfortable-to-hold, non-slip rubber. - Key Features
-
- 150Wh lithium-ion V-Mount battery
- High density cells supporting up to a 10A draw for extended periods
- Rated at 1000 charge/discharge cycles
- Run-time projected at 6 hours at 25W
- Built in safety sensors

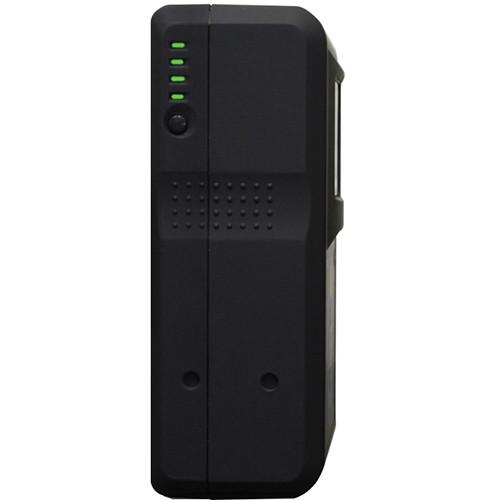

- Intellicom backlit LCD and 4-LED power gauge
- Displays run-time in hours and minutes, capacity as a grid and %, and remaining charge time
- On-board fuel computer refreshes the LCD display every five seconds
- Dictates the best charge routine possible to the charger
- Compatible with all Core SWX chargers
- PowerTap port and USB port
- Non-slip, rubberized housing
UPC: 184323002849 In the Box Core SWX HyperCore 150Wh 14.8V V-Mount Battery Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Core SWX HyperCore 150Wh 14.8V V-Mount Battery in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCore SWX 150 Specs | Mount / Series Type | V-Mount | | Chemistry | Lithium-Ion | | Capacity (Wh) | 150 Wh | | Output Voltage | 14.8 VDC | | Maximum Load | 10 A | | Accessory Port | 1 x D-Tap
1 x USB Type-A | | Dimensions (W x H x D) | 3.8 x 5.9 x 2.4" / 97.0 x 150.0 x 60.0 mm | | Weight | 2.4 lb / 1.1 kg | | | | Package Weight | 2.43 lb | | Box Dimensions (LxWxH) | 8.2 x 7.0 x 4.3" |
