Product description Hands-On Review: Core SWX HyperCore 98 and Volt Bridge Read More - Switronix Goes Underwater with Andy Casagrande
- HyperCore 98 & HyperCore 150
The Core SWX HyperCore 98 Gold Mount Battery is a 98Wh Lithium-Ion battery featuring high density cells designed to handle high power draws. Supporting more amperage per cell, the cells can withstand up to a 10A draw for extended periods without diminishing service life. Overall service life is rated at 1000 charge/discharge cycles. Runtime is projected at 3.5 hours at 25W. Safety sensors are built in that detect over/under voltage, over/under current, and above-normal temperature.The HyperCore 98 is compatible with Anton/Bauer Lithium-Ion chargers. An Intellicom backlit LCD and a 4-LED gauge provide operating runtime in hours and minutes, remaining capacity as a bar grid and percentage, and remaining charge time. An on-board fuel computer samples capacity and charge or discharge load and re-computes and refreshes the LCD display every five seconds. A D-tap port and USB port are available on the side for powering accessories and charging various devices. The outer jacket is made of comfortable-to-hold, non-slip rubber. This battery pack will charge on all Core SWX chargers. - Key Features
-
- 98 lithium-ion Gold mount battery
- Compatible with all Anton Bauer lithium-ion chargers
- High density cells supporting up to a 10A draw for extended periods
- Rated at 1000 charge/discharge cycles
- Runtime projected at 3.5 hours at 25W
- Built-in safety sensors

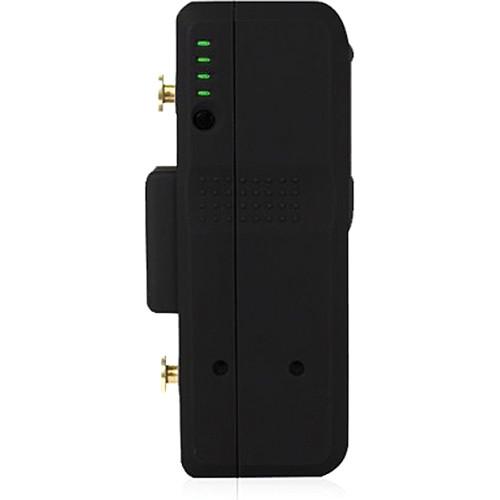

- Intellicom backlit LCD and 4-LED power gauge
- Displays runtime in hours and minutes, capacity as a grid and %, and remaining charge time
- On-board fuel computer refreshes the LCD display every five seconds

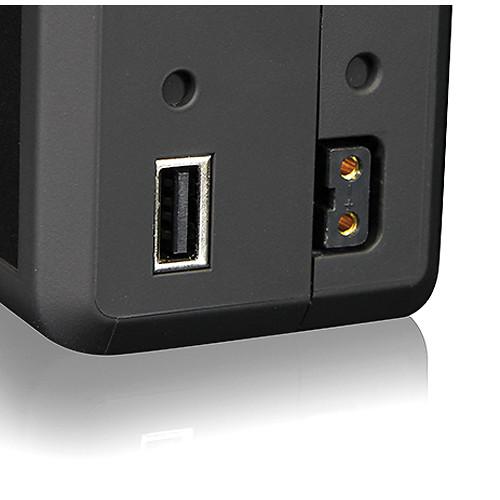

- D-Tap port and USB port
- Non-slip, rubberized housing
UPC: 184323002771 In the Box Core SWX HyperCore 98 Gold Mount Battery Limited 2-Year Warranty Switronix HyperCore Battery: from Military to Prime Time, a 10A Workhorse Ronald Francis 04/20/2015 vwvbwwdbrxcstvxsbxu Table of Contents
|
Upload User Manual
Have you got an user manual for the Core SWX HyperCore 98 Gold Mount Battery in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCore SWX 98 Specs | Mount / Series Type | Gold Mount | | Chemistry | Lithium-Ion | | Capacity (Wh) | 98 Wh | | Amp-Hours | 6.6 Ah | | Output Voltage | 14.8 VDC | | Maximum Load | 10 A | | Accessory Port | 1 x D-Tap
1 x USB Type-A | | Dimensions (W x H x D) | 3.8 x 5.9 x 2.4" / 97.0 x 150.0 x 60.0 mm | | Weight | 2 lb / 0.9 kg | | | | Package Weight | 2.15 lb | | Box Dimensions (LxWxH) | 8.0 x 7.0 x 4.3" |
