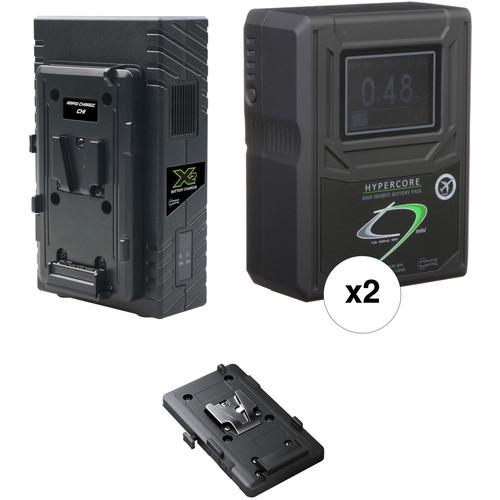

User Manual for Core SWX HyperCore HC9 2-Battery Kit for BMD URSA Mini Cameras with X2S Vertical Charger Click to enlarge the picture
Contents of the user manual for the Core SWX HyperCore HC9 2-Battery Kit
- Product category: On Camera Batteries Core SWX
- Brand: Core SWX
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Core SWX On Camera Batteries
|
User manual for the Core SWX HyperCore HC9 2-Battery Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Core SWX product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Core SWX user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Core SWX product will considerably shorten its lifespan!
|
Product description The Core SWX HyperCore HC9 2-Battery Kit for BMD URSA Mini Cameras with X2S Vertical Charger is an all-inclusive solution for powering your Blackmagic Design URSA Mini or URSA Mini Pro camera. This kit consists of two compact HC9 98Wh V-mount batteries, an X2S vertical charger, and a V-mount plate compatible with URSA mini cameras. The V-mount plate attaches seamlessly to the rear of the URSA Mini. The included X2S vertical charger has two bays to replenish both batteries at 2 amps simultaneously, in around 3.5 hours. If you charge a single battery, a 3-amp charge will be provided, fully charging the battery in around 2.5 hours. Put your batteries on to charge before a shoot, and you'll be ready to roll during production. For more details on the products included in this kit, check out the features below. - Core SWX X2S 2-Bay Vertical V-Mount Battery Charger Charge your V-Mount batteries while on-the-go with the Core SWX X2S 2-Bay Vertical V-Mount Battery Charger. Taking advantage of the same technology built into the larger fleet chargers, this slim charger can charge a single battery at a 3-amp rate or batteries in both bays simultaneously at 2 amps. Since it sits vertically with two batteries mounted, the X2S takes up less space than traditional chargers. With its 4-pin XLR output, the X2S also does double duty as a 90W power supply for cameras, lights, or other equipment that can draw from a 4-pin XLR. UPC: 184323003655
- 2 x Core SWX HyperCore HC9 Mini V-Mount Battery Whether you require low clearance to fit your camera on a gimbal or just don't want the back of your rig to be dominated by a battery, the Core SWX HyperCore HC9 Mini V-Mount Battery can handle 12-amp draws, yet is encased in a small enclosure that matches the form-factor of many popular cinema cameras on the market. This V-mount model communicates using the standard SMBUS protocol (found on most cameras that have a native V-mount), sending battery metrics that can be monitored from the camera itself. In addition to the V-mount power output, the HC9 features D-Tap and USB outputs. The D-Tap output can be used to power a light source, a monitor, recorder, or other part of your rig while you can connect your smartphone or other USB accessory for convenient charging. A 25-watt load on this battery will last approximately 3.5 hours. The LCD battery status display screen on the rear of the battery is backlit, and updates every few seconds to accurately reflect up-to-the-moment statistics, including runtime. UPC: 184323003631
- Blackmagic Design V-Mount Battery Plate for URSA This V-Mount Battery Plate from Blackmagic Design allows you to attach third party V-Mount batteries to your URSA camera. The VLock connects directly to the back of the URSA, avoiding the need for extra cabling.
- Includes a D-Tap port for accessory power
In the Box - X2S 2-Bay Vertical V-Mount Battery Charger rutuuybztubuezde
- Limited 3-Year Warranty
- 2 x HyperCore HC9 Mini V-Mount Battery
- Blackmagic Design - V-Mount Battery Plate for URSA
Table of Contents
|
Upload User Manual
Have you got an user manual for the Core SWX HyperCore HC9 2-Battery Kit for BMD URSA Mini Cameras with X2S Vertical Charger in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Core SWX X2S 2-Bay Vertical V-Mount Battery Charger
| Maximum Charge Current | 1 Bay: 3 A
2 Bays: 2 A (each bay) | | 4-Pin XLR DC Output | 90 W (15 VDC, 6 A) | | Input Voltage | 90-240 VAC, 50/60 Hz | | Dimensions | 4.5 x 7.1 x 3.4" / 11.4 x 18.0 x 8.6 cm | | Weight | 1.9 lb / 0.9 kg | | | | Box Dimensions (LxWxH) | 8.0 x 5.3 x 4.9" | - 2 x Core SWX HyperCore HC9 Mini V-Mount Battery
| Mount / Series Type | V-Mount | | Chemistry | Lithium-Ion | | Capacity (Wh) | 98 Wh | | Amp-Hours | 6.6 Ah | | Output Voltage | 14.8 VDC | | Maximum Load | 12 A | | Accessory Port | 1 x D-Tap
1 x USB Type-A | | Dimensions (W x H x D) | 3.5 x 4.7 x 1.9" / 8.9 x 11.9 x 4.8 cm | | Weight | 1.4 lb / 0.6 kg | | | | Box Dimensions (LxWxH) | 7.1 x 4.45 x 2.7" | - Blackmagic Design V-Mount Battery Plate for URSA
| Connector | 1 x D-Tap, power | | Compatibility | All URSA models | | Dimensions | 5.6 x 3.6 x 0.9" (14.2 x 9.1 x 2.3 cm) | | Weight | 0.6 lb (0.3 kg) | | | | Box Dimensions (LxWxH) | 8.6 x 4.9 x 1.1" |
