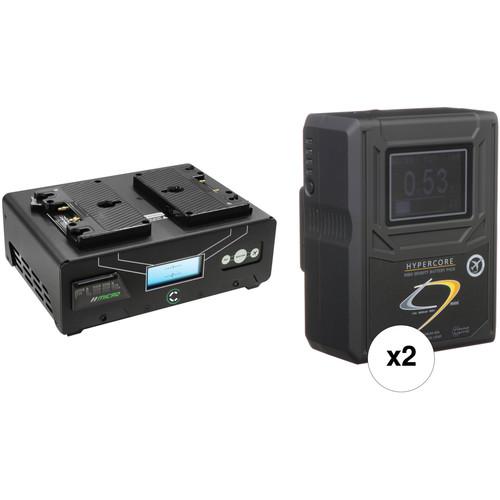

User Manual for Core SWX HyperCore HC9 Mini 2-Battery Kit with Fleet Micro Charger Click to enlarge the picture
Contents of the user manual for the Core SWX HyperCore HC9 Mini 2-Battery
- Product category: On Camera Batteries Core SWX
- Brand: Core SWX
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Core SWX On Camera Batteries
|
User manual for the Core SWX HyperCore HC9 Mini 2-Battery contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Core SWX product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Core SWX user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Core SWX product will considerably shorten its lifespan!
|
Product description Provide power to your portable professional video and cinema equipment with this Core SWX HyperCore HC9 Mini 2-Battery Kit and Fleet Micro Charger from . The HC9 Mini batteries are compact, high-capacity lithium-ion Gold mount batteries, capable of supporting up to 12-amp draws from power-hungry gear. The included Fleet Micro charger has two bays to replenish the HC9 batteries simultaneously, in under 2.5 hours. Put your batteries on to charge before a shoot, and you'll be ready to roll during production. For more details on the products included in this kit, check out the features below. - Core SWX Fleet Micro 3A Digital Dual Charger for Gold Mount Batteries Featuring two independent charge bays, the Core SWX Fleet Micro 3A Digital Quad Charger for Gold Mount Batteries is capable of simultaneously charging two batteries at 3A each. This means that two 98Wh batteries can be charged in approximately 2 hours. The on-board LCD display screen allows you to easily monitor your battery's smart battery data without needing to connect to a computer. The micro-USB connector allows for firmware updates and for connection to a PC.
The built-in Battery Management Test mode allows the charger to determine battery health and recharge performance. Activating the SafeFly mode forces the charger to discharge or charge connected batteries to a 30% charge level to meet air travel and shipping requirements. While plugged into an AC power source the Fleet Micro 3A Dual Charger can either charge batteries or be used as a camera power supply via the built-in 4-pin XLR. In the absence of AC power, you can use the charger to feed the 4-pin XLR from connected batteries providing unregulated power. The housing is made of aluminum, providing for a robust build. - Key Features
-
- Two independent Gold mount charge bays
- Simultaneous charging
- Approximately 2-hour charge time for two 98Wh batteries
- 90-240 VAC worldwide compatible input voltage
- Compatible with batteries from Anton Bauer, and others in addition to CoreSWX
- The four-line LCD display screen enables monitoring battery information from the charger
- Hypercine mode allows you to mount up to two batteries to provide unregulated 12 to 16.8 VDC from the charger's 4-pin XLR, without connecting to an AC power supply
- In Hypercine mode the charger's LCD reports back available capacity as well as remaining runtime
- Aluminum build
- Weighs less than two pounds
UPC: 184323003716 - 2 x Core SWX HyperCore HC9 Mini Gold Mount Battery Whether you require low clearance to fit your camera on a gimbal or just don't want the back of your rig to be dominated by a battery, the Core SWX HyperCore HC9 Mini Gold Mount Battery can handle 12-amp draws, yet is encased in a small enclosure that matches the form-factor of many popular cinema cameras on the market. This Gold mount model is compatible with Anton Bauer equipment, and will charge on Anton Bauer chargers. In addition to the Gold mount power output, the HC9 features D-Tap and USB outputs. The D-Tap output can be used to power a light source, a monitor, recorder, or other part of your rig while you can connect your smartphone or other USB accessory for convenient charging. A 25-watt load on this battery will last approximately 3.5 hours. The LCD battery status display screen on the rear of the battery is backlit, and updates every few seconds to accurately reflect up-to-the-moment statistics, including runtime. UPC: 184323003624
In the Box - Fleet Micro 3A Digital Dual Charger for Gold Mount Batteries tcxruvsarxatcwrqdf
- 4' AC Power Cable
- Limited 3-Year Warranty
- 2 x HyperCore HC9 Mini Gold Mount Battery
Table of Contents
|
Upload User Manual
Have you got an user manual for the Core SWX HyperCore HC9 Mini 2-Battery Kit with Fleet Micro Charger in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Core SWX Fleet Micro 3A Digital Dual Charger for Gold Mount Batteries
| Quick Charge Current | 3 A Simultaneous | | Discharge Current | Up to 2 A per channel | | Power | Input: 90 to 240 VAC, 50/60 Hz
Output: 12 VDC 90 W | | Dimensions | 9.1 x 3.35 x 6.57" / 23.11 x 8.51 x 16.69 cm | | Weight | 1.8 lb / 0.8 kg | | | | Box Dimensions (LxWxH) | 13.05 x 10.45 x 4.2" | - 2 x Core SWX HyperCore HC9 Mini Gold Mount Battery
| Mount / Series Type | Gold Mount | | Chemistry | Lithium-Ion | | Capacity (Wh) | 98 Wh | | Amp-Hours | 6.6 Ah | | Output Voltage | 14.8 VDC | | Maximum Load | 12 A | | Accessory Port | 1 x D-Tap
1 x USB Type-A | | Dimensions (W x H x D) | 3.5 x 4.7 x 1.9" / 8.9 x 11.9 x 4.8 cm | | Weight | 1.4 lb / 0.6 kg | | | | Box Dimensions (LxWxH) | 7.1 x 4.45 x 2.6" |
