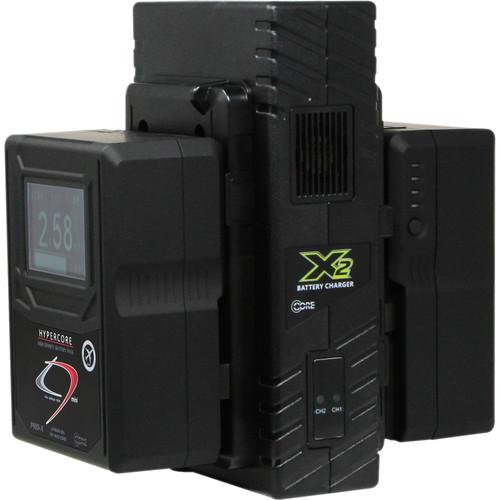

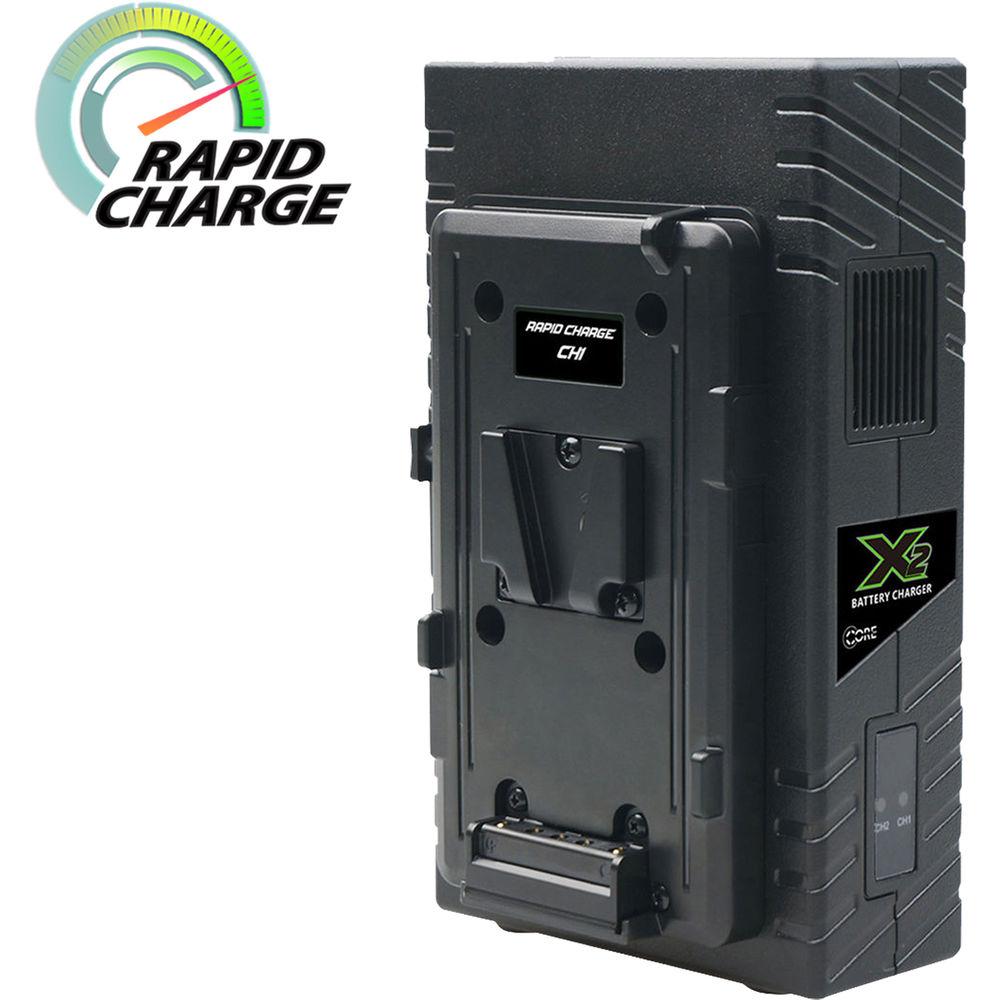

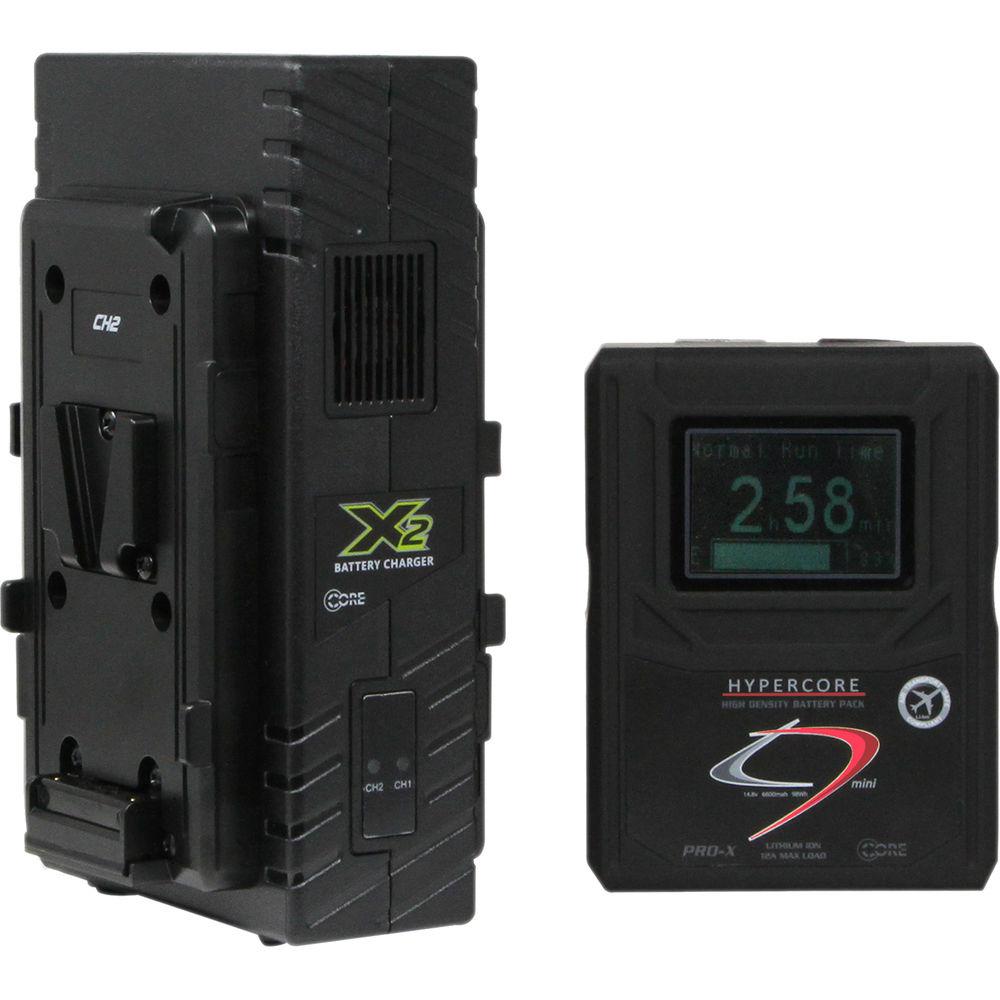

Product description Provide power to your portable professional video and cinema equipment with this Core SWX HyperCore HC9 Mini 2-Battery Kit with X2S Vertical Charger from . The HyperCore HC9 Mini batteries are compact, high-capacity lithium-ion V-mount batteries, capable of supporting up to 12-amp draws from power-hungry gear. These V-mount batteries can communicate with RED cameras, providing real-time power information that can be viewed in the camera's viewfinder or monitor. The included X2S vertical charger has two bays to replenish both batteries at 2 amps simultaneously, in around 3.5 hours. If you charge a single battery, a 3-amp charge will be provided, fully charging the battery in around 2.5 hours. Put your batteries on to charge before a shoot, and you'll be ready to roll during production. For more details on the products included in this kit, check out the features below. - Core SWX X2S 2-Bay Vertical V-Mount Battery Charger Charge your V-Mount batteries while on-the-go with the Core SWX X2S 2-Bay Vertical V-Mount Battery Charger. Taking advantage of the same technology built into the larger fleet chargers, this slim charger can charge a single battery at a 3-amp rate or batteries in both bays simultaneously at 2 amps. Since it sits vertically with two batteries mounted, the X2S takes up less space than traditional chargers. With its 4-pin XLR output, the X2S also does double duty as a 90W power supply for cameras, lights, or other equipment that can draw from a 4-pin XLR. UPC: 184323003655

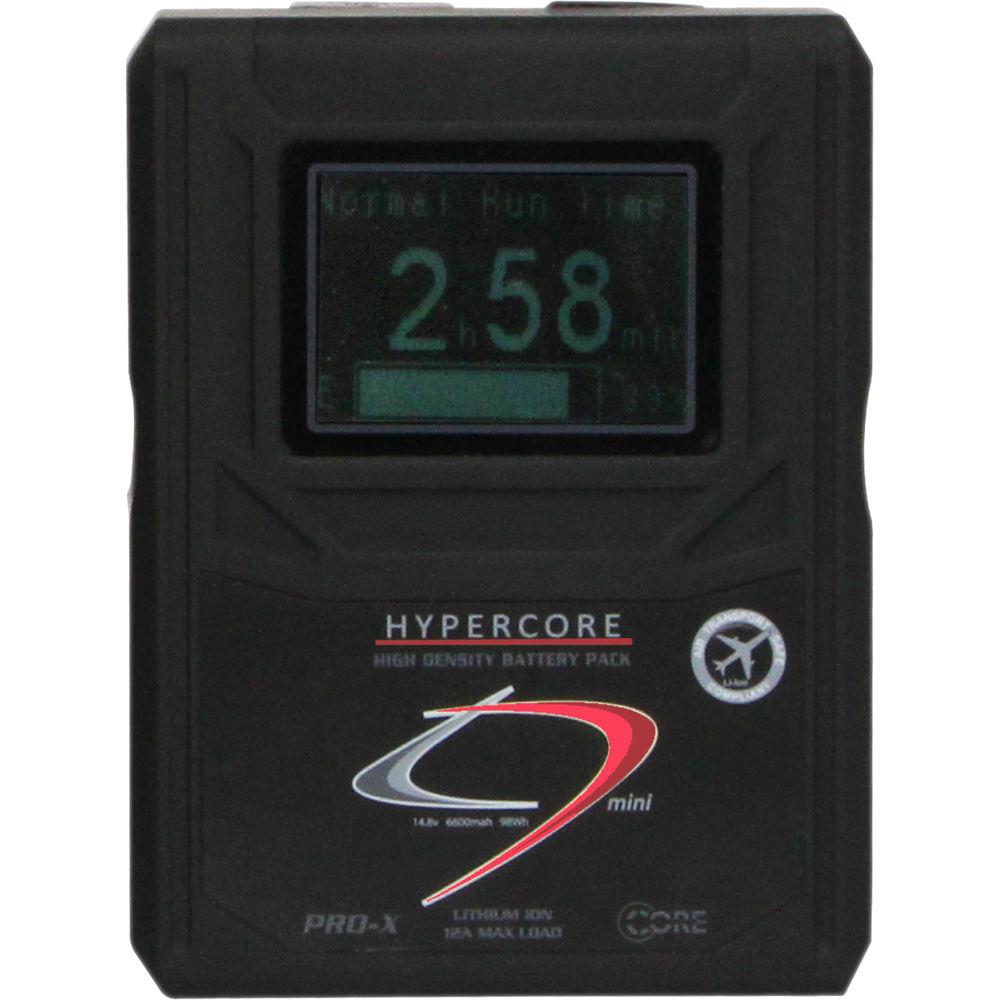

- 2 x Core SWX HyperCore HC9 Mini V-Mount Battery Whether you require low clearance to fit your camera on a gimbal or just don't want the back of your rig to be dominated by a battery, the Core SWX HyperCore HC9 Mini V-Mount Battery can handle 12-amp draws, yet is encased in a small enclosure that matches the form-factor of many popular cinema cameras on the market. This V-mount model is desiged to communicate with RED DSMC and DSMC2 cameras, as they use a different protocol than standard V-mount-equipped cameras. In addition to the V-mount power output, the HC9 features D-Tap and USB outputs. The D-Tap output can be used to power a light source, a monitor, recorder, or other part of your rig while you can connect your smartphone or other USB accessory for convenient charging. A 25-watt load on this battery will last approximately 3.5 hours. The LCD battery status display screen on the rear of the battery is backlit, and updates every few seconds to accurately reflect up-to-the-moment statistics, including runtime. UPC: 184323003648
In the Box - X2S 2-Bay Vertical V-Mount Battery Charger xdrsqdqyeudqcbuqrcyayuv
- Limited 3-Year Warranty
- 2 x HyperCore HC9 Mini V-Mount Battery
Table of Contents
|
Upload User Manual
Have you got an user manual for the Core SWX HyperCore HC9 Mini 2-Battery Kit with X2S Vertical Charger in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Core SWX X2S 2-Bay Vertical V-Mount Battery Charger
| Maximum Charge Current | 1 Bay: 3 A
2 Bays: 2 A (each bay) | | 4-Pin XLR DC Output | 90 W (15 VDC, 6 A) | | Input Voltage | 90-240 VAC, 50/60 Hz | | Dimensions | 4.5 x 7.1 x 3.4" / 11.4 x 18.0 x 8.6 cm | | Weight | 1.9 lb / 0.9 kg | | | | Box Dimensions (LxWxH) | 8.0 x 5.3 x 4.9" | - 2 x Core SWX HyperCore HC9 Mini V-Mount Battery
| Mount / Series Type | V-Mount | | Chemistry | Lithium-Ion | | Capacity (Wh) | 98 Wh | | Amp-Hours | 6.6 Ah | | Output Voltage | 14.8 VDC | | Maximum Load | 12 A | | Accessory Port | 1 x D-Tap
1 x USB Type-A | | Dimensions (W x H x D) | 3.5 x 4.7 x 1.9" / 8.9 x 11.9 x 4.8 cm | | Weight | 1.4 lb / 0.6 kg | | | | Box Dimensions (LxWxH) | 7.1 x 4.4 x 2.7" |
