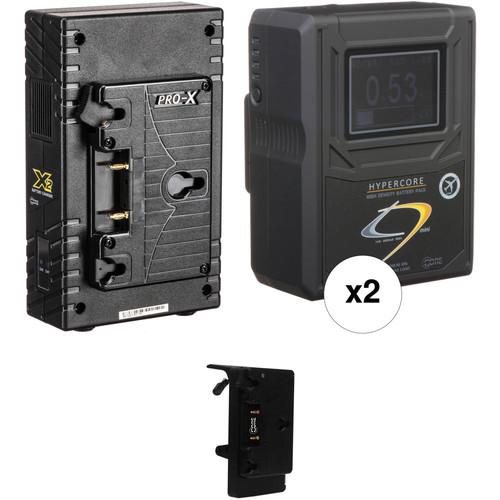

User Manual for Core SWX HyperCore HC9 Mini Two-Battery Kit for Sony FS7 with X2A Vertical Charger Click to enlarge the picture
Contents of the user manual for the Core SWX HyperCore HC9 Mini Two-Battery
- Product category: On Camera Batteries Core SWX
- Brand: Core SWX
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Core SWX On Camera Batteries
|
User manual for the Core SWX HyperCore HC9 Mini Two-Battery contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Core SWX product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Core SWX user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Core SWX product will considerably shorten its lifespan!
|
Product description Shooting on location? The Core SWX HyperCore HC9 Mini Two-Battery Kit for FS7 with X2A Vertical Charger will have your rig powered up for those long shooting days. Two 98 Wh HyperCore batteries offer high capacity and up to 12-amp continuous draws for power-hungry camera gear while maintaining a low-profile form-factor. Fit one of the batteries to the FS7 plate, and power will be provided directly to the camera, while accessories can be powered via the integrated D-Tap output. The included X2A vertical charger has two bays to replenish both batteries at 2 amps simultaneously, in around 3.5 hours. If you charge a single battery, a 3-amp charge will be provided, fully charging the battery in around 2 hours. Put your batteries on to charge before a shoot, and you'll be ready to roll during production. For more details on the products included in this kit, check out the features below. - Core SWX GP-A-FS7 Gold Mount Adapter Plate for Sony FS7 Camera The GP-A-FS7 Gold Mount Adapter Plate from Core SWX is a power connection option for your Sony FS7 camera. It provides a secure platform for mounting Gold Mount batteries directly to the back of your FS7, as an alternative to the XDCA-FS7 extension unit. A 4-pin XLR is provided as a secondary power option, and two D-Tap ports offer additional power outputs.
- Two D-Tap outputs (for monitors, lights, etc.)
- One 4-pin XLR power input
UPC: 184323002856 - Core SWX X2A 2-Bay Vertical Gold Mount Battery Charger Charge your Gold Mount batteries while on-the-go with the Core SWX X2A 2-Bay Vertical Gold Mount Battery Charger. Taking advantage of the same technology built into the larger fleet chargers, this slim charger can charge a single battery at a 3-amp rate or batteries in both bays simultaneously at 2 amps. Since it sits vertically with two batteries mounted, the X2A takes up less space than traditional chargers. With its 4-pin XLR output, the X2A also does double duty as a 90W power supply for cameras, lights, or other equipment that can draw from a 4-pin XLR. UPC: 184323003662
- 2 x Core SWX HyperCore HC9 Mini Gold Mount Battery Whether you require low clearance to fit your camera on a gimbal or just don't want the back of your rig to be dominated by a battery, the Core SWX HyperCore HC9 Mini Gold Mount Battery can handle 12-amp draws, yet is encased in a small enclosure that matches the form-factor of many popular cinema cameras on the market. This Gold mount model is compatible with Anton Bauer equipment, and will charge on Anton Bauer chargers. In addition to the Gold mount power output, the HC9 features D-Tap and USB outputs. The D-Tap output can be used to power a light source, a monitor, recorder, or other part of your rig while you can connect your smartphone or other USB accessory for convenient charging. A 25-watt load on this battery will last approximately 3.5 hours. The LCD battery status display screen on the rear of the battery is backlit, and updates every few seconds to accurately reflect up-to-the-moment statistics, including runtime. UPC: 184323003624
In the Box - GP-A-FS7 Gold Mount Adapter Plate for Sony FS7 Camera ezcqftqvywvyervaxarvfsrxqqzfdzdrtzb
- Limited 1-Year Warranty
- X2A 2-Bay Vertical Gold Mount Battery Charger
- 2 x HyperCore HC9 Mini Gold Mount Battery
Table of Contents
|
Upload User Manual
Have you got an user manual for the Core SWX HyperCore HC9 Mini Two-Battery Kit for Sony FS7 with X2A Vertical Charger in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Core SWX GP-A-FS7 Gold Mount Adapter Plate for Sony FS7 Camera
| Power Input | 11 to 17 VDC | | Power Output | 11 to 17 VDC; unregulated output for D-Tap | | Connectors | 4-pin XLR input
2 x D-Tap output | | Dimensions | 3.3 x 5.5 x 3.5" (8.3 x 13.9 x 8.9 cm) | | Weight | 1.6 lb (725.7 g) | | | | Box Dimensions (LxWxH) | 6.05 x 5.6 x 3.45" | - Core SWX X2A 2-Bay Vertical Gold Mount Battery Charger
| Maximum Charge Current | 1 Bay: 3 A
2 Bays: 2 A (each bay) | | 4-Pin XLR DC Output | 90 W (15 VDC, 6 A) | | Input Voltage | 90-240 VAC, 50/60 Hz | | Dimensions | 4.5 x 7.1 x 3.4" / 11.4 x 18.0 x 8.6 cm | | Weight | 1.9 lb / 0.9 kg | | | | Box Dimensions (LxWxH) | 8.0 x 5.4 x 4.9" | - 2 x Core SWX HyperCore HC9 Mini Gold Mount Battery
| Mount / Series Type | Gold Mount | | Chemistry | Lithium-Ion | | Capacity (Wh) | 98 Wh | | Amp-Hours | 6.6 Ah | | Output Voltage | 14.8 VDC | | Maximum Load | 12 A | | Accessory Port | 1 x D-Tap
1 x USB Type-A | | Dimensions (W x H x D) | 3.5 x 4.7 x 1.9" / 8.9 x 11.9 x 4.8 cm | | Weight | 1.4 lb / 0.6 kg | | | | Box Dimensions (LxWxH) | 7.1 x 4.45 x 2.6" |
