Core SWX HyperCore Prime 2-Battery Kit

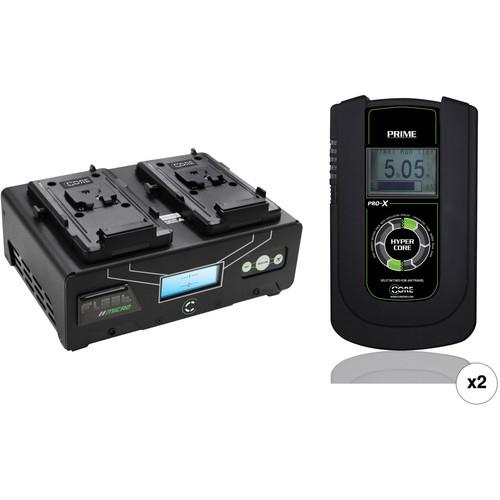

User Manual for Core SWX HyperCore Prime 2-Battery Kit with Fleet Micro Charger

• Product category: On Camera Batteries Core SWX
• Brand: Core SWX
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Core SWX On Camera Batteries

Product description

• Core SWX Fleet Micro 3A Digital Dual Charger for V-Mount Batteries Featuring two independent charge bays, the Core SWX Fleet Micro 3A Digital Quad Charger for V-Mount Batteries is capable of simultaneously charging two batteries at 3A each. This means that two 98Wh batteries can be charged in approximately 2 hours. The on-board LCD display screen allows you to easily monitor your battery's smart battery data without needing to connect to a computer. The micro-USB connector allows for firmware updates and for connection to a PC.

  The built-in Battery Management Test mode allows the charger to determine battery health and recharge performance. Activating the SafeFly mode forces the charger to discharge or charge connected batteries to a 30% charge level to meet air travel and shipping requirements. While plugged into an AC power source the Fleet Micro 3A Dual Charger can either charge batteries or be used as a camera power supply via the built-in 4-pin XLR. In the absence of AC power, you can use the charger to feed the 4-pin XLR from connected batteries providing unregulated power. The housing is made of aluminum, providing for a robust build.
  Key Features
  • • Two independent V-mount charge bays
    • Simultaneous charging
    • Approximately 2-hour charge time for two 98Wh batteries
    • 90-240 VAC worldwide compatible input voltage
    • Compatible with batteries from RED, Anton Bauer, and others in addition to CoreSWX
    • The four-line LCD display screen enables monitoring battery information from the charger
    • Hypercine mode allows you to mount up to two batteries to provide unregulated 12 to 16.8 VDC from the charger's 4-pin XLR, without connecting to an AC power supply
    • In Hypercine mode the charger's LCD reports back available capacity as well as remaining runtime
    • Aluminum build
    • Weighs less than two pounds
  UPC: 184323003709
• 2 x Core SWX HyperCore Prime 190Wh V-Mount Li-Ion Battery Pack The HyperCore Prime 190Wh V-Mount Li-Ion Battery Pack from Core SWX employs a 2-part system to provide a charge capacity of 190 Wh (14.8 V, 13.5 Ah). The battery pack complies with IATA, ICAO, and UN regulations for air transportation without restrictions. It can sustain large power draws to easily handle digital cinema cameras, like ARRI Alexa, Amira, Epic, Sony F65, and Phantom. The battery pack has an integrated D-tap connection on the side, allowing you to power any 12 VDC device from this port. It features an additional USB output that can be used to charge your mobile device. It also features a large backlit runtime LCD and an LED grid on the front that provide the charging status of the battery. Four of the HyperCore Prime batteries can be installed on the HyperCine Block Battery (available separately) providing a total charge capacity of up to 760Wh. Apart from being compatible with the Switronix charger lineup, this V-mount battery can also charge on the IDX, Sony, and RED chargers. UPC: 184323003013

• Fleet Micro 3A Digital Dual Charger for V-Mount Batteries
• 4' AC Power Cable
• Limited 3-Year Warranty

• 2 x HyperCore Prime 190Wh V-Mount Li-Ion Battery Pack

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Core SWX Fleet Micro 3A Digital Dual Charger for V-Mount Batteries

  Quick Charge Current	3 A Simultaneous
  Discharge Current	Up to 2 A per channel
  Power	Input: 90 to 240 VAC, 50/60 Hz Output: 12 VDC 90 W
  Dimensions	9.1 x 3.35 x 6.57" / 23.11 x 8.51 x 16.69 cm
  Weight	1.8 lb / 0.8 kg

  Box Dimensions (LxWxH)	13.2 x 10.4 x 4.3"

• 2 x Core SWX HyperCore Prime 190Wh V-Mount Li-Ion Battery Pack

  Mount / Series Type	V-Mount
  Chemistry	Lithium-Ion
  Capacity (Wh)	190 Wh
  Capacity per Section (Wh)	95 Wh
  Amp-Hours	13.5 Ah
  Output Voltage	14.8 VDC
  Maximum Load	10 A
  Dimensions (W x H x D)	3.8 x 6.6 x 2.4" / 97.0 x 168.0 x 61.0 mm
  Weight	2.6 lb / 1.2 kg

  Box Dimensions (LxWxH)	8.1 x 6.95 x 4.35"
