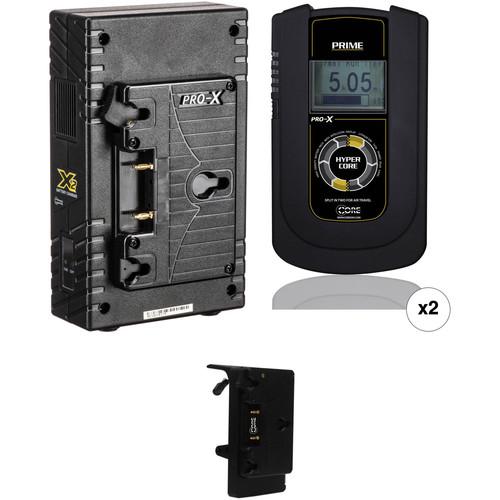

User Manual for Core SWX HyperCore Prime Two-Battery Kit for Sony FS7 with X2A Vertical Charger Click to enlarge the picture
Contents of the user manual for the Core SWX HyperCore Prime Two-Battery Kit
- Product category: On Camera Batteries Core SWX
- Brand: Core SWX
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Core SWX On Camera Batteries
|
User manual for the Core SWX HyperCore Prime Two-Battery Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Core SWX product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Core SWX user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Core SWX product will considerably shorten its lifespan!
|
Product description Shooting on location? The Core SWX HyperCore Prime Two-Battery Kit for FS7 with X2A Vertical Charger will have your rig powered up for those long shooting days. Two 190 Wh HyperCore Prime batteries offer high capacity and up to 10-amp continuous draws for power-hungry camera gear. Fit one of the batteries to the FS7 plate, and power will be provided directly to the camera, while accessories can be powered via the integrated D-Tap output. By implementing a 2-part design, these batteries can comply with certain travel restrictions by splitting into two 95 watt-hour packs. The included X2A vertical charger has two bays to replenish both batteries at 2 amps simultaneously, in around 6.5 hours. If you charge a single battery, a 3-amp charge will be provided, fully charging the battery in around 5 hours. Put your batteries on to charge before a shoot, and you'll be ready to roll during production. For more details on the products included in this kit, check out the features below. - Core SWX GP-A-FS7 Gold Mount Adapter Plate for Sony FS7 Camera The GP-A-FS7 Gold Mount Adapter Plate from Core SWX is a power connection option for your Sony FS7 camera. It provides a secure platform for mounting Gold Mount batteries directly to the back of your FS7, as an alternative to the XDCA-FS7 extension unit. A 4-pin XLR is provided as a secondary power option, and two D-Tap ports offer additional power outputs.
- Two D-Tap outputs (for monitors, lights, etc.)
- One 4-pin XLR power input
UPC: 184323002856 - Core SWX X2A 2-Bay Vertical Gold Mount Battery Charger Charge your Gold Mount batteries while on-the-go with the Core SWX X2A 2-Bay Vertical Gold Mount Battery Charger. Taking advantage of the same technology built into the larger fleet chargers, this slim charger can charge a single battery at a 3-amp rate or batteries in both bays simultaneously at 2 amps. Since it sits vertically with two batteries mounted, the X2A takes up less space than traditional chargers. With its 4-pin XLR output, the X2A also does double duty as a 90W power supply for cameras, lights, or other equipment that can draw from a 4-pin XLR. UPC: 184323003662
- 2 x Core SWX HyperCore Prime 190Wh Gold Mount Li-Ion Battery Pack The HyperCore Prime 190Wh Gold Mount Li-Ion Battery Pack from Core SWX employs a 2-part system to provide a charge capacity of 190 Wh (14.8 V, 13.5 Ah). The battery pack complies with IATA, ICAO, and UN regulations for air transportation without restrictions. It can sustain large power draws to easily handle digital cinema cameras, like ARRI Alexa, Amira, Epic, Sony F65, and Phantom. The battery pack has an integrated D-tap connection on the side, allowing you to power any 12 VDC device from this port. It features an additional USB output that can be used to charge your mobile device. It also features a large backlit runtime LCD and an LED grid on the front that provide the charging status of the battery. Four of the HyperCore Prime batteries can be installed on the HyperCine Block Battery (available separately) providing a total charge capacity of up to 760Wh. This Gold mount battery is compatible with the Anton/Bauer (firmware V3.6 and up) chargers, including the Switronix charger lineup. UPC: 184323003020
In the Box - GP-A-FS7 Gold Mount Adapter Plate for Sony FS7 Camera sztvrxuyebtd
- Limited 1-Year Warranty
- X2A 2-Bay Vertical Gold Mount Battery Charger
- 2 x HyperCore Prime 190Wh Gold Mount Li-Ion Battery Pack
Table of Contents
|
Upload User Manual
Have you got an user manual for the Core SWX HyperCore Prime Two-Battery Kit for Sony FS7 with X2A Vertical Charger in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Core SWX GP-A-FS7 Gold Mount Adapter Plate for Sony FS7 Camera
| Power Input | 11 to 17 VDC | | Power Output | 11 to 17 VDC; unregulated output for D-Tap | | Connectors | 4-pin XLR input
2 x D-Tap output | | Dimensions | 3.3 x 5.5 x 3.5" (8.3 x 13.9 x 8.9 cm) | | Weight | 1.6 lb (725.7 g) | | | | Box Dimensions (LxWxH) | 6.05 x 5.6 x 3.45" | - Core SWX X2A 2-Bay Vertical Gold Mount Battery Charger
| Maximum Charge Current | 1 Bay: 3 A
2 Bays: 2 A (each bay) | | 4-Pin XLR DC Output | 90 W (15 VDC, 6 A) | | Input Voltage | 90-240 VAC, 50/60 Hz | | Dimensions | 4.5 x 7.1 x 3.4" / 11.4 x 18.0 x 8.6 cm | | Weight | 1.9 lb / 0.9 kg | | | | Box Dimensions (LxWxH) | 8.0 x 5.4 x 4.9" | - 2 x Core SWX HyperCore Prime 190Wh Gold Mount Li-Ion Battery Pack
| Mount / Series Type | Gold Mount | | Chemistry | Lithium-Ion | | Capacity (Wh) | 190 Wh | | Capacity per Section (Wh) | 95 Wh | | Amp-Hours | 13.5 Ah | | Output Voltage | 14.8 VDC | | Maximum Load | 10 A | | Dimensions (W x H x D) | 3.8 x 6.6 x 2.4" / 97.0 x 168.0 x 61.0 mm | | Weight | 2.6 lb / 1.2 kg | | | | Box Dimensions (LxWxH) | 8.1 x 6.95 x 4.35" |
