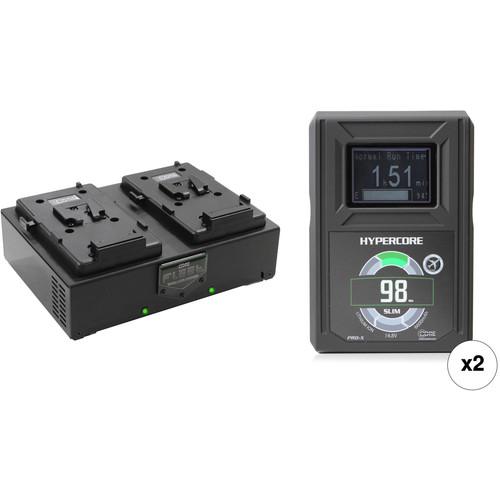

User Manual for Core SWX HyperCore Slim 98 2-Battery Kit with Fleet D Charger

• Product category: On Camera Batteries Core SWX
• Brand: Core SWX
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Core SWX On Camera Batteries

Product description

• 2 x Core SWX Hypercore Slim V-Mount Battery The Core SWX Hypercore Slim V-Mount Battery is a professional battery designed for modern production workflows involving a wide range of equipment. The slim design means the battery takes up less horizontal space than previous-generation models to better fit gimbal stabilizers and other rigs where space is at a premium. Though the design is less space-consuming, the Hypercore Slim provides the same 98Wh capacity as its predecessors. For power-hungry cinema cameras and lights, the 12-amp maximum continuous draw will keep your equipment powered. In addition to the V-mount power output, the Hypercore Slim features D-Tap and USB outputs. The D-Tap output can be used to power a light source, a monitor, recorder, or other part of your rig while you can connect your smartphone or other USB accessory for convenient charging. A 25-watt load on this battery will last approximately 3.5 hours. The LCD battery status display screen on the rear of the battery is backlit with a cool white illumination, and updates every few seconds to accurately reflect up-to-the-moment statistics, including runtime. The battery itself is housed in Core SWX's classic over molded casing with a rubberized finish that is resistant to impact and is easily grippable. UPC: 184323003808
• Core SWX Fleet D V-Mount 2-Bay Charger Featuring two independent charge bays, the Core SWX Fleet D V-Mount 2-Bay Charger is capable of charging two batteries simultaneously. Two 98Wh batteries can be charged in approximately 2.5 hours for quick turnaround times. Easy-to-read red and green LEDs indicate charging and battery status. Supporting 90-240 VAC input voltage, Fleet Q is worldwide compatible if you incorporate the appropriate plug adapter, sold separately. A carry-handle is recessed into the aluminum chassis for convenient transport.
  Quick Features
  • • Two independent V-mount charge bays
    • Simultaneous charging
    • Approximately 2.5-hour charge time
    • Red and green status LEDs
    • 90-240 VAC worldwide compatible input voltage
    • Aluminum build
    • Recessed carry handle
  UPC: 184323003402

• 2 x Hypercore Slim V-Mount Battery atbdttvwybecfrxsqztcfyryzxuabrtwc
• Limited 1-Year Warranty

• Fleet D V-Mount 2-Bay Charger

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 2 x Core SWX Hypercore Slim V-Mount Battery

  Mount / Series Type	V-Mount
  Chemistry	Lithium-Ion
  Capacity (Wh)	98 Wh
  Amp-Hours	12 Ah
  Output Voltage	14.8 VDC
  Maximum Load	12 A (Peak)
  Accessory Port	1 x D-Tap 1 x USB Type-A
  Dimensions (W x H x D)	3.8 x 5.9 x 1.5" / 9.7 x 15.0 x 3.8 cm
  Weight	1.4 lb / 0.6 kg

  Box Dimensions (LxWxH)	8.25 x 7.05 x 2.85"

• Core SWX Fleet D V-Mount 2-Bay Charger

  Number of Bays	2 x V-mount
  Charge Current	3 A
  Input Voltage	90-240 VAC, 50/60 Hz
  Material	Aluminum
  Dimensions	8.9 x 3 x 6.2" / 22.6 x 7.6 x 15.7 cm
  Weight	1.6 lb / 0.7 kg

  Box Dimensions (LxWxH)	13.2 x 10.35 x 4.15"
