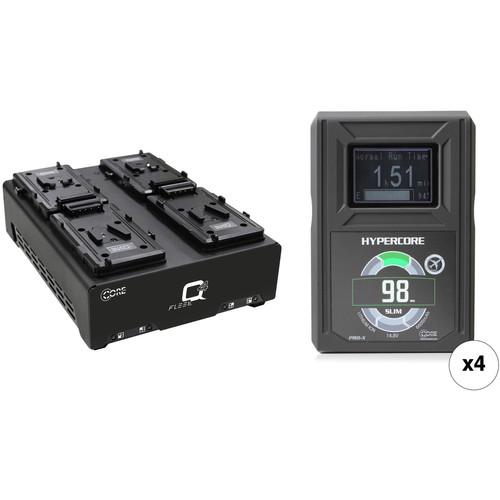

User Manual for Core SWX HyperCore Slim 98 4-Battery Kit with Fleet Q Charger Click to enlarge the picture
Contents of the user manual for the Core SWX HyperCore Slim 98 4-Battery
- Product category: On Camera Batteries Core SWX
- Brand: Core SWX
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Core SWX On Camera Batteries
|
User manual for the Core SWX HyperCore Slim 98 4-Battery contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Core SWX product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Core SWX user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Core SWX product will considerably shorten its lifespan!
|
Product description Provide power to your portable professional video and cinema equipment with this Core SWX HyperCore Slim 98 4-Battery Kit and Fleet Q Charger from . The four HyperCore Slim 98 batteries are compact, high-capacity lithium-ion V-Mount batteries, capable of supporting up to 12-amp draws from power-hungry gear. The included Fleet Q charger has four bays to replenish the four batteries simultaneously, in under 2.5 hours. Put all four batteries on to charge before a shoot, and you'll be ready to roll during production. For more details on the products included in this kit, check out the features below. - 4 x Core SWX Hypercore Slim V-Mount Battery The Core SWX Hypercore Slim V-Mount Battery is a professional battery designed for modern production workflows involving a wide range of equipment. The slim design means the battery takes up less horizontal space than previous-generation models to better fit gimbal stabilizers and other rigs where space is at a premium. Though the design is less space-consuming, the Hypercore Slim provides the same 98Wh capacity as its predecessors. For power-hungry cinema cameras and lights, the 12-amp maximum continuous draw will keep your equipment powered. In addition to the V-mount power output, the Hypercore Slim features D-Tap and USB outputs. The D-Tap output can be used to power a light source, a monitor, recorder, or other part of your rig while you can connect your smartphone or other USB accessory for convenient charging. A 25-watt load on this battery will last approximately 3.5 hours. The LCD battery status display screen on the rear of the battery is backlit with a cool white illumination, and updates every few seconds to accurately reflect up-to-the-moment statistics, including runtime. The battery itself is housed in Core SWX's classic over molded casing with a rubberized finish that is resistant to impact and is easily grippable. UPC: 184323003808
- Core SWX Fleet Q V-Mount Four-Position Charger Featuring four independent charge bays, the Core SWX Fleet Q V-Mount Charger is capable of charging four batteries simultaneously by focusing on each individually. Four 98Wh batteries can be charged in approximately 2.5 hours. Red and green LEDs indicate charging/complete status. Supporting 90-240 VAC input voltage, Fleet Q is worldwide compatible if you incorporate the appropriate plug adapter, sold separately.
Weighing five pounds and measuring approximately four inches thick, Fleet Q is relatively lightweight and slim for a four-battery charger. It also features a recessed carry handle that makes transport convenient. The housing is made of aluminum, providing for a robust build. - Key Features
-
- Four independent V-Mount charge bays
- Simultaneous charging
- Approximately 2.5 hour charge time for four 98Wh batteries
- Red and green status LEDs
- 90-240 VAC worldwide compatible input voltage
- Aluminum build
- Weighs 5 lb
- Approximately 4" thick
- Recessed carry handle
UPC: 184323002900 In the Box - 4 x Hypercore Slim V-Mount Battery
- Limited 1-Year Warranty
- Fleet Q V-Mount Four-Position Charger
Table of Contents
|
Upload User Manual
Have you got an user manual for the Core SWX HyperCore Slim 98 4-Battery Kit with Fleet Q Charger in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 4 x Core SWX Hypercore Slim V-Mount Battery
| Mount / Series Type | V-Mount | | Chemistry | Lithium-Ion | | Capacity (Wh) | 98 Wh | | Amp-Hours | 12 Ah | | Output Voltage | 14.8 VDC | | Maximum Load | 12 A (Peak) | | Accessory Port | 1 x D-Tap
1 x USB Type-A | | Dimensions (W x H x D) | 3.8 x 5.9 x 1.5" / 9.7 x 15.0 x 3.8 cm | | Weight | 1.4 lb / 0.6 kg | | | | Box Dimensions (LxWxH) | 8.25 x 7.05 x 2.85" | - Core SWX Fleet Q V-Mount Four-Position Charger
| Number of Bays | 4 x V-Mount | | Charging Type | Simultaneous | | Charge Current | 3 A | | Input Voltage | 90-240 VAC, 50/60 Hz | | Material | Aluminum | | Dimensions | 8.9 x 3.4 x 12.4" (22.6 x 8.6 x 31.5) | | Weight | 5 lb (2.3 kg) | | | | Box Dimensions (LxWxH) | 17.3 x 12.6 x 4.35" |
