Core SWX HyperCore Slim 98 Two-Battery

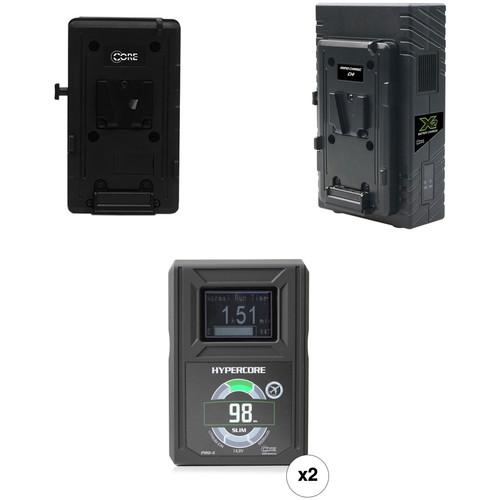

User Manual for Core SWX HyperCore Slim 98 Two-Battery Kit for Sony FS7 with X2S Vertical Charger

• Product category: On Camera Batteries Core SWX
• Brand: Core SWX
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Core SWX On Camera Batteries

Product description

• Core SWX GP-S-FS7 V-Mount Adapter Plate for Sony FS7 Camera The GP-S-FS7 V-Mount Adapter Plate from Core SWX is a power connection option for your Sony FS7 camera. It provides a secure platform for mounting V-Mount batteries directly to the back of your FS7, as an alternative to the XDCA-FS7 extension unit. A 4-pin XLR is provided as a secondary power option, and two D-Tap ports offer additional power outputs.
  • Two D-Tap outputs (for monitors, lights, etc.)
  • One 4-pin XLR power input
  UPC: 184323002863
• Core SWX X2S 2-Bay Vertical V-Mount Battery Charger Charge your V-Mount batteries while on-the-go with the Core SWX X2S 2-Bay Vertical V-Mount Battery Charger. Taking advantage of the same technology built into the larger fleet chargers, this slim charger can charge a single battery at a 3-amp rate or batteries in both bays simultaneously at 2 amps. Since it sits vertically with two batteries mounted, the X2S takes up less space than traditional chargers. With its 4-pin XLR output, the X2S also does double duty as a 90W power supply for cameras, lights, or other equipment that can draw from a 4-pin XLR. UPC: 184323003655
• 2 x Core SWX Hypercore Slim V-Mount Battery The Core SWX Hypercore Slim V-Mount Battery is a professional battery designed for modern production workflows involving a wide range of equipment. The slim design means the battery takes up less horizontal space than previous-generation models to better fit gimbal stabilizers and other rigs where space is at a premium. Though the design is less space-consuming, the Hypercore Slim provides the same 98Wh capacity as its predecessors. For power-hungry cinema cameras and lights, the 12-amp maximum continuous draw will keep your equipment powered. In addition to the V-mount power output, the Hypercore Slim features D-Tap and USB outputs. The D-Tap output can be used to power a light source, a monitor, recorder, or other part of your rig while you can connect your smartphone or other USB accessory for convenient charging. A 25-watt load on this battery will last approximately 3.5 hours. The LCD battery status display screen on the rear of the battery is backlit with a cool white illumination, and updates every few seconds to accurately reflect up-to-the-moment statistics, including runtime. The battery itself is housed in Core SWX's classic over molded casing with a rubberized finish that is resistant to impact and is easily grippable. UPC: 184323003808

• GP-S-FS7 V-Mount Adapter Plate for Sony FS7 Camera sztvrxuyebtd
• Limited 1-Year Warranty

• X2S 2-Bay Vertical V-Mount Battery Charger

• 2 x Hypercore Slim V-Mount Battery

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Core SWX GP-S-FS7 V-Mount Adapter Plate for Sony FS7 Camera

  Power Input	11 to 17 VDC
  Power Output	11 to 17 VDC; unregulated output for D-Tap
  Connectors	4-pin XLR input 2 x D-Tap output
  Dimensions	3.3 x 5.5 x 3.5" (8.3 x 13.9 x 8.9 cm)
  Weight	1.6 lb (725.7 g)

  Box Dimensions (LxWxH)	6.3 x 5.6 x 3.6"

• Core SWX X2S 2-Bay Vertical V-Mount Battery Charger

  Maximum Charge Current	1 Bay: 3 A 2 Bays: 2 A (each bay)
  4-Pin XLR DC Output	90 W (15 VDC, 6 A)
  Input Voltage	90-240 VAC, 50/60 Hz
  Dimensions	4.5 x 7.1 x 3.4" / 11.4 x 18.0 x 8.6 cm
  Weight	1.9 lb / 0.9 kg

  Box Dimensions (LxWxH)	8.0 x 5.3 x 4.9"

• 2 x Core SWX Hypercore Slim V-Mount Battery

  Mount / Series Type	V-Mount
  Chemistry	Lithium-Ion
  Capacity (Wh)	98 Wh
  Amp-Hours	12 Ah
  Output Voltage	14.8 VDC
  Maximum Load	12 A (Peak)
  Accessory Port	1 x D-Tap 1 x USB Type-A
  Dimensions (W x H x D)	3.8 x 5.9 x 1.5" / 9.7 x 15.0 x 3.8 cm
  Weight	1.4 lb / 0.6 kg

  Box Dimensions (LxWxH)	8.25 x 7.05 x 2.85"
