User Manual for Core SWX JetPack V-Mount Power Adapter Plate for Blackmagic Camera Click to enlarge the picture
Contents of the user manual for the Core SWX JetPack V-Mount Power Adapter
- Product category: Battery Mounting Plates Core SWX
- Brand: Core SWX
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Core SWX Battery Mounting Plates
|
User manual for the Core SWX JetPack V-Mount Power Adapter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Core SWX product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Core SWX user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Core SWX product will considerably shorten its lifespan!
|

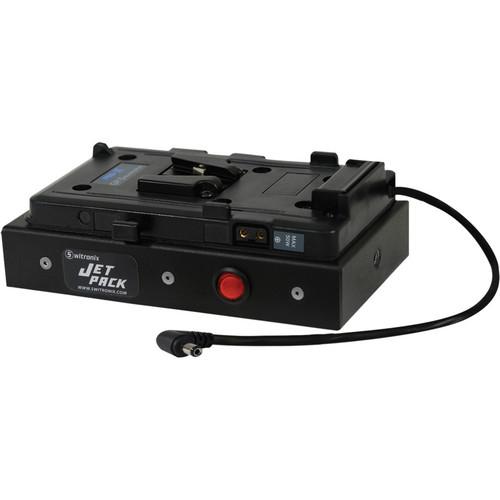

Product description The Core SWX JetPack V-Mount Power Adapter Plate for Blackmagic Camera connects to a V-Mount battery and outputs power to up to six devices, including the camera via an 11 to 17V unregulated pin output. The other outputs are two D-Tap, three LEMO, and one USB. The D-Tap ports can power monitors, lights, and similar devices. Each LEMO connection has a different pin and voltage configuration—a 2-pin 5V, 3-pin 7.2V, and a 4-pin 12V. The USB port can be used for various USB devices.
The JetPack features three 1/4"-20 threads for attaching to cheese plates, and an M3 screw pattern for direct compatibility with Wooden Camera's Quick Back Plate. An optional JetPack cheese plate can be attached to additionally provide thirteen 1/4"-20 and ten 3/8"-16 threads. UPC: 184323001651 In the Box Core SWX JetPack V-Mount Power Adapter Plate for Blackmagic Camera Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Core SWX JetPack V-Mount Power Adapter Plate for Blackmagic Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCore SWX JP-V-BMCC Specs | Input | V-Mount battery power input, 11-17 VDC | | Outputs | 1 x Blackmagic Camera pin output, 11-17 VDC, unregulated
2 x D-Tap, 11-17 VDC, unregulated
Controlled by JetPack Power Switch:
1 x LEMO 2-pin (0B): 5 V, 2.5 A
2 x LEMO 3-pin (0B): 7.2 V, 2.5 A
2 x LEMO 4-pin (0B): 12 V, 2.5 A
1 x USB: 5 V, 1 A | | Mount Types | 3 x 1/4"-20 threads
M3 screw pattern | | Material | Aluminum | | Dimensions | 6 x 3.5 x 1.9" (15.2 x 8.9 x 4.8 cm) | | Weight | 1.2 lb (.54 kg) | | | | Package Weight | 1.25 lb | | Box Dimensions (LxWxH) | 8.0 x 5.3 x 3.4" |
