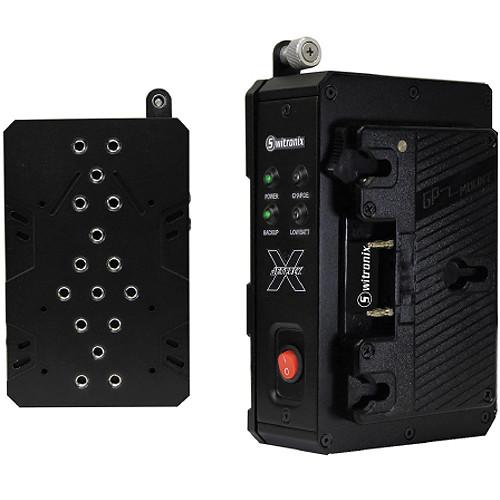

Product description The Core SWX JetPack X Gold Mount Base enables you to power multiple accessories along with your camera, featuring three LEMO outputs (2-pin, 3-pin, 4-pin), two D-tap outputs, and a USB port. It allows you to connect to most cameras by connecting an optional JetPack cable of your choice into one of the LEMO outputs. An 11-17VDC 6-pin LEMO input is also available for connecting AC power instead of a battery via an adapter/converter.
The JetPack X has all the features of the original JetPack but adds a built-in battery backup capable of supporting up to 200W in total load for 5 minutes when you swap batteries. It also adds a 2-pin AMP connector for plugging directly into ENG cameras.
Three 1/4"-20 threads are available on the bottom, two of them spaced 18mm apart for optional rod clamps, and a cheese plate with 1/4"-20 threads is included for attaching on a rig. You can also use an optional X-Mod plate, which can attach the JetPack X to any Gold-Mount or V-mount hole pattern. - Key Features
-
- Lets you power multiple accessories along with your camera
- Can connect to most cameras using optional JetPack cable of your choice
- Built-in battery backup supporting up to 200W for 5 minutes when you swap batteries
- 2-pin AMP connector for plugging directly into ENG camera
- 11-17VDC 6-pin LEMO (2B) power input
- 1/4"-20 mounting threads on the bottom
- Cheese plate with 1/4"-20 threads included
- Outputs
-
- 2-pin LEMO (0B), 5V, 3A
- 3-pin LEMO (0B), 7.2V, 3A
- 4-pin LEMO (0B), 12V, 3A
- 2x D-tap, 11-17VDC, unregulated
- USB, 5V, 1A
UPC: 184323002320 In the Box Core SWX JetPack X Gold Mount Base Cheese Plate with 1/4"-20 Threads 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Core SWX JetPack X Gold Mount Base in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCore SWX JPX-A-BASE Specs | Outputs | 2-pin LEMO (0B), 5 V, 3 A
3-pin LEMO (0B), 7.2 V, 3 A
4-pin LEMO (0B), 12 V, 3 A
2x D-tap, 11-17 VDC, unregulated
USB, 5 V, 1 A
2-pin Amp connector for direct connection to ENG cameras. | | Power Input | 11-17 VDC 6-pin LEMO (2B) | | Mount Type | 3x 1/4"-20 threads, M3 hole pattern | | Battery Backup | Supports 200 W loads for 5 minutes | | Material | Aluminum | | Dimensions | 6.3 x 4 x 2.2" (16 x 10.2 x 5.6 cm) | | Weight | 1.9 lb (.86 kg) | | | | Package Weight | 2.7 lb | | Box Dimensions (LxWxH) | 7.0 x 5.0 x 3.0" |
