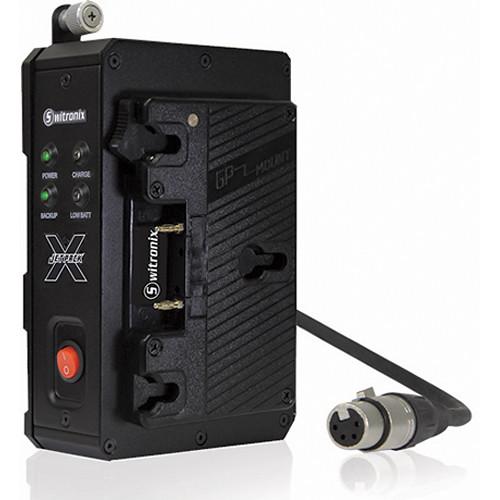

User Manual for Core SWX JetPack X Gold Mount with 4-Pin XLR Output Click to enlarge the picture
Contents of the user manual for the Core SWX JetPack X Gold Mount
- Product category: Battery Mounting Plates Core SWX
- Brand: Core SWX
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Core SWX Battery Mounting Plates
|
User manual for the Core SWX JetPack X Gold Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Core SWX product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Core SWX user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Core SWX product will considerably shorten its lifespan!
|
Product description The Core SWX JetPack X Gold Mount with 4-Pin XLR Output enables you to power multiple accessories along with your camera, featuring three LEMO outputs (2-pin, 3-pin, 4-pin), two D-tap outputs, and a USB port. It allows you to connect to any compatible camera via an integrated cable (approx. 1 ft long) with a 4-pin XLR connector on the end. An 11-17VDC 6-pin LEMO input is also available for connecting AC power instead of a battery via an adapter/converter.
The JetPack X has all the features of the original JetPack but adds a built-in battery backup capable of supporting up to 200W in total load for 5 minutes when you swap batteries. It also adds a 2-pin AMP connector for plugging directly into ENG cameras, foregoing use of the integrated camera cable.
Three 1/4"-20 threads are available on the bottom, two of them spaced 18mm apart for optional rod clamps, and a cheese plate with 1/4"-20 threads is included for attaching on a rig. You can also use an optional X-Mod plate, which can attach the JetPack X to any Gold-Mount or V-mount hole pattern. - Key Features
-
- Lets you power multiple accessories along with your camera
- 4-pin XLR output to camera on an approx. 1 ft cable
- Built-in battery backup supporting up to 200W for 5 minutes when you swap batteries
- 2-pin AMP connector for plugging directly into ENG cameras
- 11-17VDC 6-pin LEMO (2B) power input
- 1/4"-20 mounting threads on the bottom
- Cheese plate with 1/4"-20 threads included
- Outputs
-
- 2-pin LEMO (0B), 5V, 3A
- 3-pin LEMO (0B), 7.2V, 3A
- 4-pin LEMO (0B), 12V, 3A
- 2x D-tap, 11-17VDC, unregulated
- USB, 5V, 1A
UPC: 184323002344 In the Box Core SWX JetPack X Gold Mount with 4-Pin XLR Output Cheese Plate with 1/4"-20 Threads 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Core SWX JetPack X Gold Mount with 4-Pin XLR Output in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCore SWX JPX-A-XLR Specs | Output to Camera | 4-pin XLR connector, 11-17 VDC unregulated, on an approx. 1 ft long cable (approx. 30.5 cm)
2-pin Amp connector | | Outputs | 2-pin LEMO (0B), 5 V, 3 A
3-pin LEMO (0B), 7.2 V, 3 A
4-pin LEMO (0B), 12 V, 3 A
2x D-tap, 11-17 VDC, unregulated
USB, 5 V, 1 A | | Power Input | 11-17 VDC 6-pin LEMO (2B) | | Mount Type | 3x 1/4"-20 threads, M3 hole pattern | | Battery Backup | Supports 200 W loads for 5 minutes | | Material | Aluminum | | Dimensions | 6.3 x 4 x 2.2" (16 x 10.2 x 5.6 cm) | | Weight | 1.9 lb (.86 kg) | | | | Package Weight | 2.7 lb | | Box Dimensions (LxWxH) | 7.0 x 5.0 x 3.0" |
