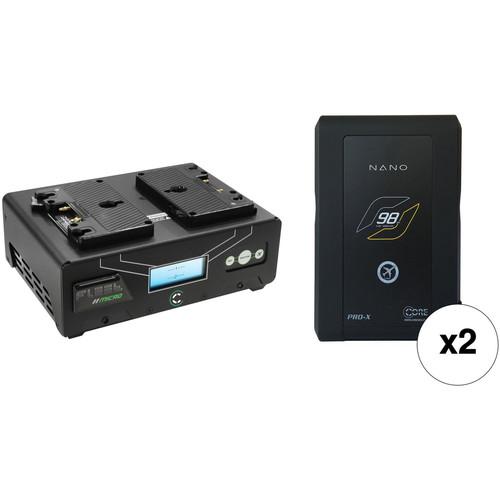

User Manual for Core SWX Nano 2-Battery Kit with Fleet Micro Dual Charger

• Product category: On Camera Batteries Core SWX
• Brand: Core SWX
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Core SWX On Camera Batteries

Product description

• 2 x Core SWX Nano Gold Mount Battery Slimmer than its predecessor, the XPL90, the Core SWX Nano Gold Mount Battery is lightweight, reliable, and powerful. While the form-factor may be small, the Nano-series batteries can support up to 8-amp draws at 14.8V. The slim enclosure is great for gimbal balancing, as the camera it's mounted to can use the extra space for fore/aft movement. In classic Core SWX fashion, the exterior of the battery has a rubberized feel for a sure grip. Accessories can be connected to both the USB and D-tap power outputs, allowing the Nano-series batteries to act as a power hub for your entire rig, not just your camera. With the 98Wh capacity, a 25-watt load can be sustained for approximately 3.5 hours. Real-time capacity can be checked using the 4-LED gauge on the side of the casing. This Gold mount model is compatible with Anton Bauer equipment, and will charge on Anton Bauer chargers. UPC: 184323003617
• Core SWX Fleet Micro 3A Digital Dual Charger for Gold Mount Batteries Featuring two independent charge bays, the Core SWX Fleet Micro 3A Digital Quad Charger for Gold Mount Batteries is capable of simultaneously charging two batteries at 3A each. This means that two 98Wh batteries can be charged in approximately 2 hours. The on-board LCD display screen allows you to easily monitor your battery's smart battery data without needing to connect to a computer. The micro-USB connector allows for firmware updates and for connection to a PC.

  The built-in Battery Management Test mode allows the charger to determine battery health and recharge performance. Activating the SafeFly mode forces the charger to discharge or charge connected batteries to a 30% charge level to meet air travel and shipping requirements. While plugged into an AC power source the Fleet Micro 3A Dual Charger can either charge batteries or be used as a camera power supply via the built-in 4-pin XLR. In the absence of AC power, you can use the charger to feed the 4-pin XLR from connected batteries providing unregulated power. The housing is made of aluminum, providing for a robust build.
  Key Features
  • • Two independent Gold mount charge bays
    • Simultaneous charging
    • Approximately 2-hour charge time for two 98Wh batteries
    • 90-240 VAC worldwide compatible input voltage
    • Compatible with batteries from Anton Bauer, and others in addition to CoreSWX
    • The four-line LCD display screen enables monitoring battery information from the charger
    • Hypercine mode allows you to mount up to two batteries to provide unregulated 12 to 16.8 VDC from the charger's 4-pin XLR, without connecting to an AC power supply
    • In Hypercine mode the charger's LCD reports back available capacity as well as remaining runtime
    • Aluminum build
    • Weighs less than two pounds
  UPC: 184323003716

• 2 x Nano Gold Mount Battery
• Limited 18-Month Warranty

• Fleet Micro 3A Digital Dual Charger for Gold Mount Batteries

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 2 x Core SWX Nano Gold Mount Battery

  Mount / Series Type	Gold Mount
  Chemistry	Lithium-Ion
  Capacity (Wh)	98 Wh
  Amp-Hours	6.6 Ah
  Output Voltage	14.8 VDC
  Maximum Load	8 A
  Accessory Port	1 x D-Tap
  USB Output	5 V, 3 A
  Dimensions (W x H x D)	3.8 x 5.9 x 1.5" / 9.7 x 15.0 x 3.8 cm
  Weight	1.4 lb / 0.6 kg

  Box Dimensions (LxWxH)	8.05 x 7.05 x 2.85"

• Core SWX Fleet Micro 3A Digital Dual Charger for Gold Mount Batteries

  Quick Charge Current	3 A Simultaneous
  Discharge Current	Up to 2 A per channel
  Power	Input: 90 to 240 VAC, 50/60 Hz Output: 12 VDC 90 W
  Dimensions	9.1 x 3.35 x 6.57" / 23.11 x 8.51 x 16.69 cm
  Weight	1.8 lb / 0.8 kg

  Box Dimensions (LxWxH)	13.05 x 10.45 x 4.2"
