Product description

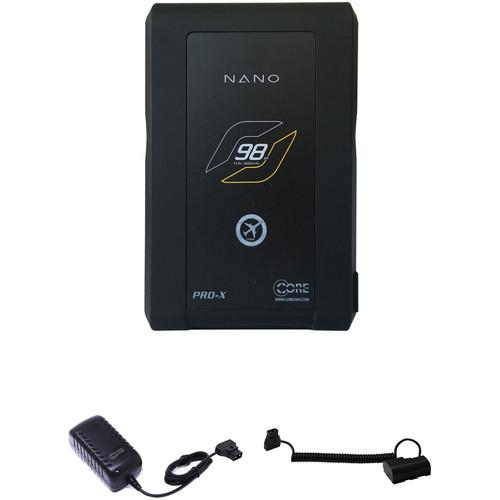

• Core SWX Nano Gold Mount Battery Slimmer than its predecessor, the XPL90, the Core SWX Nano Gold Mount Battery is lightweight, reliable, and powerful. While the form-factor may be small, the Nano-series batteries can support up to 8-amp draws at 14.8V. The slim enclosure is great for gimbal balancing, as the camera it's mounted to can use the extra space for fore/aft movement. In classic Core SWX fashion, the exterior of the battery has a rubberized feel for a sure grip. Accessories can be connected to both the USB and D-tap power outputs, allowing the Nano-series batteries to act as a power hub for your entire rig, not just your camera. With the 98Wh capacity, a 25-watt load can be sustained for approximately 3.5 hours. Real-time capacity can be checked using the 4-LED gauge on the side of the casing. This Gold mount model is compatible with Anton Bauer equipment, and will charge on Anton Bauer chargers. UPC: 184323003617
• Core SWX PB70C15 D-Tap Wall Charger The Core SWX PB70C15 D-Tap Charger provides a quick charge current of 1.5A and can be used to charge any battery with a D-Tap charging port, such as the Core SWX Powerbase EDGE and Nano batteries. This portable charger features a D-Tap connector on one end and U.S. wall plug on the other, and it supports 90-240 VAC worldwide-compatible input voltage, so it can be used anywhere in the world with the right plug adapter, sold separately. The charger also has an LED indicator on the front that changes from red to green when your battery is fully charged. UPC: 184323004102
• Core SWX D-Tap Cable for Devices Using Canon LP-E6 Batteries Power your devices that use LP-E6 batteries with this D-Tap Cable from Core SWX. Accepting 11-28 VDC input from a D-tap source, the built-in regulator ensures that a steady 7.9 VDC output is sent through the dummy battery to power your device with the correct voltage. This cable employs a coiled design which can stretch from 18" to 48", reducing clutter on your rig. UPC: 184323003235

• Nano Gold Mount Battery eeqeqecyatrcxs
• Limited 18-Month Warranty

• PB70C15 D-Tap Wall Charger

• D-Tap Cable for Devices Using Canon LP-E6 Batteries

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Core SWX Nano Gold Mount Battery

  Mount / Series Type	Gold Mount
  Chemistry	Lithium-Ion
  Capacity (Wh)	98 Wh
  Amp-Hours	6.6 Ah
  Output Voltage	14.8 VDC
  Maximum Load	8 A
  Accessory Port	1 x D-Tap
  USB Output	5 V, 3 A
  Dimensions (W x H x D)	3.8 x 5.9 x 1.5" / 9.7 x 15.0 x 3.8 cm
  Weight	1.4 lb / 0.6 kg

  Box Dimensions (LxWxH)	8.05 x 7.05 x 2.85"

• Core SWX PB70C15 D-Tap Wall Charger

  Charge Current	1.5 A
  Input Voltage	90-240 VAC, 50/60 Hz
  Dimensions	3 x 1 x 0.75" / 7.6 x 2.5 x 1.9 cm
  Weight	0.4 lb / 181 g

  Box Dimensions (LxWxH)	5.7 x 3.4 x 2.2"

• Core SWX D-Tap Cable for Devices Using Canon LP-E6 Batteries

  Connector 1	D-tap
  Connector 2	LP-E6 dummy battery
  Input	11-28 VDC
  Output	7.9 VDC, 2 A
  Length	Contracted: 18" / 45 cm Extended: 48" / 121 cm

  Box Dimensions (LxWxH)	5.7 x 3.4 x 2.3"
