Product description

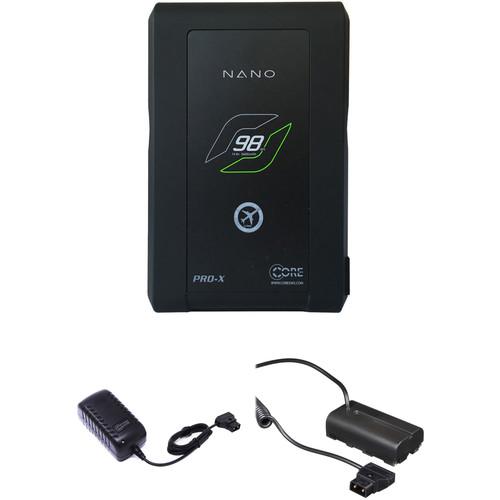

• Core SWX Nano V-Mount Battery Slimmer than its predecessor, the XPL90, the Core SWX Nano V-Mount Battery is lightweight, reliable, and powerful. While the form-factor may be small, the Nano-series batteries can support up to 8-amp draws at 14.8V. The slim enclosure is great for gimbal balancing, as the camera it's mounted to can use the extra space for fore/aft movement. In classic Core SWX fashion, the exterior of the battery has a rubberized feel for a sure grip. Accessories can be connected to both the USB and D-tap power outputs, allowing the Nano-series batteries to act as a power hub for your entire rig, not just your camera. With the 98Wh capacity, a 25-watt load can be sustained for approximately 3.5 hours. Real-time capacity can be checked using the 4-LED gauge on the side of the casing. This V-mount model communicates using the standard SMBUS protocol (found on most cameras that have a native V-mount, including RED DSMC2 cameras), sending battery metrics that can be monitored from the camera itself. UPC: 184323003600
• Core SWX PB70C15 D-Tap Wall Charger The Core SWX PB70C15 D-Tap Charger provides a quick charge current of 1.5A and can be used to charge any battery with a D-Tap charging port, such as the Core SWX Powerbase EDGE and Nano batteries. This portable charger features a D-Tap connector on one end and U.S. wall plug on the other, and it supports 90-240 VAC worldwide-compatible input voltage, so it can be used anywhere in the world with the right plug adapter, sold separately. The charger also has an LED indicator on the front that changes from red to green when your battery is fully charged. UPC: 184323004102
• Core SWX Coiled D-Tap Cable for Devices Using Sony L-Series Batteries This Core SWX Coiled D-Tap Cable allows you to connect a D-Tap power source to Sony cameras as well as many other devices that use Sony L-Series batteries. The cable features a D-Tap connector on one end and L-Series type dummy battery that installs into your device on the other.

  The cable runs 18" when contracted and 48" fully extended. UPC: 184323002603

• Nano V-Mount Battery eeqeqecyatrcxs
• Limited 18-Month Warranty

• PB70C15 D-Tap Wall Charger

• Coiled D-Tap Cable for Devices Using Sony L-Series Batteries

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Core SWX Nano V-Mount Battery

  Mount / Series Type	V-Mount
  Chemistry	Lithium-Ion
  Capacity (Wh)	98 Wh
  Amp-Hours	6.6 Ah
  Output Voltage	14.8 VDC
  Maximum Load	8 A
  Accessory Port	1 x D-Tap
  USB Output	5 V, 3 A
  Dimensions (W x H x D)	3.8 x 5.9 x 1.5" / 9.7 x 15.0 x 3.8 cm
  Weight	1.4 lb / 0.6 kg

  Box Dimensions (LxWxH)	8.05 x 6.95 x 2.85"

• Core SWX PB70C15 D-Tap Wall Charger

  Charge Current	1.5 A
  Input Voltage	90-240 VAC, 50/60 Hz
  Dimensions	3 x 1 x 0.75" / 7.6 x 2.5 x 1.9 cm
  Weight	0.4 lb / 181 g

  Box Dimensions (LxWxH)	5.7 x 3.4 x 2.2"

• Core SWX Coiled D-Tap Cable for Devices Using Sony L-Series Batteries

  Length	18" (46 cm) contracted, 48" (1.2 m) extended
  Connector 1	Sony NPF L-Series compatible dummy battery
  Connector 2	D-Tap regulated
  Input	11-28 VDC
  Output	7.9 VDC, 2 A

  Box Dimensions (LxWxH)	5.65 x 3.35 x 2.15"
