Product description

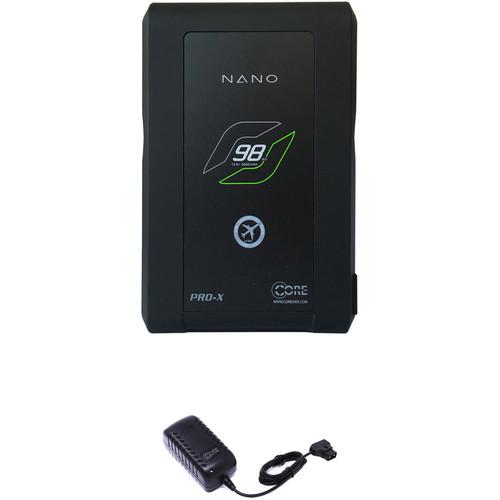

Power your professional video equipment with this Core SWX Nano Battery Starter Kit. Comprised of a V-mount Core SWX Nano battery and a 1.5A D-Tap charger, this kit is great for those just starting out with pro-grade equipment, or professionals that require a mobile high-capacity power solution. The Nano battery will support up to 8-amp continuous draws, and features D-Tap and USB connections for powering accessories. See below for more information on the items included in this kit.
  • Core SWX Nano V-Mount Battery Slimmer than its predecessor, the XPL90, the Core SWX Nano V-Mount Battery is lightweight, reliable, and powerful. While the form-factor may be small, the Nano-series batteries can support up to 8-amp draws at 14.8V. The slim enclosure is great for gimbal balancing, as the camera it's mounted to can use the extra space for fore/aft movement. In classic Core SWX fashion, the exterior of the battery has a rubberized feel for a sure grip. Accessories can be connected to both the USB and D-tap power outputs, allowing the Nano-series batteries to act as a power hub for your entire rig, not just your camera. With the 98Wh capacity, a 25-watt load can be sustained for approximately 3.5 hours. Real-time capacity can be checked using the 4-LED gauge on the side of the casing. This V-mount model communicates using the standard SMBUS protocol (found on most cameras that have a native V-mount, including RED DSMC2 cameras), sending battery metrics that can be monitored from the camera itself. UPC: 184323003600
  • Core SWX PB70C15 D-Tap Wall Charger The Core SWX PB70C15 D-Tap Charger provides a quick charge current of 1.5A and can be used to charge any battery with a D-Tap charging port, such as the Core SWX Powerbase EDGE and Nano batteries. This portable charger features a D-Tap connector on one end and U.S. wall plug on the other, and it supports 90-240 VAC worldwide-compatible input voltage, so it can be used anywhere in the world with the right plug adapter, sold separately. The charger also has an LED indicator on the front that changes from red to green when your battery is fully charged. UPC: 184323004102
In the Box
  • Nano V-Mount Battery rtfuwewqtywaareyyrcsztdbcytuaeqys
  • Limited 18-Month Warranty
  • PB70C15 D-Tap Wall Charger
Table of Contents




Upload User Manual

Have you got an user manual for the Core SWX Nano Battery Starter Kit in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Upload PDF user manual Upload DOC user manual
Please enter here the link to the user manual of this product:





OR

Enter here the file with the user manual of this product from your computer/phone:
(60MB max; Permitted formats: PDF)

0%


Technical parameters

  • Core SWX Nano V-Mount Battery
    Mount / Series Type V-Mount
    Chemistry Lithium-Ion
    Capacity (Wh) 98 Wh
    Amp-Hours 6.6 Ah
    Output Voltage 14.8 VDC
    Maximum Load 8 A
    Accessory Port 1 x D-Tap
    USB Output 5 V, 3 A
    Dimensions (W x H x D) 3.8 x 5.9 x 1.5" / 9.7 x 15.0 x 3.8 cm
    Weight 1.4 lb / 0.6 kg
    Box Dimensions (LxWxH) 8.05 x 6.95 x 2.85"
  • Core SWX PB70C15 D-Tap Wall Charger
    Charge Current 1.5 A
    Input Voltage 90-240 VAC, 50/60 Hz
    Dimensions 3 x 1 x 0.75" / 7.6 x 2.5 x 1.9 cm
    Weight 0.4 lb / 181 g
    Box Dimensions (LxWxH) 5.7 x 3.4 x 2.2"
