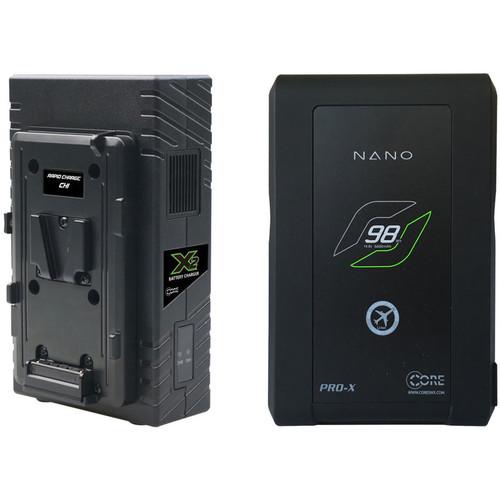

User Manual for Core SWX Nano V-Mount Battery Kit with X2A Vertical Charger Click to enlarge the picture
Contents of the user manual for the Core SWX Nano V-Mount Battery Kit
- Product category: On Camera Batteries Core SWX
- Brand: Core SWX
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Core SWX On Camera Batteries
|
User manual for the Core SWX Nano V-Mount Battery Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Core SWX product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Core SWX user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Core SWX product will considerably shorten its lifespan!
|
Product description Provide power to your portable professional video and cinema equipment with this Core SWX Nano V-Mount Battery Kit with X2A Vertical Charger from . Nano batteries are high-capacity, 98 watt-hour lithium-ion batteries, capable of supporting up to 8-amp continuous draws. Their compact form-factor keeps these batteries portable and allows them to integrate with a variety of space-constrained camera setups. The included X2A vertical charger has two bays to replenish two batteries at 2 amps simultaneously, in around 3.5 hours. If you charge the single included battery, a 3-amp charge will be provided, fully charging the battery in around 2.5 hours. Put your batteries on to charge before a shoot, and you'll be ready to roll during production. Core SWX Nano batteries are rated for up to 2000 charge/recharge cycles. For more details on the products included in this kit, check out the features below. - Core SWX X2S 2-Bay Vertical V-Mount Battery Charger Charge your V-Mount batteries while on-the-go with the Core SWX X2S 2-Bay Vertical V-Mount Battery Charger. Taking advantage of the same technology built into the larger fleet chargers, this slim charger can charge a single battery at a 3-amp rate or batteries in both bays simultaneously at 2 amps. Since it sits vertically with two batteries mounted, the X2S takes up less space than traditional chargers. With its 4-pin XLR output, the X2S also does double duty as a 90W power supply for cameras, lights, or other equipment that can draw from a 4-pin XLR. UPC: 184323003655
- Core SWX Nano V-Mount Battery Slimmer than its predecessor, the XPL90, the Core SWX Nano V-Mount Battery is lightweight, reliable, and powerful. While the form-factor may be small, the Nano-series batteries can support up to 8-amp draws at 14.8V. The slim enclosure is great for gimbal balancing, as the camera it's mounted to can use the extra space for fore/aft movement. In classic Core SWX fashion, the exterior of the battery has a rubberized feel for a sure grip. Accessories can be connected to both the USB and D-tap power outputs, allowing the Nano-series batteries to act as a power hub for your entire rig, not just your camera. With the 98Wh capacity, a 25-watt load can be sustained for approximately 3.5 hours. Real-time capacity can be checked using the 4-LED gauge on the side of the casing. This V-mount model communicates using the standard SMBUS protocol (found on most cameras that have a native V-mount, including RED DSMC2 cameras), sending battery metrics that can be monitored from the camera itself. UPC: 184323003600
In the Box - X2S 2-Bay Vertical V-Mount Battery Charger tvqbbrsyzzcvuqtswsudfadrbxwuzzatw
- Limited 3-Year Warranty
- Nano V-Mount Battery tvqbbrsyzzcvuqtswsudfadrbxwuzzatw
Table of Contents
|
Upload User Manual
Have you got an user manual for the Core SWX Nano V-Mount Battery Kit with X2A Vertical Charger in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Core SWX X2S 2-Bay Vertical V-Mount Battery Charger
| Maximum Charge Current | 1 Bay: 3 A
2 Bays: 2 A (each bay) | | 4-Pin XLR DC Output | 90 W (15 VDC, 6 A) | | Input Voltage | 90-240 VAC, 50/60 Hz | | Dimensions | 4.5 x 7.1 x 3.4" / 11.4 x 18.0 x 8.6 cm | | Weight | 1.9 lb / 0.9 kg | | | | Box Dimensions (LxWxH) | 8.0 x 5.3 x 4.9" | - Core SWX Nano V-Mount Battery
| Mount / Series Type | V-Mount | | Chemistry | Lithium-Ion | | Capacity (Wh) | 98 Wh | | Amp-Hours | 6.6 Ah | | Output Voltage | 14.8 VDC | | Maximum Load | 8 A | | Accessory Port | 1 x D-Tap | | USB Output | 5 V, 3 A | | Dimensions (W x H x D) | 3.8 x 5.9 x 1.5" / 9.7 x 15.0 x 3.8 cm | | Weight | 1.4 lb / 0.6 kg | | | | Box Dimensions (LxWxH) | 8.05 x 6.95 x 2.85" |
