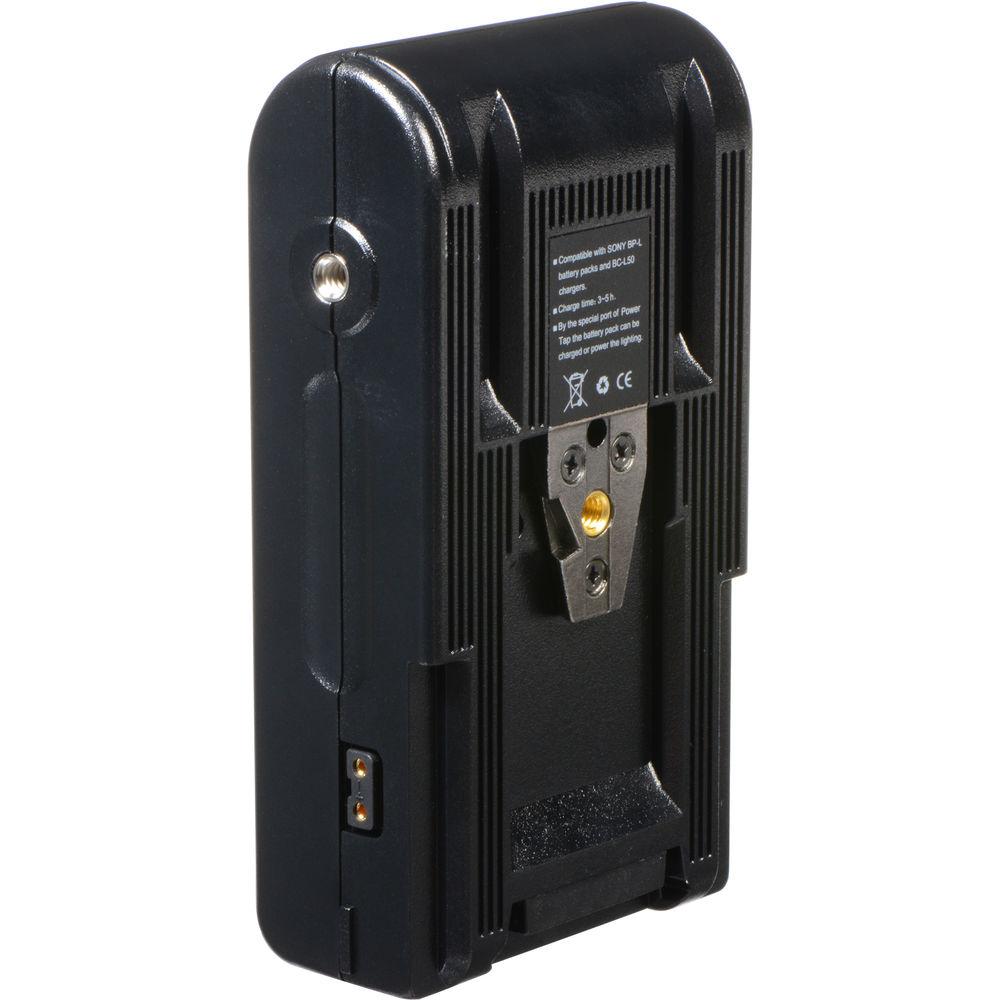

Product description Switronix PowerBase 70 Read More Power your Canon LP-E6 type camera as well as a variety of accessories with the Core SWX PowerBase 70 Battery, which attaches on the bottom of the camera using an included mini quick release plate, and connects to the camera via a battery paddle with a 12" cable. It will provide a much longer runtime than the camera's original battery as the lithium-ion cell is rated at 14.8V and 77Wh. Also, the regulator block attaches to the side of the battery for convenience.
Powering of 12V accessories is handled by two P-Tap outputs, which can also be used for lower voltage items through the use of optional XP power regulation able. Additionally, it has a four LED power indicator and features a V-mount adapter on the back for use directly on compatible battery plates. - Key Features
-
- 14.8V, 77Wh lithium ion battery
- Attaches on the bottom of the camera as a battery grip using a mini QR plate
- Connects to the camera via a battery paddle

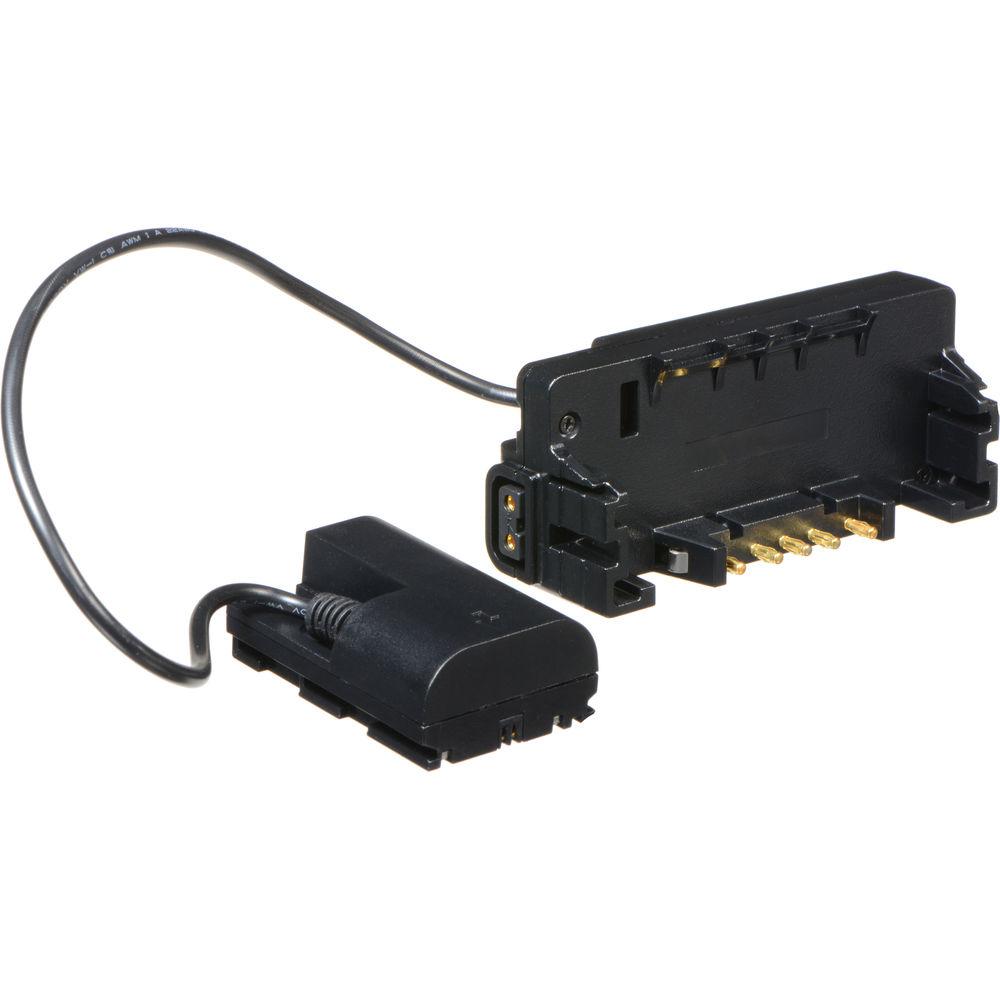

- The battery paddle is part of a regulator block that attaches to the side of the battery
- Two P-Tap outputs for powering 12V accessories
- Lower voltage accessories supported via optional XP power regulation cables
- V-mount adapter on the back allows direct connection to V-mount plates
- 1/4"-20 accessory mounting threads on the sides
- 4-LED power indicator

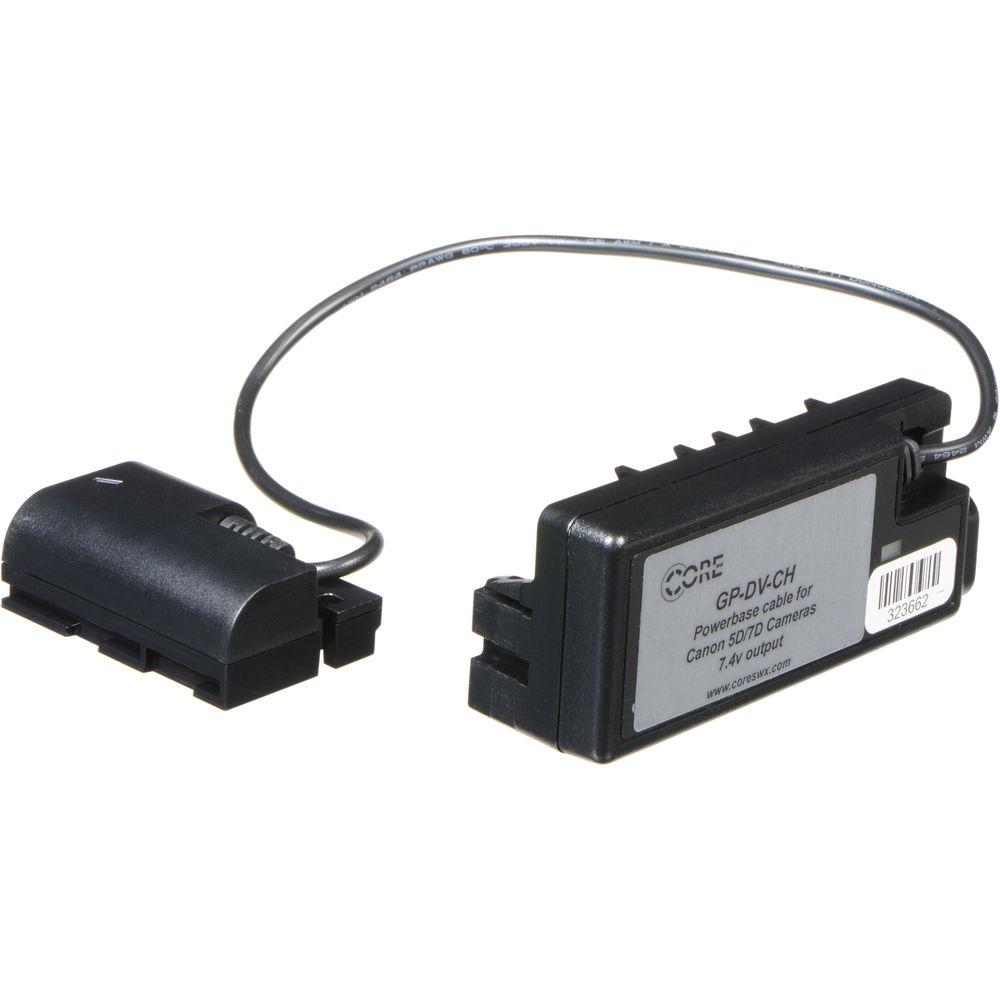

UPC: 184323000920 In the Box Core SWX PowerBase 70 Battery for Canon LP-E6 Cameras (12" Cable) GP-DV-CH Interchangeable Regulator Block for PowerBase-70 (12" Cable) dyxwccwwawavffaasccwbt Mini Quick Release Plate Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Core SWX PowerBase 70 Battery for Canon LP-E6 Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCore SWX PB70 Specs | Chemistry | Lithium-ion | | Mount Type | Mini quick release plate with 1/4"-20 threaded stud; V-mount adapter compatible with standard V-mount plates | | Connection Cable | 12" (30.5 cm), battery paddle on the end | | Output Voltage | 14.8 V | | Capacity | 77 Wh, 5.3 Ah | | Accessory Mount Threads | 2x 1/4"-20 | | Accessory Power Ports | 2x P-Tap | | Dimensions | 6.3 x 1.8 x 3.3" (16 x 4.6 x 8.4 cm) | | Weight | 1.4 lb (0.63 kg) | | | | Package Weight | 2.2 lb | | Box Dimensions (LxWxH) | 8.1 x 6.9 x 2.9" |
