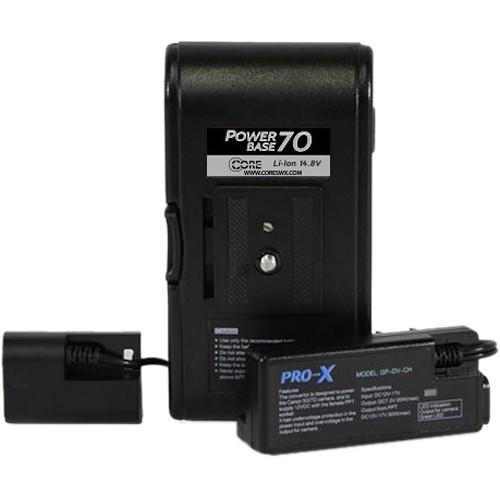

User Manual for Core SWX PowerBase 70 Battery for Canon LP-E6 Cameras Click to enlarge the picture
Contents of the user manual for the Core SWX PowerBase 70 Battery for
- Product category: External Battery Packs & Cables Core SWX
- Brand: Core SWX
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Core SWX External Battery Packs & Cables
|
User manual for the Core SWX PowerBase 70 Battery for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Core SWX product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Core SWX user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Core SWX product will considerably shorten its lifespan!
|
Product description Switronix PowerBase 70 Read More Power your Canon LP-E6 type camera as well as a variety of accessories with the Core SWX PowerBase 70 Battery, which attaches on the bottom of the camera using an included mini quick release plate, and connects to the camera via a battery paddle with a 24" cable. It will provide a much longer runtime than the camera's original battery as the lithium-ion cell is rated at 14.8V and 77Wh. Also, the regulator block attaches to the side of the battery for convenience.
Powering of 12V accessories is handled by two P-Tap outputs, which can also be used for lower voltage items through the use of optional XP power regulation able. Additionally, it has a four LED power indicator and features a V-mount adapter on the back for use directly on compatible battery plates. - Key Features
-
- 14.8V, 77Wh lithium ion battery
- Attaches on the bottom of the camera as a battery grip using a mini QR plate
- Connects to the camera via a battery paddle
- The battery paddle is part of a regulator block that attaches to the side of the battery
- Two P-Tap outputs for powering 12V accessories
- Lower voltage accessories supported via optional XP power regulation cables
- V-mount adapter on the back allows direct connection to V-mount plates
- 1/4"-20 accessory mounting threads on the sides
- 4-LED power indicator
UPC: 184323001019 In the Box Core SWX PowerBase 70 Battery for Canon LP-E6 Cameras (24" Cable) GP-DV-CH24 Interchangeable Regulator Block for PowerBase-70 (24" Cable) ucwwtfctwbuzudubzavcybwwbcyrwyzq Mini Quick Release Plate Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Core SWX PowerBase 70 Battery for Canon LP-E6 Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCore SWX PB70-24 Specs | Chemistry | Lithium-ion | | Mount Type | Mini quick release plate with 1/4"-20 threaded stud; V-mount adapter compatible with standard V-mount plates | | Connection Cable | 24" (61 cm), battery paddle on the end | | Output Voltage | 14.8 V | | Capacity | 77 Wh, 5.3 Ah | | Accessory Mount Threads | 2x 1/4"-20 | | Accessory Power Ports | 2x P-Tap | | Dimensions | 6.3 x 1.8 x 3.3" (16 x 4.6 x 8.4 cm) | | Weight | 1.4 lb (0.63 kg) | | | | Package Weight | 2.2 lb | | Box Dimensions (LxWxH) | 8.3 x 7.0 x 2.8" |
