User Manual for Core SWX PowerBase 70 Battery for Sony F3 and Panasonic GH4 YAGH Click to enlarge the picture
Contents of the user manual for the Core SWX PowerBase 70 Battery for
- Product category: On Camera Batteries Core SWX
- Brand: Core SWX
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Core SWX On Camera Batteries
 |
User manual for the Core SWX PowerBase 70 Battery for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Core SWX product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Core SWX user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Core SWX product will considerably shorten its lifespan!
|

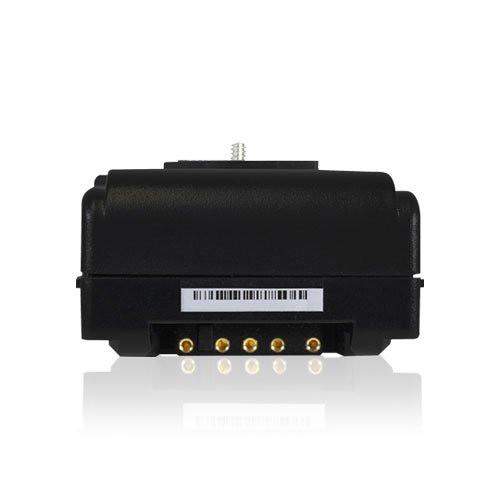

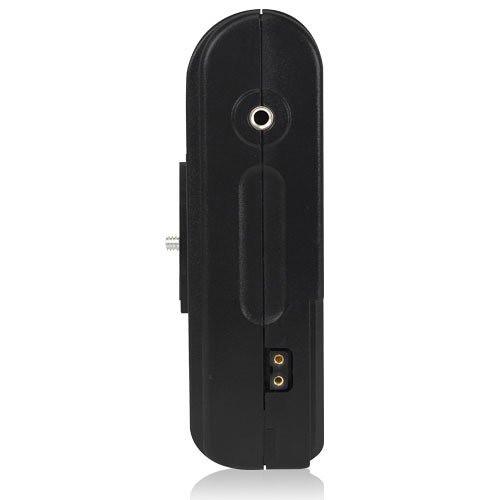

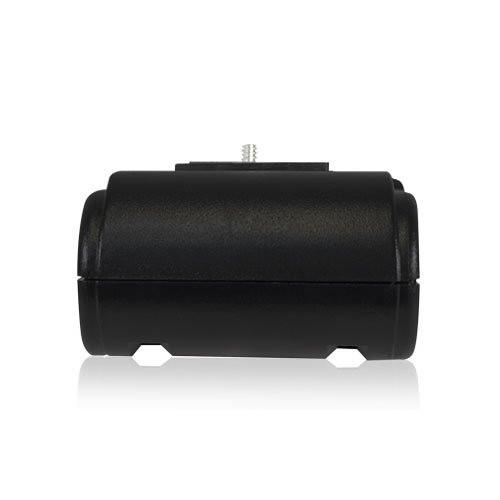

Product description Switronix PowerBase 70 Read More vusdwzyeuuxrbstbvryvrcztsvdzabrtbuzvbt The Core SWX PowerBase 70 Battery for Sony F3 and Panasonic GH4 YAGH (24" Cable) attaches on the bottom of the camera as a battery grip using an included mini quick release plate, and connects to the camera via a 4-pin XLR connector. It consists of a 14.8V, 77Wh lithium ion battery and a regulator block with a 4-pin XLR connector. The regulator block attaches on the side of the battery when the battery is mounted as a grip.
Two D-tap outputs are available for powering 12V accessories and can also be used for lower voltage accessories if you incorporate optional XP power regulation cables. A V-mount adapter on the back of the battery allows direct connection to V-mount plates. Note: Charger available separately - Key Features
-
- 14.8V, 77Wh lithium ion battery
- Attaches on the bottom of the camera as a battery grip using a mini QR plate
- Connects to the camera via a 4-pin XLR connector
- The 4-pin XLR connector is part of a regulator block that attaches to the side of the battery
- Two D-tap outputs for powering 12V accessories
- Lower voltage accessories supported via optional XP power regulation cables

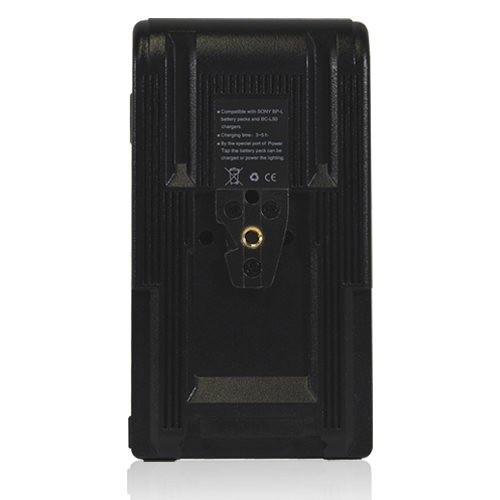

- V-mount adapter on the back allows direct connection to V-mount plates
- 1/4"-20 accessory mounting threads on the sides

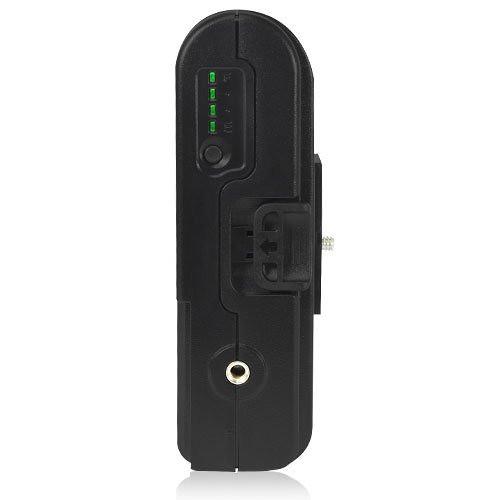

- 4-LED power indicator

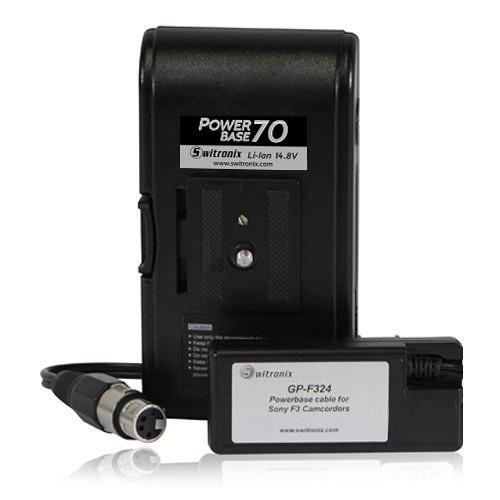

UPC: 184323001095 In the Box Core SWX PowerBase 70 Battery for Sony F3 and Panasonic GH4 YAGH (24" Cable) GP-F324 PowerBase Cable vusdwzyeuuxrbstbvryvrcztsvdzabrtbuzvbt Mini Quick Release Plate Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Core SWX PowerBase 70 Battery for Sony F3 and Panasonic GH4 YAGH in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCore SWX PB70-F324 Specs | Mount / Series Type | Powerbase | | Chemistry | Lithium-Ion | | Capacity (Wh) | 77 Wh | | Output Voltage | 14.8 VDC | | Accessory Port | 1 x 4-Pin XLR
2 x D-Tap | | Cable Length | 24" / 61 cm | | Accessory Mounting Thread | 2 x 1/4"-20 Female | | Dimensions (W x H x D) | 1.8 x 6.3 x 3.3" / 46.0 x 160.0 x 84.0 mm | | Weight | 1.4 lb / 0.6 kg | | | | Package Weight | 2.2 lb | | Box Dimensions (LxWxH) | 8.2 x 7.0 x 2.9" |
