Product description

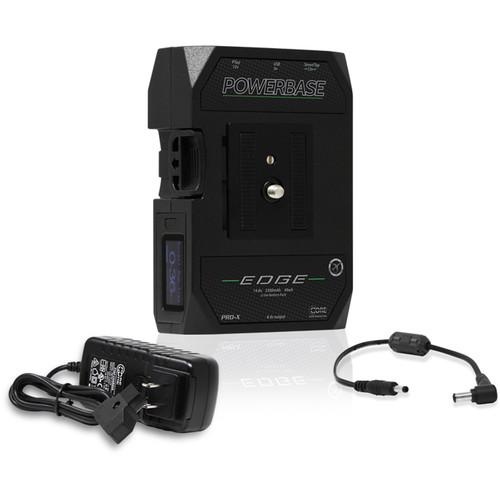

• Powerbase EDGE V-Mount Battery
  • Powerbase EDGE

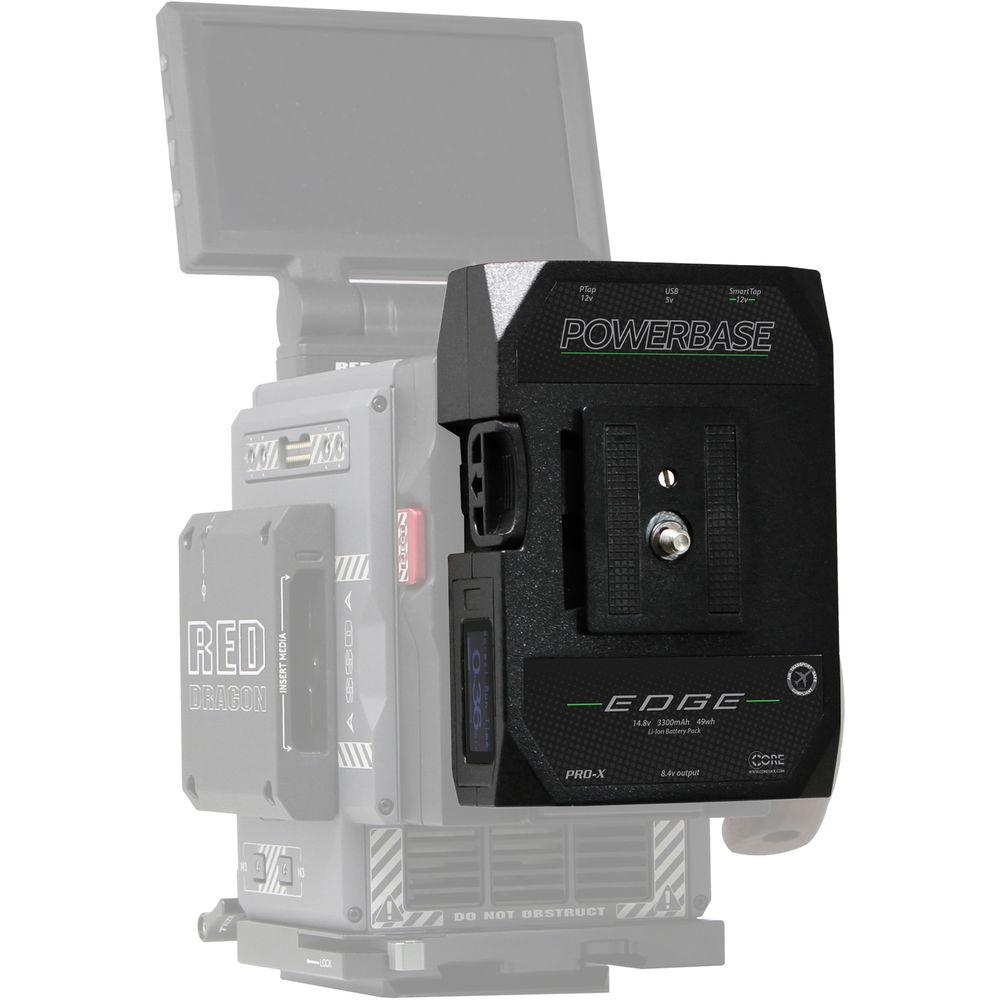

  The Core SWX Powerbase EDGE in a V-mount is a 14.8V, 49Wh, lithium-ion battery featuring an 8A continuous draw. This follow-up to the popular Powerbase 70 battery offers multiple modes of use. In addition to the V-mount, which allows it to be used with all cameras supporting a V-mount battery, the Powerbase EDGE has an 8.4V regulated DC output, a D-Tap output, a SmartTap output, and two USB ports.

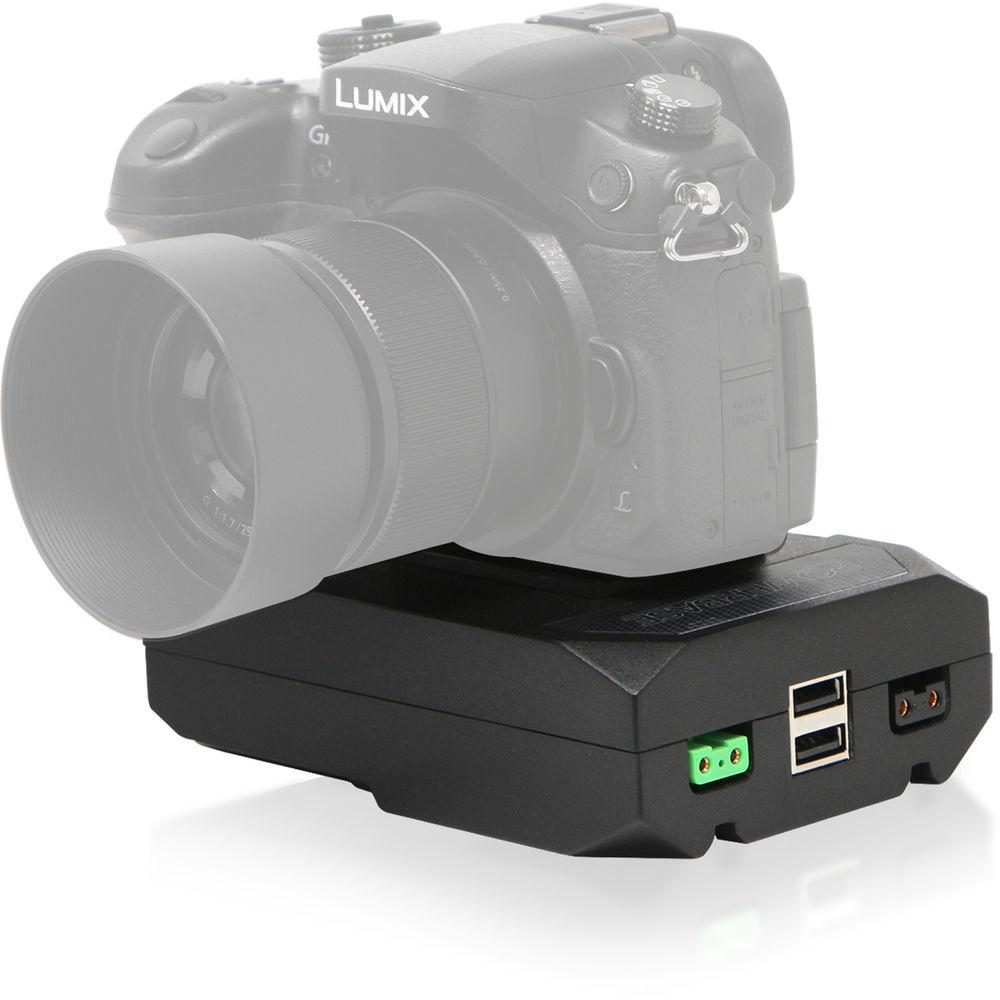

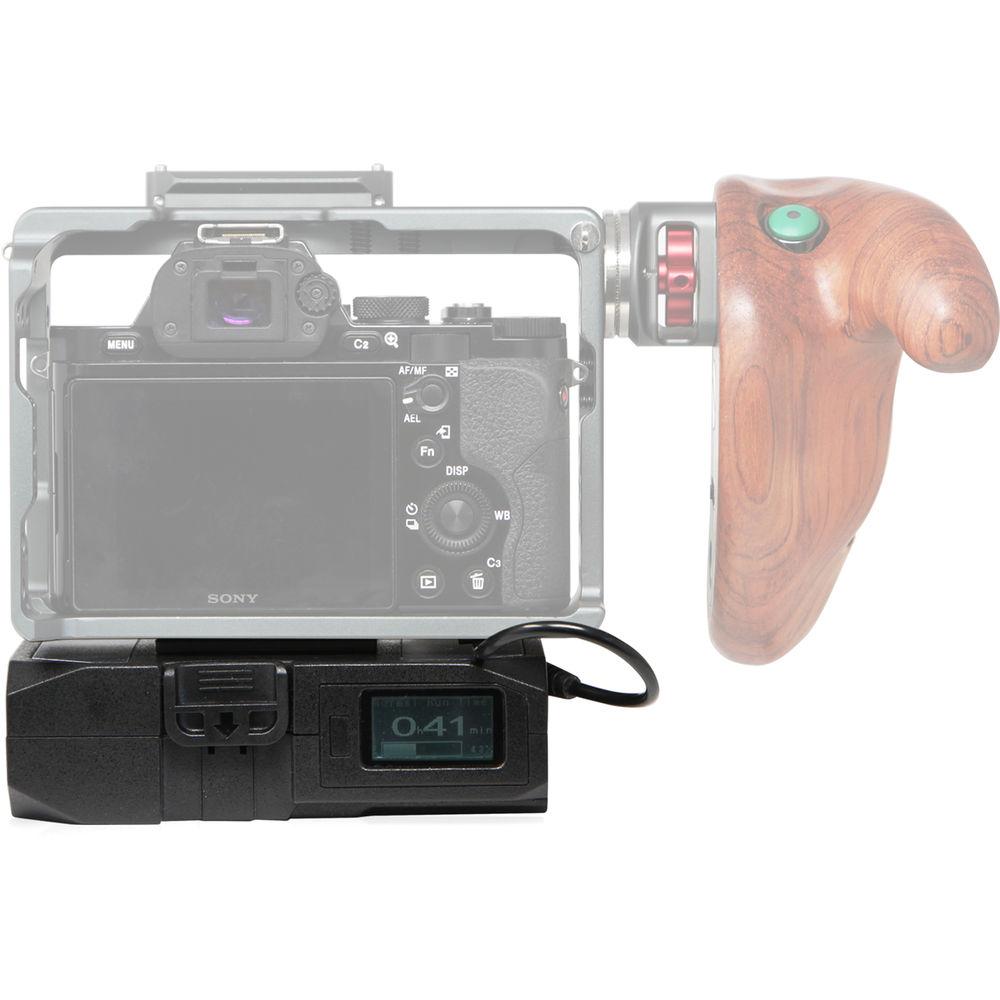

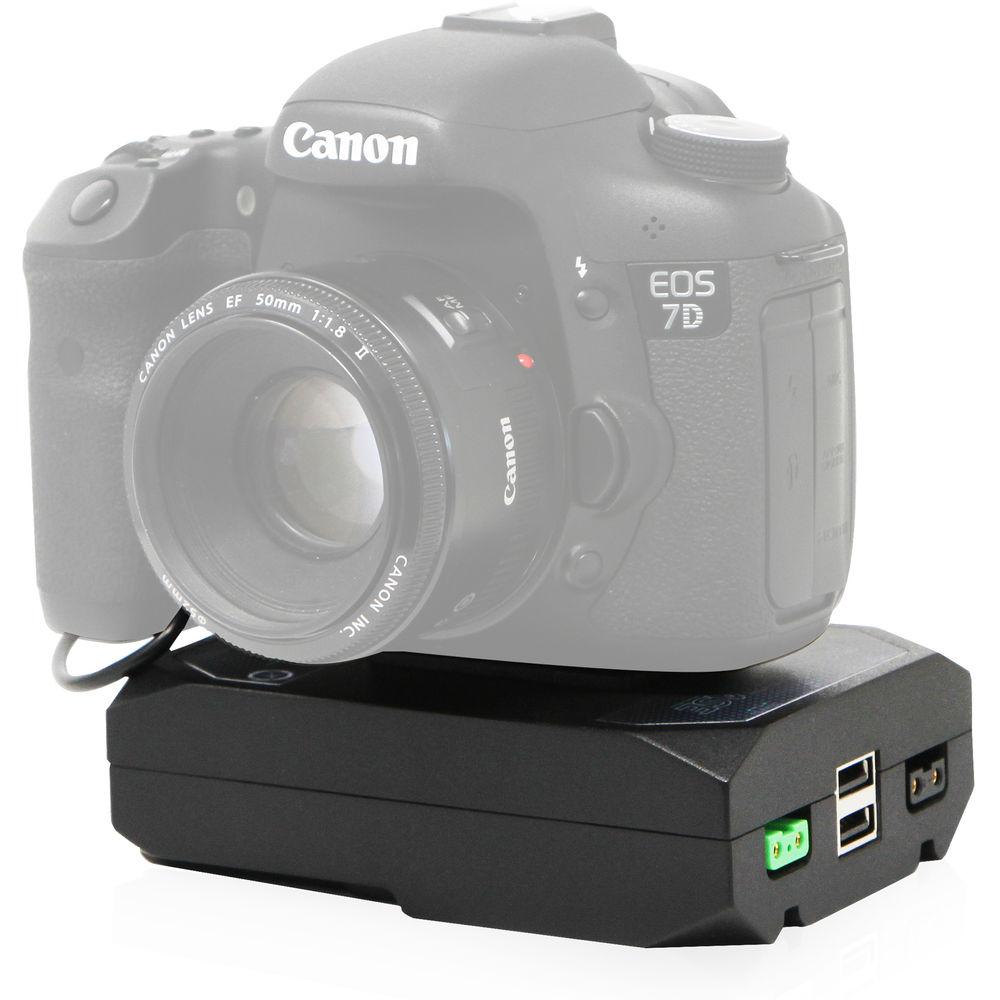

  Using the appropriate Powerbase EDGE power cable (sold separately), you can connect the battery to most mirrorless and DSLR cameras via the 8.4 VDC output. The SmartTap output, which is a Core SWX innovation, is a standard D-Tap connection with additional contacts inside that communicate SMBUS/smart battery data to compatible cameras. Other than this, it works just like a regular D-Tap port and supports standard D-Tap cables. Accordingly, you can use either the SmartTap or D-Tap port to power a camera using an optional D-Tap cable. The remaining one can be used to power an accessory, and likewise the USB ports can be used simultaneously with any of the other power options to power 5V accessories or charge mobile devices. The D-Tap port also functions as a charging port and supports D-Tap chargers such as the Core SWX PB70C15.

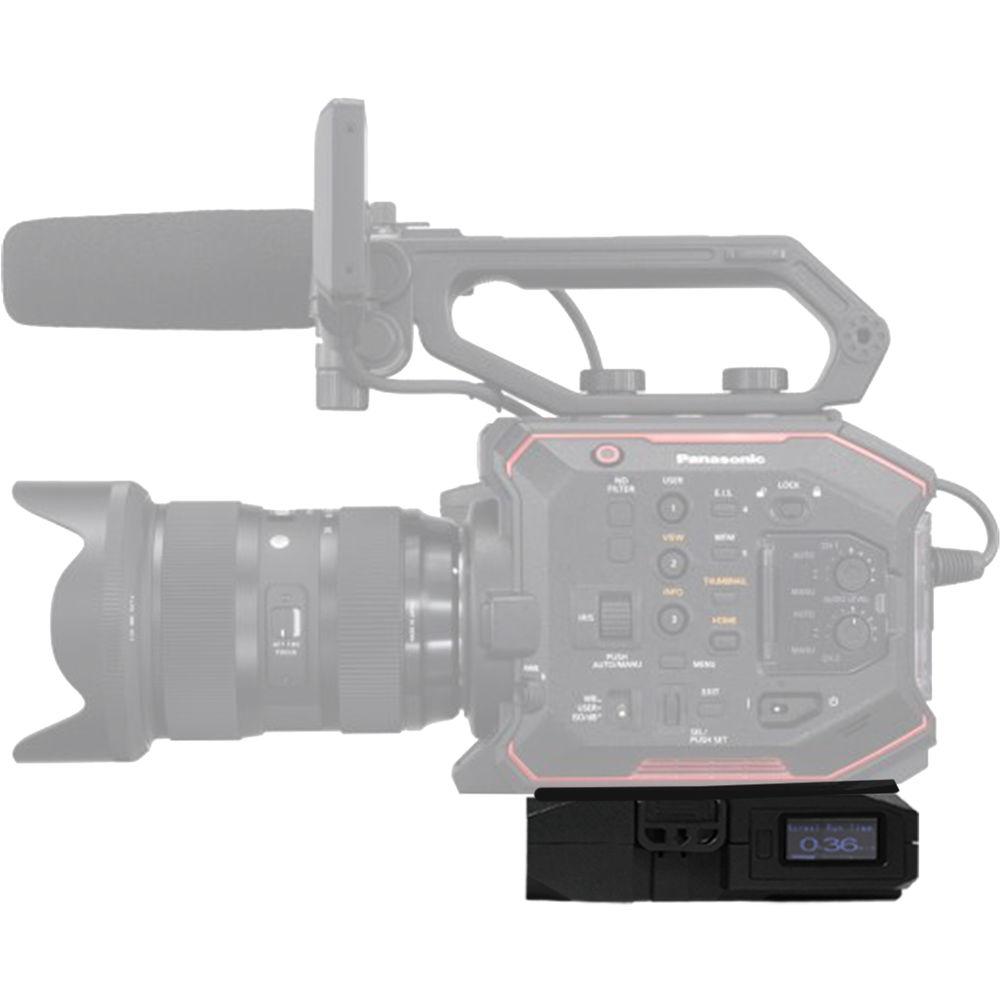

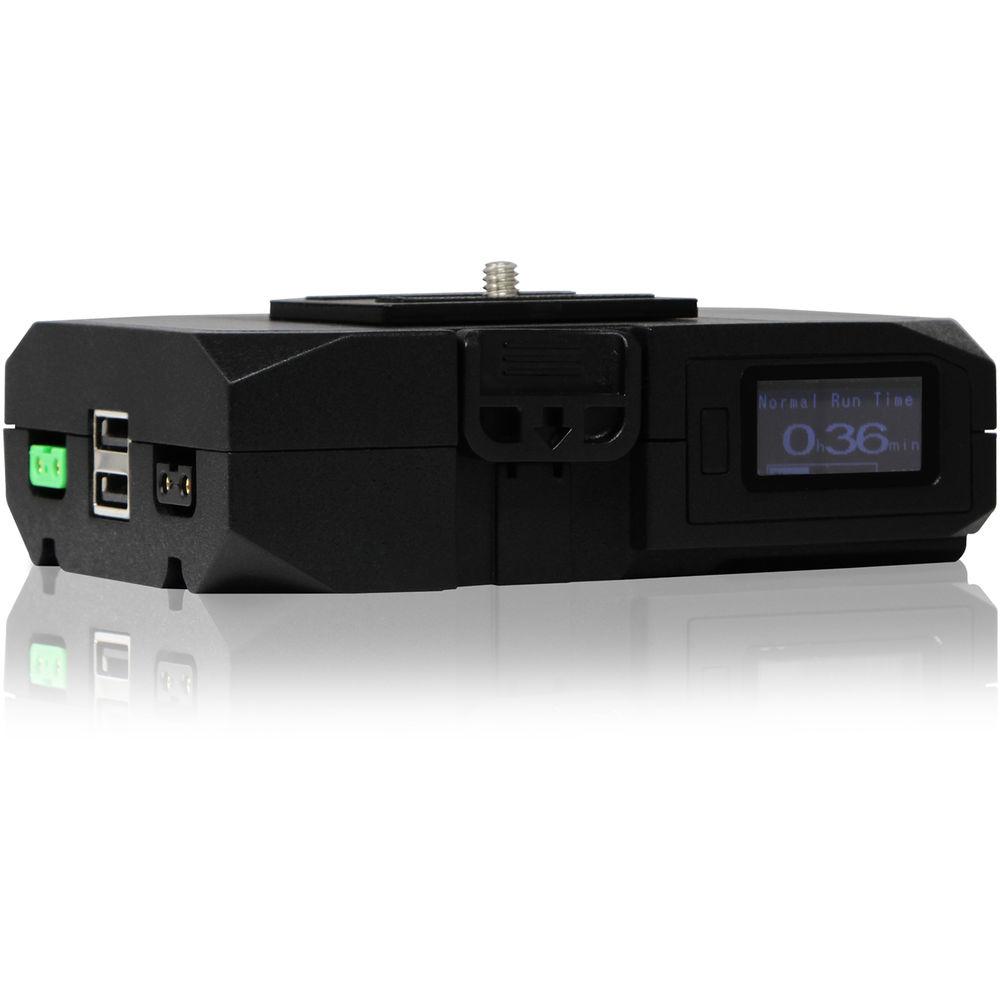

  The Powerbase EDGE has an LCD on the side that provides runtime in minutes. Located on the side, it's easy to check on and read during production. Moreover, a button-activated backlight allows you to see it clearly in dark environments.

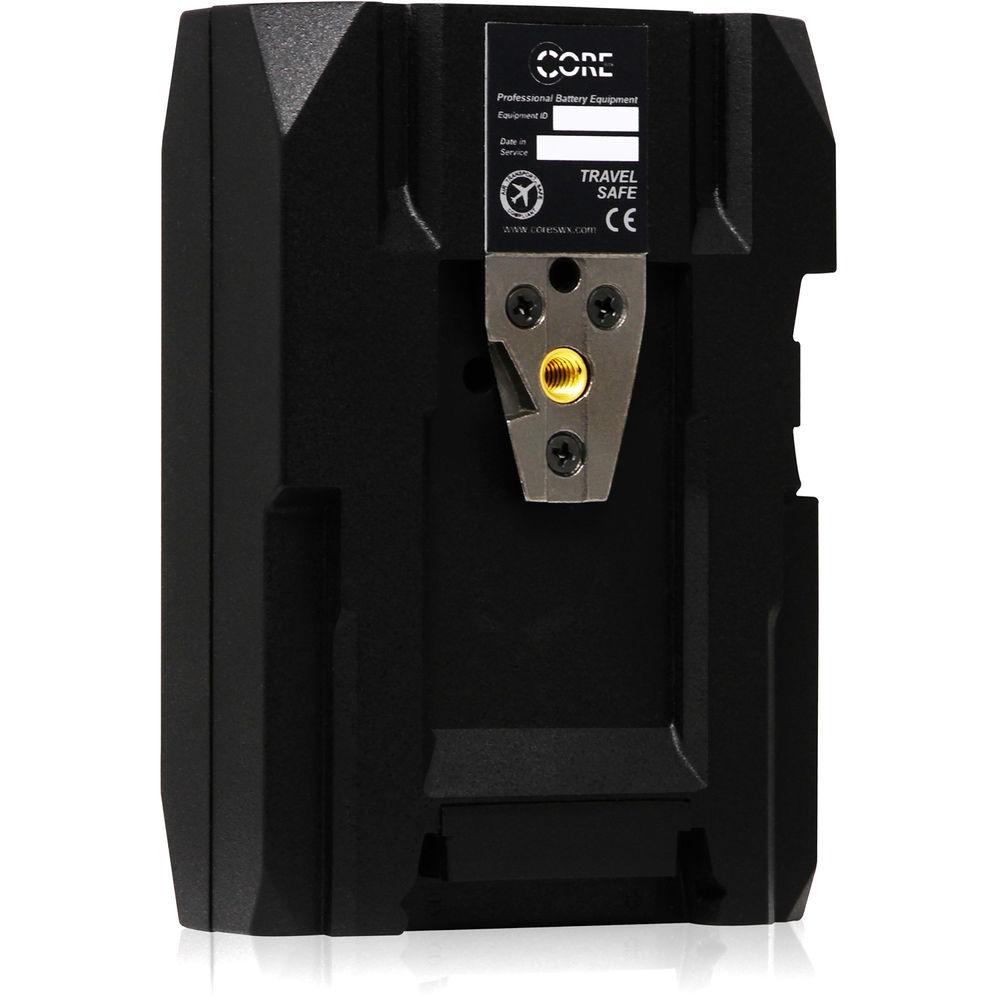

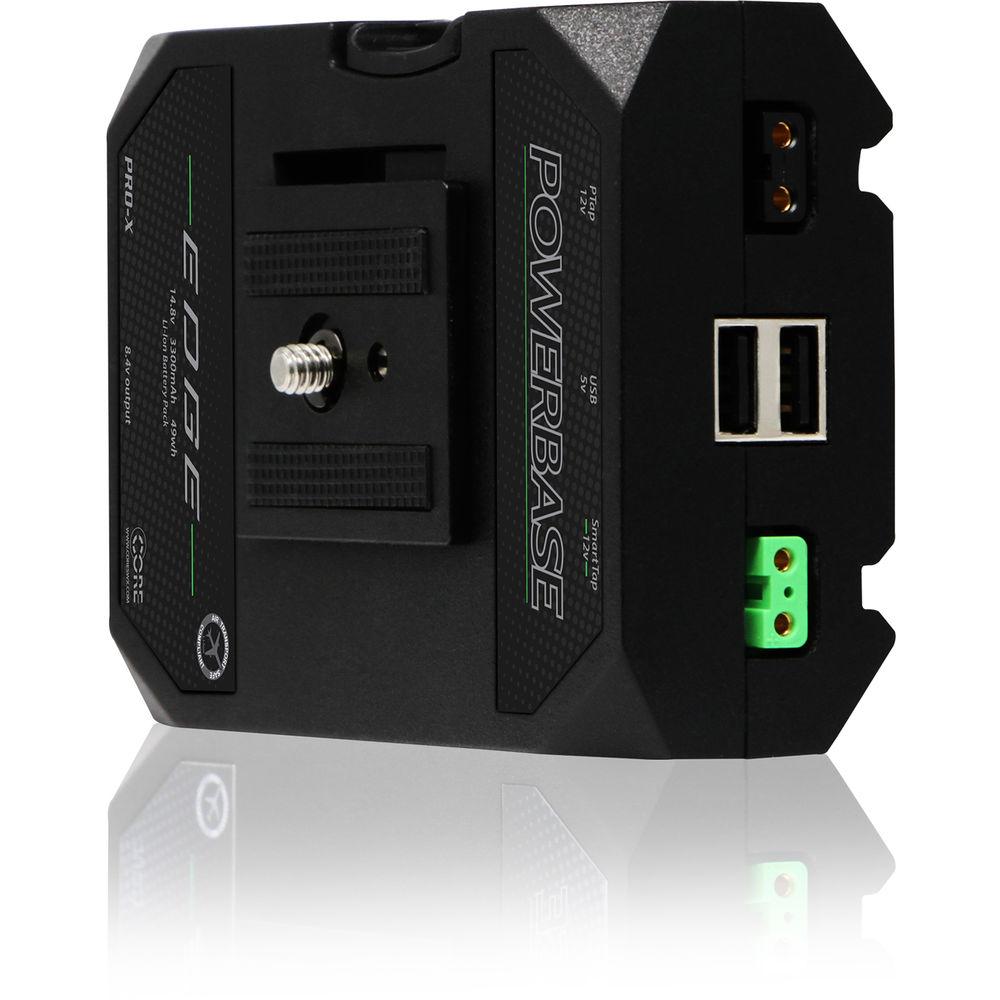

  Like the Powerbase 70, the Powerbase EDGE comes with a small quick release adapter that provides a convenient way of attaching the battery to cheese plates and other camera supports. It secures onto the middle of the battery and provides a 1/4"-20 mounting screw. If, for example, you're looking to power your camera using the battery's D-Tap port, the quick release adapter provides a convenient way of attaching the battery to your rig in order to do that.
  Key Features
  • • 14.8V, 49Wh, lithium-ion V-mount battery
    • 8A continuous draw
    • 8.4V regulated DC output
    • D-Tap output and charging port
    • SmartTap output - carries SMBUS/smart battery data
    • 2 x USB ports
    • Runtime LCD with button-activated backlight
    • Quick release adapter with 1/4"-20 screw
  UPC: 184323004249

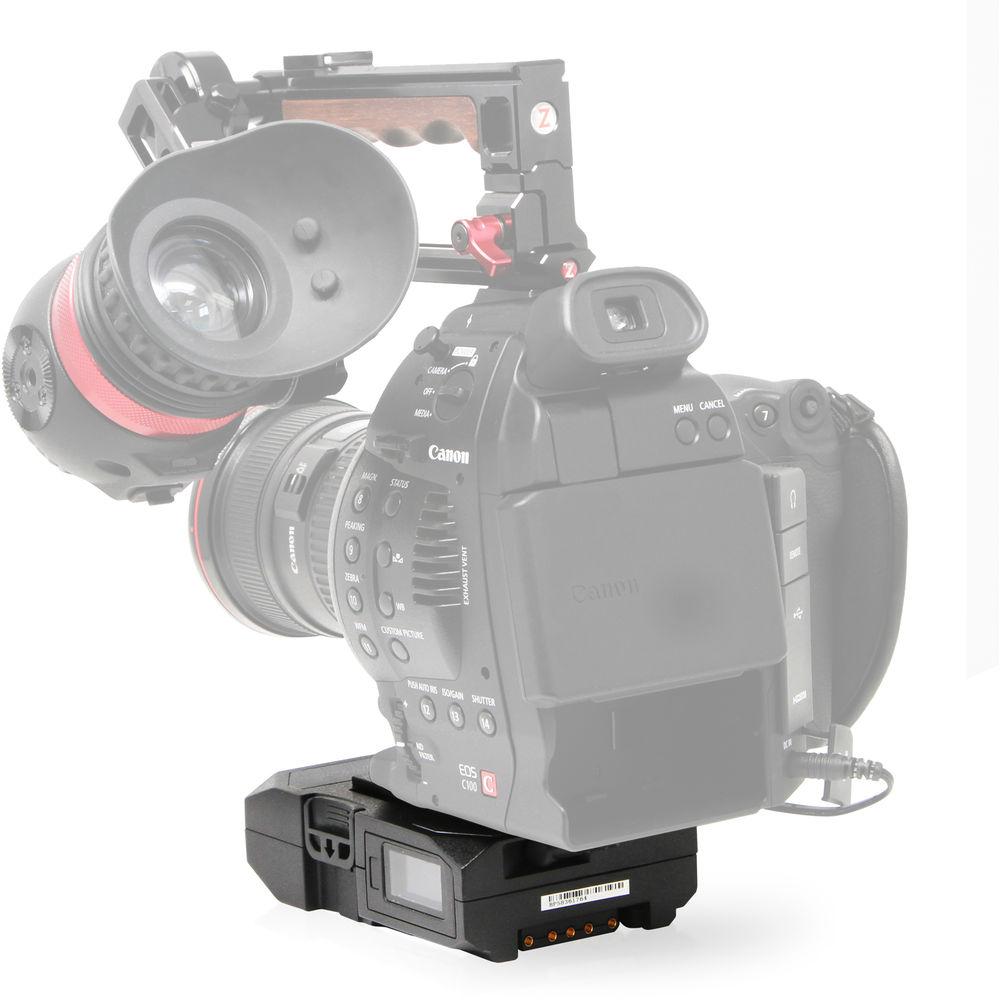

• Powerbase EDGE Cable for Canon C100, C300, and C500 This Powerbase EDGE Cable from Core SWX allows you to power the Canon C100, C300, or C500 camera from the Core SWX Powerbase EDGE battery. The cable runs 12" long and features a dedicated barrel connector for the camera on one end and a barrel connector for Powerbase EDGE on the other. UPC: 184323004331
• PB70C15 D-Tap Wall Charger The Core SWX PB70C15 D-Tap Charger provides a quick charge current of 1.5A and can be used to charge any battery with a D-Tap charging port, such as the Core SWX Powerbase EDGE and Nano batteries. This portable charger features a D-Tap connector on one end and U.S. wall plug on the other, and it supports 90-240 VAC worldwide-compatible input voltage, so it can be used anywhere in the world with the right plug adapter, sold separately. The charger also has an LED indicator on the front that changes from red to green when your battery is fully charged. UPC: 184323004102

• Limited 1-Year Warranty

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Powerbase EDGE V-Mount Battery

  Mount / Series Type	V-Mount
  Chemistry	Lithium-Ion
  Capacity (Wh)	49 Wh
  Amp-Hours	3.3 Ah
  Output Voltage	14.8 VDC
  Maximum Load	8 A
  Accessory Port	2 x D-Tap 2 x USB Type-A
  Accessory Mounting Thread	1 x 1/4"-20 Female
  Dimensions (W x H x D)	5.1 x 3.6 x 1.6" / 13.0 x 9.1 x 4.1 cm
  Weight	1.3 lb / 0.6 kg

  Box Dimensions (LxWxH)	8.0 x 6.9 x 2.9"

• Powerbase EDGE Cable for Canon C100, C300, and C500

  Connector 1	Barrel connector for Canon C100/C300/C500
  Connector 2	Barrel connector for Core SWX Powerbase EDGE
  Length	12" / 30.5 cm

  Box Dimensions (LxWxH)	5.75 x 3.4 x 2.1"

• PB70C15 D-Tap Wall Charger

  Charge Current	1.5 A
  Input Voltage	90-240 VAC, 50/60 Hz
  Dimensions	3 x 1 x 0.75" / 7.6 x 2.5 x 1.9 cm
  Weight	0.4 lb / 181 g

  Box Dimensions (LxWxH)	5.7 x 3.4 x 2.2"
