User Manual for Core SWX Recon Wireless HDMI with V-Mount Click to enlarge the picture
Contents of the user manual for the Core SWX Recon Wireless HDMI with
- Product category: Wireless Transmission Systems Core SWX
- Brand: Core SWX
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Core SWX Wireless Transmission Systems
|
User manual for the Core SWX Recon Wireless HDMI with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Core SWX product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Core SWX user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Core SWX product will considerably shorten its lifespan!
|

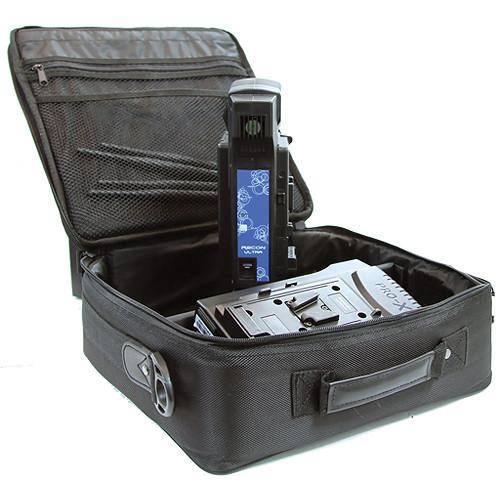

Product description The Core SWX Recon Wireless HDMI with V-Mount is a transmitter and receiver set that wirelessly transfers HD video, along with embedded sound, just over 160 feet from the camera to a field monitor. The data is transferred uncompressed and with a latency of less than a millisecond, allowing for real-time, high-quality monitoring. Whatever is being shot can be viewed as it is being captured. The transmitted data is encrypted for safety.
Power is supplied by either a V-Mount battery or DC input via a 4-pin XLR connector. If you have both a battery and power supply connected, a backup power failure function will switch to the battery if the power supply is accidentally disconnected. The batteries and power supply are not included. Adding further reliability, a 5.1 to 5.9 GHz frequency rate automatically adjusts frequencies in case of interference with another RF system, and an external antenna further supports a stable connection.
The Recon HDMI is equipped with an HDMI input and output, plus an HD-SDI output. The quality of data supported is fully uncompressed 1080 true cinema video with embedded sound. Also, the Recon automatically detects and supports both PAL and NTSC. - Real-Time Wireless Video Transmission
-
- Transmitter and receiver set for live previewing
- 160 ft real-time transmission from camera to monitor
- Transfers uncompressed HD video with embedded sound
- Switches to battery if power supply is accidentally disconnected
- Adjusts frequencies in case of interference with another RF system
- The Recon HDMI features an HDMI input and output, plus an SDI output
UPC: 184323001408 In the Box Core SWX Recon Wireless HDMI with V-Mount Protective Travel Case Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Core SWX Recon Wireless HDMI with V-Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCore SWX RECV-HDMI Specs | Transmission Distance | 164' (50 m) in open space
98' (30 m) through walls | | Latency | Less than 1 ms | | Inputs/Outputs | Transmitter:
1 x HDMI input
Receiver:
1 x HDMI output
2 x HD-SDI outputs | | Resolutions | 1080p: 24/25/29.97
1080PsF: 23.98/25
1080i: 50/60
720p: 24/25/50/60 | | Supported Formats | SD: 480i, 576i
SD-SDI: 525i 59.94 (NTSC equivalent) / 625i 50 (PAL equivalent)
HDMI: 1080i, 720p (NTSC/PAL) | | Frequency | 5.1 to 5.9 GHz | | Battery Type | V-Mount | | Dimensions | Transmitter/Receiver: 6.14 x 8 x 3" (15.6 x 20.3 x 7.6 cm)
Transmitter/Receiver Antenna: 8" (20.3 cm) | | Weight | 1.8 lb (.8 kg) | | | | Package Weight | 8.0 lb | | Box Dimensions (LxWxH) | 14.3 x 14.2 x 6.6" |
