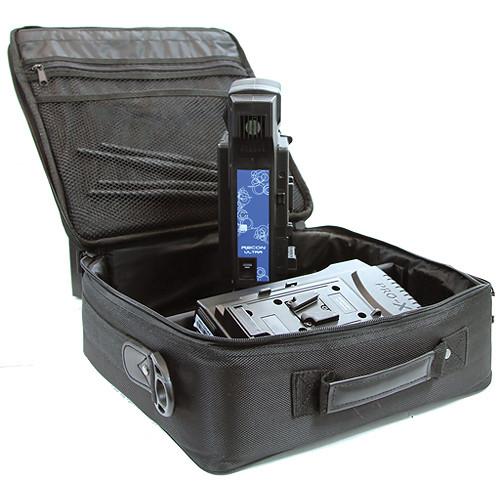

Product description The Core SWX Recon Wireless ULTRA with V-Mount is a transmitter and receiver set that wirelessly transfers HD video, along with embedded sound, just over 160 feet from the camera to a field monitor. The data is transferred uncompressed and with a latency of less than a millisecond, allowing for real-time, high-quality monitoring. Whatever is being shot can be viewed as it is being captured. The transmitted data is encrypted for safety.
Power is supplied by either a V-Mount battery or DC input via a 4-pin XLR connector. If you have both a battery and a power supply connected, a backup power failure function will switch to the battery if the power supply is accidentally disconnected. The batteries and power supply are not included. Adding further reliability, a 5.1 to 5.9 GHz frequency rate automatically adjusts frequencies in case of interference with another RF system, and an external antenna further supports a stable connection.
The Recon Ultra is equipped with HDMI and HD-SDI inputs and outputs, and provides a built-in HDMI to HD-SDI converter. The quality of data supported is fully uncompressed 1080 true cinema video with embedded sound. Also, the Recon automatically detects and supports both PAL and NTSC. - Real-Time Wireless Video Transmission
-
- Transmitter and receiver set for live previewing
- 160 ft real-time transmission from camera to monitor
- Transfers uncompressed HD video with embedded sound
- Switches to battery if power supply is accidentally disconnected
- Adjusts frequencies in case of interference with another RF system
- Features HDMI and SDI inputs and outputs, with an HDMI to HD-SDI converter
UPC: 184323001514 In the Box Core SWX Recon Wireless ULTRA with V-Mount Protective Travel Case Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Core SWX Recon Wireless ULTRA with V-Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCore SWX RECV-ULTRA Specs | Transmission Distance | 164' (50 m) in open space
98' (30 m) through walls | | Latency | Less than 1 ms | | Inputs/Outputs | Transmitter:
1 x HDMI input
1 x HD-SDI input
1 x HD-SDI loop-through output
Receiver:
1 x HDMI output
2 x HD-SDI outputs | | Resolutions | 1080p: 24/25/29.97
1080PsF: 23.98/25
1080i: 50/60
720p: 24/25/50/60 | | Supported Formats | SD: 480i, 576i
SD-SDI: 525i 59.94 (NTSC equivalent) / 625i 50 (PAL equivalent)
HDMI: 1080i, 720p (NTSC/PAL) | | Frequency | 5.1 to 5.9 GHz | | Battery Type | V-Mount | | Dimensions | Transmitter/Receiver: 6.14 x 8 x 3" (15.6 x 20.3 x 7.6 cm)
Transmitter/Receiver Antenna: 8" (20.3 cm) | | Weight | 1.8 lb (.8 kg) | | | | Package Weight | 8.2 lb | | Box Dimensions (LxWxH) | 14.3 x 14.1 x 6.6" |
