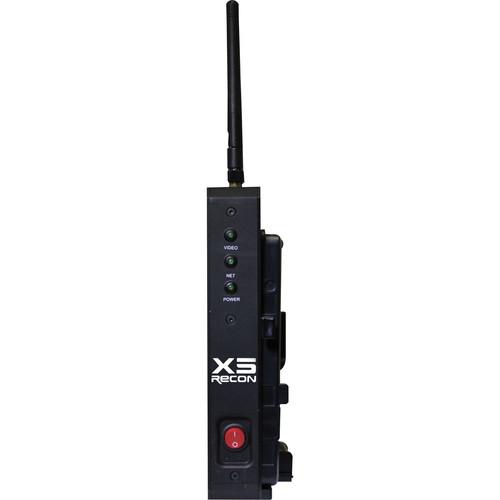

Product description The Recon X5 HD-SDI Wireless Receiver with V-Mount from Core SWX is an additional receiver compatible with the Recon X5 HD-SDI wireless transmitter. It accepts uncompressed HD/SD-SDI signals with a latency of less than one video frame at 60 fps, allowing for real-time monitoring.
A graphical interface on the receiver lets you switch from auto frequency selection to manual selection of a channel in the 5.1 to 5.9 GHz range. You can also name transmitters and receivers, select latency, and adjust settings. The ability to name transmitter and receivers is particular useful on multicamera shoots. You can even use the receiver as a camera feed switch and choose between feeds from multiple transmitters on set.
The receiver is powered by a V-Mount battery using the attached battery plate, or from other external sources via a 6-pin 2B LEMO connection. For mounting, three 1/4"-20 threaded holes are provided on the bottom of the receiver; one centered and two 18mm apart for adding rod mounts. - Key Features
-
- Additional wireless receiver for Recon X5 system
- Two HD/SD-SDI outputs
- Accepts uncompressed HD video with embedded audio
- Latency is less than one video frame at 60 fps
- Powered by V-Mount battery (sold separately)
- Three 1/4"-20 threads on bottom; one centered and two 18mm apart for adding rod mounts
UPC: 184323002467 In the Box Core SWX Recon X5 HD-SDI Wireless Receiver with V-Mount Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Core SWX Recon X5 HD-SDI Wireless Receiver with V-Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCore SWX REC5-XRX-V Specs | Housing | Aluminum | | Frequency | 5.1 to 5.9 GHz | | Video Output | 2 x HD-SDI | | Supported Formats | 1080PsF: 23.98/25
1080p: 24/25/29.97
1080i: 50/60
720p: 24/25/50/60
576i
480i | | Power | 11 to 17 VDC via V-Mount battery plate or 6-pin 2B LEMO | | Dimensions | 7.2 x 3.9 x 1.25" (18.3 x 9.9 x 3.2 cm) | | Weight | 1.4 lb (0.6 kg) |
