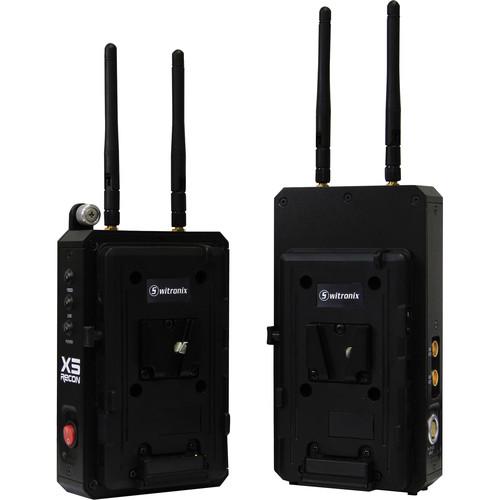

Product description The Recon X5 HD-SDI Wireless TX/RX System with V-Mount from Core SWX is a transmitter and receiver set that wirelessly sends HD/SD-SDI video, along with embedded audio, over 500 feet from the camera to a monitor. The signal is transferred uncompressed and with a latency of less than one video frame at 60 fps, allowing for real-time monitoring. Transmitted data is encrypted for security.
A graphical interface on the receiver lets you switch from auto frequency selection to manual selection of a channel in the 5.1 to 5.9 GHz range. You can also name transmitters and receivers, select latency, and adjust settings. The ability to name transmitter and receivers is particular useful on multicamera shoots. You can even use the receiver as a camera feed switch and choose between feeds from multiple transmitters on set.
The receiver is powered by a V-Mount battery using the attached battery plate, or from other external sources via a 6-pin 2B LEMO connection. The transmitter features an attached V-Mount battery plate for power. Additionally, the transmitter can be converted to function as a module for the Core SWX X-Mod system. Simply remove the battery plate to reveal a 2-pin Amphenol connector, and connect directly to the JetPack X and/or the battery back of an ENG camera. - Key Features
-
- 500 ft real-time transmission from camera to monitor
- HD/SD-SDI input and loop-through output on transmitter
- Two HD/SD-SDI outputs on receiver
- Sends uncompressed HD video with embedded audio
- Latency is less than one video frame at 60 fps
- Receiver powered by V-Mount battery
- Transmitter powered by V-Mount battery
- Three 1/4"-20 threads on bottom of transmitter and receiver; one centered and two 18mm apart for adding rod mounts
UPC: 184323002429 In the Box Core SWX Recon X5 HD-SDI Wireless TX/RX System with V-Mount Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Core SWX Recon X5 HD-SDI Wireless TX RX System with V-Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCore SWX REC5-V Specs | Housing | Aluminum | | Transmission Distance | 500' | | Frequency | 5.1 to 5.9 GHz | | Video Input / Output | Transmitter:
1 x HD-SDI input
1 x HD-SDI loop-through output
Receiver:
2 x HD-SDI output | | Supported Formats | 1080p: 24/25/29.97
1080PsF: 23.98/25
1080i: 50/60
720p: 24/25/50/60
576i
480i | | Power | Transmitter: 11 to 17 VDC via V-Mount battery plate
Receiver: 11 to 17 VDC via V-Mount battery plate or 6-pin 2B LEMO | | Dimensions | Transmitter: 6.1 x 3.9 x 1.3" (15.5 x 9.9 x 3.3 cm)
Receiver: 7.2 x 3.9 x 1.25" (18.3 x 9.9 x 3.2 cm) | | Weight | Transmitter: 1.4 lb (0.6 kg)
Receiver: 1.4 lb (0.6 kg) | | | | Package Weight | 4.55 lb | | Box Dimensions (LxWxH) | 8.3 x 6.9 x 4.4" |
