User Manual for Core SWX Short Form Factor Hotswap Shark-Fin Mount Battery Mount Click to enlarge the picture
Contents of the user manual for the Core SWX Short Form Factor Hotswap
- Product category: Battery Mounting Plates Core SWX
- Brand: Core SWX
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Core SWX Battery Mounting Plates
 |
User manual for the Core SWX Short Form Factor Hotswap contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Core SWX product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Core SWX user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Core SWX product will considerably shorten its lifespan!
|

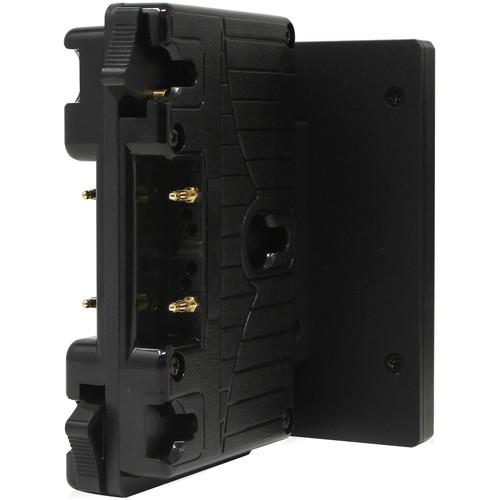

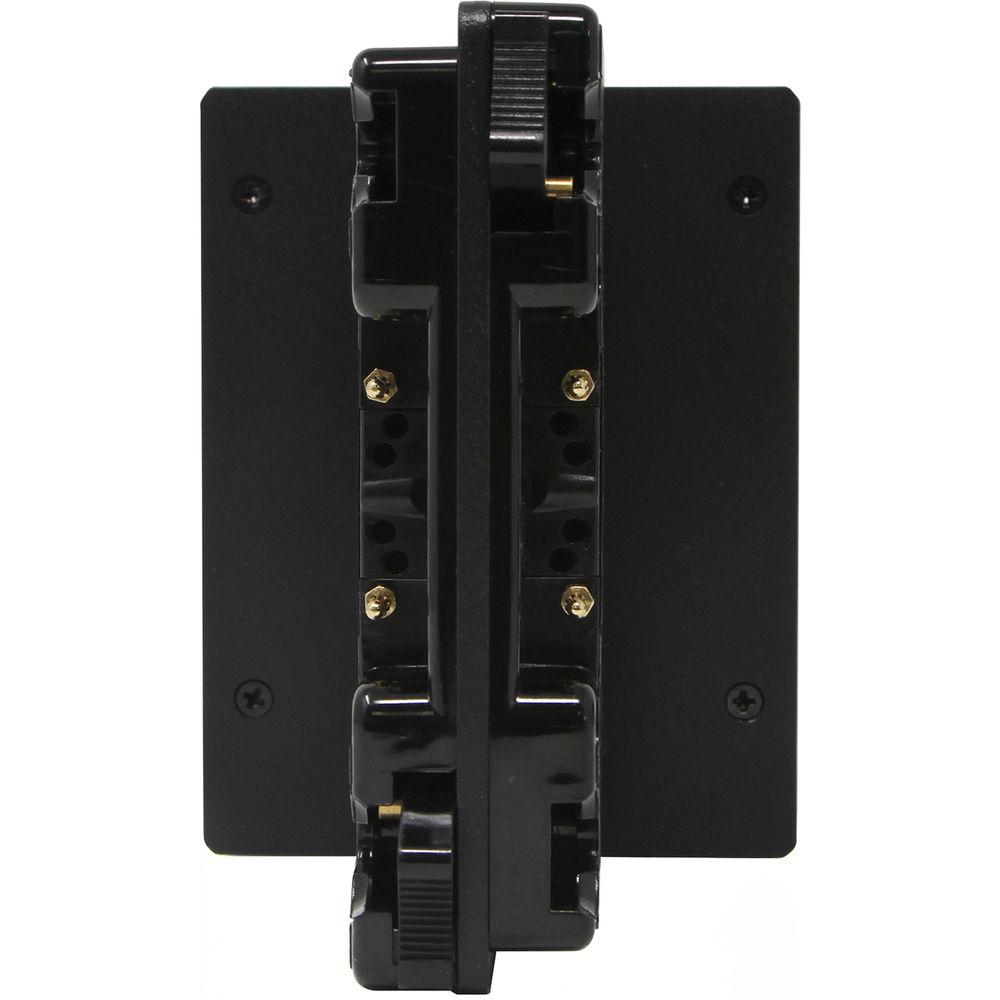

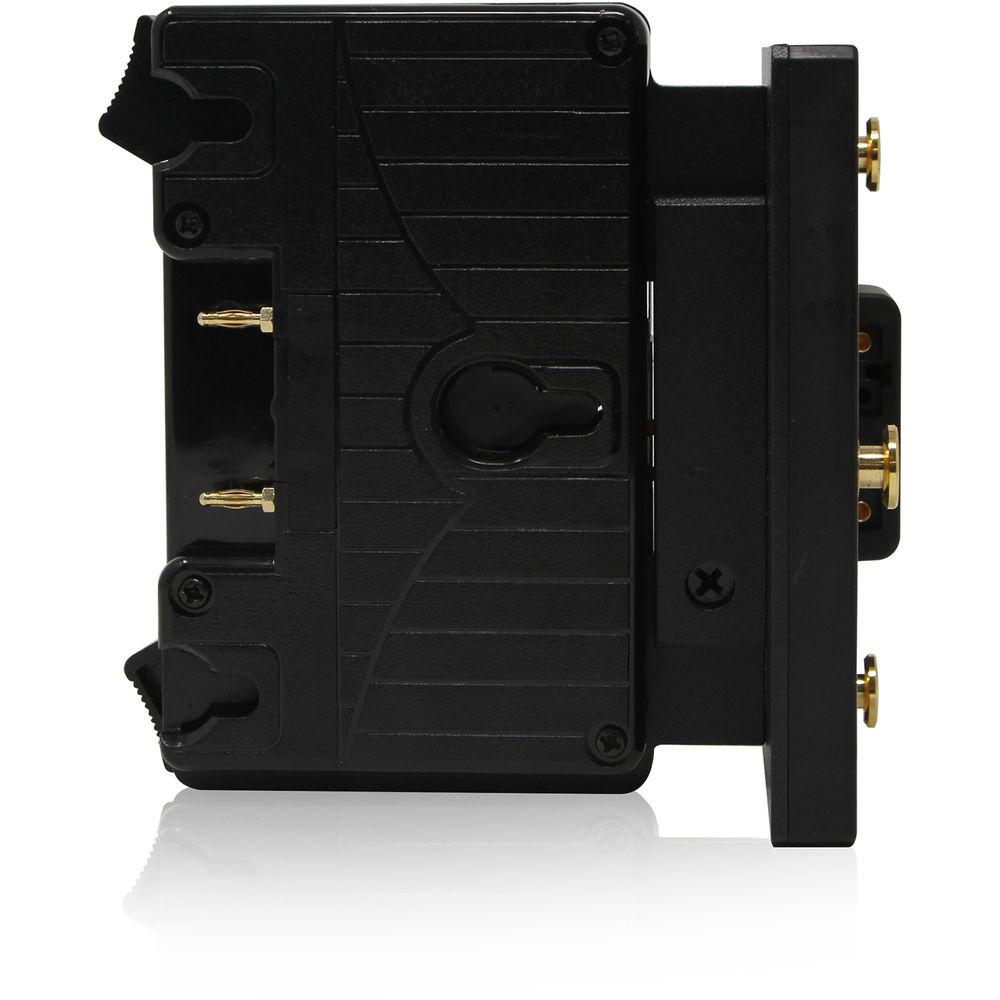

Product description The CoreSWX Short Form Factor Hotswap Shark-Fin Mount Battery Mount mounts on you camera's Gold mount plate and enables simultaneous mounting of two Gold mount batteries. The batteries are mounted in parallel, which allows the two batteries to act as one larger battery with increased capacity while maintaining the voltage. As one battery becomes exhausted, you can remove it and swap it for a charged battery without having to power down your camera.
The Shark-Fin also incorporates two D-Taps for accessory power. These D-Taps are unregulated, and will deliver from 11 to 17 VDC, which will power most cinema accessories. - The batteries mount in parallel which allows the voltage of each to remain essentially unaffected by adding or removing a battery to the Shark-Fin. However, it is recommended that you use matching capacity batteries in a similar charge state.
- For example if a fully charged battery (16.8V) and a fully depleted battery (11V) are used together, the circuitry will divert the load to the fully charged battery and your camera will see the higher voltage, not an average. So there is no need to worry about accidentally hot swapping a depleted battery on as long as the existing battery has enough power to maintain camera power.
- The Shark-Fin will draw from both batteries as long as they are in the acceptable voltage range. Once one battery drops below that range (11 VDC) the Shark-Fin will stop drawing from it.
- Core SWX batteries also have protection circuitry to prevent being charged from one another.
UPC: 184323004669 In the Box Core SWX Short Form Factor Hotswap Shark-Fin Mount Battery Mount (Gold Mount, 2 x D-Taps) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Core SWX Short Form Factor Hotswap Shark-Fin Mount Battery Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCore SWX GP-TA-SFF Specs | Battery Mount | Gold Mount | | Power Outputs | 2 x D-Tap | | Dimensions | 6 x 6 x 5" / 15.24 x 15.24 x 12.70 cm | | Weight | 1.3 lb / 0.6 kg | | | | Package Weight | 1.155 lb | | Box Dimensions (LxWxH) | 19.2 x 9.4 x 5.8" |
