Product description

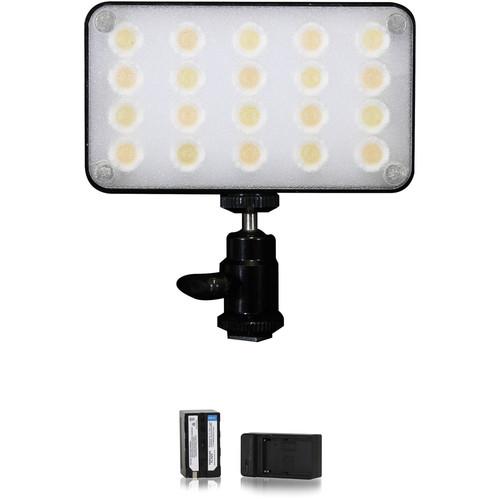

• Core SWX TorchLED Bolt 250W On-Camera Light
  • Core SWX TorchLED Bolt 250W On-Camera Light
  The TorchLED Bolt 250 On-Camera Light from Core SWX provides a 250W-equivalent light output in a form 40% slimmer than its Bolt 220R predecessor. A single dial controls the Bolt 250's 3200-5600K color temperature range - dimmable from 0-100%. The TorchLED Bolt 250 draws 13W of power and is compatible with Sony L-series type batteries. The included D-tap power cable enables the use of longer-lasting 14.4V brick batteries. The TorchLED Bolt 250's 9-channel remote allows users to control the light from up to 250' away (non– line-of-sight). On/off powering, color temperature, and light intensity can be controlled remotely. Up to 10 lights can be banked to one channel for uniform control. The TorchLED Bolt 250 includes a 1/4"-20 ball-head to hot-shoe mount, an L-series battery with charger, and a magnetic diffusion filter.
  • Slim form factor with 250W equivalent output
  • On/off switch aids in conserving battery life
  • Wireless non-line-of-sight, 9-channel remote control up to 250' away
  • Control up to 10 lights per channel
  • Single-knob color-temperature control from 3200-5600K
  • Can be powered via a Sony-L type battery or a 14.4V brick battery with a D-Tap output
  UPC: 184323003426
• Core SWX NPF-970, 6600mah L-Series Battery Kit
  • Core SWX TorchLED Bolt 250W On-Camera Light
  The Core SWX Bolt Battery Kit consists of a 7.2V lithium-ion battery and a travel charger.

  Designed specifically for the TL-BT200 LED light, the battery has a 6600mAh capacity and will power your light for up to 2 hours (a bit less at max light output). Equipped also with a Sony InfoLithium microchip, the battery can be used to power Sony camcorders that accept L-Series batteries.

  The charger works with any outlet rated between 110-220 VAC. It features an LED indicator that lights red when charging and that changes to green when finished charging. UPC: 184323001583

• TorchLED Bolt 250W On-Camera Light zrwssfttruvztxzuweeubduszaazawue
• D-Tap Cable
• Magnetic Diffusion Filter
• 9-Channel Remote Control
• 1/4"-20 Swivel Hot-Shoe Mount
• TLF970 L-Series Battery (7000mAh)
• L-Series Battery Charger
• Limited 1-Year Warranty

• NPF-970, 6600mah L-Series Battery Kit

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Core SWX TorchLED Bolt 250W On-Camera Light

  Dimming	Yes, 0 to 100%

  DC Input Power	7.2 to 16.8 VDC
  Max Power Consumption	13 W

  Mount Type	1/4"-20 Female Thread, Cold Shoe
  Dimensions	5.2 x 3 x 1.7" / 13.3 x 7.8 x 4.3 cm
  Weight	0.6 lb / 0.27 kg

  Box Dimensions (LxWxH)	8.268 x 8.268 x 2.677"

• Core SWX NPF-970, 6600mah L-Series Battery Kit

  AC Input Power	110 to 220 VAC, 50 Hz
  Amp-Hours	6600 mAh
  Output Voltage	7.2 VDC
  Operating Temperature	50 to 104°F / 10 to 40°C
  Operating Humidity	30 to 95%
  Storage Temperature	41 to 122°F / 5 to 50°C
  Storage Humidity	30 to 95%
  Dimensions	2.25 x 2.9 x 1.5" / 5.7 x 7.3 x 3.8 cm
  Weight	12.3 oz / 348 g

  Box Dimensions (LxWxH)	5.1 x 3.65 x 1.8"
