Core SWX TorchLED Bolt 250W On-Camera

Search your instruction manual in PDF to download

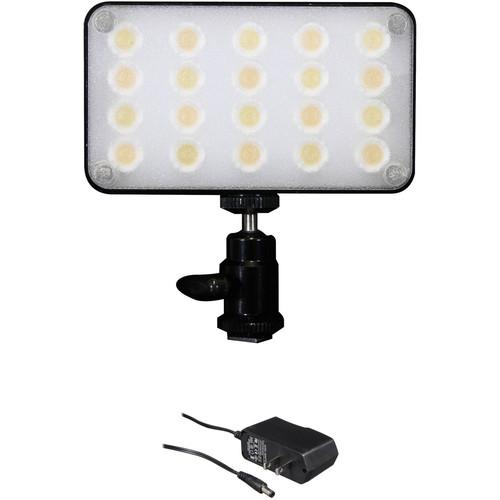

User Manual for Core SWX TorchLED Bolt 250W On-Camera Light with Power Supply Kit

Click to enlarge the picture
Core SWX TorchLED Bolt 250W On-Camera Light with Power Supply Kit Contents of the user manual for the Core SWX TorchLED Bolt 250W On-Camera
  • Product category: On Camera Lights Core SWX
  • Brand: Core SWX
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Core SWX On Camera Lights

User manual for the Core SWX TorchLED Bolt 250W On-Camera contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Core SWX product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Core SWX user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Core SWX product will considerably shorten its lifespan!



Product description

With the Core SWX TorchLED Bolt 250W On-Camera Light with Power Supply Kit from B&H you won't have to rely on battery power for long events or other situations where the light is off-camera or stationary. The TorchLED Bolt 250 can output a 250-watt tungsten equivalent while using a fraction of the power. The included power supply also works with other Core SWX products. See below for more information on the individual items included in this kit.
  • Core SWX TorchLED Bolt 250W On-Camera Light
    • Core SWX TorchLED Bolt 250W On-Camera Light
    The TorchLED Bolt 250 On-Camera Light from Core SWX provides a 250W-equivalent light output in a form 40% slimmer than its Bolt 220R predecessor. A single dial controls the Bolt 250's 3200-5600K color temperature range - dimmable from 0-100%. The TorchLED Bolt 250 draws 13W of power and is compatible with Sony L-series type batteries. The included D-tap power cable enables the use of longer-lasting 14.4V brick batteries. The TorchLED Bolt 250's 9-channel remote allows users to control the light from up to 250' away (non– line-of-sight). On/off powering, color temperature, and light intensity can be controlled remotely. Up to 10 lights can be banked to one channel for uniform control. The TorchLED Bolt 250 includes a 1/4"-20 ball-head to hot-shoe mount, an L-series battery with charger, and a magnetic diffusion filter.
    • Slim form factor with 250W equivalent output
    • On/off switch aids in conserving battery life
    • Wireless non-line-of-sight, 9-channel remote control up to 250' away
    • Control up to 10 lights per channel
    • Single-knob color-temperature control from 3200-5600K
    • Can be powered via a Sony-L type battery or a 14.4V brick battery with a D-Tap output
    UPC: 184323003426
  • Core SWX Power Supply for TL-68, TL-88, and TorchLED Bolt (90-240VAC)
    • Core SWX TorchLED Bolt 250W On-Camera Light
    The Core SWX Power Supply for TL-68, TL-88, and TorchLED Bolt (90-240VAC) is designed to power the Core SWX TL-68 or TL-88 dimmable LED light fixture, or the TorchLED Bolt using 90-240VAC. The TL-68 (45W) and the TL-88 (75W) lights are designed to run on 12VDC power sources, but using this power supply, you can operate either fixture from AC power. UPC: 184323001422
In the Box
  • TorchLED Bolt 250W On-Camera Light fvseecevzbcczucevvzswuvqfuetwvaac
  • D-Tap Cable
  • Magnetic Diffusion Filter
  • 9-Channel Remote Control
  • 1/4"-20 Swivel Hot-Shoe Mount
  • TLF970 L-Series Battery (7000mAh)
  • L-Series Battery Charger
  • Limited 1-Year Warranty
  • Power Supply for TL-68, TL-88, and TorchLED Bolt (90-240VAC)
Table of Contents




Upload User Manual

Have you got an user manual for the Core SWX TorchLED Bolt 250W On-Camera Light with Power Supply Kit in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Upload PDF user manual Upload DOC user manual
Please enter here the link to the user manual of this product:





OR

Enter here the file with the user manual of this product from your computer/phone:
(60MB max; Permitted formats: PDF)

0%


Technical parameters

  • Core SWX TorchLED Bolt 250W On-Camera Light
    Dimming Yes, 0 to 100%
    DC Input Power 7.2 to 16.8 VDC
    Max Power Consumption 13 W
    Mount Type 1/4"-20 Female Thread, Cold Shoe
    Dimensions 5.2 x 3 x 1.7" / 13.3 x 7.8 x 4.3 cm
    Weight 0.6 lb / 0.27 kg
    Box Dimensions (LxWxH) 8.268 x 8.268 x 2.677"
  • Core SWX Power Supply for TL-68, TL-88, and TorchLED Bolt (90-240VAC)
    AC Input Power 90 to 240 VAC, 50 Hz
    Output Voltage 12 VDC at 2 A
    Box Dimensions (LxWxH) 5.7 x 3.4 x 2.45"
