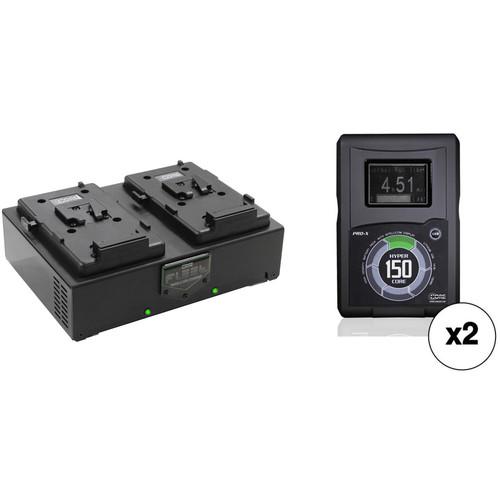

User Manual for Core SWX Two HyperCore 150 Batteries & Fleet Dual Charger Kit

• Product category: On Camera Batteries Core SWX
• Brand: Core SWX
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Core SWX On Camera Batteries

Product description

• Core SWX Fleet D V-Mount 2-Bay Charger Featuring two independent charge bays, the Core SWX Fleet D V-Mount 2-Bay Charger is capable of charging two batteries simultaneously. Two 98Wh batteries can be charged in approximately 2.5 hours for quick turnaround times. Easy-to-read red and green LEDs indicate charging and battery status. Supporting 90-240 VAC input voltage, Fleet Q is worldwide compatible if you incorporate the appropriate plug adapter, sold separately. A carry-handle is recessed into the aluminum chassis for convenient transport.
  Quick Features
  • • Two independent V-mount charge bays
    • Simultaneous charging
    • Approximately 2.5-hour charge time
    • Red and green status LEDs
    • 90-240 VAC worldwide compatible input voltage
    • Aluminum build
    • Recessed carry handle
  UPC: 184323003402
• 2 x Core SWX HyperCore 150Wh 14.8V V-Mount Battery The Core SWX HyperCore 150 14.8V V-Mount Battery is a 150Wh lithium-ion battery featuring high density cells designed to handle high power draws. Supporting more amperage per cell, the cells can withstand up to a 10A draw for extended periods without diminishing service life. Overall service life is rated at 1000 charge/discharge cycles. Run-time is projected at 6 hours at 25W. Safety sensors are built in that detect over/under voltage, over/under current, and above-normal temperature.

  A Intellicom backlit LCD and a 4-LED gauge provide operating run-time in hours and minutes, remaining capacity as a bar grid and percentage, and remaining charge time. An on-board fuel computer samples capacity and charge or discharge load and recomputes and refreshes the LCD display every five seconds. The HyperCore 150 works with all Core SWX chargers and dictates the best possible charge routine with regard to maximum life. It's best used with Core SWX XC-2LS and XC-2LA chargers as they'll provide faster charge times.

  A PowerTap port and USB port are available on the side for powering accessories and charging various devices. The outer jacket is made of comfortable-to-hold, non-slip rubber.
  Key Features
  • • 150Wh lithium-ion V-Mount battery
    • High density cells supporting up to a 10A draw for extended periods
    • Rated at 1000 charge/discharge cycles
    • Run-time projected at 6 hours at 25W
    • Built in safety sensors
    • Intellicom backlit LCD and 4-LED power gauge
    • Displays run-time in hours and minutes, capacity as a grid and %, and remaining charge time
    • On-board fuel computer refreshes the LCD display every five seconds
    • Dictates the best charge routine possible to the charger
    • Compatible with all Core SWX chargers
    • PowerTap port and USB port
    • Non-slip, rubberized housing
  UPC: 184323002849

• Fleet D V-Mount 2-Bay Charger sbwfsqwcwccvtywfuqbweqwtfcbcyycw
• 6 ft (1.8m) Power Cable
• Limited 3-Year Warranty

• 2 x HyperCore 150Wh 14.8V V-Mount Battery

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Core SWX Fleet D V-Mount 2-Bay Charger

  Number of Bays	2 x V-mount
  Charge Current	3 A
  Input Voltage	90-240 VAC, 50/60 Hz
  Material	Aluminum
  Dimensions	8.9 x 3 x 6.2" / 22.6 x 7.6 x 15.7 cm
  Weight	1.6 lb / 0.7 kg

  Box Dimensions (LxWxH)	13.2 x 10.35 x 4.15"

• 2 x Core SWX HyperCore 150Wh 14.8V V-Mount Battery

  Mount / Series Type	V-Mount
  Chemistry	Lithium-Ion
  Capacity (Wh)	150 Wh
  Output Voltage	14.8 VDC
  Maximum Load	10 A
  Accessory Port	1 x D-Tap 1 x USB Type-A
  Dimensions (W x H x D)	3.8 x 5.9 x 2.4" / 97.0 x 150.0 x 60.0 mm
  Weight	2.4 lb / 1.1 kg

  Box Dimensions (LxWxH)	8.2 x 7.0 x 4.3"
