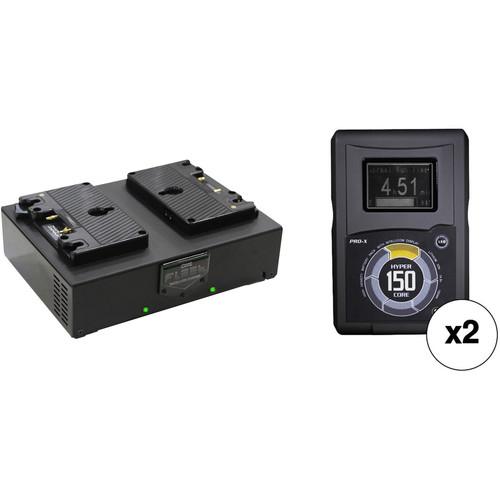

Product description This Kit includes two HyperCore 150 Gold-Mount Batteries and the simultaneous Fleet D Dual Charger from Core SWX.
The HyperCore battery features high-density HyperCore cells, which were originally developed for a high-draw military application. The battery is capable of handling 10A draws for extended periods without diminishing service life. It has a sleek design, anti-impact housing, rubberized exterior, large LCD, reliable readout computer, advanced hibernation feature, safety sensors, and much more. Based on a 25W load, the HyperCore 150 has a projected run-time of approximately 6 hours.
The Fleet D can recharge both HyperCore 150 batteries in 2.5 hours. It has a robust all-aluminum, stackable design and a recessed carry handle allowing for portability. - Core SWX Fleet D Gold Mount 2-Bay Charger Featuring two independent charge bays, the Core SWX Fleet D Gold Mount 2-Bay Charger is capable of charging two batteries simultaneously. Two 98Wh batteries can be charged in approximately 2.5 hours for quick turnaround times. Easy-to-read red and green LEDs indicate charging and battery status. Supporting 90-240 VAC input voltage, Fleet Q is worldwide compatible if you incorporate the appropriate plug adapter, sold separately. A carry-handle is recessed into the aluminum chassis for convenient transport.
- Quick Features
-
- Two independent Gold mount charge bays
- Simultaneous charging
- Approximately 2.5-hour charge time
- Red and green status LEDs
- 90-240 VAC worldwide compatible input voltage
- Aluminum build
- Recessed carry handle
UPC: 184323003419 - 2 x Core SWX HyperCore 150 Gold Mount Battery The Core SWX HyperCore 150 Gold Mount Battery is a 150Wh Lithium-Ion battery featuring high density cells designed to handle high power draws. Supporting more amperage per cell, the cells can withstand up to a 10A draw for extended periods without diminishing service life. Overall service life is rated at 1000 charge/discharge cycles. Runtime is projected at 6 hours at 25W. Safety sensors are built in that detect over/under voltage, over/under current, and above-normal temperature.The HyperCore 150 is compatible with Anton/Bauer Lithium-Ion chargers. An Intellicom backlit LCD and a 4-LED gauge provide operating runtime in hours and minutes, remaining capacity as a bar grid and percentage, and remaining charge time. An on-board fuel computer samples capacity and charge or discharge load and re-computes and refreshes the LCD display every five seconds. A D-tap port and USB port are available on the side for powering accessories and charging various devices. The outer jacket is made of comfortable-to-hold, non-slip rubber. This battery pack will charge on all Core SWX chargers.
- Key Features
-
- 150 lithium-ion Gold mount battery
- Compatible with all Anton Bauer lithium-ion chargers
- High density cells supporting up to a 10A draw for extended periods
- Rated at 1000 charge/discharge cycles
- Runtime projected at 6 hours at 25W
- Built-in safety sensors
- Intellicom backlit LCD and 4-LED power gauge
- Displays runtime in hours and minutes, capacity as a grid and %, and remaining charge time
- On-board fuel computer refreshes the LCD display every five seconds
- D-Tap port and USB port
- Non-slip, rubberized housing
UPC: 184323002832 In the Box - Fleet D Gold Mount 2-Bay Charger aaexcrerfadcrsadcaurvubcqeuayef
- 6 ft (1.8m) Power Cable
- Limited 3-Year Warranty
- 2 x HyperCore 150 Gold Mount Battery aaexcrerfadcrsadcaurvubcqeuayef
Table of Contents
|
Upload User Manual
Have you got an user manual for the Core SWX Two HyperCore 150 Batteries & Fleet Dual Charger Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Core SWX Fleet D Gold Mount 2-Bay Charger
| Number of Bays | 2 x Gold mount | | Charge Current | 3 A | | Input Voltage | 90-240 VAC, 50/60 Hz | | Material | Aluminum | | Dimensions | 8.9 x 3 x 6.2" / 22.6 x 7.6 x 15.7 cm | | Weight | 1.6 lb / 0.7 kg | | | | Box Dimensions (LxWxH) | 12.992 x 10.394 x 4.252" | - 2 x Core SWX HyperCore 150 Gold Mount Battery
| Mount / Series Type | Gold Mount | | Chemistry | Lithium-Ion | | Capacity (Wh) | 150 Wh | | Output Voltage | 14.8 VDC | | Maximum Load | 10 A | | Accessory Port | 1 x D-Tap
1 x USB Type-A | | Dimensions (W x H x D) | 3.8 x 5.9 x 2.4" / 97.0 x 150.0 x 60.0 mm | | Weight | 2 lb / 0.9 kg | | | | Box Dimensions (LxWxH) | 8.0 x 7.0 x 4.2" |
