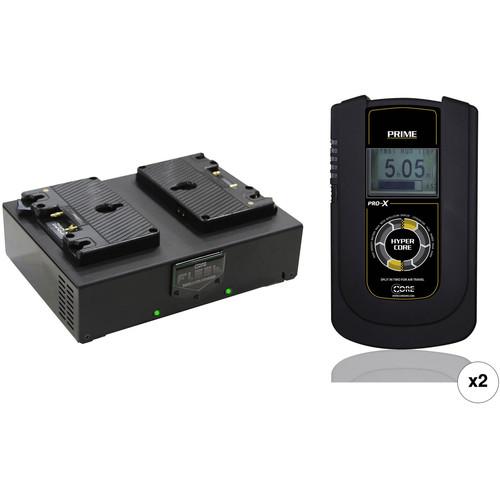

User Manual for Core SWX Two HyperCore Prime 190Wh Batteries & Fleet Dual Charger Kit Click to enlarge the picture
Contents of the user manual for the Core SWX Two HyperCore Prime 190Wh
- Product category: On Camera Batteries Core SWX
- Brand: Core SWX
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Core SWX On Camera Batteries
|
User manual for the Core SWX Two HyperCore Prime 190Wh contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Core SWX product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Core SWX user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Core SWX product will considerably shorten its lifespan!
|
Product description This Kit includes two innovative HyperCore Prime 190Wh Gold-Mount Batteries and the simultaneous Fleet D Dual Charger from Core SWX.
The HyperCore Prime splits into two separate 95Wh parts and can be safely transported without restrictions under IATA, ICAO, and UN regulations. Once you reach your destination, connect the two parts and you've got yourself a 190Wh workhorse. The HyperCore Prime features high-density HyperCore cells, which were originally developed for a high-draw military application. It's capable of handling 10A draws for extended periods and has a sleek design, LCD, reliable readout computer, advanced hibernation feature, safety sensors, and much more. Based on a 25W load, the HyperCore Prime has a projected run-time of approximately 7.6 hours.
The Fleet D can recharge both HyperCore Prime batteries in about 5 hours. This charger has a robust all-aluminum, stackable design and a recessed carry handle allowing for portability. - Core SWX Fleet D Gold Mount 2-Bay Charger Featuring two independent charge bays, the Core SWX Fleet D Gold Mount 2-Bay Charger is capable of charging two batteries simultaneously. Two 98Wh batteries can be charged in approximately 2.5 hours for quick turnaround times. Easy-to-read red and green LEDs indicate charging and battery status. Supporting 90-240 VAC input voltage, Fleet Q is worldwide compatible if you incorporate the appropriate plug adapter, sold separately. A carry-handle is recessed into the aluminum chassis for convenient transport.
- Quick Features
-
- Two independent Gold mount charge bays
- Simultaneous charging
- Approximately 2.5-hour charge time
- Red and green status LEDs
- 90-240 VAC worldwide compatible input voltage
- Aluminum build
- Recessed carry handle
UPC: 184323003419 - 2 x Core SWX HyperCore Prime 190Wh Gold Mount Li-Ion Battery Pack The HyperCore Prime 190Wh Gold Mount Li-Ion Battery Pack from Core SWX employs a 2-part system to provide a charge capacity of 190 Wh (14.8 V, 13.5 Ah). The battery pack complies with IATA, ICAO, and UN regulations for air transportation without restrictions. It can sustain large power draws to easily handle digital cinema cameras, like ARRI Alexa, Amira, Epic, Sony F65, and Phantom. The battery pack has an integrated D-tap connection on the side, allowing you to power any 12 VDC device from this port. It features an additional USB output that can be used to charge your mobile device. It also features a large backlit runtime LCD and an LED grid on the front that provide the charging status of the battery. Four of the HyperCore Prime batteries can be installed on the HyperCine Block Battery (available separately) providing a total charge capacity of up to 760Wh. This Gold mount battery is compatible with the Anton/Bauer (firmware V3.6 and up) chargers, including the Switronix charger lineup. UPC: 184323003020
In the Box - Fleet D Gold Mount 2-Bay Charger uzfvuvsbdbxesdyxeccusbatsdyycautu
- 6 ft (1.8m) Power Cable
- Limited 3-Year Warranty
- 2 x HyperCore Prime 190Wh Gold Mount Li-Ion Battery Pack
Table of Contents
|
Upload User Manual
Have you got an user manual for the Core SWX Two HyperCore Prime 190Wh Batteries & Fleet Dual Charger Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Core SWX Fleet D Gold Mount 2-Bay Charger
| Number of Bays | 2 x Gold mount | | Charge Current | 3 A | | Input Voltage | 90-240 VAC, 50/60 Hz | | Material | Aluminum | | Dimensions | 8.9 x 3 x 6.2" / 22.6 x 7.6 x 15.7 cm | | Weight | 1.6 lb / 0.7 kg | | | | Box Dimensions (LxWxH) | 12.992 x 10.394 x 4.252" | - 2 x Core SWX HyperCore Prime 190Wh Gold Mount Li-Ion Battery Pack
| Mount / Series Type | Gold Mount | | Chemistry | Lithium-Ion | | Capacity (Wh) | 190 Wh | | Capacity per Section (Wh) | 95 Wh | | Amp-Hours | 13.5 Ah | | Output Voltage | 14.8 VDC | | Maximum Load | 10 A | | Dimensions (W x H x D) | 3.8 x 6.6 x 2.4" / 97.0 x 168.0 x 61.0 mm | | Weight | 2.6 lb / 1.2 kg | | | | Box Dimensions (LxWxH) | 8.1 x 6.95 x 4.35" |
