User Manual for Core SWX VoltBridge Enabled Fleet Micro 3A Digital Quad Charger for V-Mount Batteries Click to enlarge the picture
Contents of the user manual for the Core SWX VoltBridge Enabled Fleet Micro
- Product category: Chargers Core SWX
- Brand: Core SWX
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Core SWX Chargers
 |
User manual for the Core SWX VoltBridge Enabled Fleet Micro contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Core SWX product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Core SWX user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Core SWX product will considerably shorten its lifespan!
|

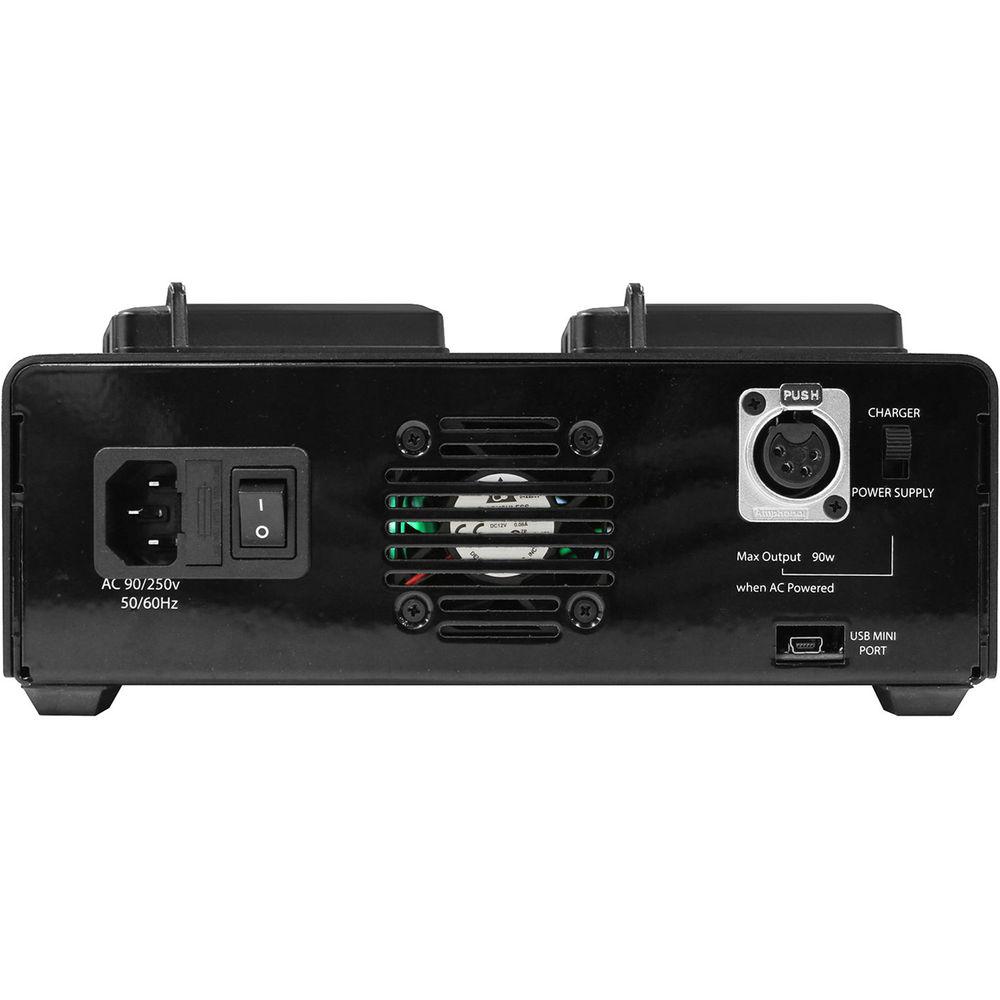

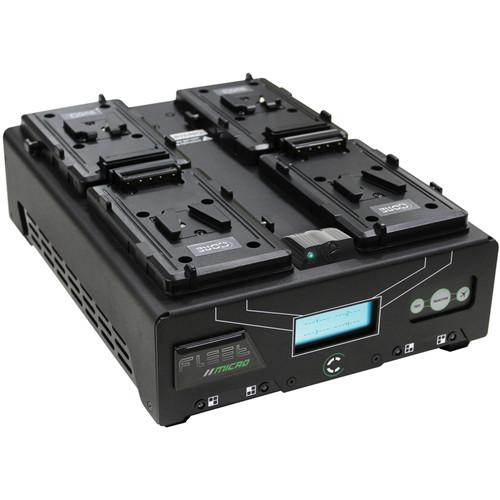

Product description Incorporating CoreSWX's VoltBridge technology for wireless managing of your fleet of batteries, the CoreSWX VoltBridge Enabled Fleet Micro 3A Digital Quad Charger for V-Mount Batteries is capable of simultaneously charging four batteries at 3A each. This means that four 98Wh batteries can be charged in under 2.5 hours. The onboard LCD display screen allows you to easily monitor your battery's smart data without needing to connect to a computer. The micro-USB connector allows for firmware updates and for connection to a PC.
The built-in Battery Management Test mode allows the charger to determine battery health and recharge performance. Activating the SafeFly mode forces the charger to discharge or charge connected batteries to a 30% charge level to meet air travel and shipping requirements. While plugged into an AC power source, the charger can either charge batteries or be used as a camera power supply via the built-in 4-pin XLR. In the absence of AC power, you can use the charger to feed the 4-pin XLR from connected batteries providing unregulated power. The housing is made of aluminum, providing a robust build. - Key Features
-

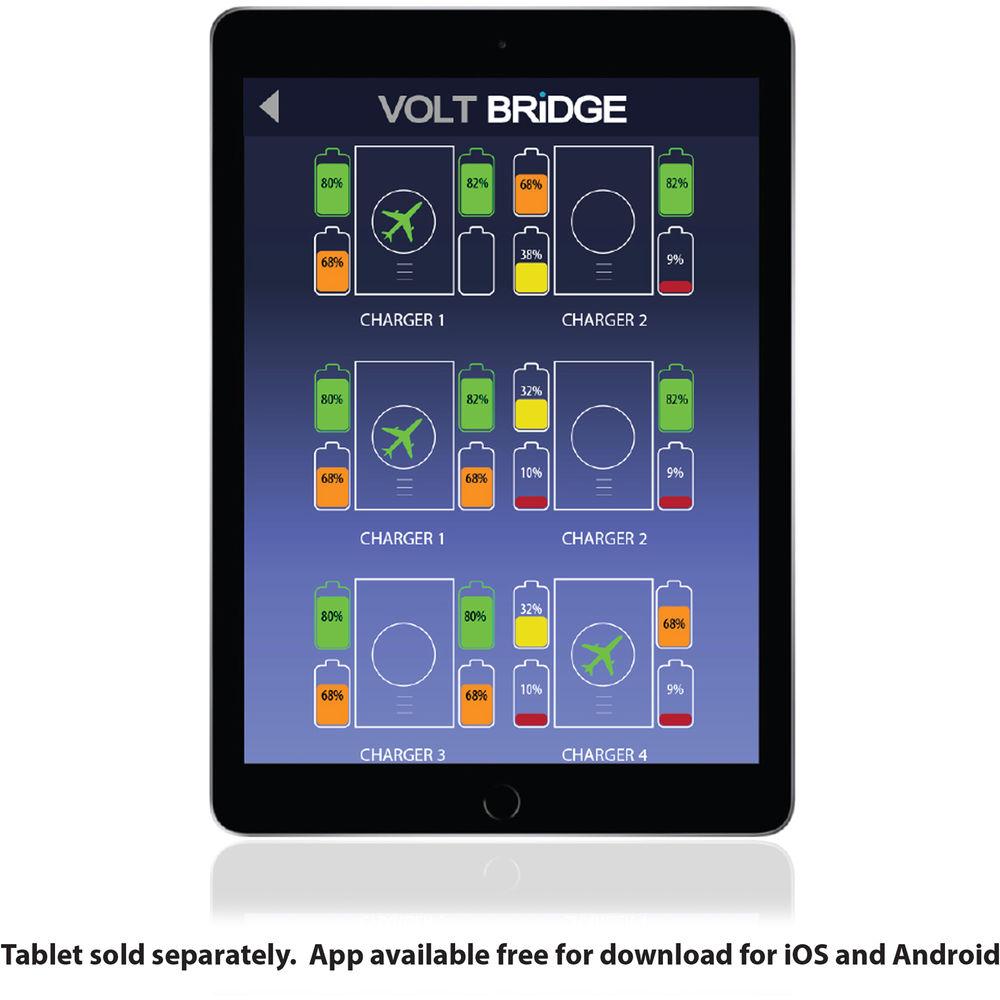

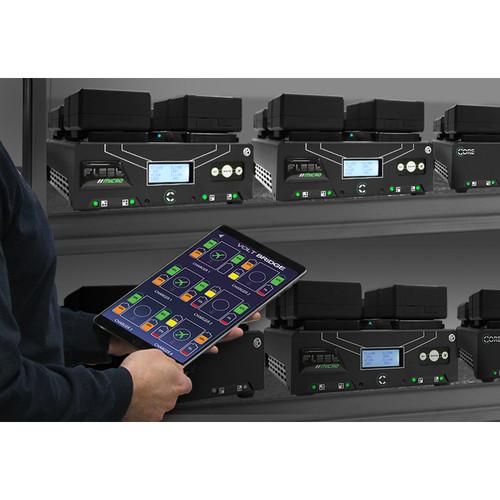

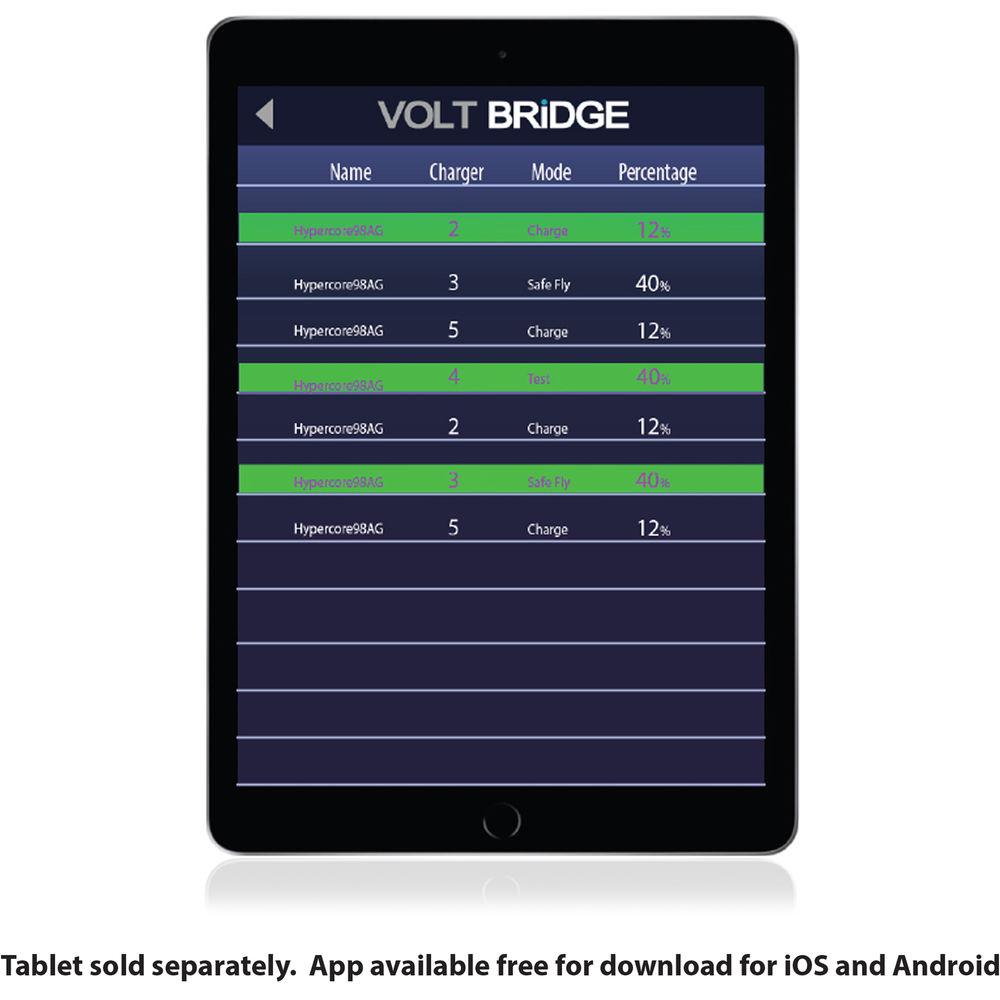

- The charger incorporates VoltBridge technology which enables you to remotely view your attached batteries status via a mobile device app; the app also allows you to have the charger put your attached batteries into SafeFly mode
- Accessing the chargers control panel provides the same management capabilities as the VoltBridge app, without the same convenience
- Four independent V-mount charge bays
- Simultaneous charging
- Approximately 2.5-hour charge time for four 98Wh batteries
- When SafeFly mode is activated, the charger will either discharge your battery down to 30% of capacity or charge it up to 30%, depending on the charge state of the battery
- 90 to 240 VAC worldwide compatible input voltage
- Compatible with batteries from RED, Anton Bauer, and others in addition to CoreSWX
- The four-line LCD display screen enables monitoring battery information from the charger
- Hypercine mode allows you to mount up to four batteries to provide unregulated 12 to 16.8 VDC from the charger's 4-pin XLR, without connecting to an AC power supply
- In Hypercine mode, the charger's LCD reports back available capacity as well as remaining runtime
- Aluminum build
- Weighs 5 pounds
- An optional "Hypercine Module" (not included) enables the charger to provide both unregulated 12 to 16.8 VDC and regulated 28 VDC via a 3-pin XLR output
UPC: 184323004614 In the Box Core SWX VoltBridge Enabled Fleet Micro 3A Digital Quad Charger for V-Mount Batteries AC Power Cable (4') Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Core SWX VoltBridge Enabled Fleet Micro 3A Digital Quad Charger for V-Mount Batteries in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCore SWX FLEET-Q4MSI Specs | Quick Charge Current | 3 A, simultaneous | | Discharge Current | Up to 2 A per channel | | Power | Input: 90 to 240 VAC, 50/60 Hz
Output: 12 VDC 90 W | | Dimensions | 9.1 x 3.35 x 12.17" / 23.11 x 8.51 x 30.91 cm | | Weight | 5 lb / 2.3 kg | | | | Package Weight | 7.35 lb | | Box Dimensions (LxWxH) | 17.0 x 12.2 x 4.2" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 99 owners. Add your rating and experience with the product.
