User Manual for Core SWX VR Hub with XLR Click to enlarge the picture
Contents of the user manual for the Core SWX VR Hub with XLR
- Product category: 360 Camera Accessories Core SWX
- Brand: Core SWX
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Core SWX 360 Camera Accessories
 |
User manual for the Core SWX VR Hub with XLR contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Core SWX product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Core SWX user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Core SWX product will considerably shorten its lifespan!
|

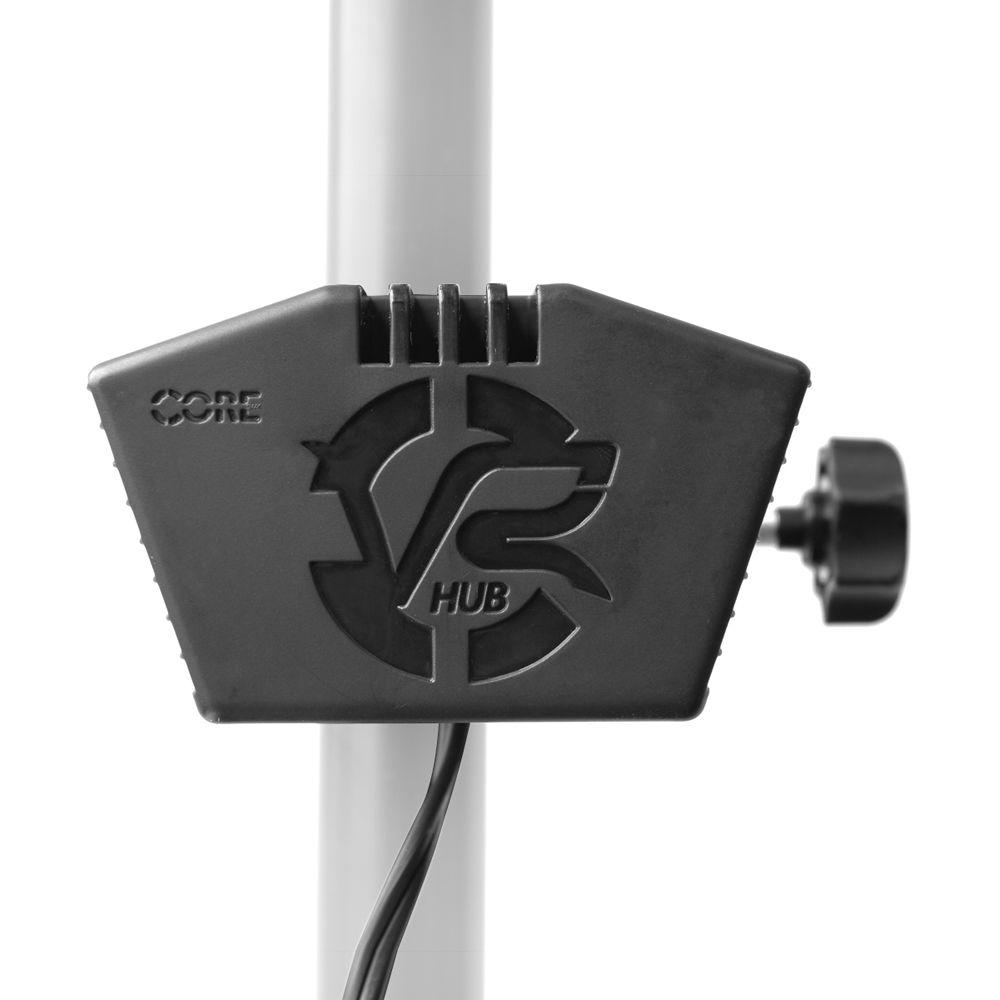

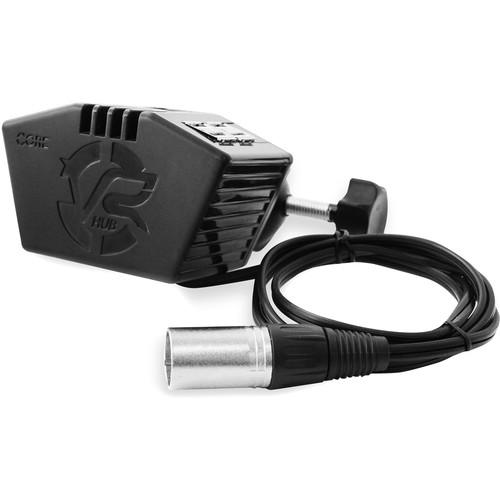

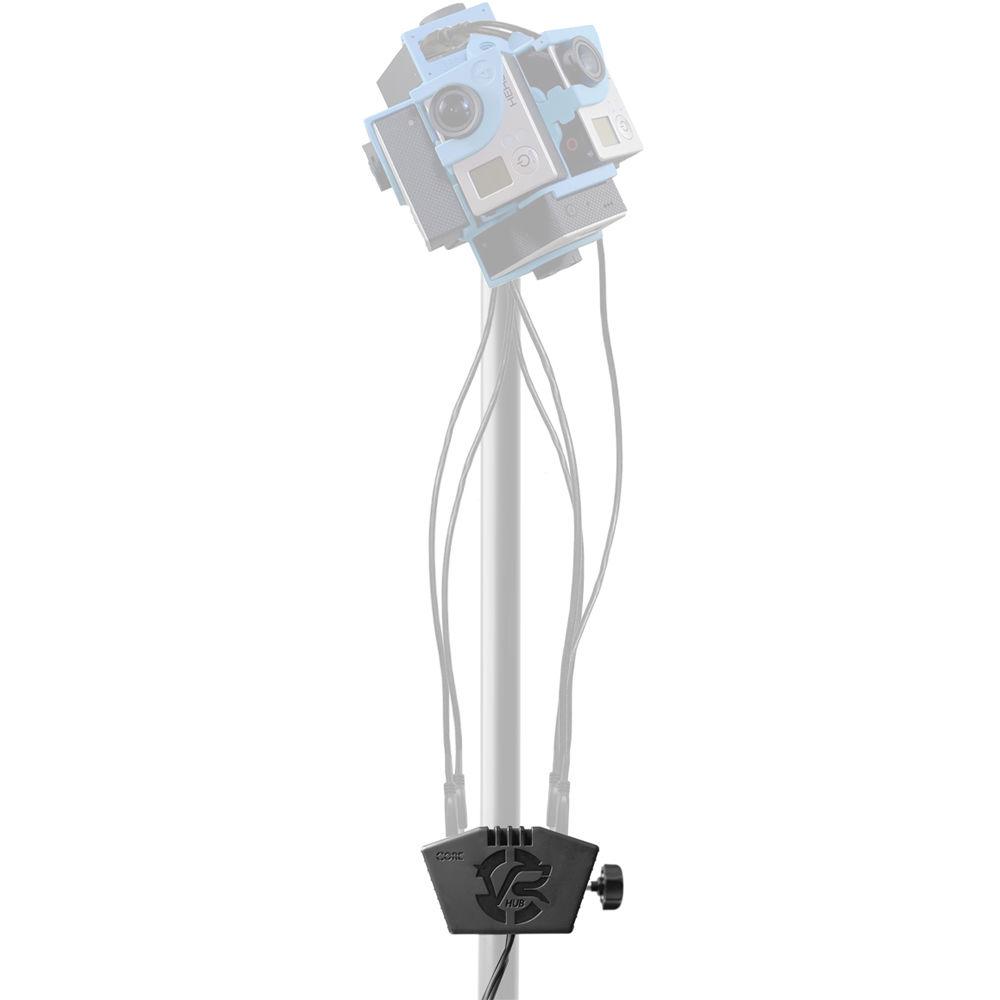

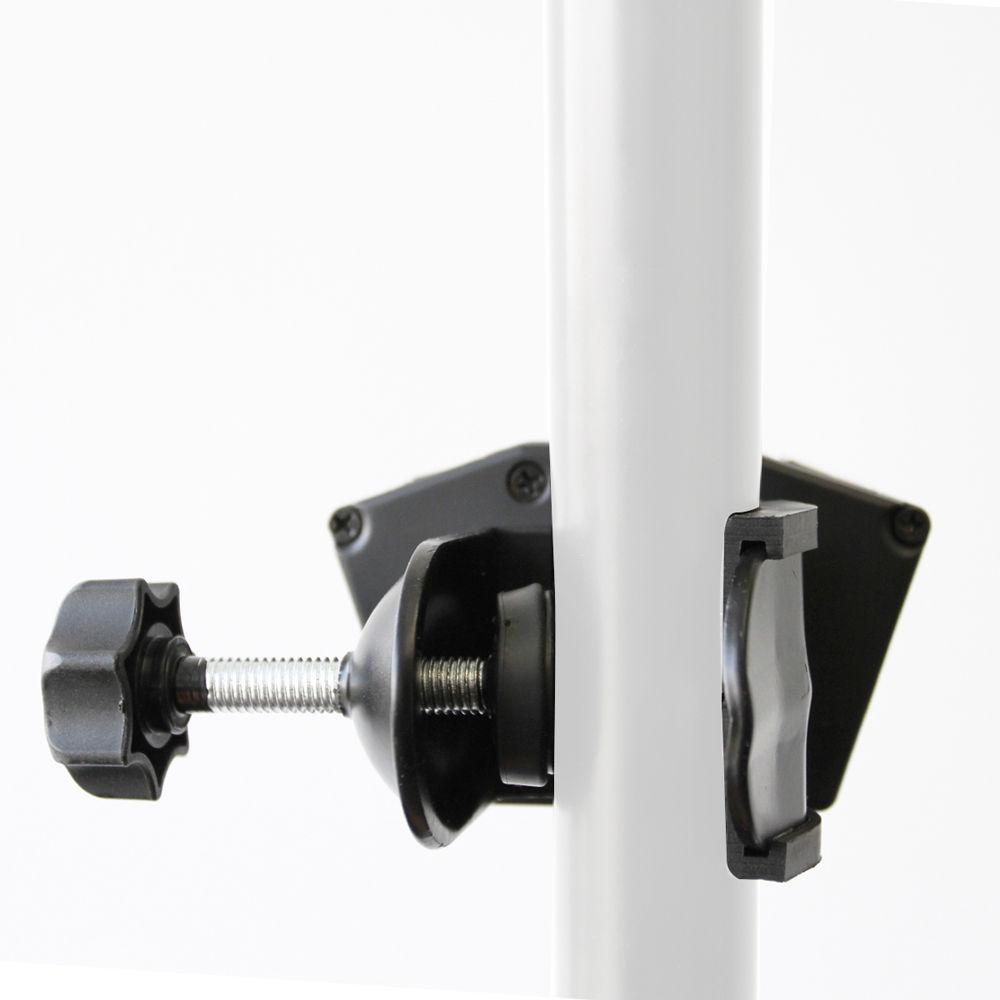

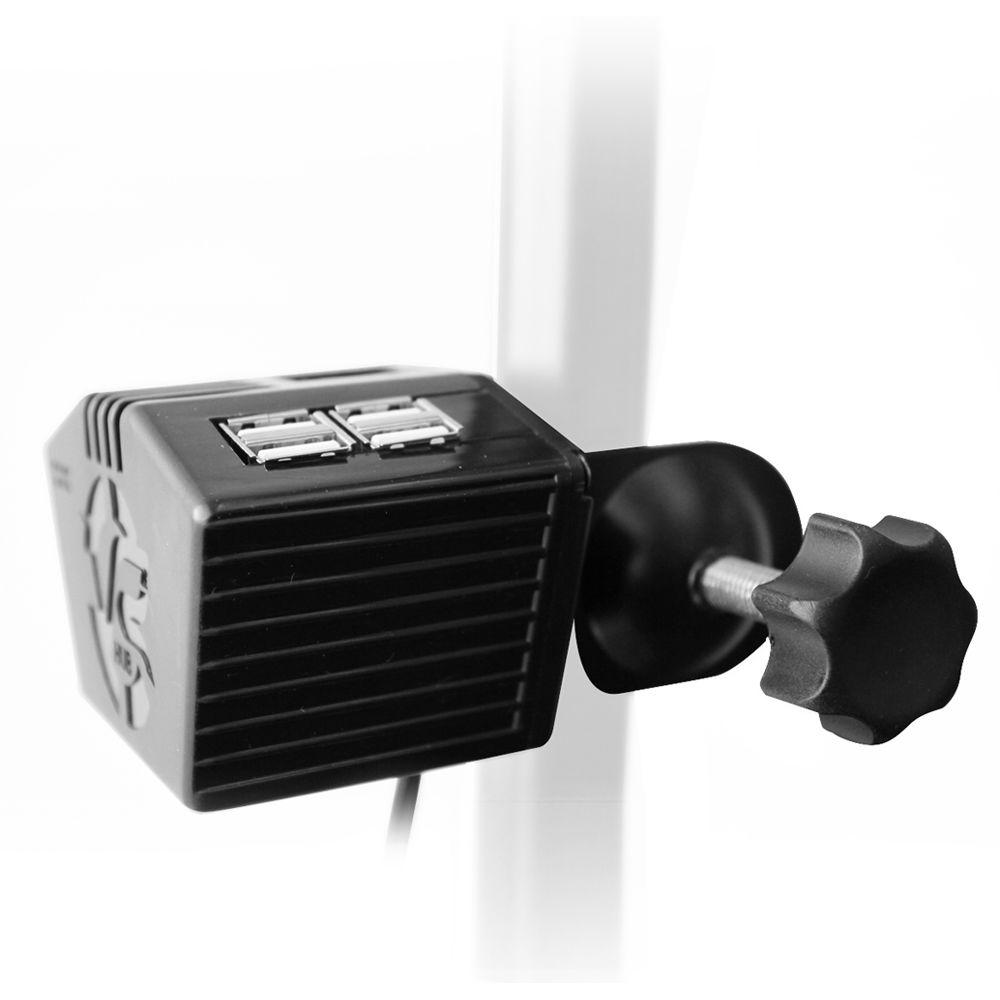

Product description The Core SWX VR Hub with XLR is a clamp-on power distribution adapter for 360 camera arrays. It offers 8 USB ports for powering up to 8 cameras, and it features a 4-pin XLR connector on a 4 ft cable for connecting to an XLR source for power. It's designed to secure to monopods, tripod legs, and other supports up to 1.75" in diameter.

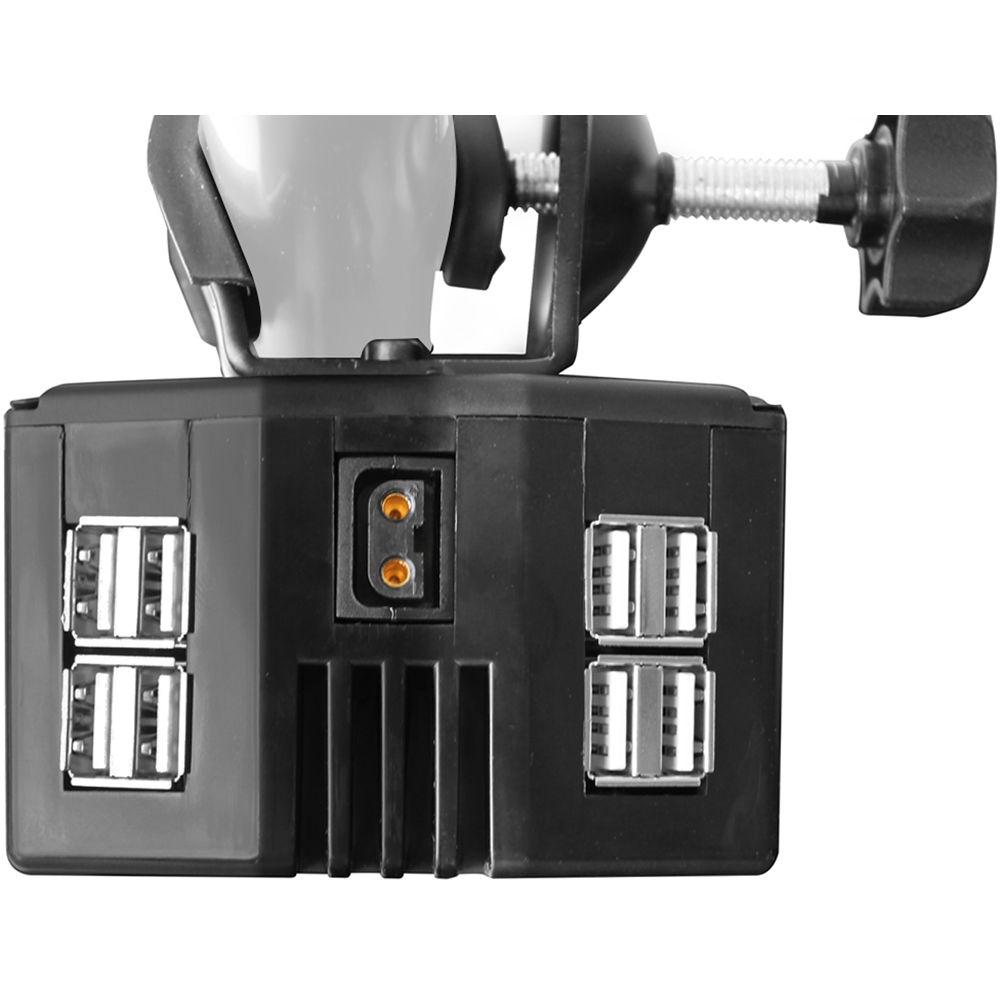

The USB ports deliver up to 5V of power each, which is enough to both power and charge the connected cameras. The Hub also has a D-Tap port next to the USB ports for powering additional accessories. - Key Features
-
- Clamp-on power distribution adapter for 360 spherical VR camera arrays
- 8 USB ports
- XLR power source connector on a 4 ft cable
- D-Tap port for accessories
UPC: 184323003754 In the Box Core SWX VR Hub with XLR Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Core SWX VR Hub with XLR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCore SWX VRHUB-XLR Specs | Input | 4-pin XLR male connector, 11-17 VDC | | Output | 8 x USB ports, 5 VDC each
1 x D-Tap female connector for accessories | | Cable Length | 48" (1.2 m) | | Clamp Diameter | Up to 1.75" (4.4 cm) | | Dimensions | 2.3 x 4 x 4.5" (5.8 x 10.2 x 11.4 cm) | | Weight | 0.8 lb (0.36 kg) | | | | Package Weight | 1.15 lb | | Box Dimensions (LxWxH) | 7.7 x 5.4 x 4.4" |
