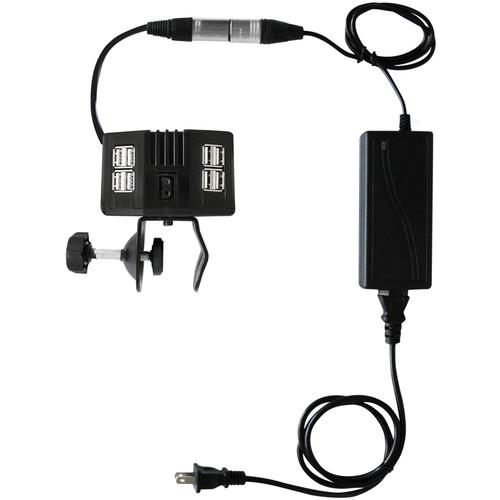

User Manual for Core SWX VR Hub with XLR & AC Plug Click to enlarge the picture
Contents of the user manual for the Core SWX VR Hub with XLR
- Product category: 360 Camera Accessories Core SWX
- Brand: Core SWX
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Core SWX 360 Camera Accessories
|
User manual for the Core SWX VR Hub with XLR contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Core SWX product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Core SWX user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Core SWX product will considerably shorten its lifespan!
|
Product description The Core SWX VR Hub is a clamp-on power distribution adapter for 360 camera arrays. It offers 8 USB ports for simultaneously powering up to 8 cameras.
This XLR & AC Plug version features a 4-pin XLR connector extending from it a few inches, and includes an AC power adapter that connects to the XLR connector. The power adapter provides a 2-prong AC plug for connecting to a wall outlet. You have the choice of using either the XLR connector or AC plug for connecting to a power source. When using the AC power adapter, the combined cable length from the Hub to the AC plug is 4 ft.
The Hub is designed to secure to monopods, tripod legs, and other supports up to 1.75" in diameter. The USB ports deliver up to 5V of power each, which is enough to both power and charge the connected cameras. The Hub also has a D-Tap port next to the USB ports for powering additional accessories. - Key Features
-
- Clamp-on power distribution adapter for 360 spherical VR camera arrays
- 8 USB ports
- 4-pin XLR and 2-prong AC power source connectors
- 4 ft combined cable length
- D-Tap port for accessories
UPC: 184323003778 In the Box Core SWX VR Hub with XLR & AC Plug Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Core SWX VR Hub with XLR & AC Plug in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCore SWX VRHUB-XLRPS Specs | Input | 1 x 4-pin XLR male connector, 1 x 2-prong AC plug, 11-17 VDC | | Output | 8 x USB ports, 5 VDC each
1 x D-Tap female connector for accessories | | Total Cable Length | 48" (1.2 m) | | Clamp Diameter | Up to 1.75" (4.4 cm) | | Dimensions | 2.3 x 4 x 4.5" (5.8 x 10.2 x 11.4 cm) | | Weight | 0.8 lb (0.36 kg) | | | | Package Weight | 1.775 lb | | Box Dimensions (LxWxH) | 7.75 x 5.45 x 4.25" |
