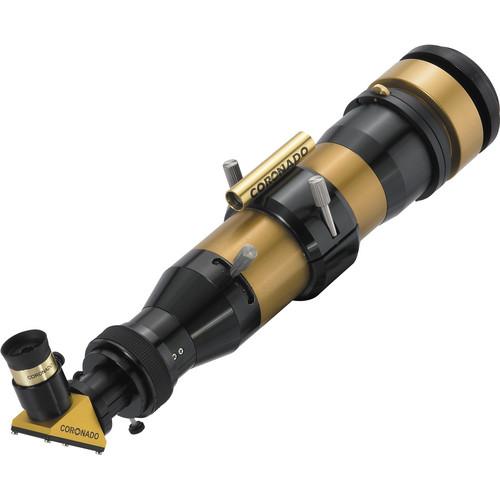

User Manual for Coronado SolarMax II 60 60mm f 6.6 H-alpha Solar Telescope Click to enlarge the picture
Contents of the user manual for the Coronado SolarMax II 60 60mm f
- Product category: Solar Telescopes Coronado
- Brand: Coronado
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Coronado Solar Telescopes
|
User manual for the Coronado SolarMax II 60 60mm f contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Coronado product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Coronado user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Coronado product will considerably shorten its lifespan!
|
Product description A Buying Guide for Solar and Solar Eclipse Viewing Read More srxxuzdczwecwudqvb Coronado's single-etalon SolarMax II 60 60mm f/6.6 H-alpha Solar Telescope is calibrated for the hydrogen-alpha wavelength, and comes equipped with their RichView tuning system. This system allows direct adjustment of the primary etalon filter enabling it to be tuned up or down from the 6562.8Å wavelength for highlighting specific zones of the chromosphere and to compensate for Doppler shift that can pull prominences and other features off-band and affect views. Tuning areas of concentration back on-band, allows for higher-contrast views of prominences on the solar limb.Complementing the primary etalon filter is a rear 90° 15mm blocking filter. This secondary filter further isolates the H-alpha wavelength for better views. While a smaller blocking filter would suffice, Coronado includes this larger option to allow the use of eyepieces with larger field-stop diameters to be used without vignetting occurring, as might be seen with smaller filters, which would interfere with the field of view.The SolarMax II is offered here without a mount or tripod, but comes with a wide clamshell mounting ring that is outfitted with a 1/4"-20 socket for attachment onto many photo/video/field tripods or on piggyback rigs, or an optional Vixen-style dovetail plate is available for use with conventional alt-az, EQ, or motorized telescope mounts. - Optics
-
- 60mm aperture
- f/6.6 focal ratio
- 400mm focal length
- Refractor-style lens configuration
- Solar Filter
-
- Designed for viewing in the hydrogen-alpha wavelength (6562.8Å)
- Reveals prominences in high contrast; and under the right conditions, surface texture
- Internal primary etalon blocking filter
- Rear 15mm diagonal secondary blocking filter allows for the use of eyepieces with larger field stop diameters without vignetting in the field of view
- Proprietary RichView tuning system allows the internal etalon to be tuned for Doppler compensation or to highlight specific zones
- Thermal Stability: 0.005Å/°C
- Included Cemax Eyepiece
-
- 1.25" diameter barrel
- 25mm focal length yields 16x
- 52° field of view
- Fold-down rubber eyecup for use with or without eyewear
- Designed specifically for use at H-alpha wavelengths
- 20mm eye relief
- Use and Handling
-
- 1.25" diameter drawtube
- Helical focuser with easy-to-use focus collar
- Sol Range solar viewfinder enables safe aiming of the OTA at the Sun
- Included carrying case keeps OTA safe during transportation and storage
- Mounting
-
- Mount and tripod required
- Mounting ring allows the relative position of the OTA to the mount to be adjusted for comfort and limit obstruction
- Clamshell mounting ring with 1/4"-20 mount for using photo/video/field tripods or piggyback rigs
- Optional Vixen-style dovetail plate available for use with conventional telescope mounts
UPC: 709942996227 In the Box Coronado SolarMax II 60 60mm f/6.6 H-alpha Solar Telescope (15mm Blocking, OTA Only) T-Max 60 - Doppler Tuning Unit SolarMax 60 Filter Cemax 25mm Eyepiece 90° 15mm H-Alpha Blocking Filter (1.25") Sol Ranger Solar Viewfinder Clamshell Mounting Rings Travel Case Limited 5-Year Warranty Solar and Solar Eclipse Viewing 101 Christopher Witt 12/14/2016 srxxuzdczwecwudqvb Mark Your Calendars: North American Solar Eclipse 2017 Todd Vorenkamp and Christopher Witt 08/19/2016 Table of Contents
|
Upload User Manual
Have you got an user manual for the Coronado SolarMax II 60 60mm f 6.6 H-alpha Solar Telescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCoronado SMT60-15 Specs | | | Aperture | 60 mm / 2.4" | | Focal Length | 400 mm | | Focal Ratio | f/6.6 | | Finderscope | Yes | | Mounting System | 1/4"-20 | | Optical Tube Dimensions | Length: 16.8" / 42.5 cm | | | | Filtration Wavelength | Hydrogen-alpha | | Bandpass | 0.7 Å | | Blocking Filter | 15 mm | | Thermal Stability | 0.005 Å/
