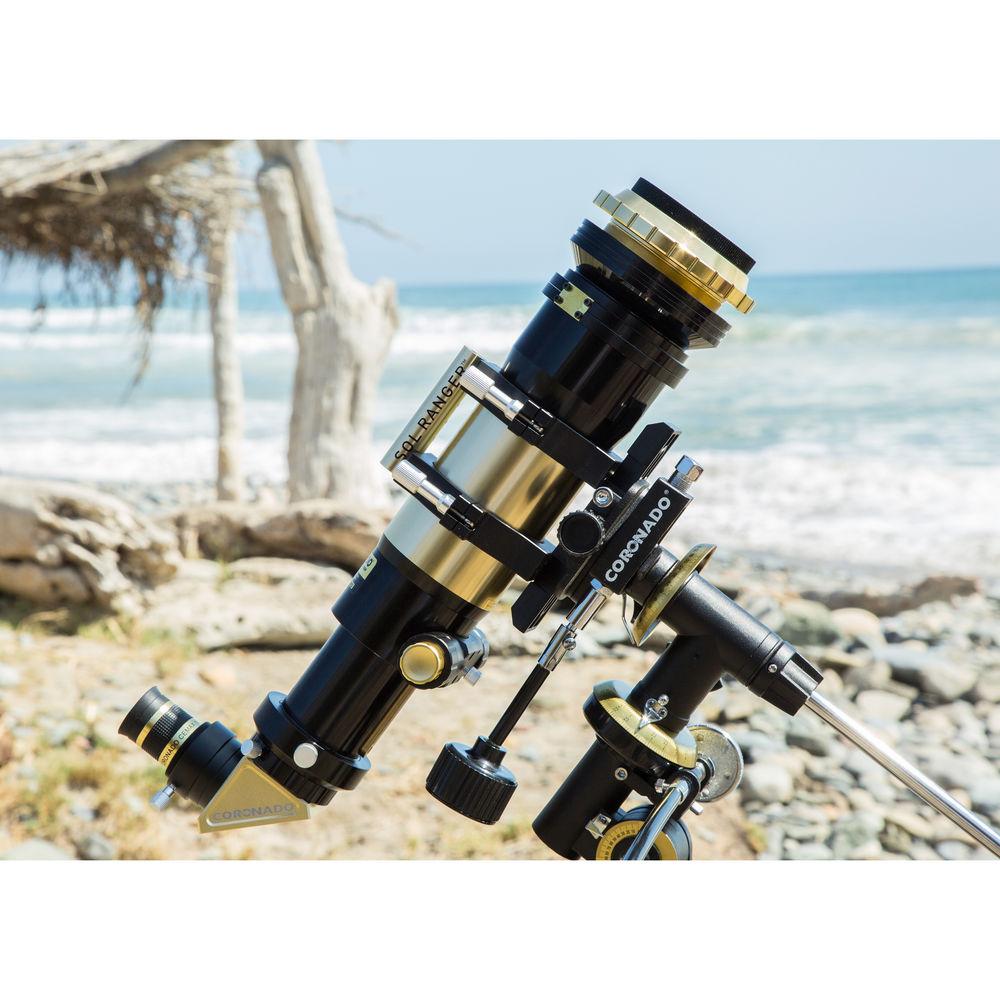

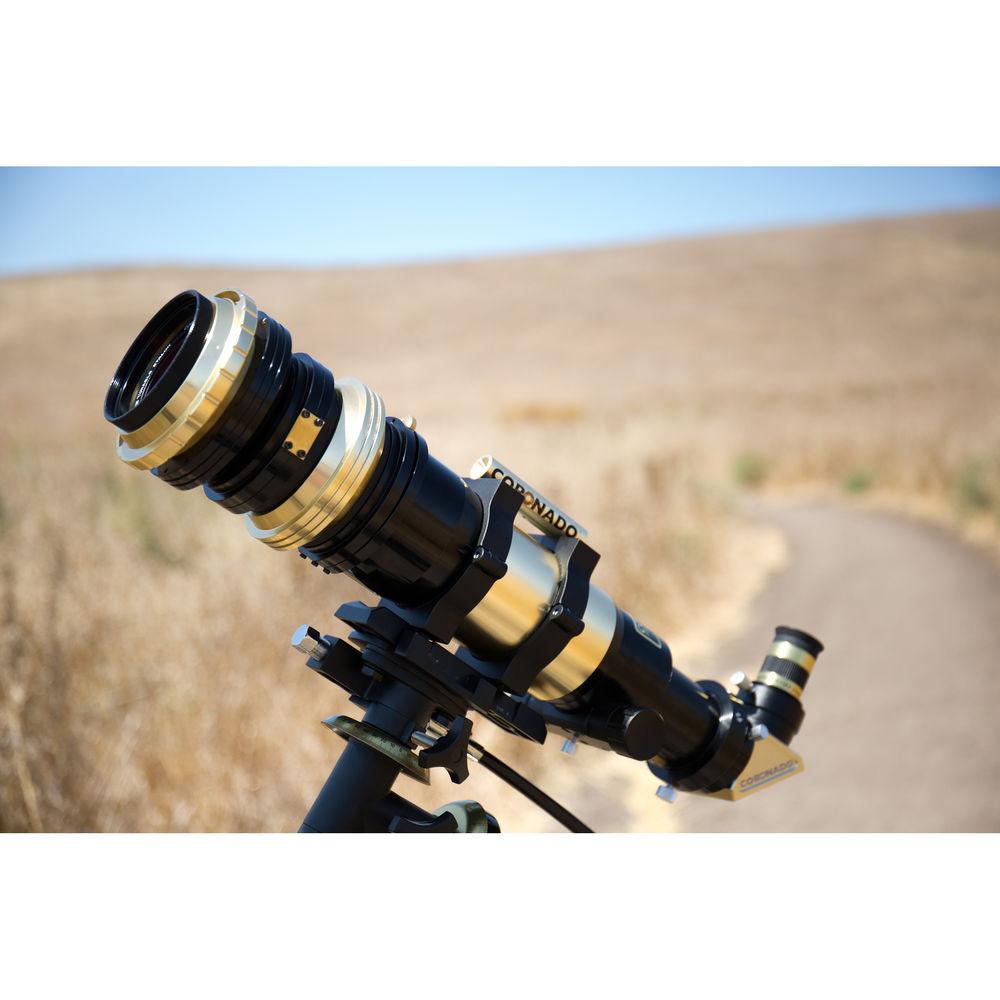

Product description A Buying Guide for Solar and Solar Eclipse Viewing Read More Redesigned with a new external 60mm solar etalon filter and an upgraded 2-speed 2" rack-and-pinion focuser, Coronado's single-etalon SolarMax III 70mm f/5.7 H-alpha Solar Telescope builds on the success of their earlier iterations to provide users with a compact yet capable solar viewing optic. With the primary etalon now positioned externally, users can simply and easily remove the front solar and rear blocking filters to convert the SolarMax III into a competent nighttime viewing telescope - greatly increasing the scope's versatility.Specifically calibrated to isolate the hydrogen-alpha wavelength with a less than 0.7Å bandpass for observing prominences against the black backdrop of space, the primary etalon comes equipped with their RichView tuning system to improve contrast and enhance views when atmospheric interference or Doppler-shift require you to bring the etalon back on-band. Directly adjusting the etalon enables it to be tuned up or down from the 6562.8Å H-a wavelength to target prominences and to compensate for various factors that can pull prominences and other features off-band and affect views.The SolarMax III gets an updated focusing system, versus the earlier iteration, with a 2" 10:1 dual-speed rack-and-pinion system from the previous 1.25" helical one. When used as a conventional scope, larger 2" conventional eyepieces and accessories can be used, or the more common 1.25" size with the addition of the included 1.25" reducer adapter. The more precise focuser is complemented by a rear 90° 10mm blocking filter to provide a comfortable field of view versus smaller 5mm versions, and allows for full-disk viewing with moderate and wide-field higher-magnification eyepieces. This secondary blocking filter is used to further isolate the H-alpha wavelength for improved contrast on surface granulation, and prominence detail. A larger blocking filter also enables the use of eyepieces with greater field-stop diameters to be used without vignetting occurring, as might occur with smaller blocking filters.To get users started, Coronado includes a 2"-to-1.25" reducer adapter and an 18mm 1.25" CEMAX eyepiece that produces a 22x power. The eyepiece holder and blocking filter will accept any 2" solar eyepiece or accessory, and with the reducer adapter any 1.25" eyepiece can also be used — further increasing the scope's versatility. The optical tube assembly is offered here without a mount or tripod, but comes with a Vixen-style dovetail plate for users who already have a reliable and stable mount and support system. To protect the OTA and accessories during transport and storage, Coronado includes a hard carrying case with custom-cut foam lining, that is color-matched to the OTA in their elegant Black and Gold color scheme. - Optical Tube Assembly
-
- Use for daytime solar observation; or, with the solar and blocking filters removed, as a conventional nighttime scope
- 70mm aperture
- f/5.7 focal ratio
- 400mm focal length
- Achromatic refractor-style lens configuration
- Fully multi-coated optics improve light transmission, color rendition, contrast, and sharpness
- 10:1 dual speed rack-and-pinion focuser allows for fast coarse and precise fine focusing to achieve tack-sharp images
- 2" drawtube enables the use of larger eyepieces and accessories for full-disk viewing without vignetting
- Solar Filter
-
- 60mm aperture solar filter
- Fully external filter, etalon, and tuning system allows filter to be completely removed
- Tuned for viewing in the hydrogen-alpha wavelength, at 6562.8Å with a bandpass of less than 0.7Å
- Reveals prominences in high contrast against the black backdrop of space
- Rear 1.25" 10mm diagonal secondary blocking filter improves contrast, and allows for the use of eyepieces with larger field stop diameters without vignetting in the field of view
- Proprietary RichView tuning system allows the etalon to be tuned for Doppler-shift compensation or to highlight specific zones
- Thermal stability: 0.005Å/°C
- Mounting
-
- Optical tube assembly only — mount and tripod required for proper use
- Mounting ring assembly allows the relative position of the OTA to the mount to be adjusted for proper balance and limit obstruction
- Vixen-style dovetail plate available for use with conventional telescope mounts
- Weight: 7.6 pounds
- Included Accessories
-

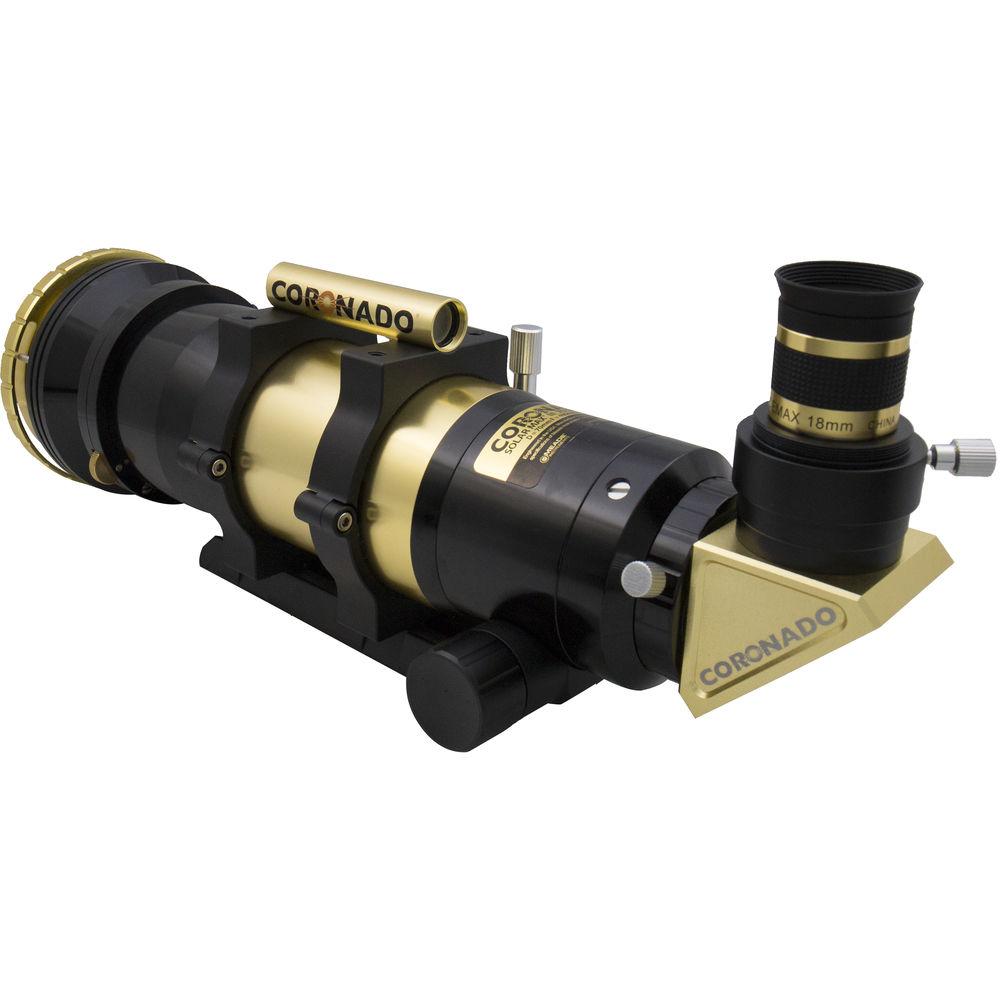

CEMAX eyepiece:- 1.25" diameter barrel
- 18mm focal length yields 22x
- 52° field of view
- Fold-down rubber eyecup for use with or without eyewear
- Designed specifically for use at H-alpha wavelengths to improve contrast and minimize glare
- Long and comfortable 20mm eye relief
Sol Ranger viewfinder:- Solar finder enables safe aiming of the OTA at the sun
Carrying case:- Protects OTA and accessories during transport and storage
- Hard aluminum exterior with reinforced corners and edges
- Dual snap-lock latches with hinged handle
- Custom-cut interior foam lining

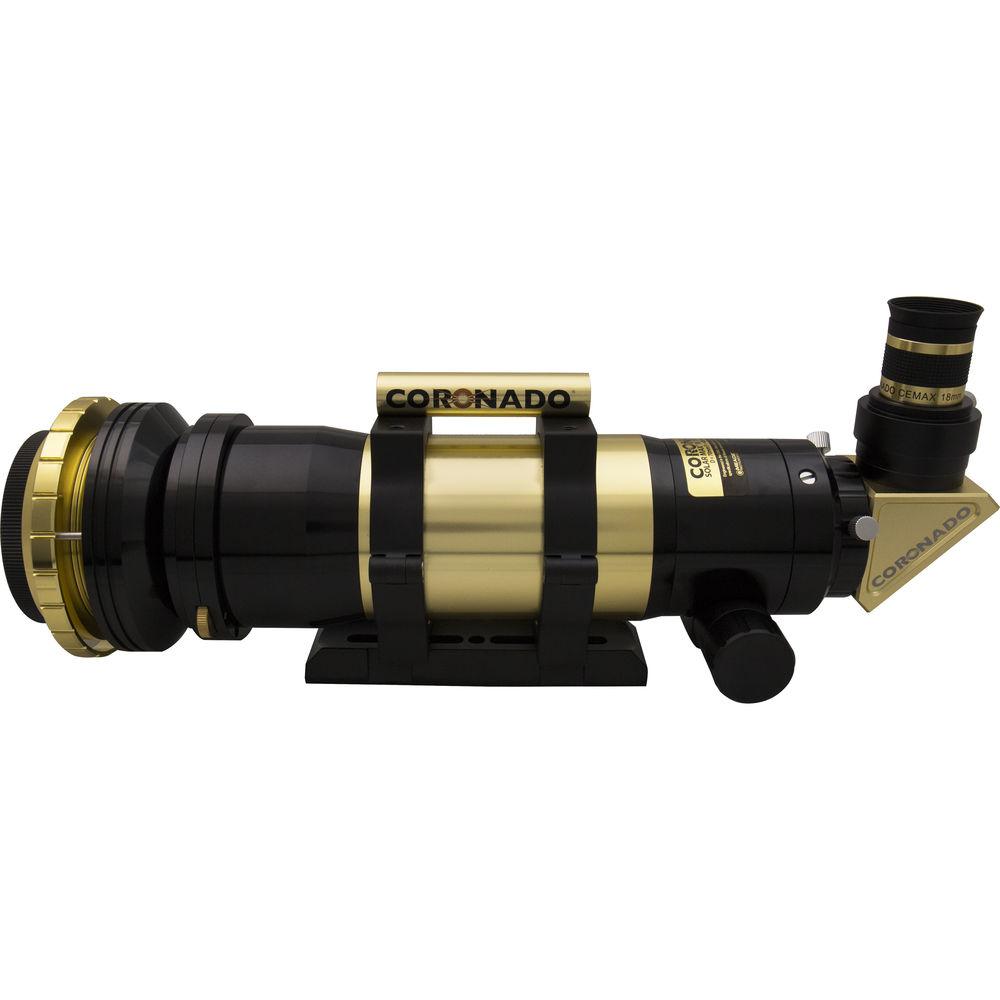

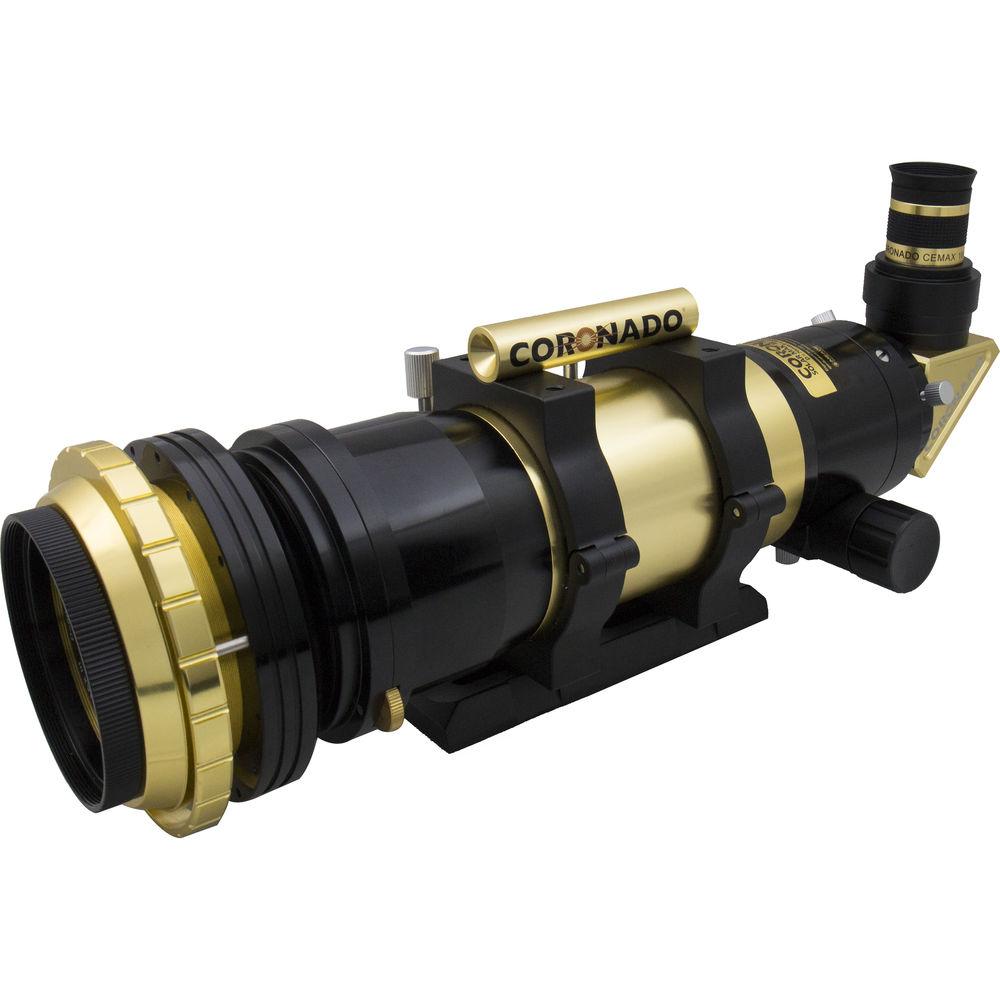

UPC: 709942998320 In the Box Coronado SolarMax III 70mm f/5.7 H-alpha Solar Telescope (10mm Blocking, OTA Only) CEMAX 18mm H-Alpha Solar Eyepiece (1.25") Sol Ranger Solar Viewfinder 90° 10mm H-Alpha Blocking Filter (1.25") 1.25" Eyepiece Reducer Adapter Cradle Ring Assembly with Dovetail Hard Carrying Case Limited 5-Year Warranty Solar and Solar Eclipse Viewing 101 Christopher Witt 12/14/2016 Mark Your Calendars: North American Solar Eclipse 2017 Todd Vorenkamp and Christopher Witt 08/19/2016 zbqzatyrfurwvsywy Table of Contents
|
Upload User Manual
Have you got an user manual for the Coronado SolarMax III 70mm f 5.7 H-alpha Solar Telescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCoronado SolarMax III Specs | | | Optical Design | Achromatic Refractor | | Aperture | 70 mm / 2.8" | | Focal Length | 400 mm | | Focal Ratio | f/5.7 | | Focuser | Dual-Speed Rack-and-Pinion | | Eyepiece Barrel Diameter | 1.25", 2" | | Finderscope | Yes | | Mounting System | Vixen Style | | | | Filtration Wavelength | Hydrogen-alpha | | Bandpass | <0.7 Å | | Blocking Filter | 10 mm (External) | | Thermal Stability | 0.005 Å/
