User Manual for Coronado SolarMax III 90mm f 8.8 H-alpha Solar Telescope Click to enlarge the picture
Contents of the user manual for the Coronado SolarMax III 90mm f 8.8
- Product category: Solar Telescopes Coronado
- Brand: Coronado
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Coronado Solar Telescopes
 |
User manual for the Coronado SolarMax III 90mm f 8.8 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Coronado product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Coronado user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Coronado product will considerably shorten its lifespan!
|
Product description A Buying Guide for Solar and Solar Eclipse Viewing Read More Designed with a single external 90mm solar etalon filter, the Coronado SolarMax III 90mm f/8.8 H-alpha Solar Telescope builds on the success of their earlier solar scope models to provide users with a powerful optic for solar and nighttime viewing. With the primary etalon positioned externally, users can simply and easily remove the front solar and rear blocking filters to convert the SolarMax III into a competent nighttime viewing telescope—greatly increasing the scope's versatility.Specifically calibrated to isolate the hydrogen-alpha wavelength with a less than 0.7Å bandpass for observing prominences in high contrast against the black backdrop of space, the primary etalon comes equipped with Coronado's patented RichView tuning system to improve contrast and enhance views when atmospheric interference or Doppler-shift require you to bring the etalon back on band. Directly adjusting the etalon enables it to be tuned up or down from the 6562.8Å H-alpha wavelength to reveal prominence details and compensate for various factors that can pull the prominences and other features off band and affect views.The SolarMax III benefits from a precision 2" 7:1 dual-speed rack-and-pinion system. When used as a conventional scope, larger 2" conventional eyepieces and accessories can be used, though the more common 1.25" size is compatible when using the included 1.25" reducer adapter. The more precise focuser is complemented by a rear 90° 30mm blocking filter to provide a wide field of view and allows for full-disk viewing even with higher magnification eyepieces, or when photographing the sun, to completely cover larger imaging sensors and to avoid vignetting. This secondary blocking filter is used to further isolate the H-alpha wavelength for improved contrast on surface granulation, and prominence detail. This larger blocking filter also enables the use of eyepieces with greater field-stop diameters to be used without vignetting occurring, as might occur with smaller-aperture blocking filters.To get users started, Coronado includes a 2-to-1.25" reducer adapter and three CEMAX eyepieces that produce low, medium, and high powers, plus a 2x Barlow lens that doubles the magnification of each eyepiece. The eyepiece holder and blocking filter will accept any 2" solar eyepiece or accessory, and with the reducer adapter any 1.25" eyepiece can also be used. The optical tube assembly is offered here without a mount or tripod, but comes with a Vixen-style dovetail plate for users who already have a reliable and stable mount and support system. To protect the OTA and accessories during transport and storage, Coronado includes a hard carrying case with a custom-cut foam lining. The case is color-matched to the OTA in their elegant black and gold color scheme.With the Coronado SolarMax III telescope you can enjoy stunning views of our closest star, and by simply removing the exterior solar filters you can view the moon, planets, and deep-sky objects at night. - Optical Tube Assembly
-
- Use for daytime solar observation, or as a conventional nighttime scope with the solar and blocking filters removed
- 90mm aperture improves contrast and solar details, and makes it ideal for lunar and planetary viewing, or to see bright deep-sky objects at night
- Moderate f/8.8 focal ratio
- Long 800mm focal length boosts magnification potential enabling higher powers to be used for more detailed views
- Achromatic refractor-style lens configuration
- Fully multi-coated optics improve light transmission, color rendition, contrast, and sharpness
- 7:1 dual speed rack-and-pinion focuser allows for fast coarse and precise fine focusing to achieve tack-sharp images
- 2" drawtube enables the use of larger eyepieces and accessories for full-disk viewing without vignetting
- Solar Filter
-
- 90mm clear-aperture solar filter
- Fully external filter, etalon, and tuning system allows the filter to be completely removed
- Tuned for viewing in the hydrogen-alpha wavelength, at 6562.8Å with a bandpass of less than 0.7Å
- Reveals prominences in stark contrast against the black backdrop of space
- Observe details of surface granulation and texture
- Large 30mm secondary blocking filter improves contrast, and shows more space around the sun than smaller blocking filters to allow for higher magnification eyepieces to be used while maintaining full solar-disk viewing and to completely cover large imaging sensor during solar photography; set in a 90° rear diagonal
- Proprietary RichView tuning system on the primary etalon allow it to be tuned for Doppler-shift compensation or to highlight specific zones
- Mounting
-
- Optical tube assembly only—mount and tripod required for proper use
- Mounting ring assembly allows the relative position of the OTA to the mount to be adjusted for proper balance and to limit obstruction with mount, counterweights, or other gear
- Vixen-style dovetail plate available for use with conventional telescope mounts
- Weight: 22 pounds
- Included Accessories
- CEMAX Eyepieces:
- 1.25" diameter barrel
- 25mm yields a low power of 32x
- 18mm produces a medium magnification of 44x
- High-power 12mm eyepiece produces 67x magnification
- Fold-down rubber eyecup for use with or without eyewear
- Designed specifically for use at H-alpha wavelengths to improve contrast and minimize glare
CEMAX Barlow Lens:- Specifically tuned to complement the eyepieces and rear blocking filter
- Effectively doubles the magnification of any eyepiece used with it, without affecting eye relief, to make high-power viewing more comfortable
- 1.25" nosepiece and holder
Sol Ranger Viewfinder:- Solar finder enables safe aiming of the OTA at the sun
Carrying Case:- Protects OTA and accessories during transport and storage
- Hard aluminum exterior with reinforced corners and edges
- Dual snap-lock latches with hinged handle
- Custom-cut interior foam lining
- Iconic Coronado black and gold coloring matches the optical tube assembly and accessories
- Dimensions: 26.5x8.7x8.7"

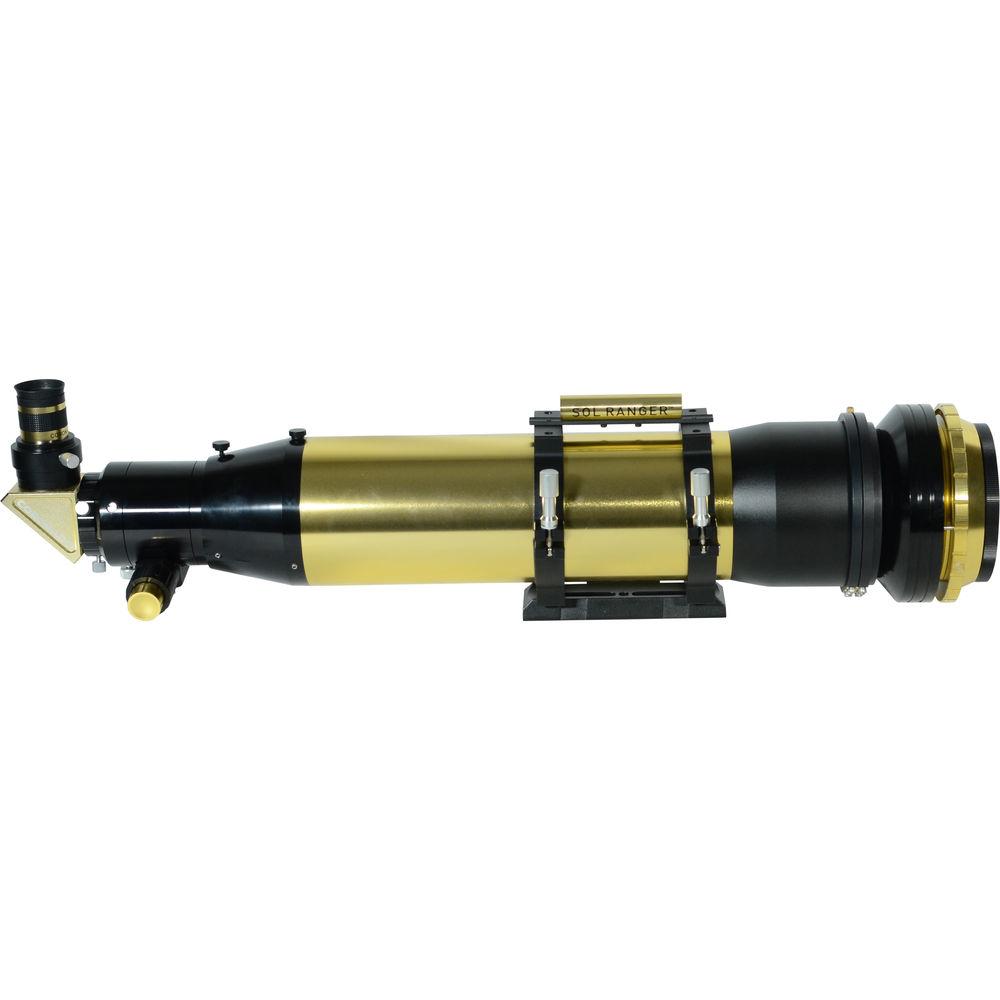

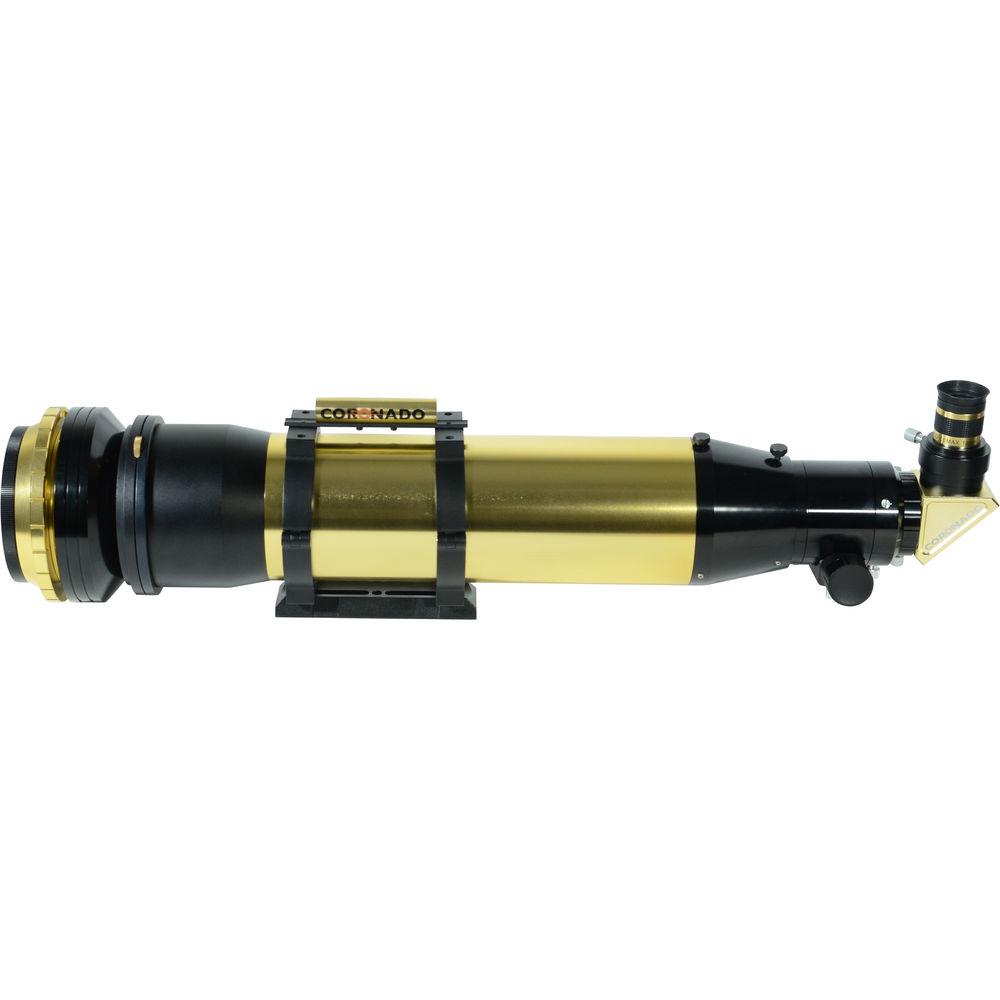

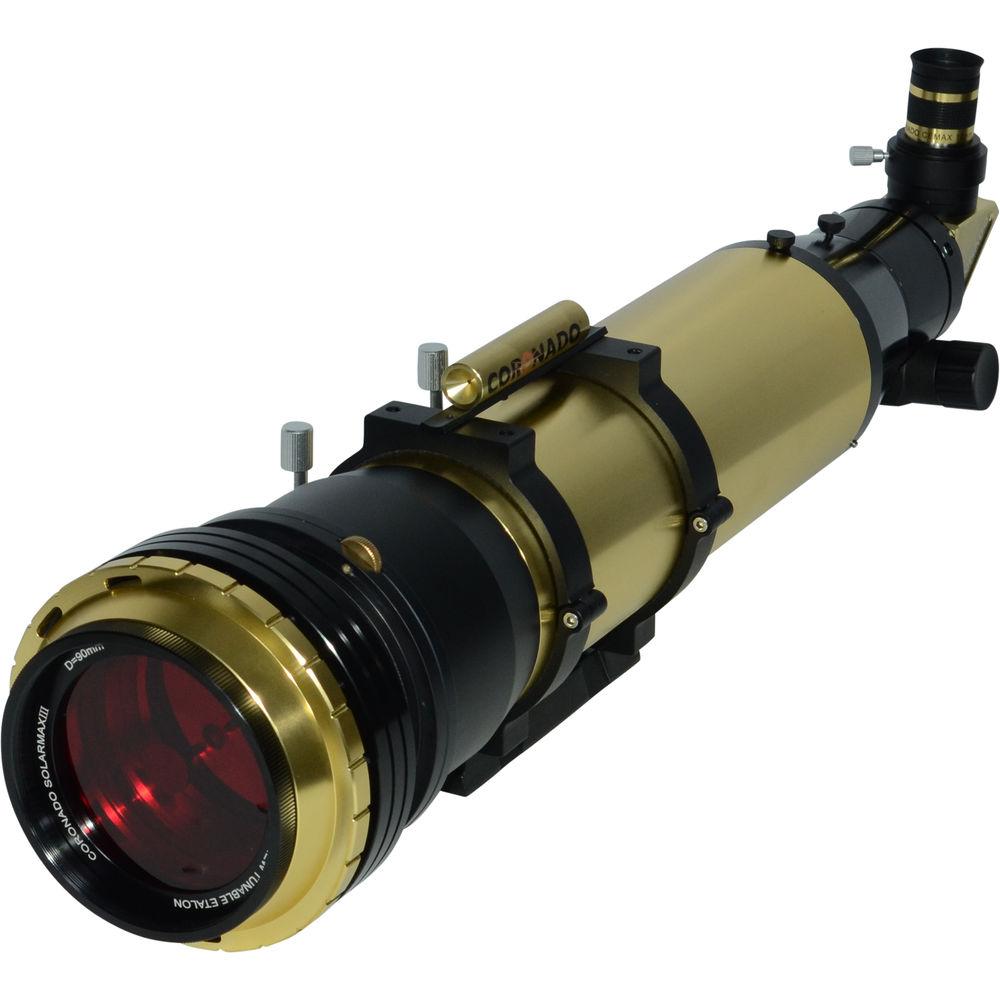

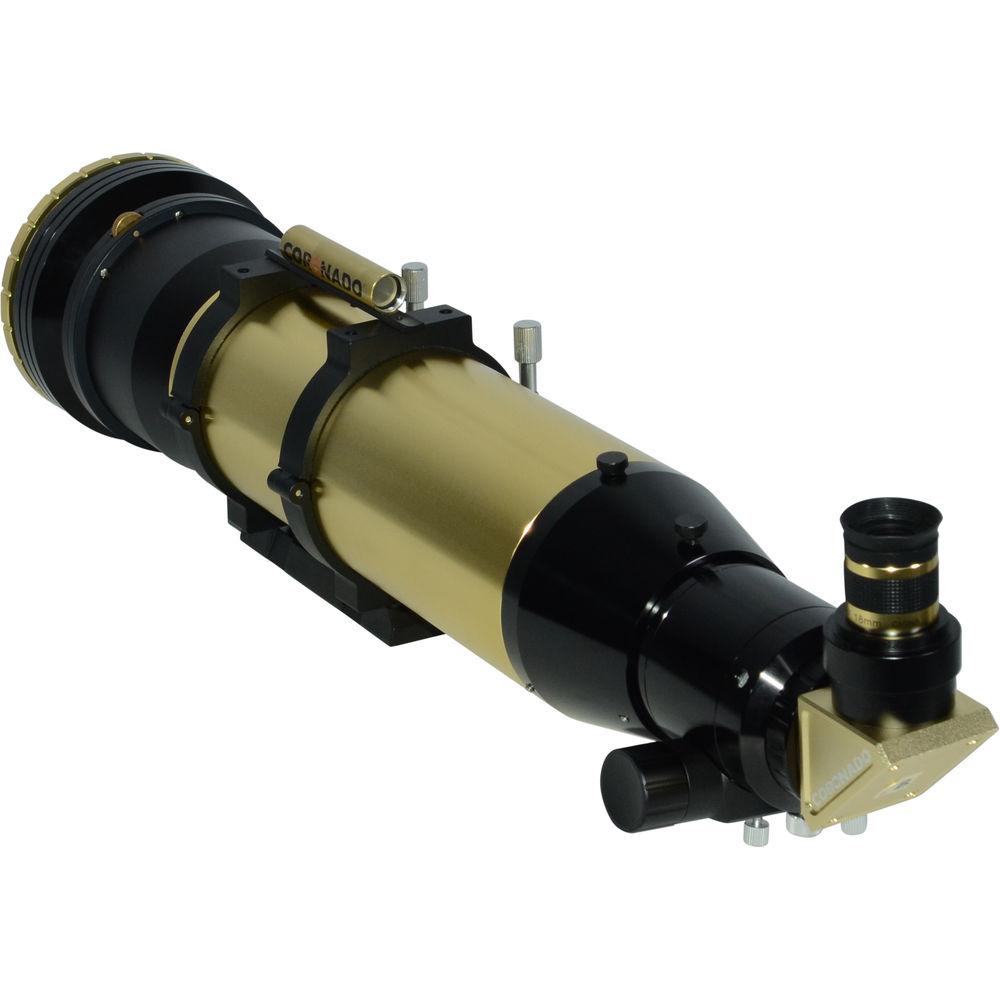

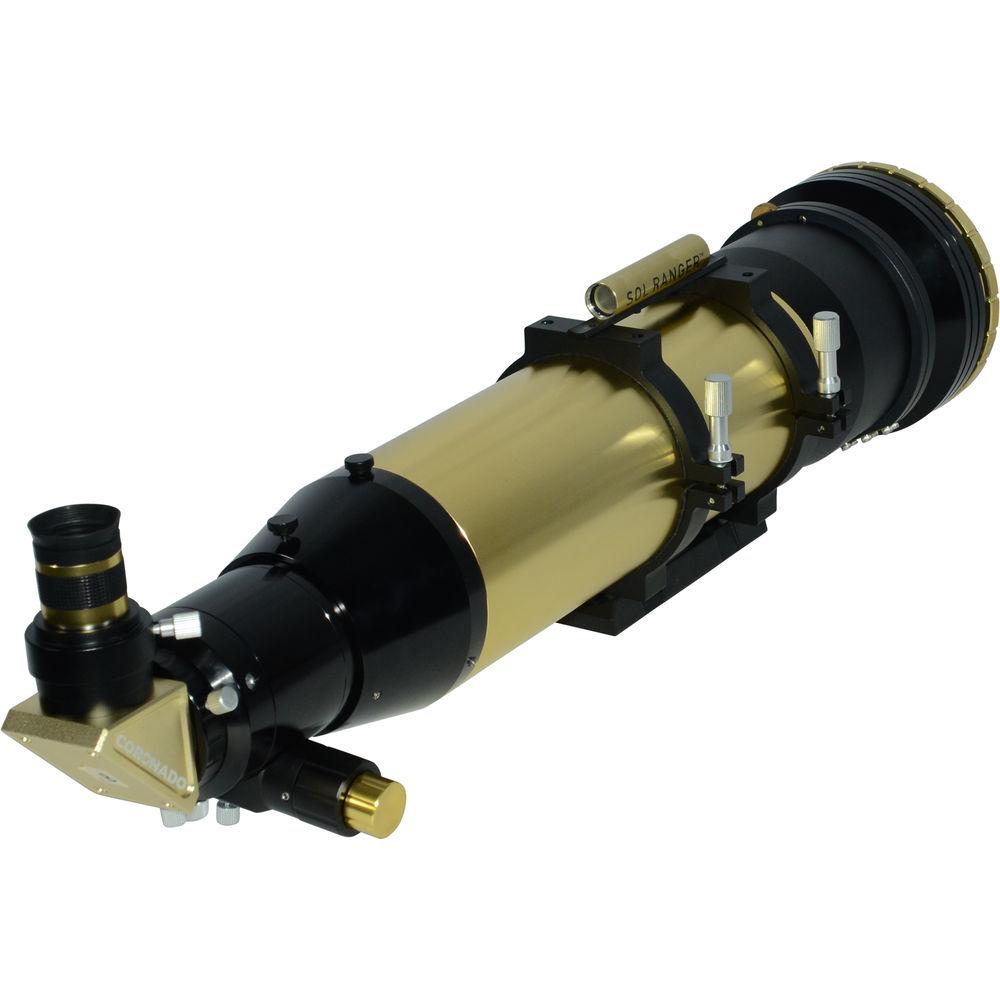

UPC: 709942998405 In the Box Coronado SolarMax III 90mm f/8.8 H-alpha Solar Telescope (30mm Blocking, OTA Only) 25mm CEMAX Eyepiece CEMAX 18mm H-Alpha Solar Eyepiece (1.25") CEMAX 12mm H-Alpha Solar Eyepiece (1.25") CEMAX 2x Barlow Lens (1.25") Sol Ranger Solar Viewfinder 90° 30mm Rear Blocking Filter 1.25" Eyepiece Reducer Adapter Cradle Ring Assembly with Dovetail Hard Carrying Case Limited 5-Year Warranty Solar and Solar Eclipse Viewing 101 Christopher Witt 12/14/2016 Mark Your Calendars: North American Solar Eclipse 2017 Todd Vorenkamp and Christopher Witt 08/19/2016 Table of Contents
|
Upload User Manual
Have you got an user manual for the Coronado SolarMax III 90mm f 8.8 H-alpha Solar Telescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCoronado SolarMax III 90mm Specs | | | Optical Design | Achromatic Refractor | | Aperture | 90 mm / 3.5" | | Focal Length | 800 mm | | Focal Ratio | f/8.8 | | Focuser | Dual-Speed Rack-and-Pinion | | Eyepiece Barrel Diameter | 1.25", 2" | | Finderscope | Yes | | Mounting System | Vixen Style | | | | Filtration Wavelength | Hydrogen-alpha | | Bandpass | 0.5 Å
<0.7 Å | | Blocking Filter | 30 mm (External) | | | | Batteries | None | | GPS | None | | Wi-Fi | None | | Assembled Dimensions | 31.2 x 7.0 x 6.2" / 79.2 x 17.8 x 15.7 cm | | Weight | 21.6 lb / 9.8 kg | | | | Package Weight | 38.88 lb | | Box Dimensions (LxWxH) | 39.0 x 16.0 x 15.6" |
