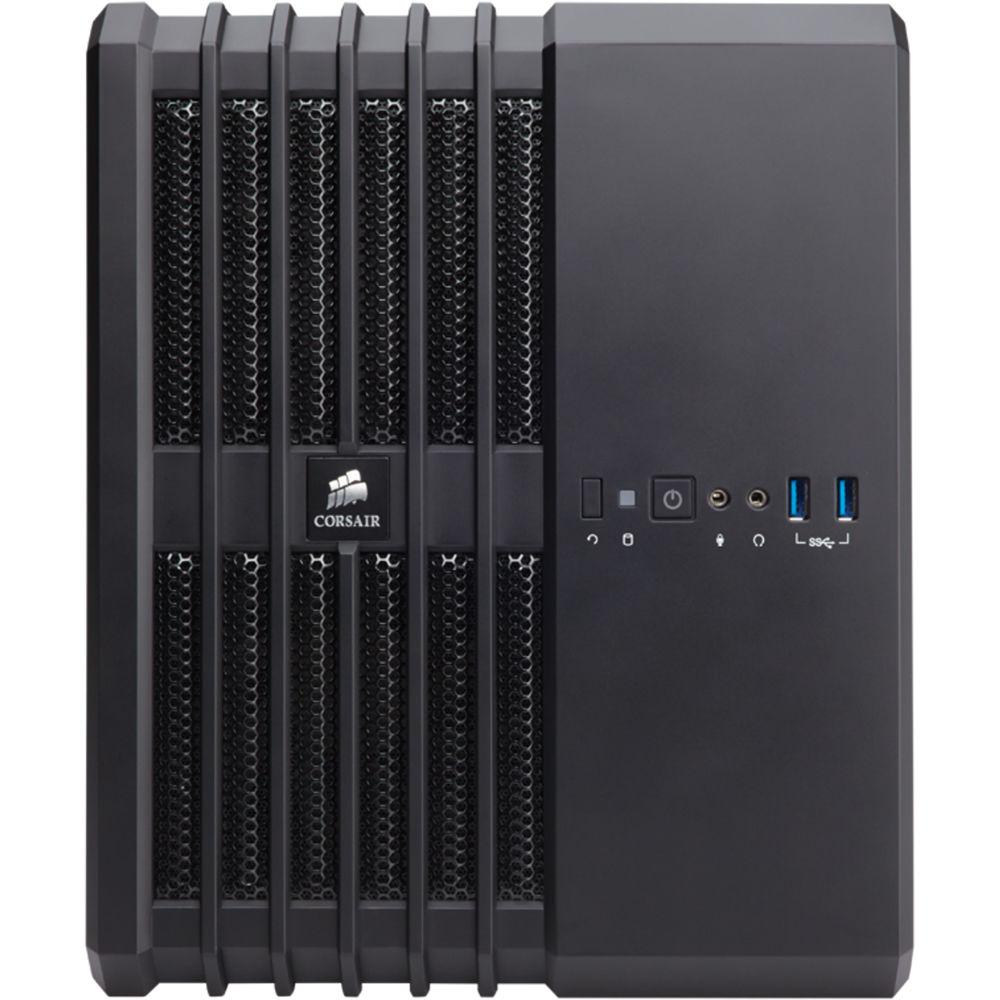

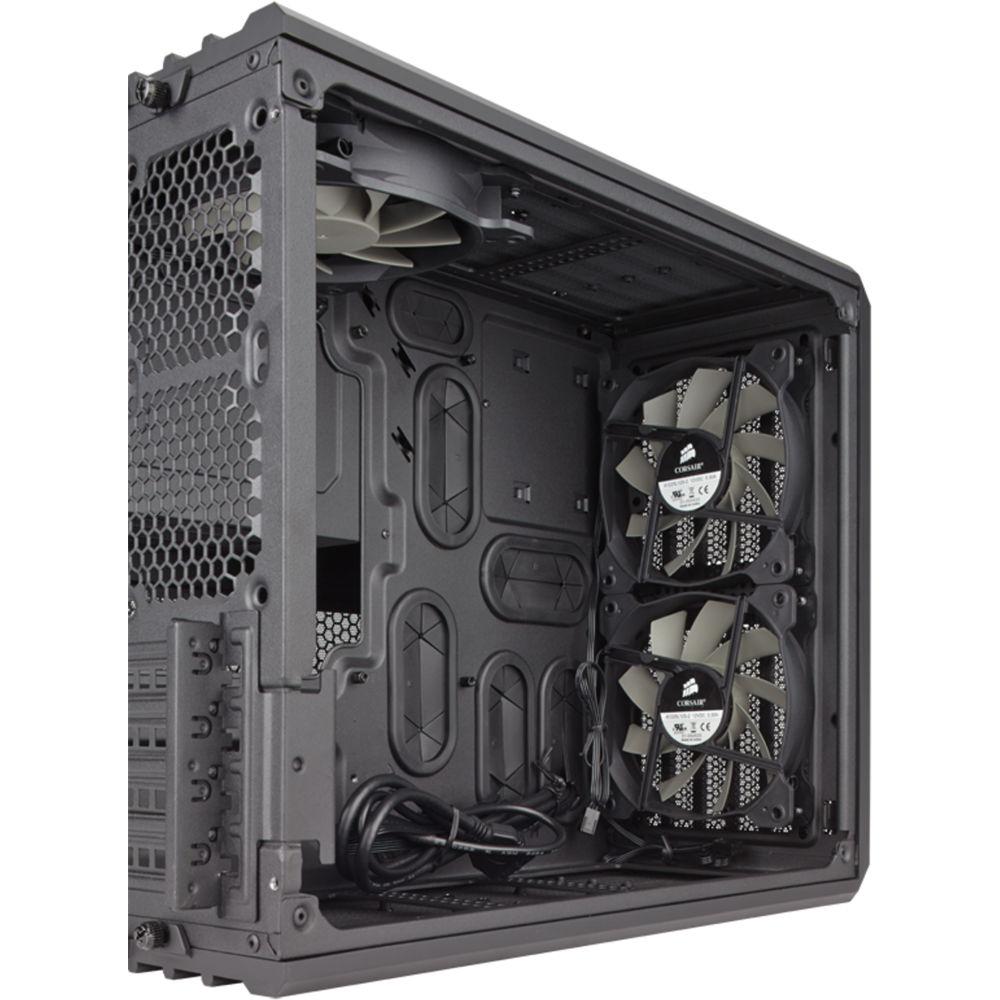

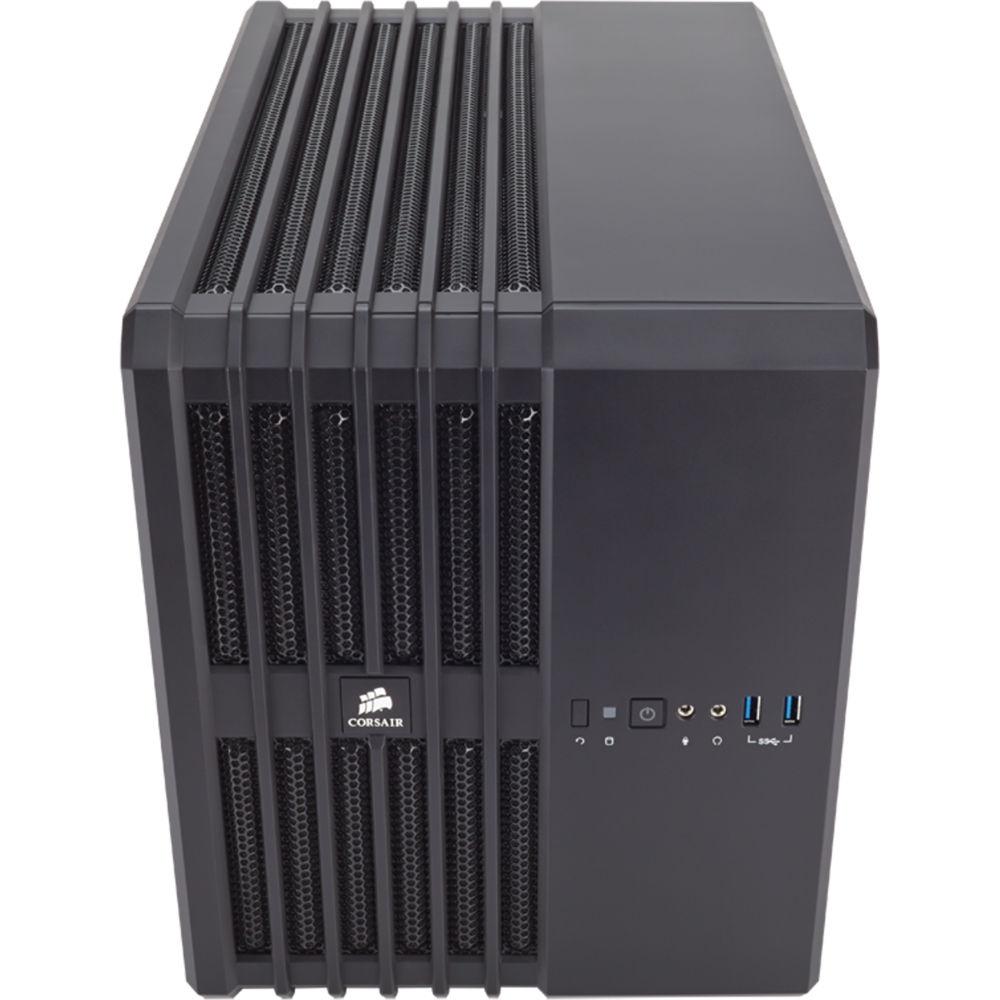

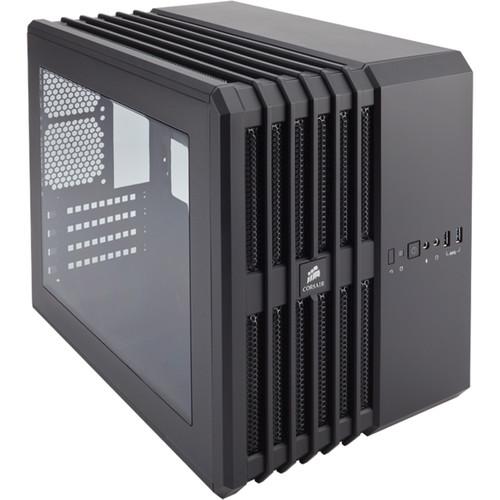

Product description The Carbide Series Air 240 Mini-Tower Case from Corsair is a small form factor case crafted for Micro-ATX and Mini-ITX systems. It features a compartmentalized cube design with an internal layout optimized for maximum airflow or water-cooling configurations. This case does not have any 5.25"drive bays, but it can fit three 3.5" and two 2.5" storage drives. Connect your external devices, such as an optical drive, storage drives, and peripherals, to its front USB 3.0 ports.Even though it has a small footprint, the Air 240 can accommodate two dual-slot GPUs up to 11.4" long and still have room for a 240 mm radiator at the front. For cooling, this case comes with three pre-installed fans: two 120 mm at the front, and one 120 mm at the top. Additional fan slots are located at the rear, bottom, and side. Cable routing holes with rubber grommets and tie-downs simplify cable management and allow for a clean, uncluttered build. - Compartmentalized interior optimizes airflow to deliver cool air to the components that generate the most heat.
- Simplifies building and upgrading with tool-free storage drives and side panels.
- A large CPU backplate cutout allows you to upgrade your CPU cooler without removing the motherboard.

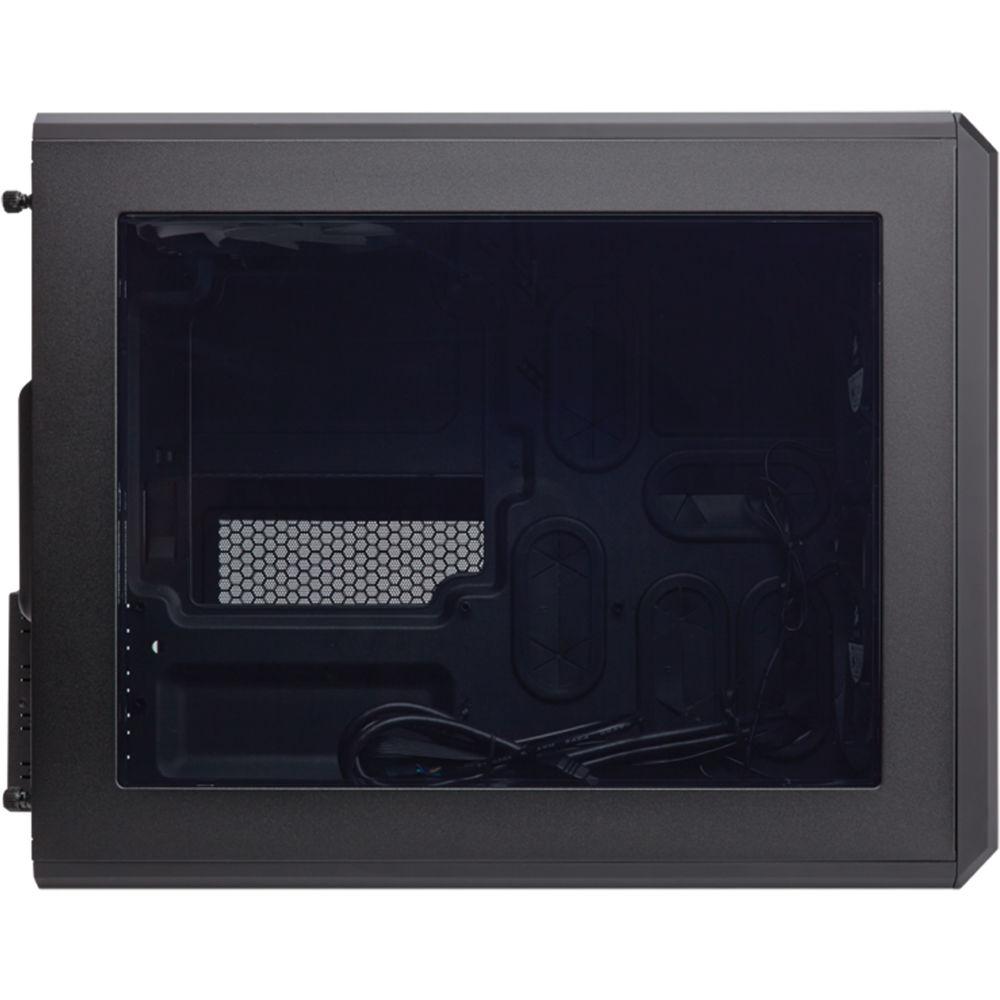

- A full side-panel window allows you show off your build as well as check on your components.
- Customize the orientation of the chassis: as a standard tower, an inverted tower, or as a desktop.
- Supports up to two 240 mm radiators: one in the front, and one at the bottom. If you're using a Mini-ITX motherboard, you can have both. Otherwise, if you're using a Micro-ATX motherboard with dual GPUs, you can only install a 240mm radiator at the front.
UPC: 843591052634 In the Box Corsair Carbide Series Air 240 Mini-Tower Case (Window, Black) 6 x Black Cable Ties 16 x MBD/HDD Screws 16 x SSD/ODD Screws 4 x SSD Pan Head Screws 16 x Short Fan Screws 4 x Long Fan Screws Motherboard Standoff 4 x Air 240 Rubber Feet Limited 2-Year Warranty INSTALLATION GUIDE PDF 14.9mbrxuxwscyebfctcsxcrcazubdezbarczsvue More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Corsair Carbide Series Air 240 Mini-Tower Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCorsair CC-9011070-WW Specs | | | Motherboard Support | Micro-ATX, Mini-ITX | | Internal Drive Bays | 3 x 3.5"
3 x 2.5" | | Expansion Slots | 4 x Full Height | | Maximum GPU Length | 11.4" / 29 cm | | CPU Cooler Height | 4.7" / 12 cm | | Supported PSU Size | ATX | | Maximum PSU Length | 9.4" / 24 cm | | | | Fan Mounting (Rear) | 2 x 80 mm
| | Fan Mounting (Side) | 1 x 120 mm
| | Fan Mounting (Top) | 1 x 120 mm
| | Fan Mounting (Bottom) | 2 x 120 mm
| | Fans Included (Front) | 2 x 120 mm | | Fans Included (Top) | 1 x 120 mm | | Maximum Radiator Size (Front) | 240 mm | | Maximum Radiator Size (Bottom) | 240 mm | | Fan Controller Included | No | | | | Connections | 2 x USB Type-A (USB 3.0) | | Audio Connections | 1 x 3.5 mm Input
1 x 3.5 mm Output | | Display Connections | None | | | | Windowed Panel | No | | Material | Steel | | Cable Management Space | None | | Dimensions (W x H x D) | 15.6 x 10.2 x 12.6" / 39.7 x 26.0 x 32.0 cm | | Weight | 12.3 lb / 5.6 kg | | | | Package Weight | 13.7 lb | | Box Dimensions (LxWxH) | 18.5 x 15.7 x 13.6" |
