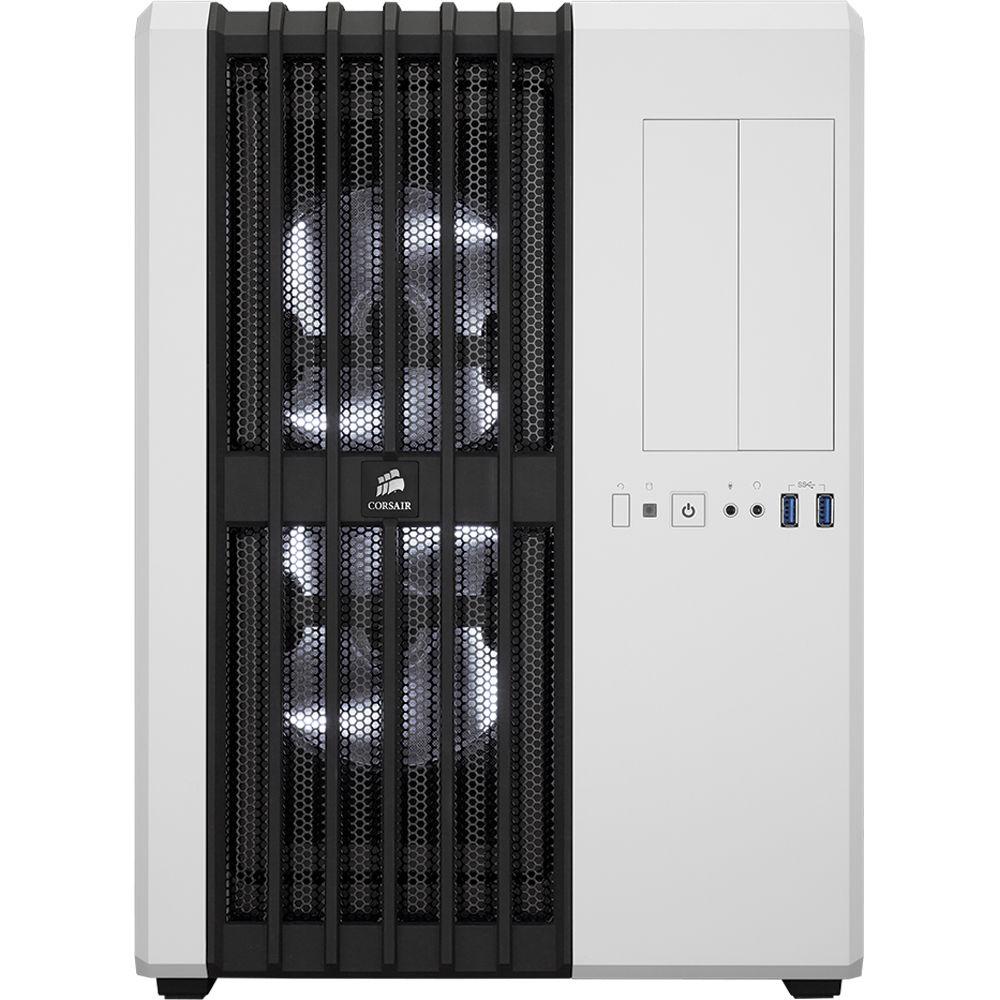

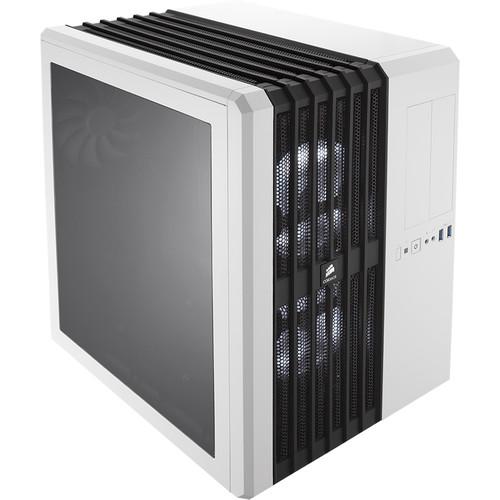

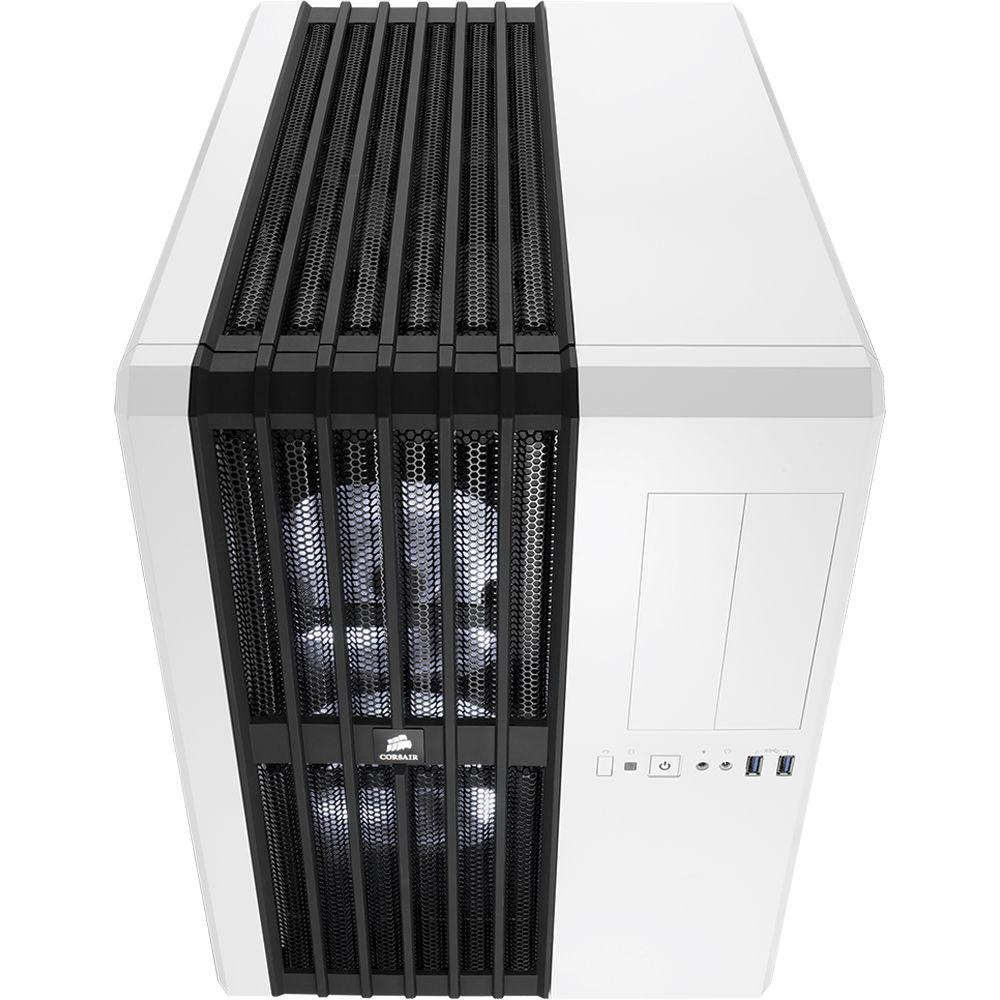

User Manual for Corsair Carbide Series Air 540 High Airflow ATX Cube Case Click to enlarge the picture
Contents of the user manual for the Corsair Carbide Series Air 540 High
- Product category: Desktop Computer Cases Corsair
- Brand: Corsair
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Corsair Desktop Computer Cases
 |
User manual for the Corsair Carbide Series Air 540 High contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Corsair product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Corsair user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Corsair product will considerably shorten its lifespan!
|
Product description The white Carbide Series Air 540 High Airflow ATX Cube Case from Corsair features a dual chamber design that lets you cool temperature-sensitive components in one side and the second side stores the rest of your components. This design helps improve airflow for cooling your graphics cards and processor by moving the cables to other chamber. In addition, the Carbide Series Air 540 supports a liquid cooling solution and includes three 140mm case fans.

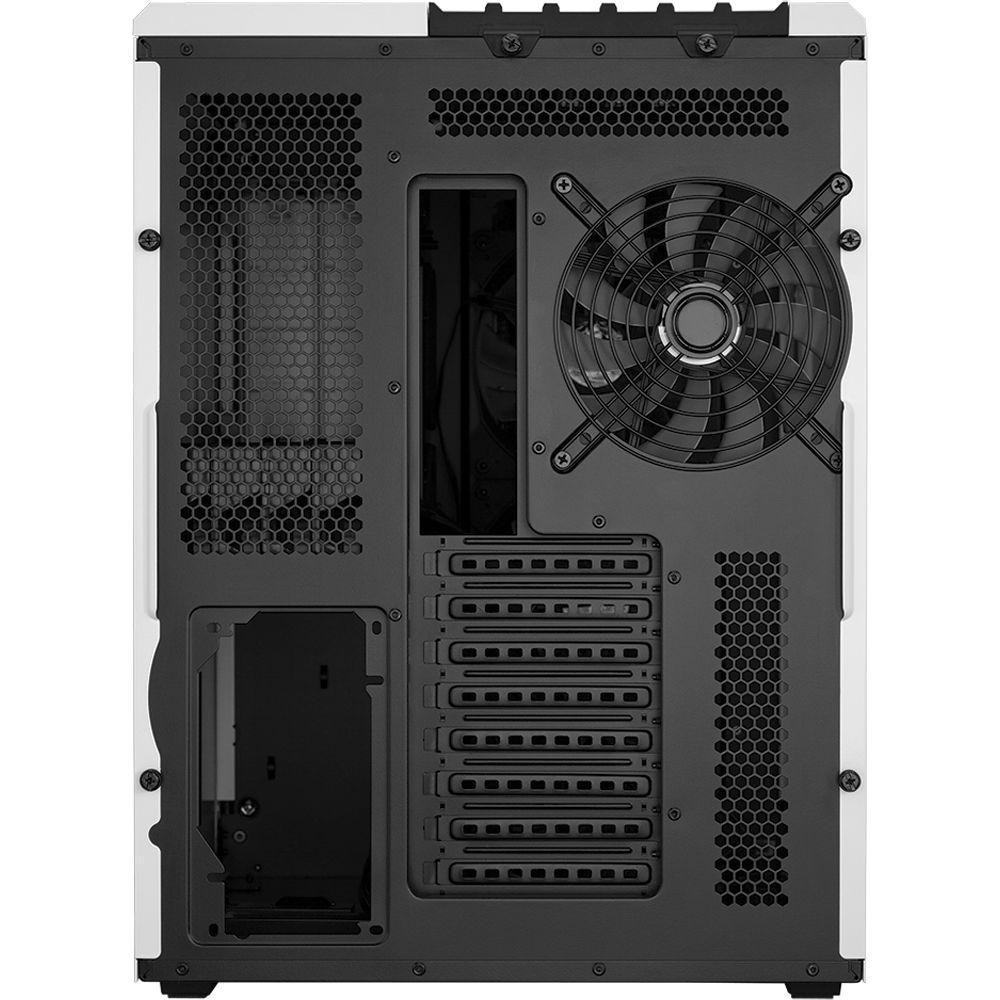

The Carbide Series Air 540 provides enough space to house a Mini-ITX, MicroATX, ATX, or a E-ATX-sized motherboard. It allows you to install up to two optical drives and up to six 2.5" storage drives in its internal and external drive bays. Moreover, the two 2.5" internal bays can hold 3.5" drives instead. For supporting multiple high-powered graphics cards, this case has eight expansion slots and supports cards up to 12.6" in length. To help you build quickly and easily, Corsair offers a tool-free installation of the PCIe cards and the storage drives. Furthermore, you can view all your components inside this enclosure through the tinted and oversized flush-mounted side window. - Cooling Design

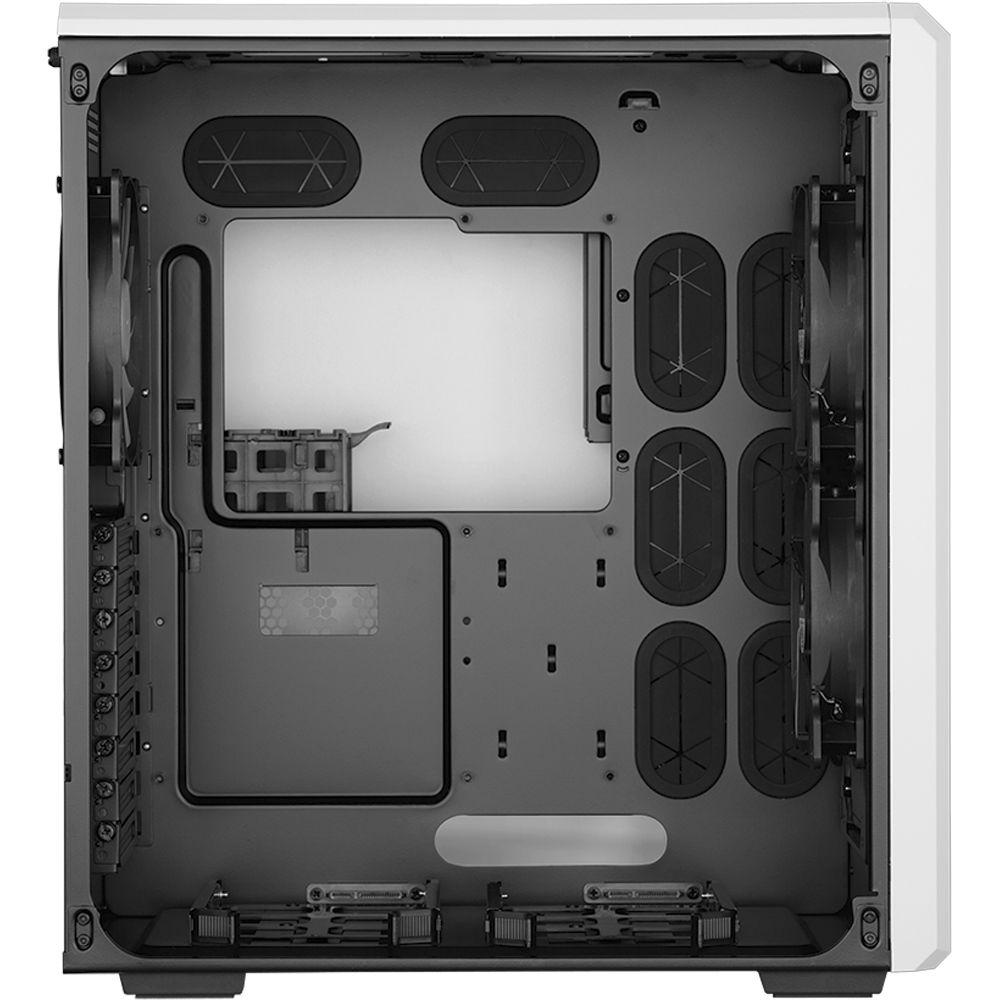

- The Direct Airflow Path design utilizes dual chambers to deliver cooler air to your processor, graphics cards, motherboard, memory, and other PCI-E components without your drives or power supply getting in the way.
- Quieter Operation
- Carbide Series Air 540 includes 140mm Corsair Air Series AF140L intake and exhaust fans. The AF140L provides cooling air at lower noise levels than typical case fans. Additionally, the easy access, low-restriction dust filters are easy to maintain.
- Suitable for Air Cooling and Water Cooling

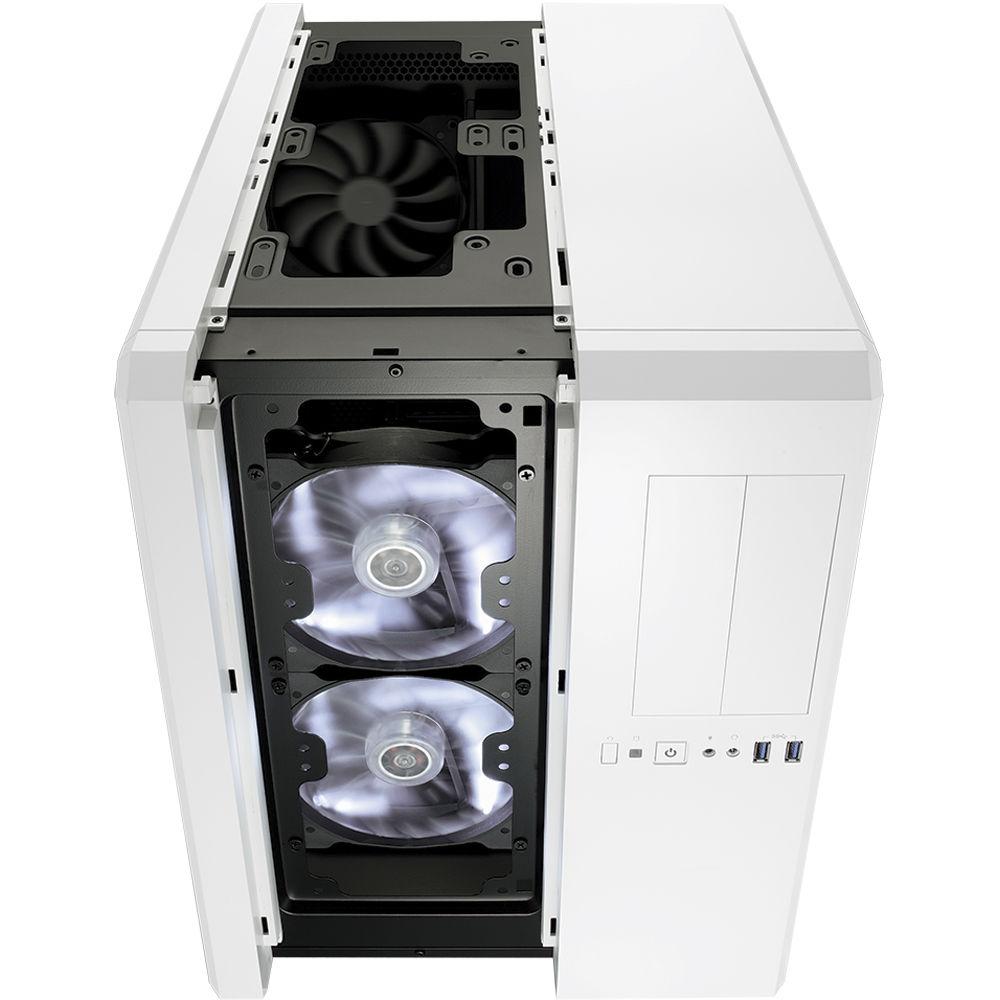

- You can mount up to six 120mm or five 140mm fans, or install a 240mm or 280mm top radiator and a 240mm, 280mm, or even 360mm radiator on the front panel. Corsair's cable routing system gives you more options for hiding pumps and tubing out of the way.
- Built for Builders

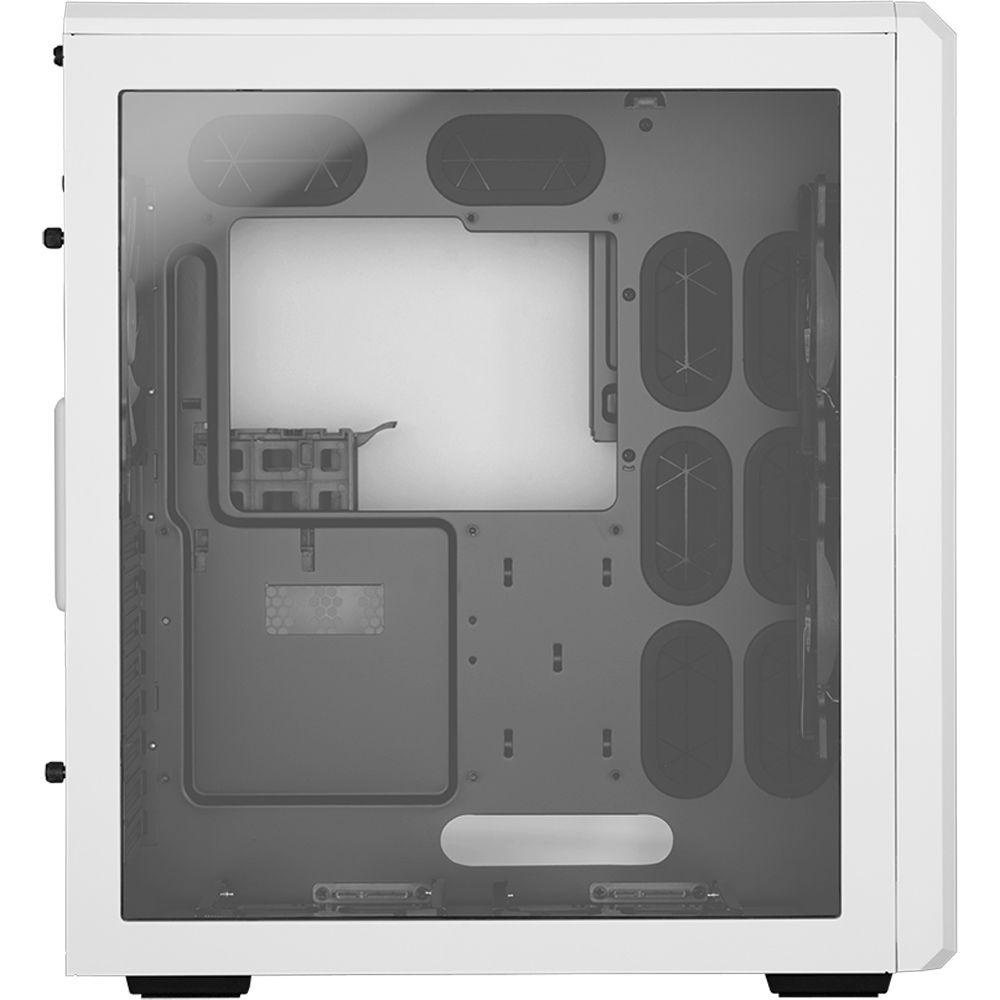

- This case offers a tool-free PCI-E and storage installation, two internal hot-swap drive bays, and more features for making assembly, upgrades, and maintenance quick and easy. Furthermore, the tinted and over-sized flush-mounted side window lets you show off your work.
- Supported Corsair Liquid Coolers
- H55, H60, H75, H80i, H90, H100i, H105, H110
UPC: 843591046503 In the Box Corsair Carbide Series Air 540 High Airflow ATX Cube Case (White) Accessory Kit Limited 2-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Corsair Carbide Series Air 540 High Airflow ATX Cube Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCorsair CC-9011048-WW Specs | | | Motherboard Support | E-ATX, ATX, Micro-ATX, Mini-ITX | | External Drive Bays | 2 x 5.25" | | Internal Drive Bays | 2 x 2.5"
4 x 2.5" | | Maximum GPU Length | 12.6" / 32 cm | | CPU Cooler Height | 6.7" / 16.9 cm | | Maximum PSU Length | 9.8" / 25 cm | | | | Fan Mounting (Top) | 2 x 120 mm
Or
2 x 140 mm
| | Fans Included (Front) | 2 x 140 mm | | Fans Included (Rear) | 1 x 140 mm | | Maximum Radiator Size (Front) | 360 mm | | Maximum Radiator Size (Rear) | 120 mm | | Maximum Radiator Size (Top) | 280 mm | | Fan Controller Included | No | | | | Connections | 2 x USB Type-A (USB 3.0)
2 x USB Type-A (USB 2.0) | | Audio Connections | 1 x 3.5 mm Input
1 x 3.5 mm Output | | Display Connections | None | | | | Windowed Panel | No | | Material | Steel | | Cable Management Space | None | | Dimensions (W x H x D) | 16.3 x 13.1 x 18.0" / 415.0 x 332.0 x 458.0 mm | | Weight | 16.3 lb / 7.4 kg | | | | Package Weight | 20.45 lb | | Box Dimensions (LxWxH) | 20.1 x 18.7 x 15.9" |
