User Manual for Corsair Carbide Series SPEC-02 Red LED Mid-Tower Gaming Case

Click to enlarge the picture
Corsair Carbide Series SPEC-02 Red LED Mid-Tower Gaming Case Contents of the user manual for the Corsair Carbide Series SPEC-02 Red LED
  • Product category: Desktop Computer Cases Corsair
  • Brand: Corsair
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Corsair Desktop Computer Cases

Corsair Carbide Series SPEC-02 Red LED Mid-Tower Gaming Case Corsair Carbide Series SPEC-02 Red LED Mid-Tower Gaming Case Corsair Carbide Series SPEC-02 Red LED Mid-Tower Gaming Case Corsair Carbide Series SPEC-02 Red LED Mid-Tower Gaming Case Corsair Carbide Series SPEC-02 Red LED Mid-Tower Gaming Case Corsair Carbide Series SPEC-02 Red LED Mid-Tower Gaming Case Corsair Carbide Series SPEC-02 Red LED Mid-Tower Gaming Case Corsair Carbide Series SPEC-02 Red LED Mid-Tower Gaming Case Corsair Carbide Series SPEC-02 Red LED Mid-Tower Gaming Case
User manual for the Corsair Carbide Series SPEC-02 Red LED contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Corsair product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Corsair user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Corsair product will considerably shorten its lifespan!



Product description

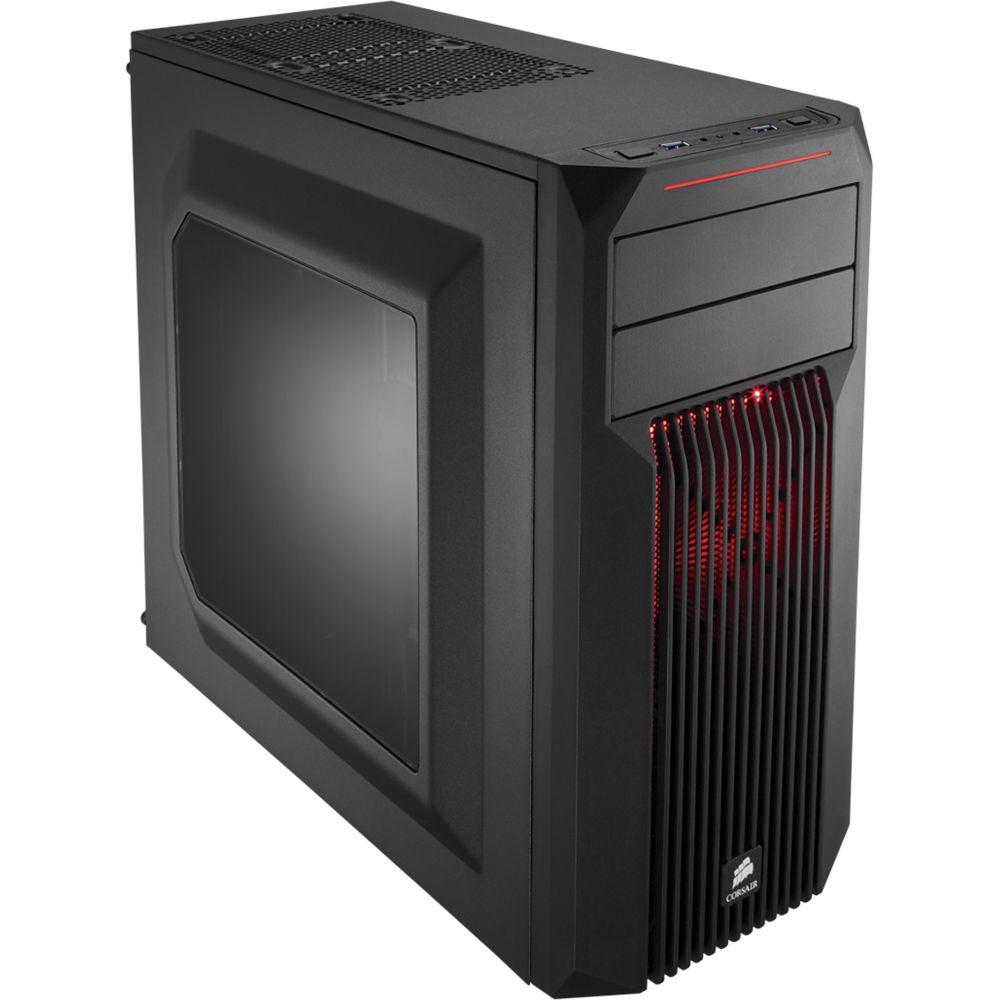

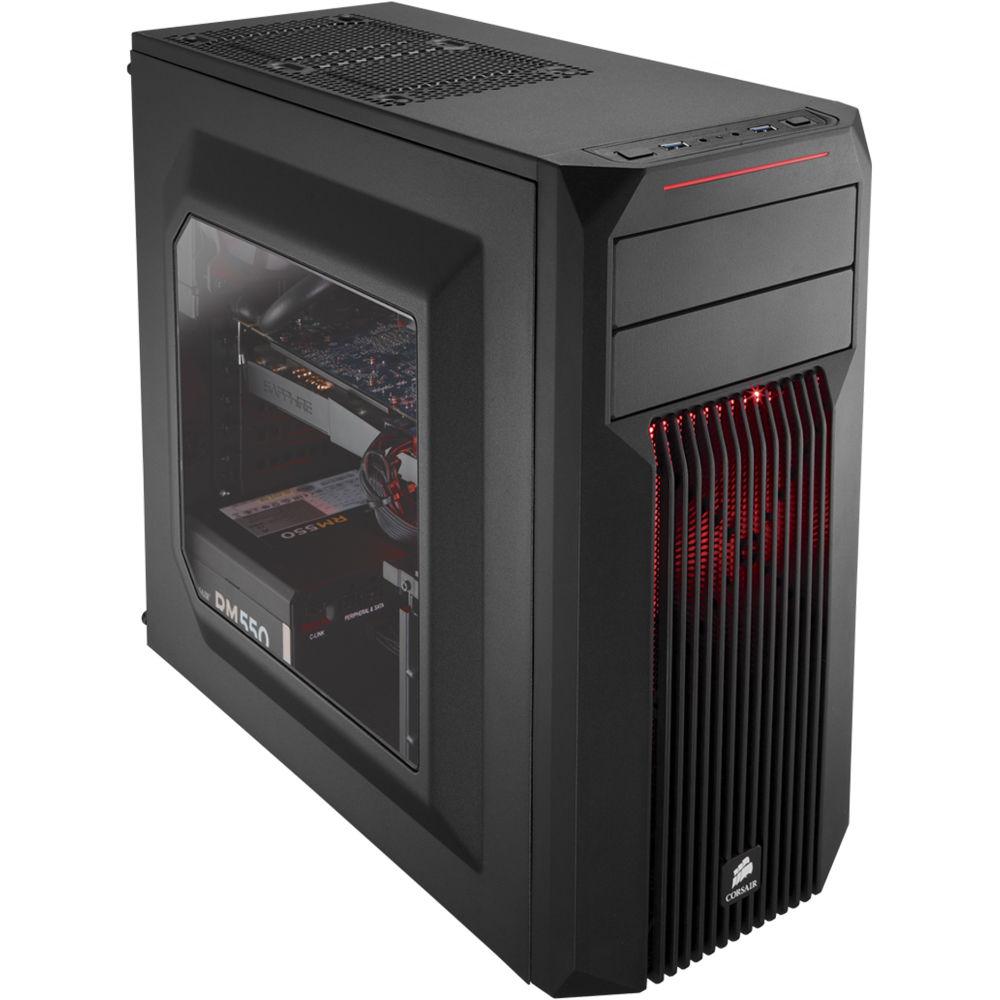

With a variety of configuration options, the Carbide Series SPEC-02 Red LED Mid-Tower Gaming Case from Corsair can be tailored to suit your specific needs. Peer inside the case through the side panel window you find two 5.25", three 3.5", and two 2.5" drive bays.

Along with the various drive bay options, you can also take advantage of multiple fan mounting options to keep your system cool. Fan mount locations include two 120/140mm fans in the front, two 120mm fans in the top, one 120mm fan in the back, and one 120mm fan in the bottom. You can even utilize liquid cooling with compatible Corsair liquid coolers. External connections include two USB 3.0 ports, along with one headphone, and one microphone connector.

Insert a variety of graphics cards into this mid-tower gaming case as it features a maximum GPU length of up to 16.5" and a CPU cooler height of up to 6.2". Regardless of the desired configuration, the Carbide Series SPEC-02 gaming case can be easily customized as it supports tool-free installation along with cable routing holes. You can even replace the CPU without removing the motherboard thanks to the CPU cutout.

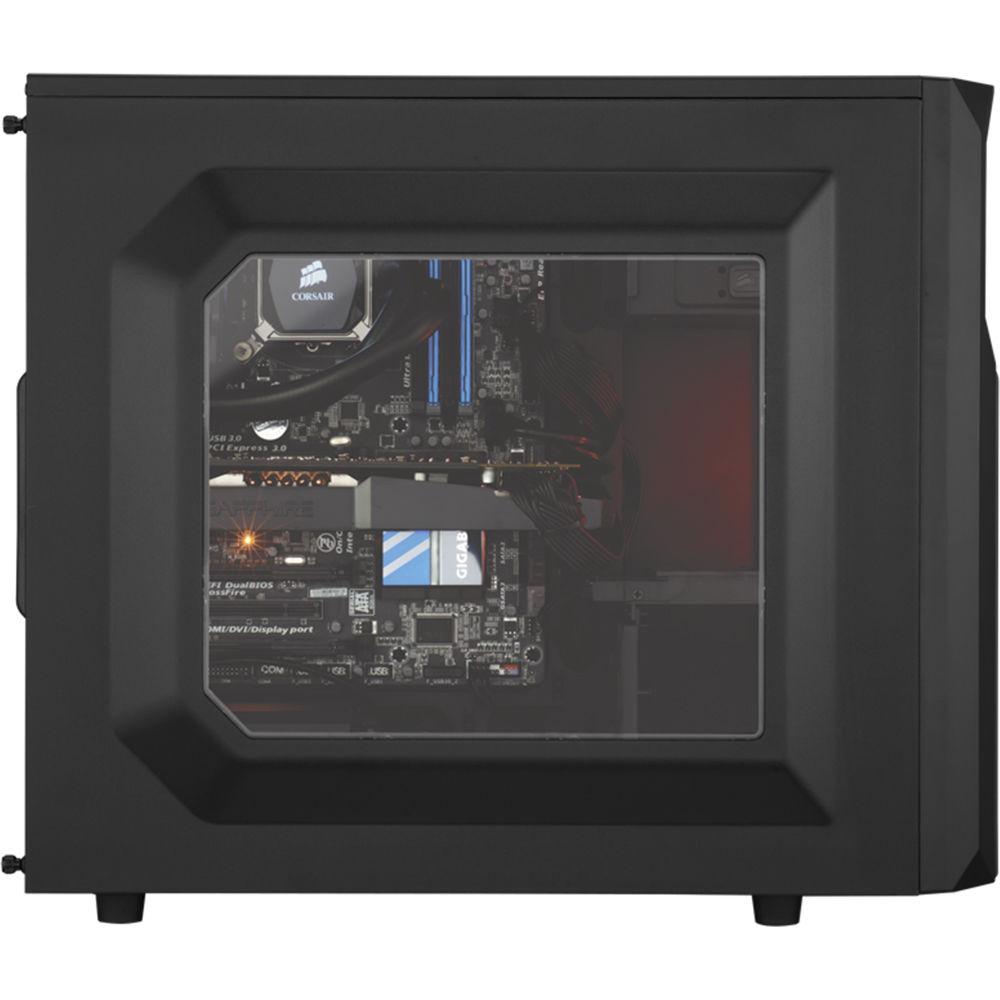

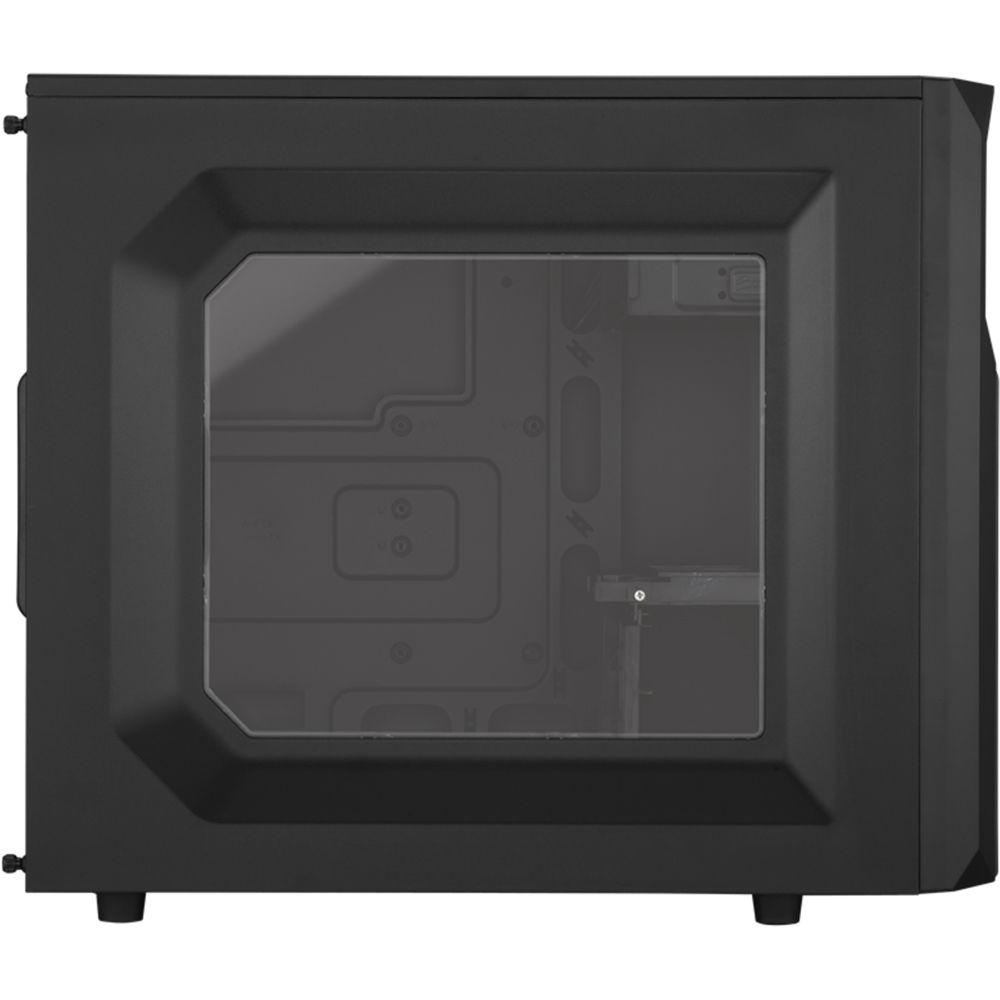

    Side Panel Window
  • With a integrated side panel window you can see the internal components of your system.

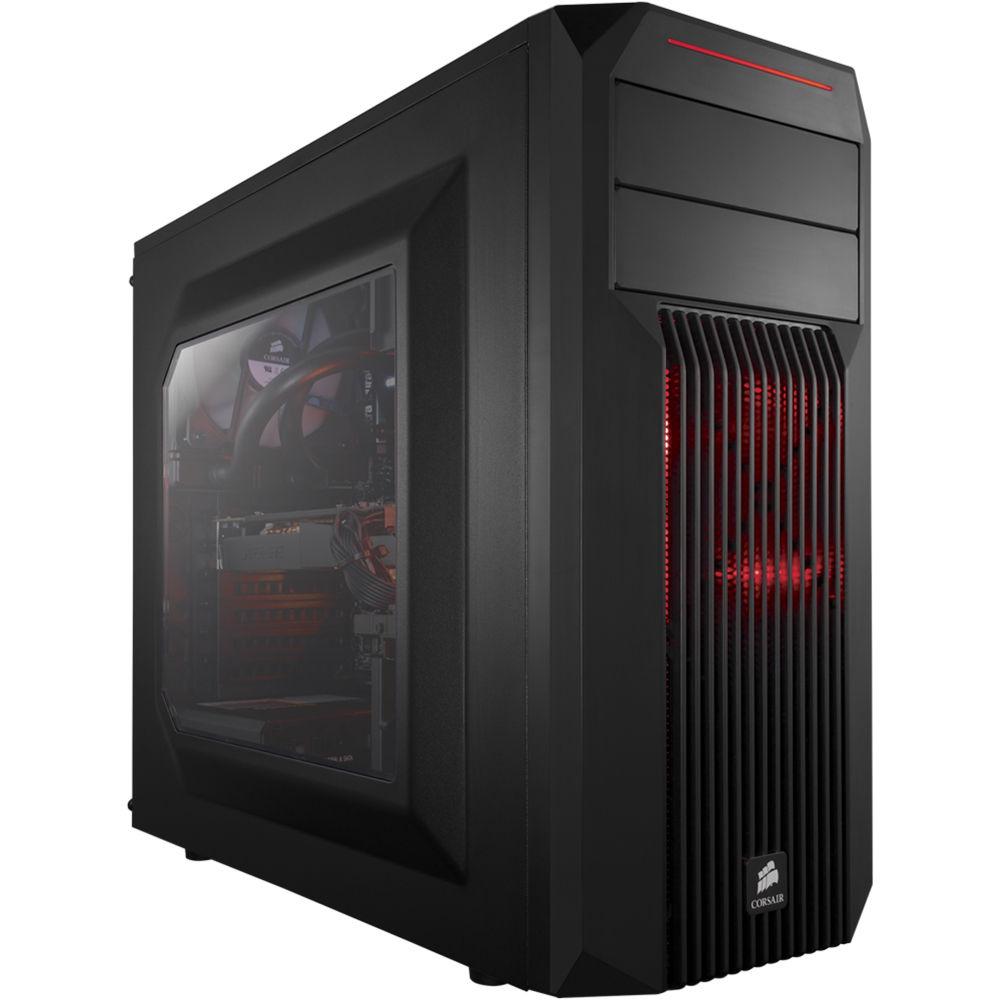

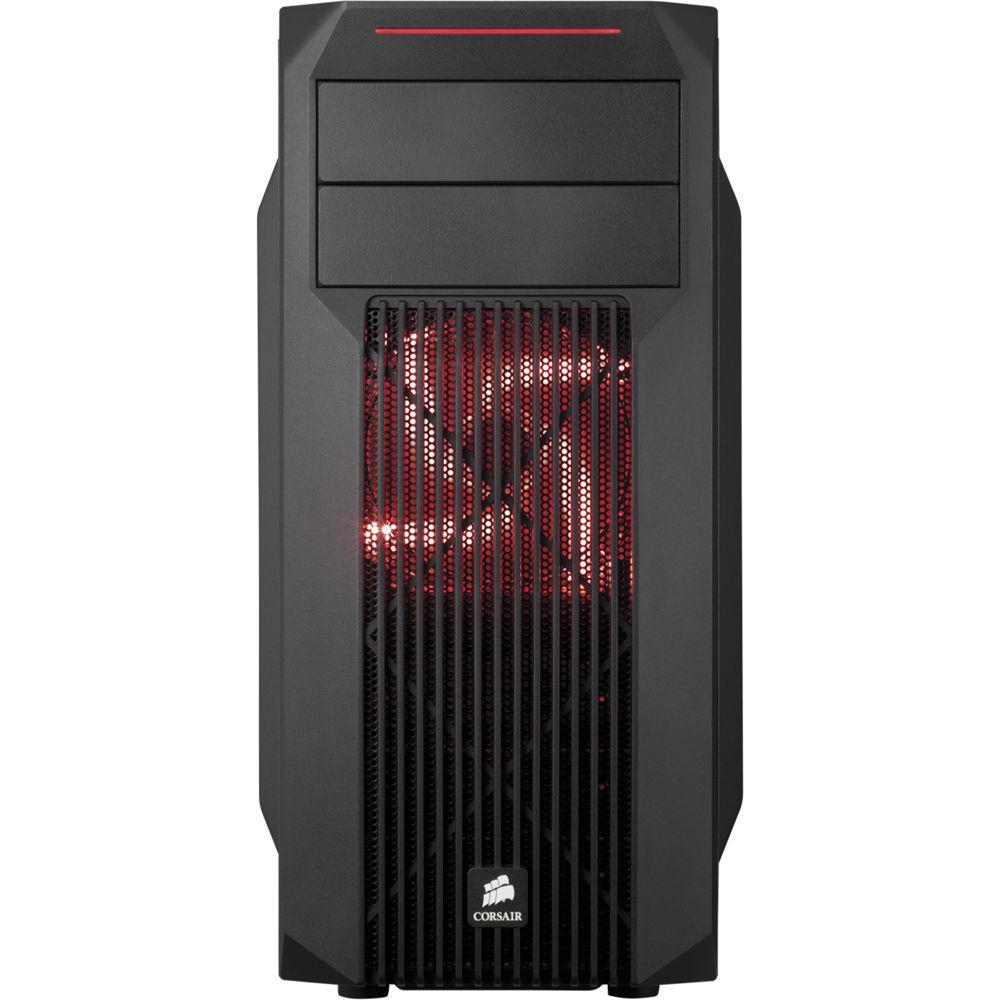

    LED Front Intake Fan, with Room for More
  • The 120mm front intake fan is bathed in soft LED lighting, and it's oriented to draw cool air directly across your graphics cards. And if you want even more ventilation, you can add a second 120mm fan or even dual 140mm fans.
    Flexible Cooling Potential
  • The SPEC-02 is designed for cooling, so you're covered if you're overclocking, running multiple GPUs, or if you just want more airflow. There are mounting points for up to six fans, including dual front 140mm or 120mm fans, dual 120mm fans on top, a bottom-mounted 120mm fan, and a rear 120mm fan.

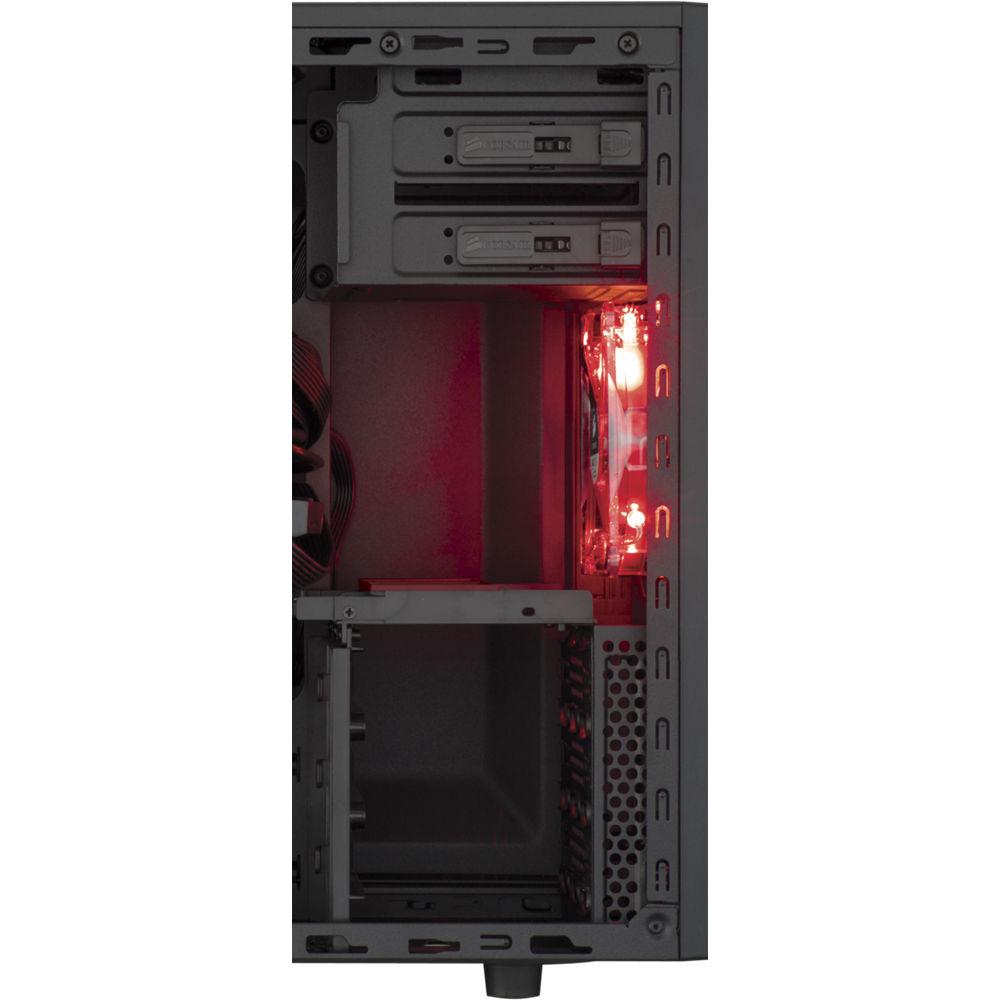

    Multiple Drive Bays
  • In addition to the two standard 5.25" optical drive bays, there are three 3.5" hard drive bays and two 2.5" solid-state drive bays.
    Easy System Builds, Maintenance and Upgrades
  • Drive installation is tool-free, and you get cable routing holes for neater-looking builds and better airflow. And, there's a CPU cutout to allow for cooling upgrades without removing the motherboard. The front intake fan filters help keep dust out of the interior, and the front panel has dual USB 3.0 ports for fast performance from USB flash drives and portable hard drives.
    PCIe Slots
  • Take advantage of seven PCIe slots with room for long graphics cards up to 426 mm long.
UPC: 843591047258 In the Box Corsair Carbide Series SPEC-02 Red LED Mid-Tower Gaming Case
  • Accessories Box with Screws, Zip Ties, and Other Mounting Hardware
  • Limited 2-Year Manufacturer Warranty
  • More from Manufacturer wwsstszsfcbstxvvtftawuxyrzuuuruvfevx Table of Contents




    Upload User Manual

    Have you got an user manual for the Corsair Carbide Series SPEC-02 Red LED Mid-Tower Gaming Case in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Corsair SPEC02 Specs

    Motherboard Support ATX, Micro-ATX, Mini-ITX
    External Drive Bays 2 x 5.25"
    Internal Drive Bays 3 x 3.5"
    2 x 2.5"
    Maximum GPU Length 16.5" / 41.9 cm
    CPU Cooler Height 6.2" / 15.7 cm
    Supported PSU Size ATX
    Maximum PSU Length 11.3" / 28.8 cm
    Fan Mounting (Top) 2 x 120 mm
    Fan Mounting (Bottom) 1 x 120 mm
    Fans Included (Front) 1 x 120 mm
    Fans Included (Rear) 1 x 120 mm
    Maximum Radiator Size (Rear) 120 mm
    Fan Controller Included No
    Connections 2 x USB Type-A (USB 3.0)
    Audio Connections 1 x 3.5 mm Input
    1 x 3.5 mm Output
    Display Connections None
    Windowed Panel Yes
    Material Steel
    Cable Management Space None
    Dimensions (W x H x D) 19.4 x 8.5 x 16.8" / 493.0 x 215.0 x 426.0 mm
    Weight 11.0 lb / 5.0 kg
    Package Weight 13.8 lb
    Box Dimensions (LxWxH) 22.0 x 19.0 x 9.5"
