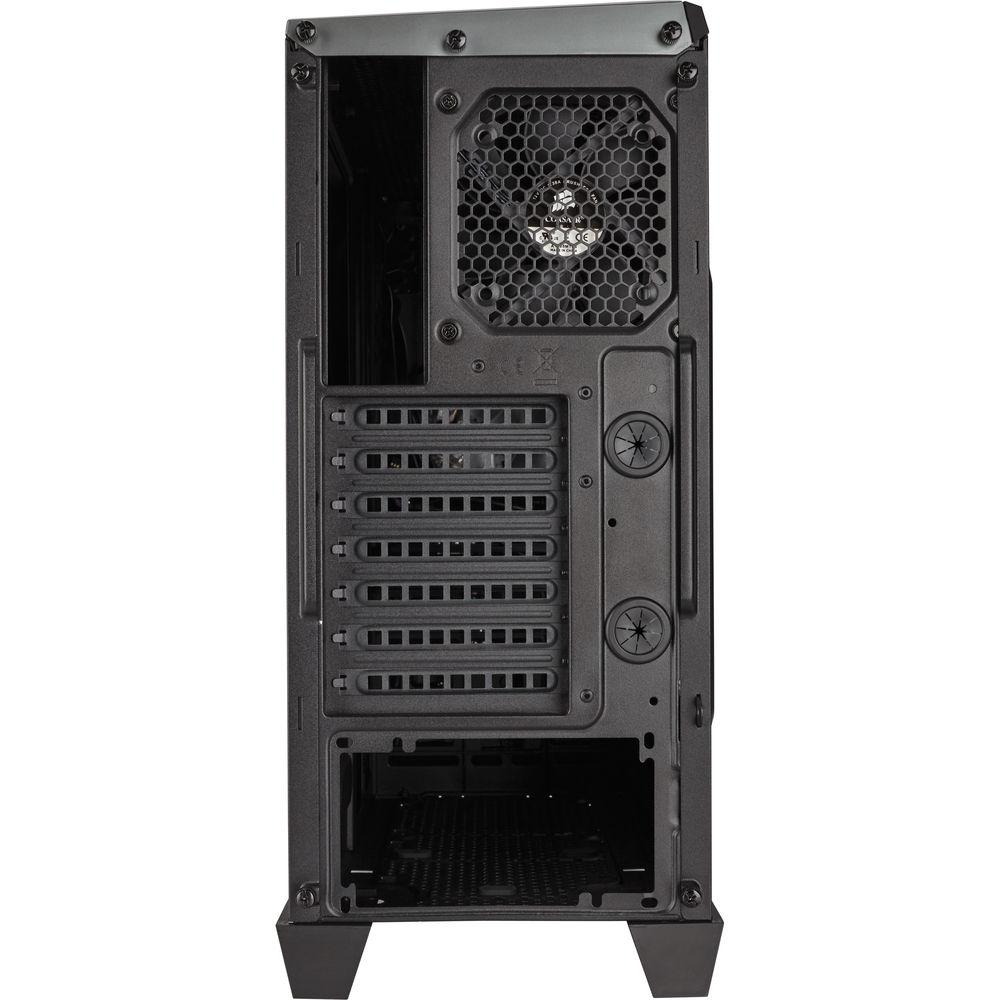

User Manual for Corsair Carbide Series SPEC-ALPHA Mid-Tower Case Click to enlarge the picture
Contents of the user manual for the Corsair Carbide Series SPEC-ALPHA Mid-Tower Case
- Product category: Desktop Computer Cases Corsair
- Brand: Corsair
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Corsair Desktop Computer Cases
 |
User manual for the Corsair Carbide Series SPEC-ALPHA Mid-Tower Case contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Corsair product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Corsair user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Corsair product will considerably shorten its lifespan!
|

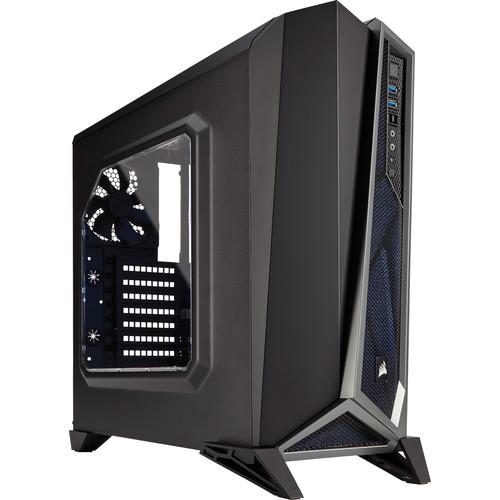

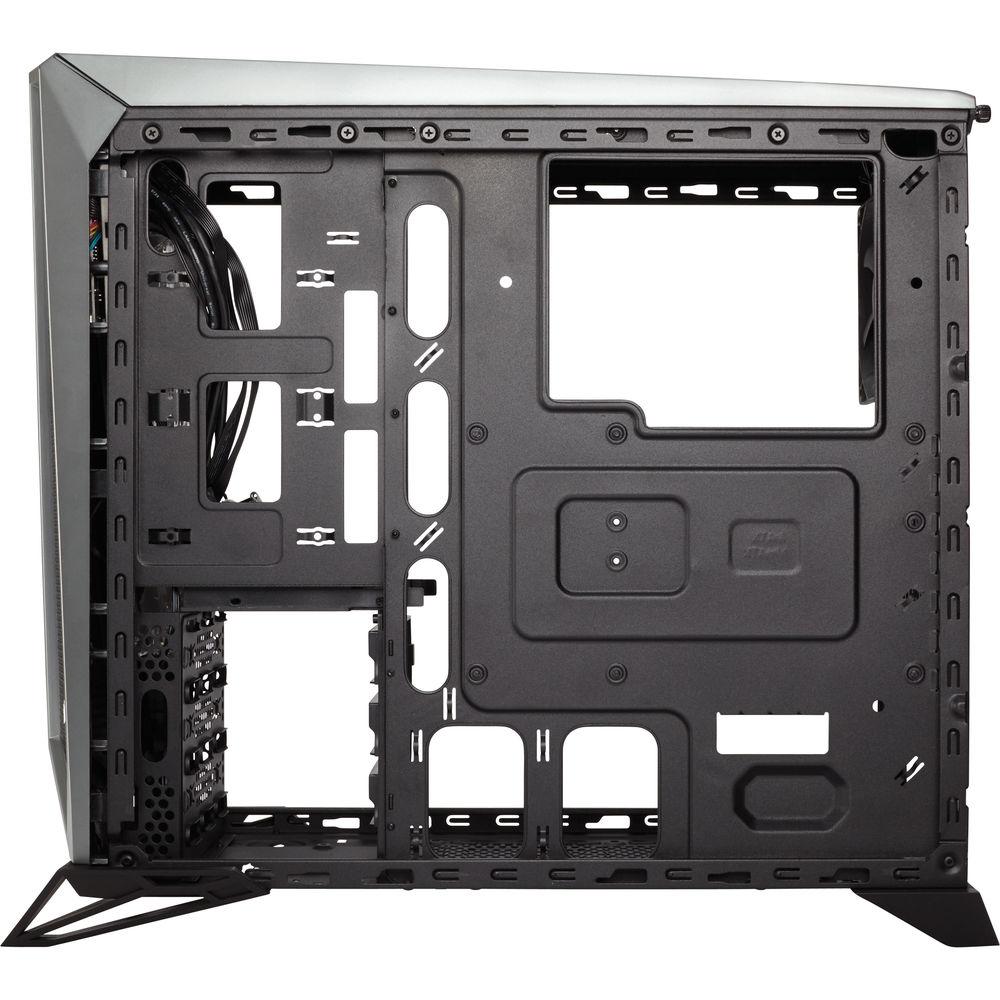

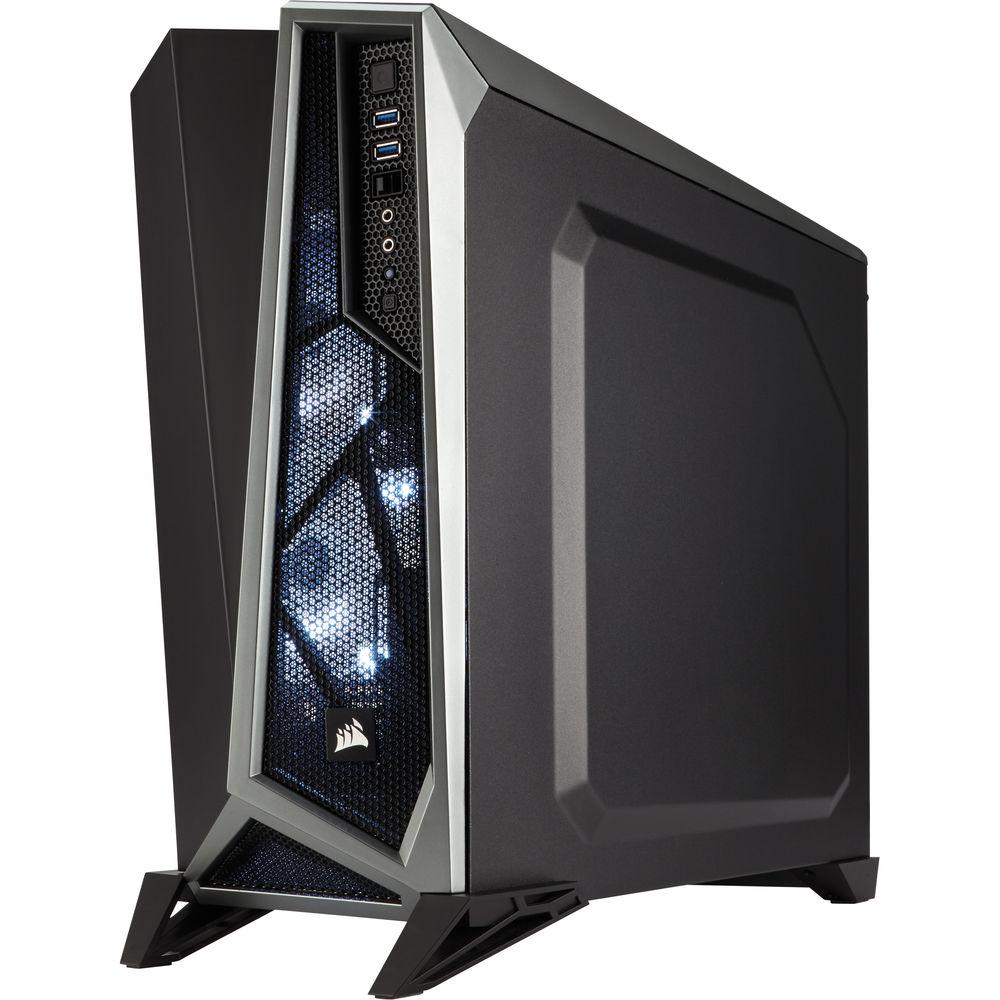

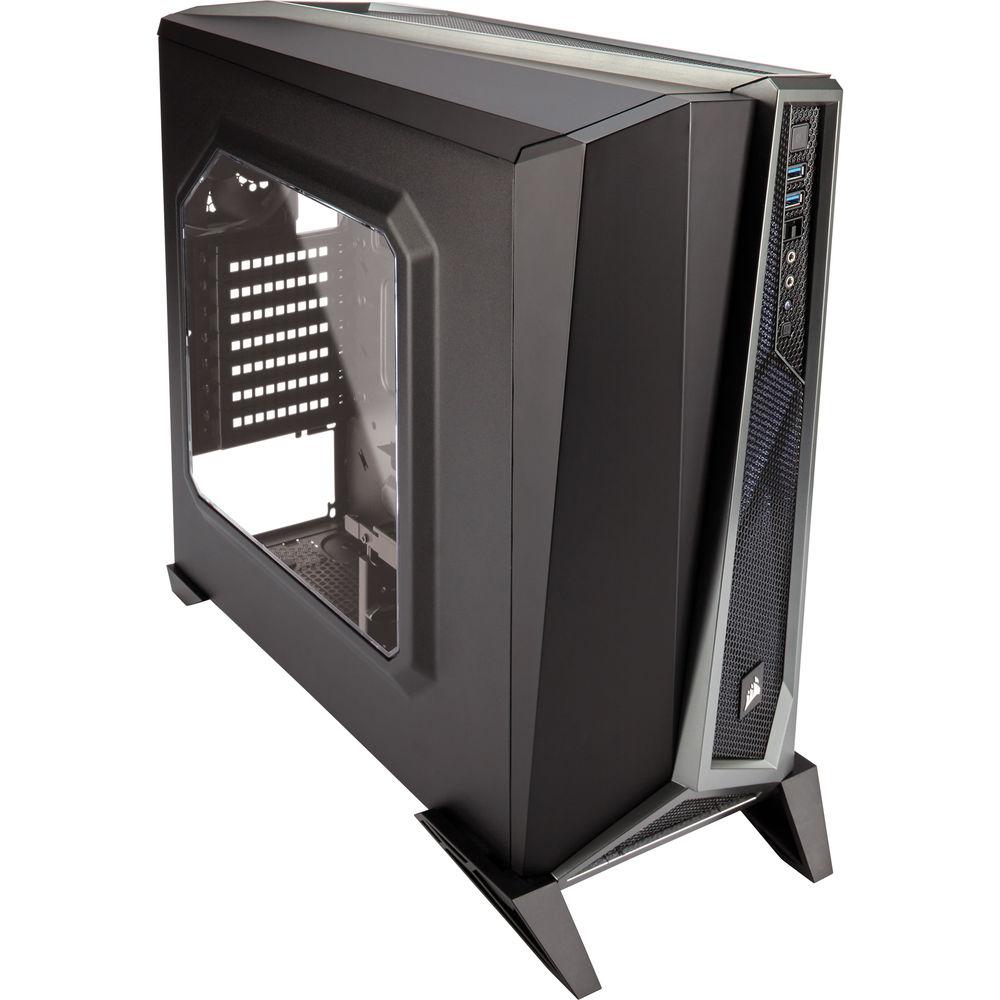

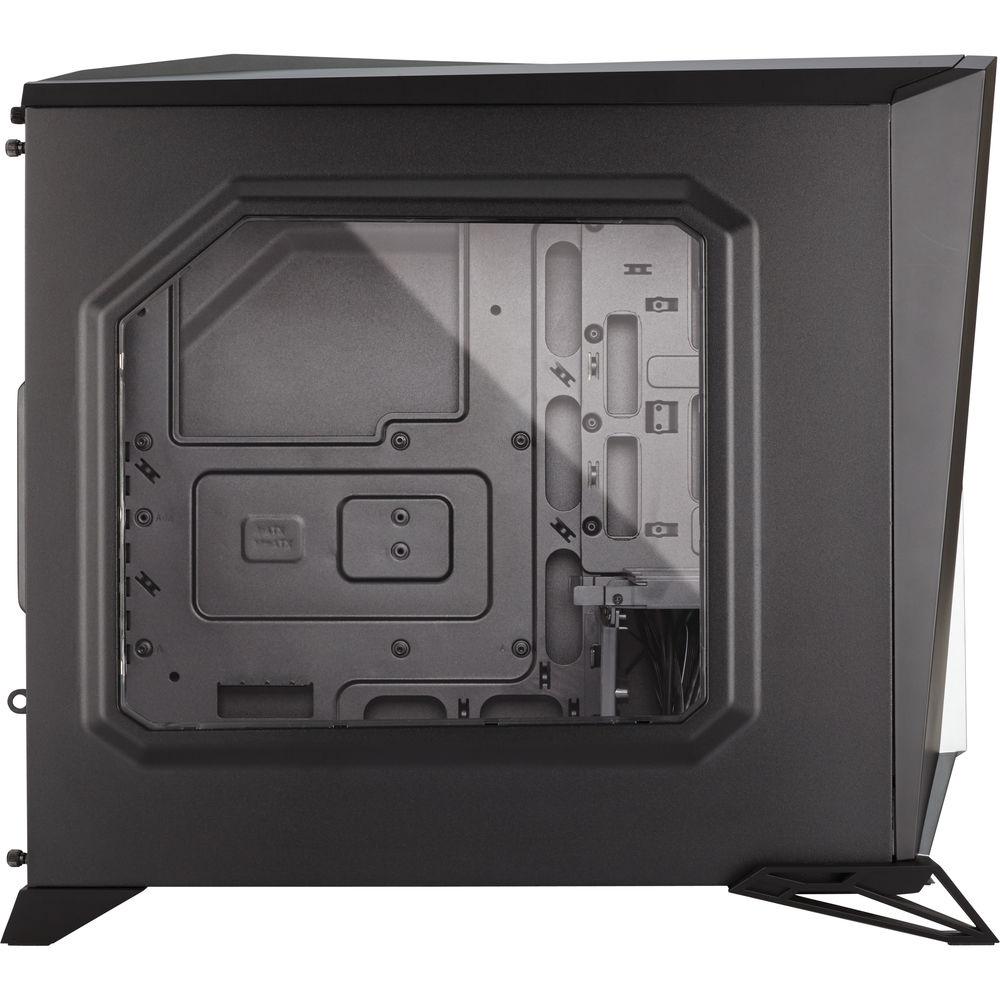

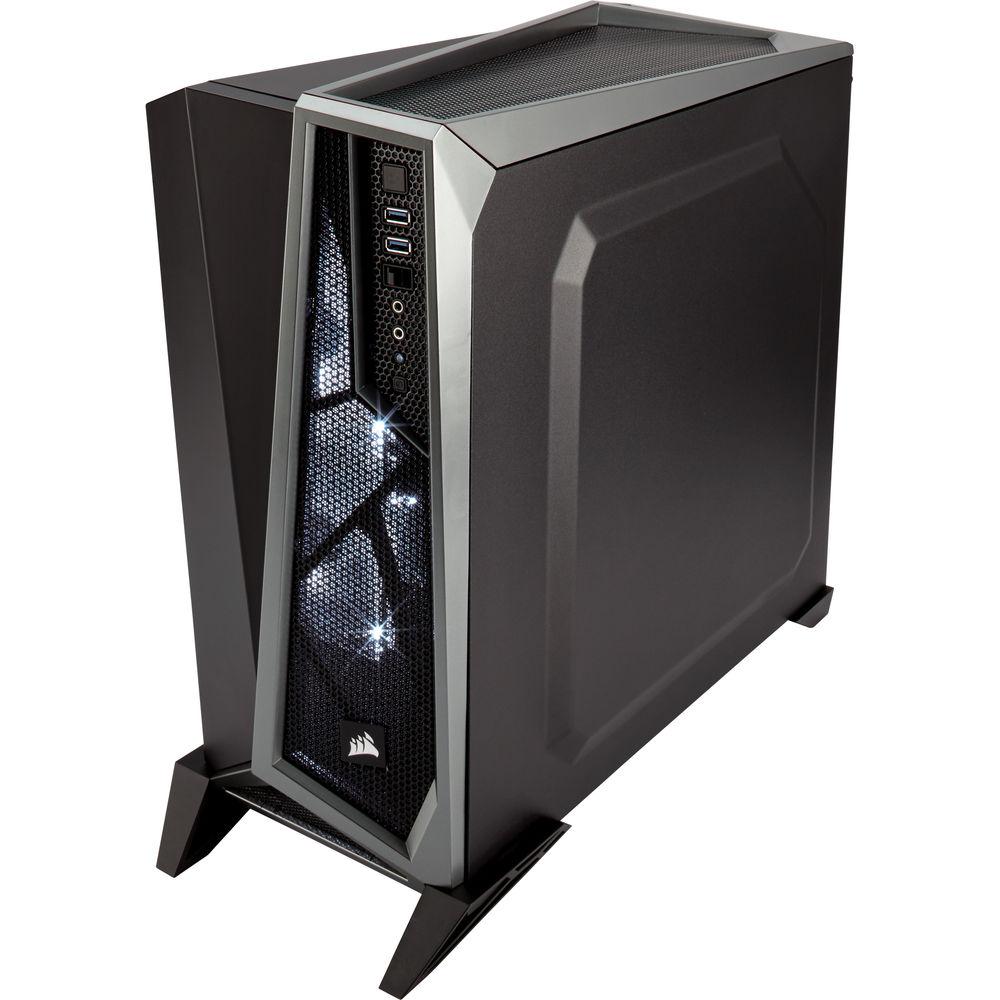

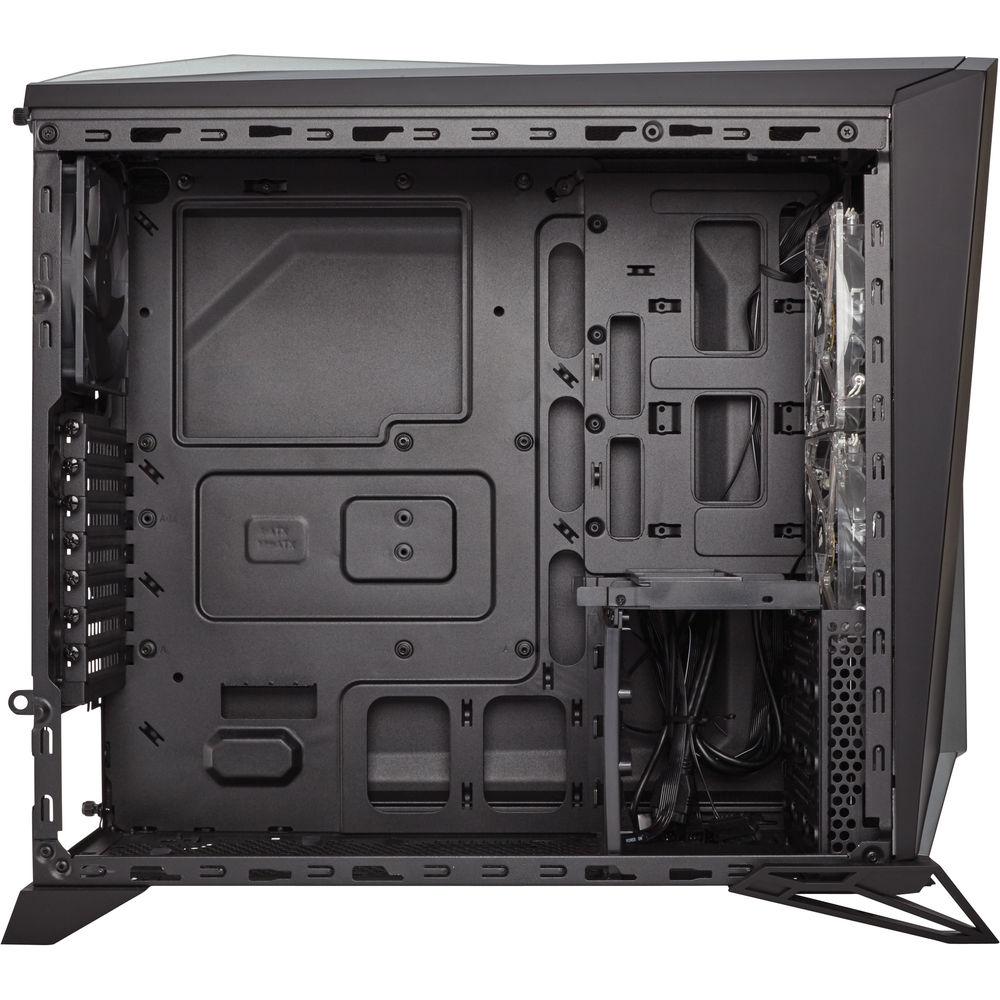

Product description The Carbide Series SPEC-ALPHA Mid-Tower Case from Corsair features an angular design and support for modern components such as two USB 3.0 ports, room for up to four SSDs, and a three-speed fan controller for the three included fans. It can accommodate ATX, Micro-ATX, and Mini-ITX motherboards as well as graphics cards up to 14.96" long. It can also fit three 3.5" drives, and has 7 expansion slots suitable for multi-GPU setups. The large window allows you to show-off your build as well as quickly check on your components. To help simplify building, this case has tool-free drive bays for easy installation, cable routing cutouts and tie downs for cable management, and built-in dust filters at the front and bottom intakes. -
- Angular design with panoramic side window

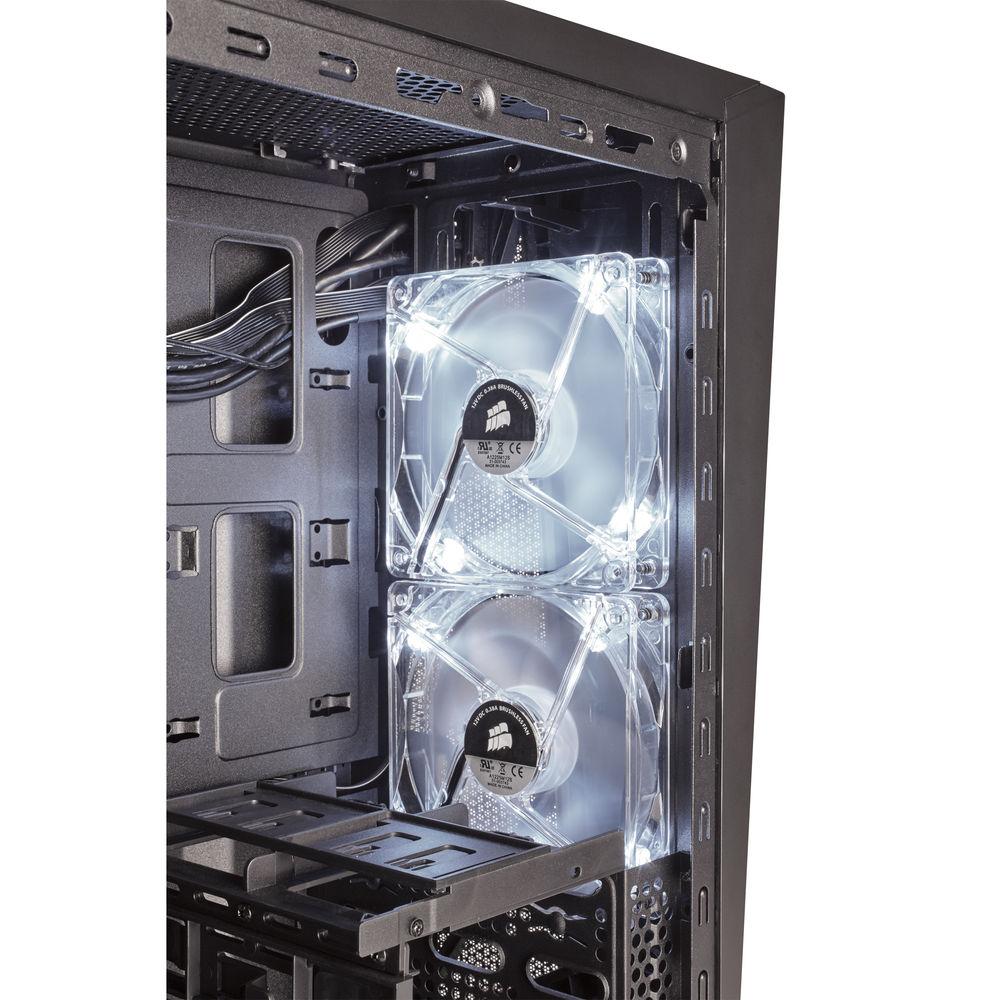

- Three 120mm fans included, two of which have LED lighting
- Three-speed fan control for the included fans
- Supports a 240mm and a 120mm radiator for liquid cooling setups
- Built-in dust filters help maintain cleanliness and optimal component performance

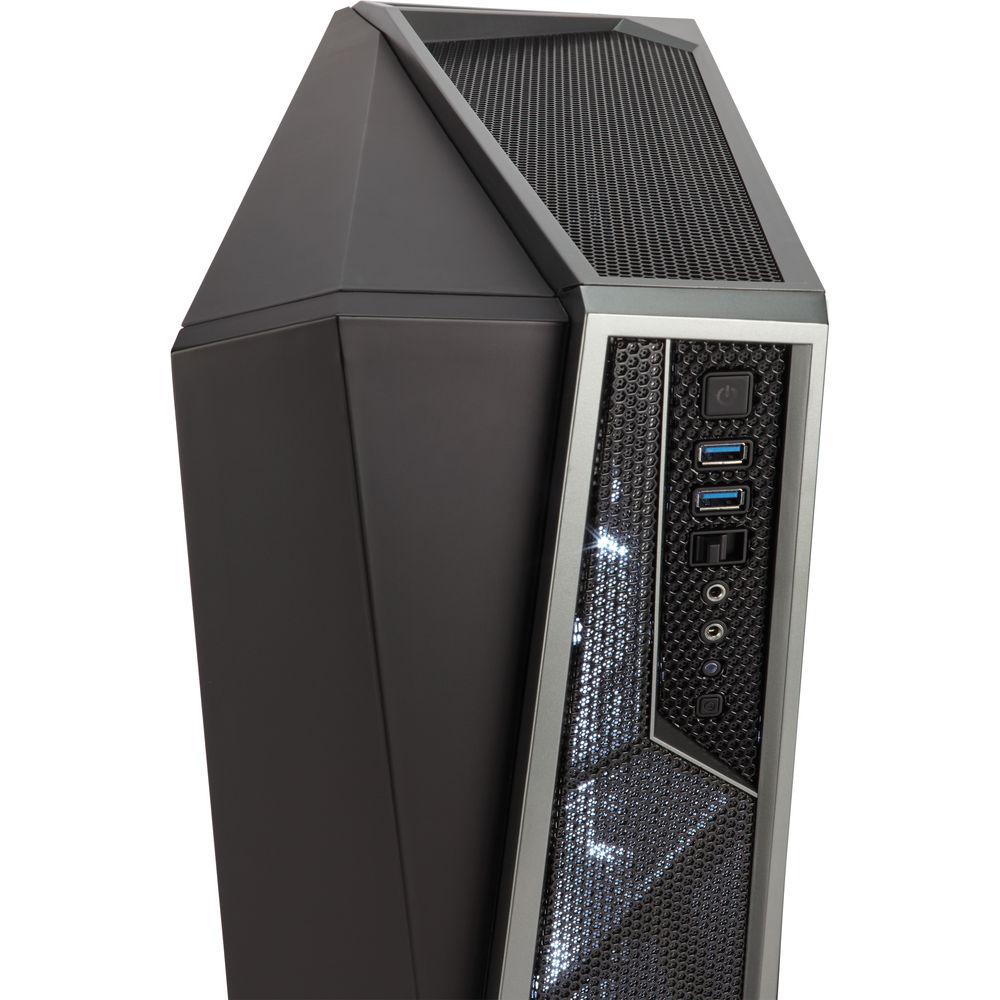

- Front microphone and headphone ports provide easy access
- Cable routing cutouts and tie downs simplify cable management
UPC: 843591068581 In the Box Corsair Carbide Series SPEC-ALPHA Mid-Tower Case Screw Kit Limited 2-Year Warranty More from Manufacturer cwfvzrdccqtwraxdrqfvexvxub Table of Contents
|
Upload User Manual
Have you got an user manual for the Corsair Carbide Series SPEC-ALPHA Mid-Tower Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCorsair CC-9011084-WW Specs | | | Motherboard Support | ATX, Micro-ATX, Mini-ITX | | Internal Drive Bays | 3 x 3.5"
4 x 2.5" | | Expansion Slots | 7 x Full Height | | Maximum GPU Length | 15" / 38 cm | | CPU Cooler Height | 6.1" / 15.5 cm | | Supported PSU Size | ATX | | Maximum PSU Length | 7.5" / 19.1 cm | | | | Fan Mounting (Top) | 2 x 120 mm
| | Fans Included (Front) | 2 x 120 mm | | Fans Included (Rear) | 1 x 120 mm | | Maximum Radiator Size (Front) | 240 mm | | Maximum Radiator Size (Rear) | 120 mm | | Fan Controller Included | No | | | | Connections | 2 x USB Type-A (USB 3.0) | | Audio Connections | 1 x 3.5 mm Input
1 x 3.5 mm Output | | Display Connections | None | | | | Windowed Panel | Yes | | Material | Steel | | Cable Management Space | None | | Dimensions (W x H x D) | 20.4 x 8.7 x 18.7" / 518.0 x 220.0 x 474.0 mm | | Weight | 12.6 lb / 5.7 kg | | | | Package Weight | 16.0 lb | | Box Dimensions (LxWxH) | 22.8 x 21.0 x 11.0" |
