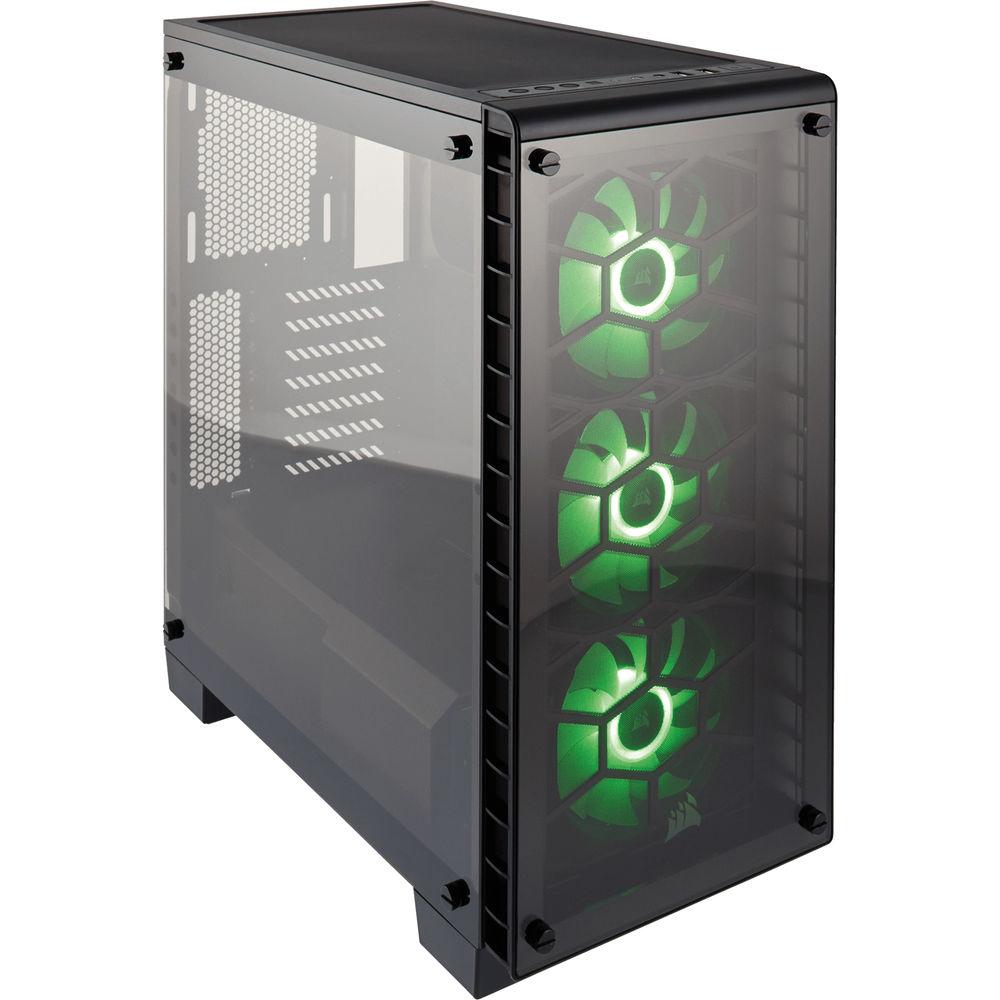

User Manual for Corsair Crystal 460X RGB Mid-Tower Case Click to enlarge the picture
Contents of the user manual for the Corsair Crystal 460X RGB Mid-Tower Case
- Product category: Desktop Computer Cases Corsair
- Brand: Corsair
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Corsair Desktop Computer Cases
 |
User manual for the Corsair Crystal 460X RGB Mid-Tower Case contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Corsair product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Corsair user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Corsair product will considerably shorten its lifespan!
|

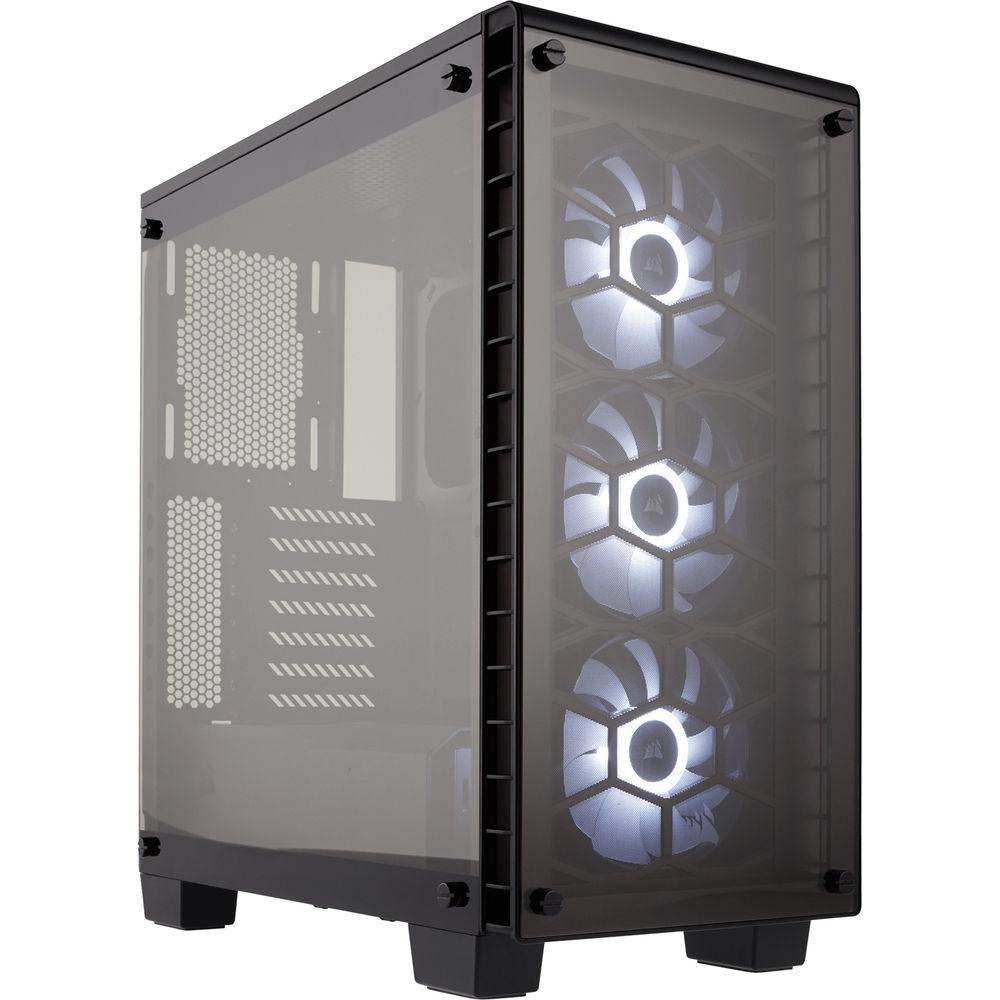

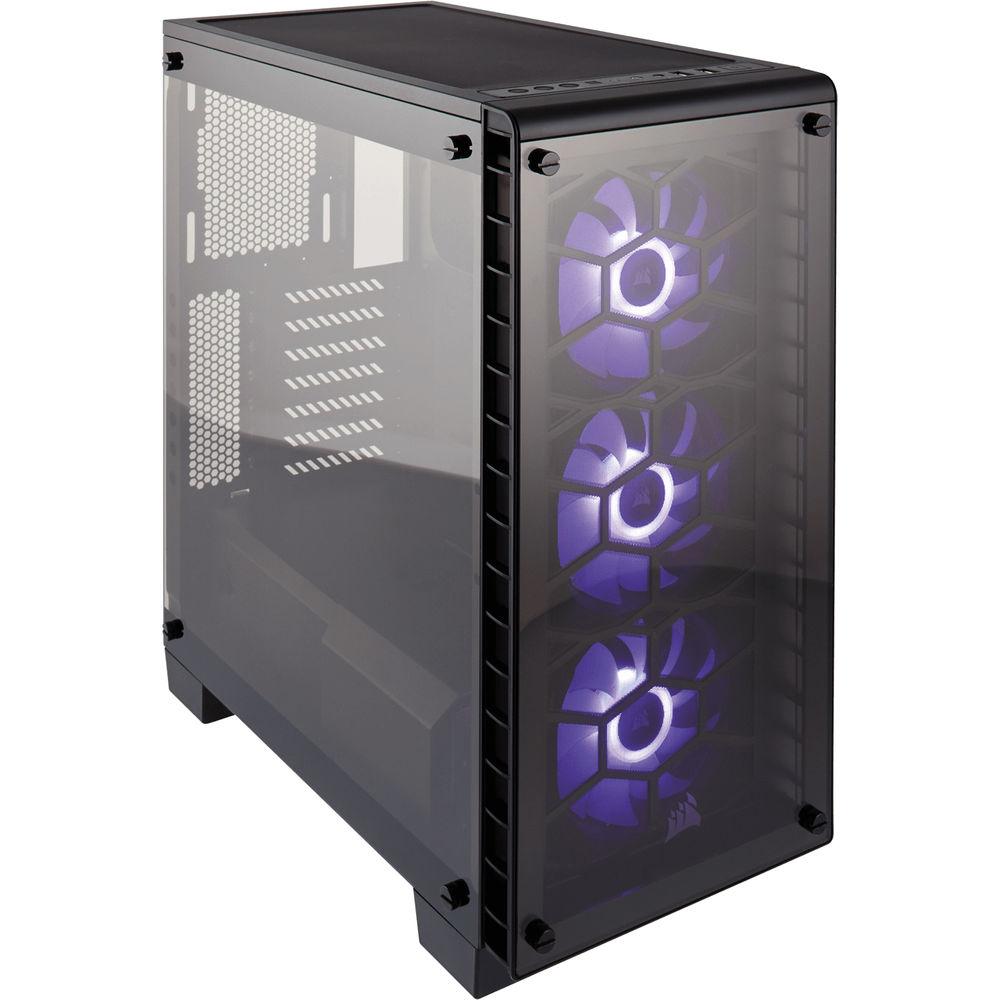

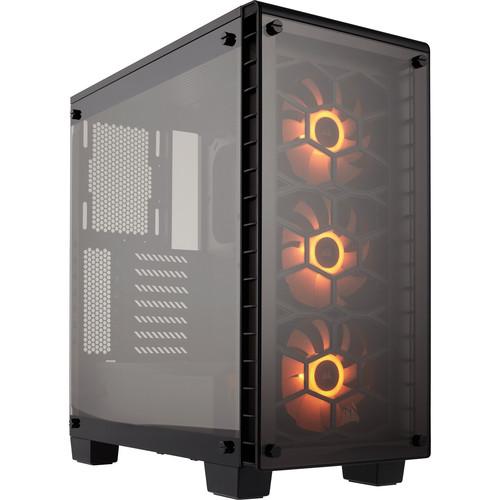

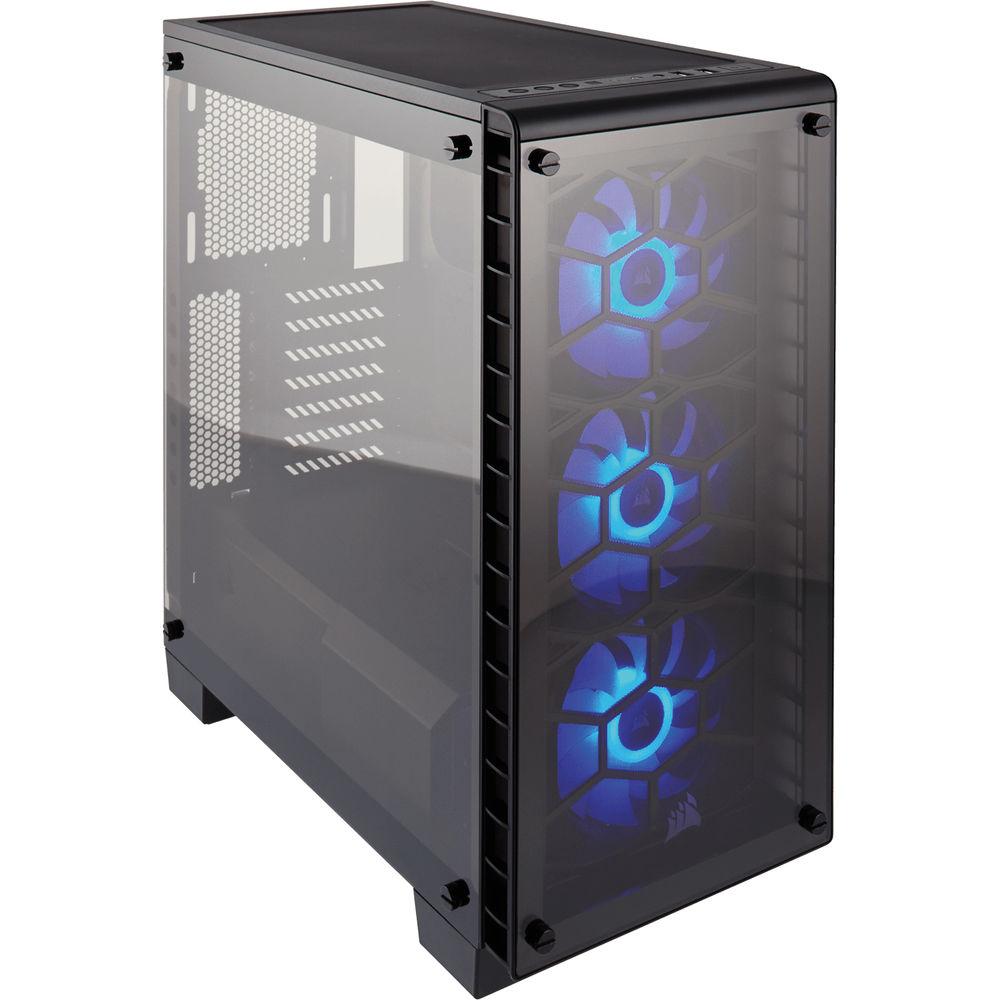

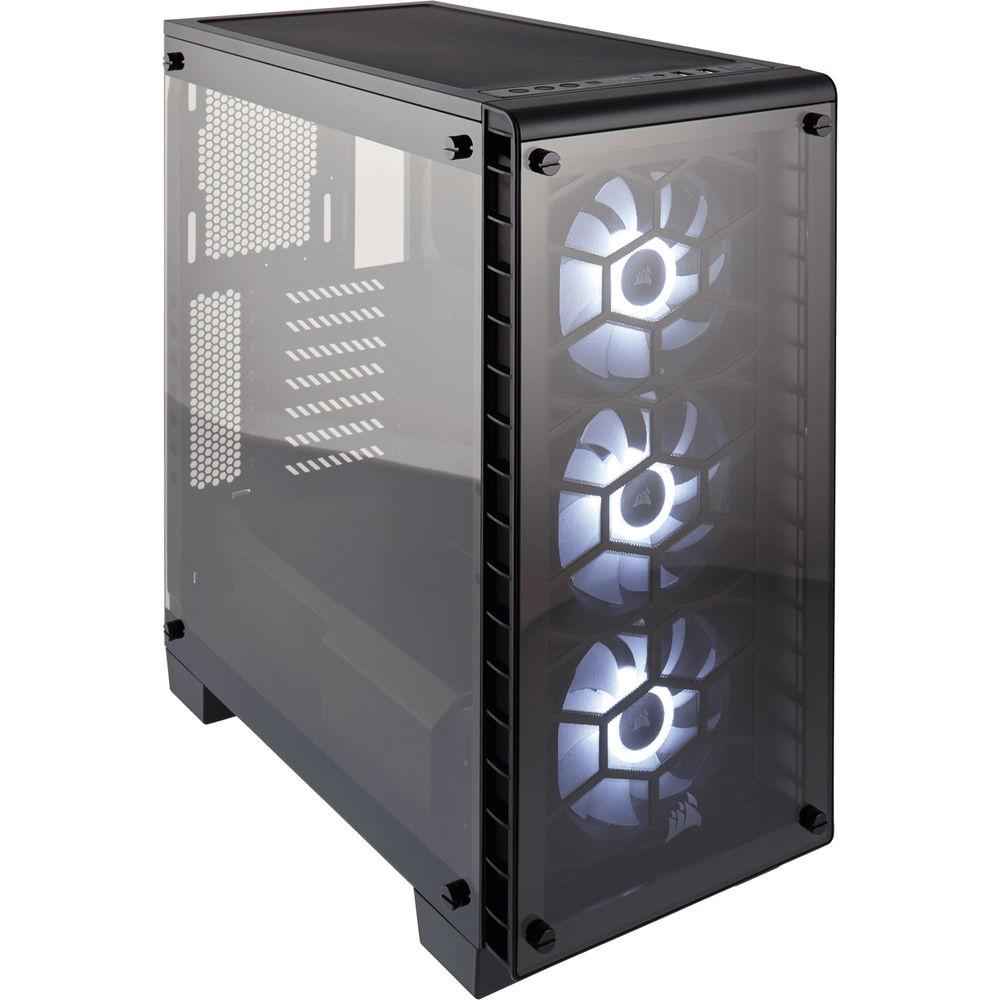

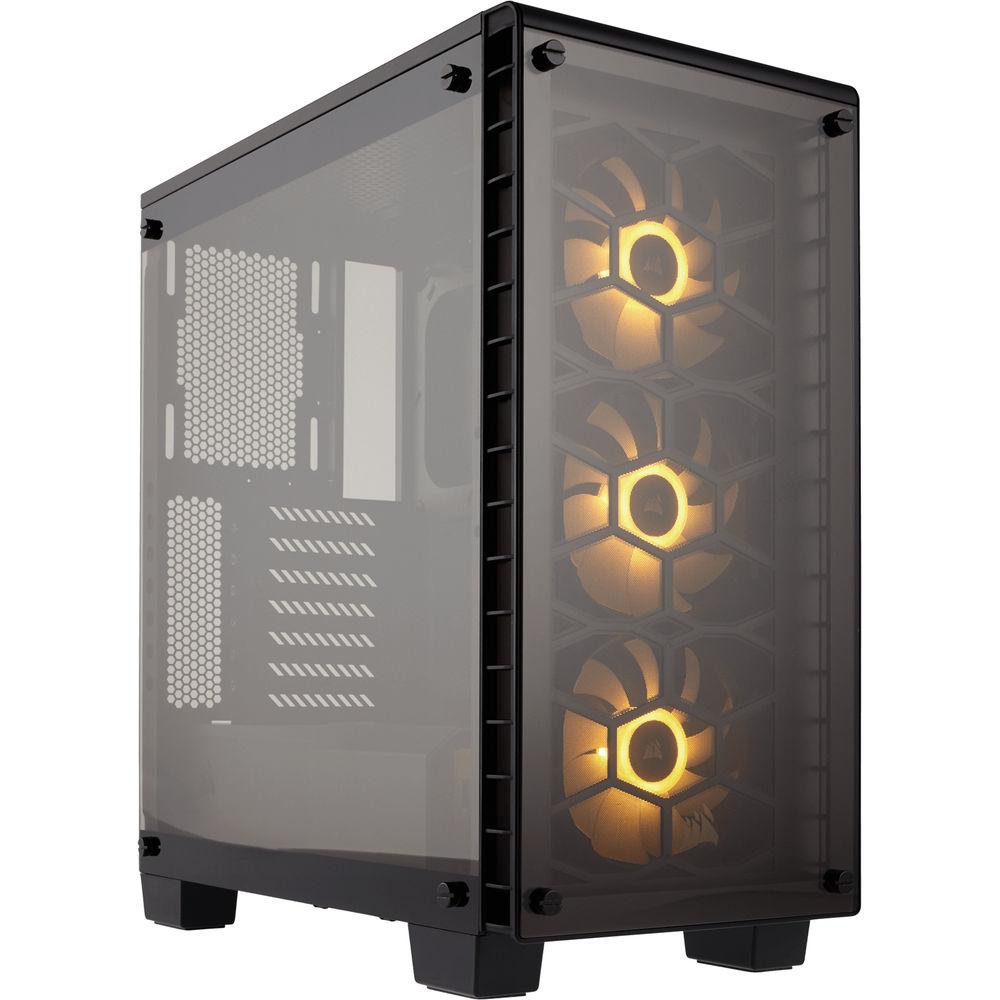

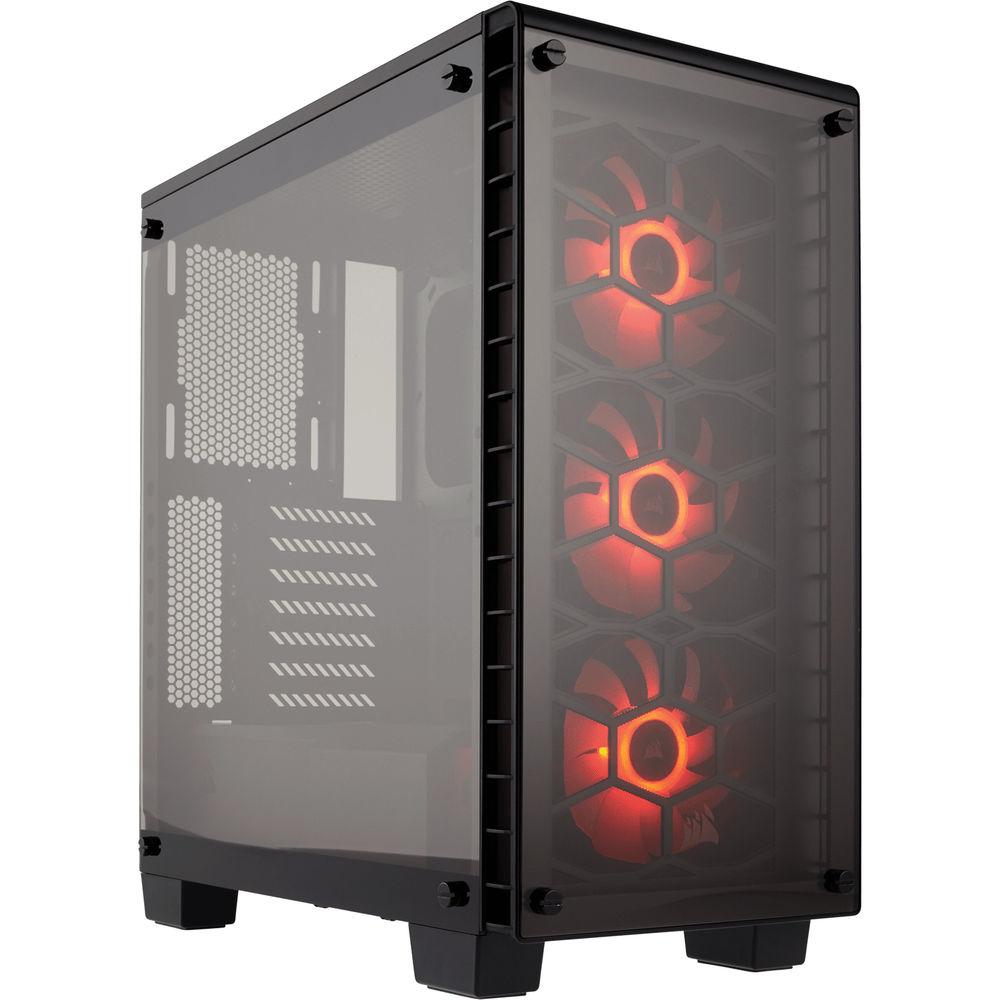

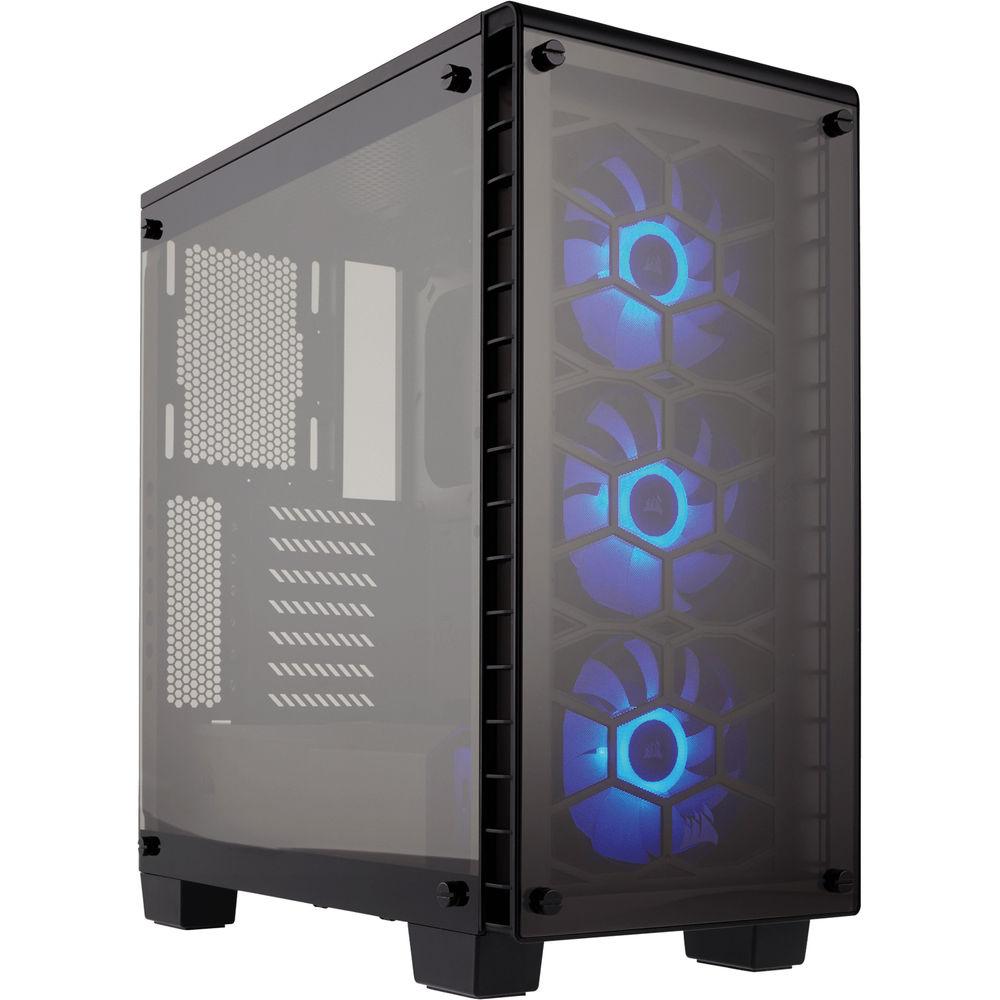

Product description The Crystal 460X RGB Mid-Tower Case from Corsair features front and side tempered glass panels for users who're looking for a sleek and stylish case to show off their build. It supports up to an ATX motherboard, two 3.5" and three 2.5" drive bays, as well as seven expansion slots with enough room left over for liquid cooling systems. Without front drive cages blocking airflow, the Crystal 460X can efficiently move cool air throughout the chassis to reduce heat. Moreover, it supports multiple radiators and fans for additional cooling capabilities, and even comes with three 120 mm SP120 RGB LED fans. At the bottom of the chassis is a PSU bay cover that's used to hide the power supply, drive cage, and cables for a clean and refined build. - Beautifully Tempered
- The Crystal 460X is built with two tempered glass panels: one in the front, and one on the side, so you can showcase your build and quickly check on components.
- Three SP120 RGB Fans
- Included with the Crystal 460X are three SP120 RGB LED fans that light up your build and cool your components without making much noise.
- Room for Activities
- With two 3.5" and three 2.5" drive bays as well as seven expansion slots, the Crystal 460X is capable of supporting high-end hardware and even liquid cooling systems within its compact design.
- All-Steel Exterior
- The 460X has full steel front and top panels for extra durability and good looks.
- Liquid Cooling Support
- The Crystal 460X can support up to three radiators located at the front, top, and rear of the case so you can minimize noise output and increase cooling efficiency.
- Direct Airflow Path
- By relocating the drive cages, the Crystal 460X can efficiently move cool air from the front intake fans to cool high-temperature components.
- PSU and 3.5" Bay Cover
- A PSU and 3.5" bay cover lets you keep cables and drives hidden away for a cleaner looking build.
- Minimal Setup
- Tool-free drive installation and three-point dust filter access makes the Crystal 460X easy to build in and keep clean. Spend less time on setup and maintenance, and more time enjoying your PC.
UPC: 843591093590 In the Box Corsair Crystal 460X RGB Mid-Tower Case Accessory Kit Limited 2-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Corsair Crystal 460X RGB Mid-Tower Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCorsair 460X Specs | | | Motherboard Support | ATX, Micro-ATX, Mini-ITX | | Internal Drive Bays | 2 x 3.5"
3 x 2.5" | | Expansion Slots | 7 x Full Height | | Maximum GPU Length | 14.6" / 37.1 cm | | CPU Cooler Height | 6.7" / 16.9 cm | | Supported PSU Size | ATX | | Maximum PSU Length | 7.9" / 20 cm | | | | Fan Mounting (Rear) | 1 x 120 mm
| | Fan Mounting (Top) | 2 x 140 mm
| | Fans Included (Front) | 3 x 120 mm LED | | Maximum Radiator Size (Front) | 360 mm | | Maximum Radiator Size (Rear) | 120 mm | | Maximum Radiator Size (Top) | 240 mm | | Fan Controller Included | No | | | | Connections | 2 x USB Type-A (USB 3.0) | | Audio Connections | 1 x 3.5 mm Input
1 x 3.5 mm Output | | Display Connections | None | | | | Windowed Panel | Yes | | Material | Steel, Tempered Glass | | Cable Management Space | None | | Dimensions (W x H x D) | 17.3 x 8.7 x 18.3" / 44.0 x 22.0 x 46.4 cm | | Weight | 17.6 lb / 8.0 kg | | | | Package Weight | 22.0 lb | | Box Dimensions (LxWxH) | 21.7 x 20.8 x 12.5" |
