User Manual for Corsair Crystal Series 570X RBG Mid-Tower Case Click to enlarge the picture
Contents of the user manual for the Corsair Crystal Series 570X RBG Mid-Tower
- Product category: Desktop Computer Cases Corsair
- Brand: Corsair
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Corsair Desktop Computer Cases
 |
User manual for the Corsair Crystal Series 570X RBG Mid-Tower contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Corsair product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Corsair user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Corsair product will considerably shorten its lifespan!
|

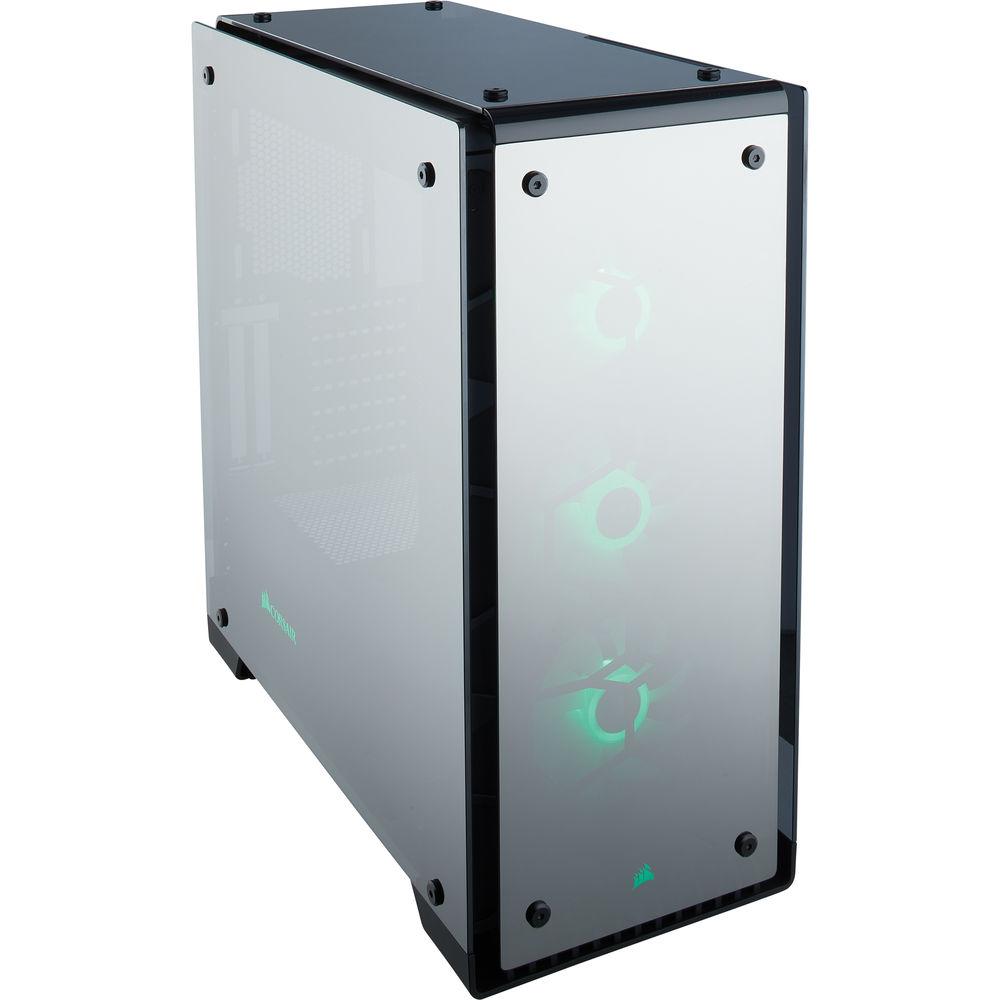

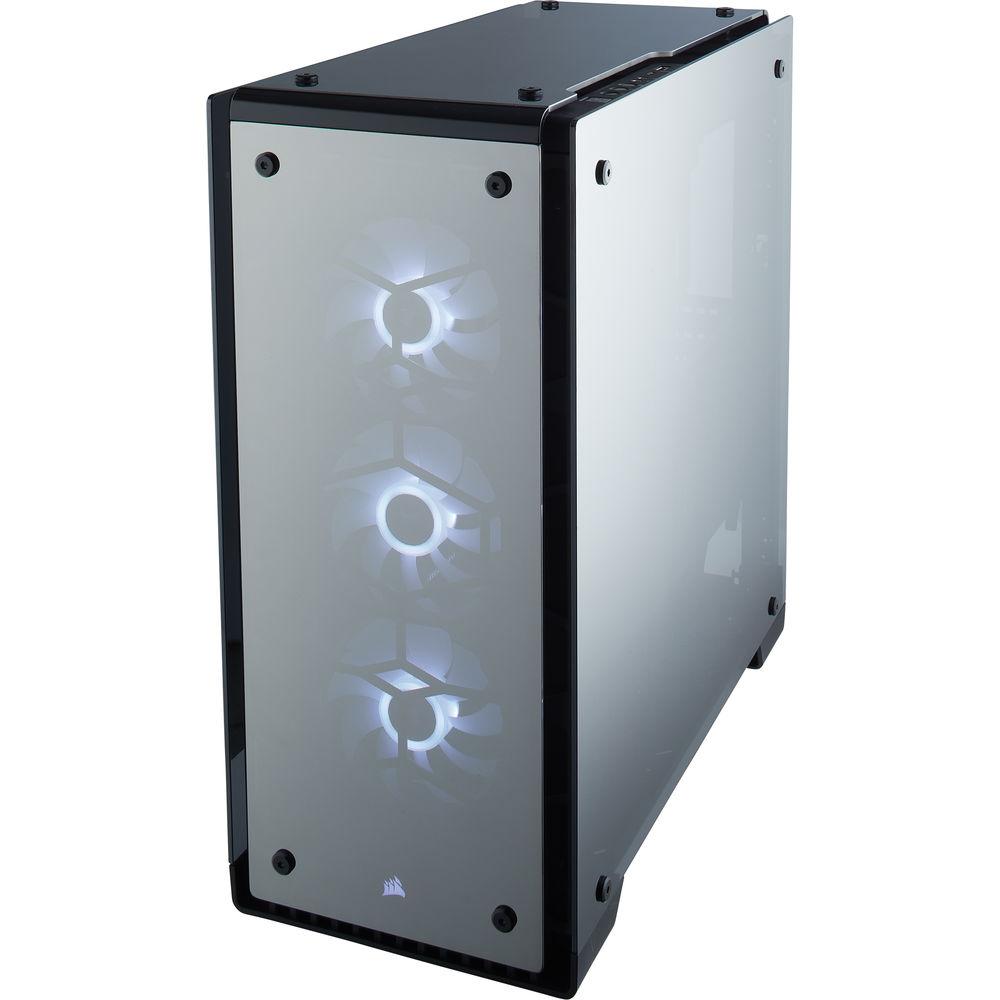

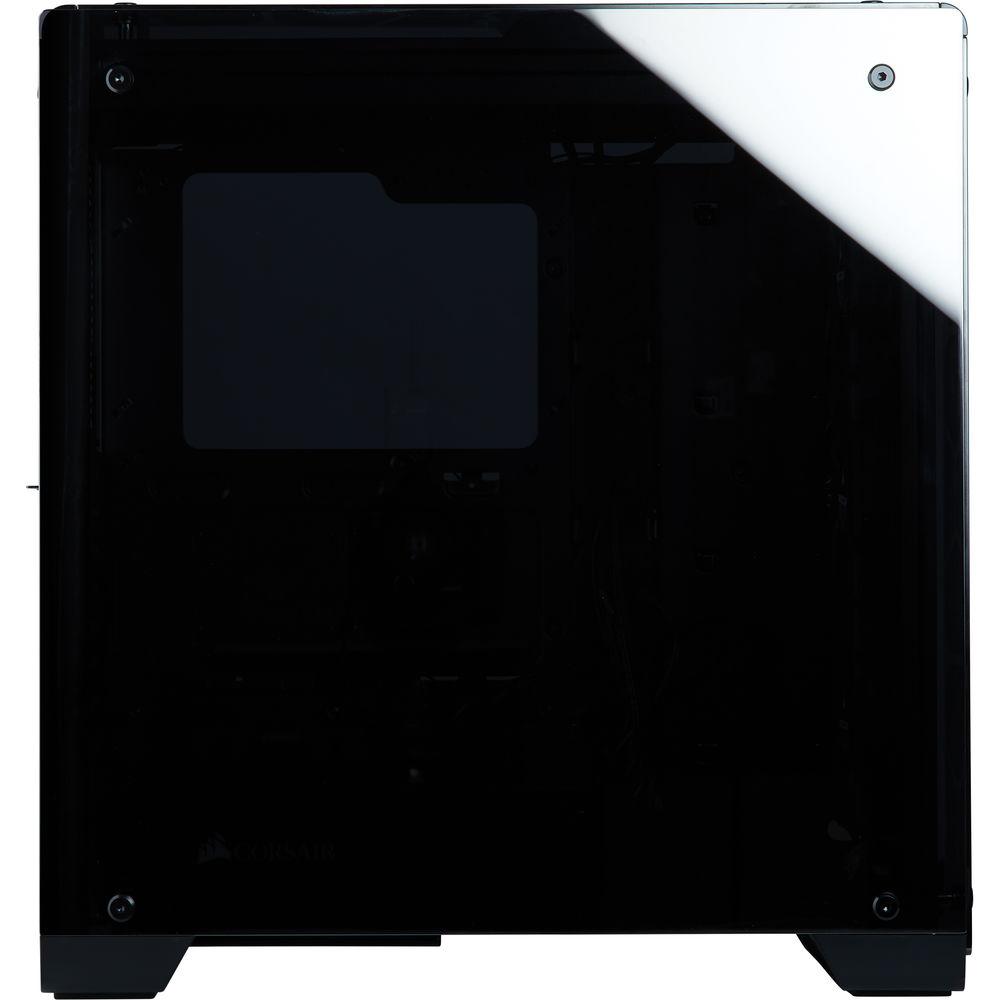

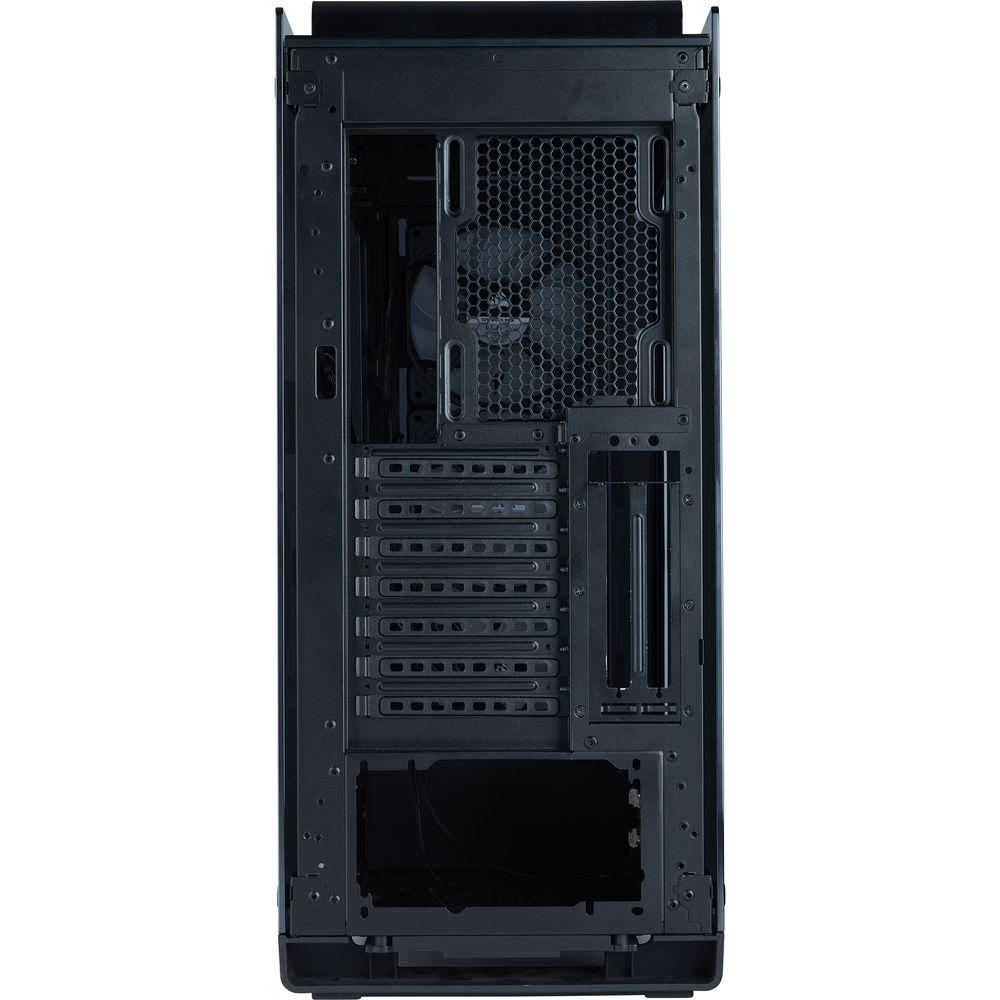

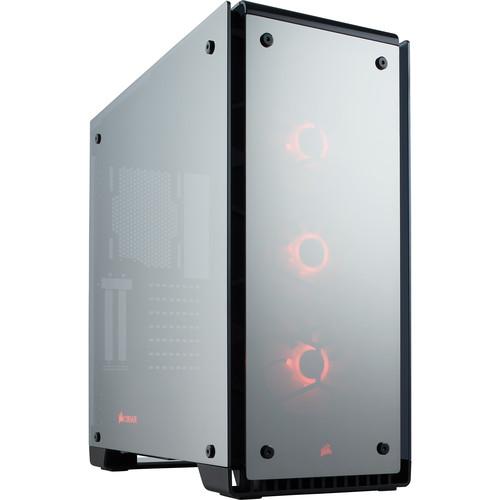

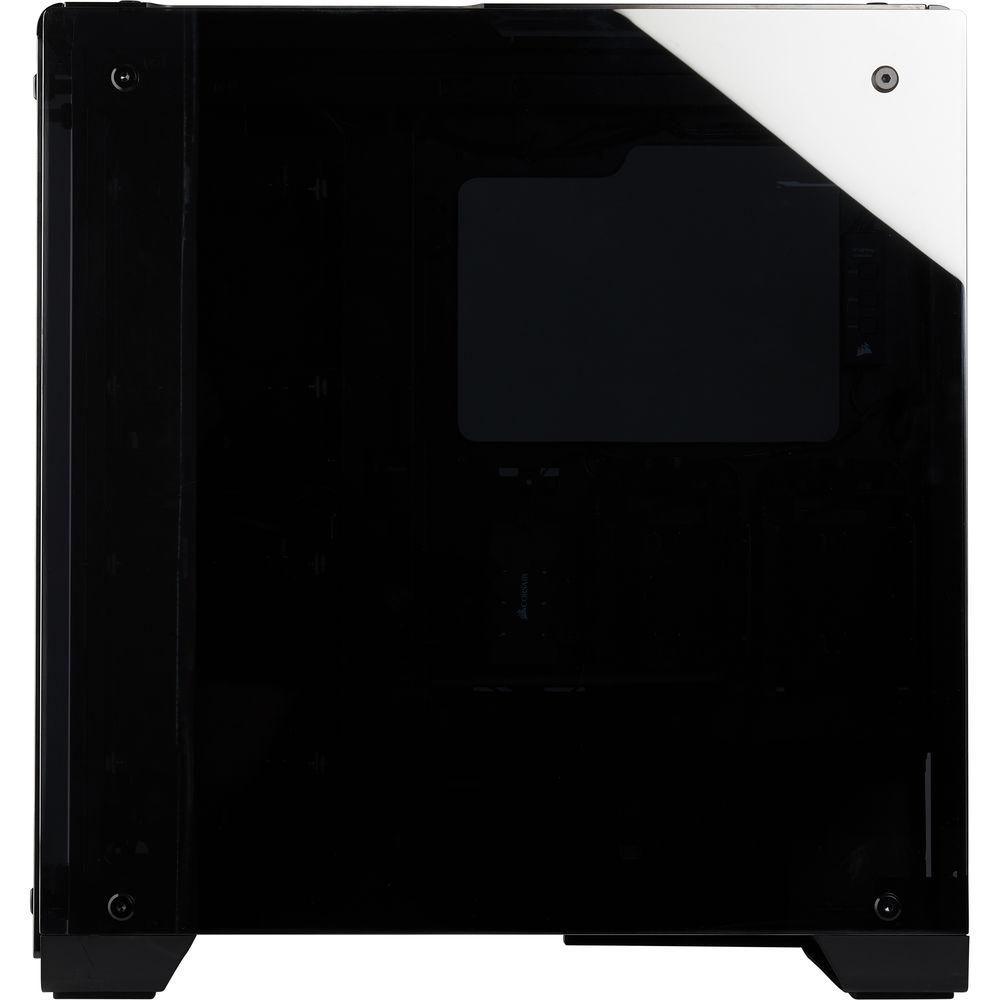

Product description The Corsair Crystal Series 570X RGB Mid-Tower Case features four-panel tempered glass for users who want a sleek and stylish case to show off their build when backlit and a mirror finish when not. It supports up to an ATX motherboard, two 3.5" and two 2.5" drive bays, as well as seven expansion slots with enough room left over for liquid cooling systems. Without front drive cages blocking airflow, the Crystal 570X can efficiently move cool air throughout the chassis to reduce heat. Moreover, it supports multiple radiators and fans for additional cooling capabilities, and even comes with three 120mm RGB LED fans as well as a LED controller. At the bottom of the chassis is a PSU bay cover that's used to hide the power supply, drive cage, and cables for a clean and refined build. - Mirror Tempered Glass
- With four-panel tempered glass enclosing the entire case, every component of your build is on display for all to see, including three vivid SP120 RGB LED fans and a built-in LED controller. The tempered glass panels show off your build when backlit and has a mirror finish when it's not.

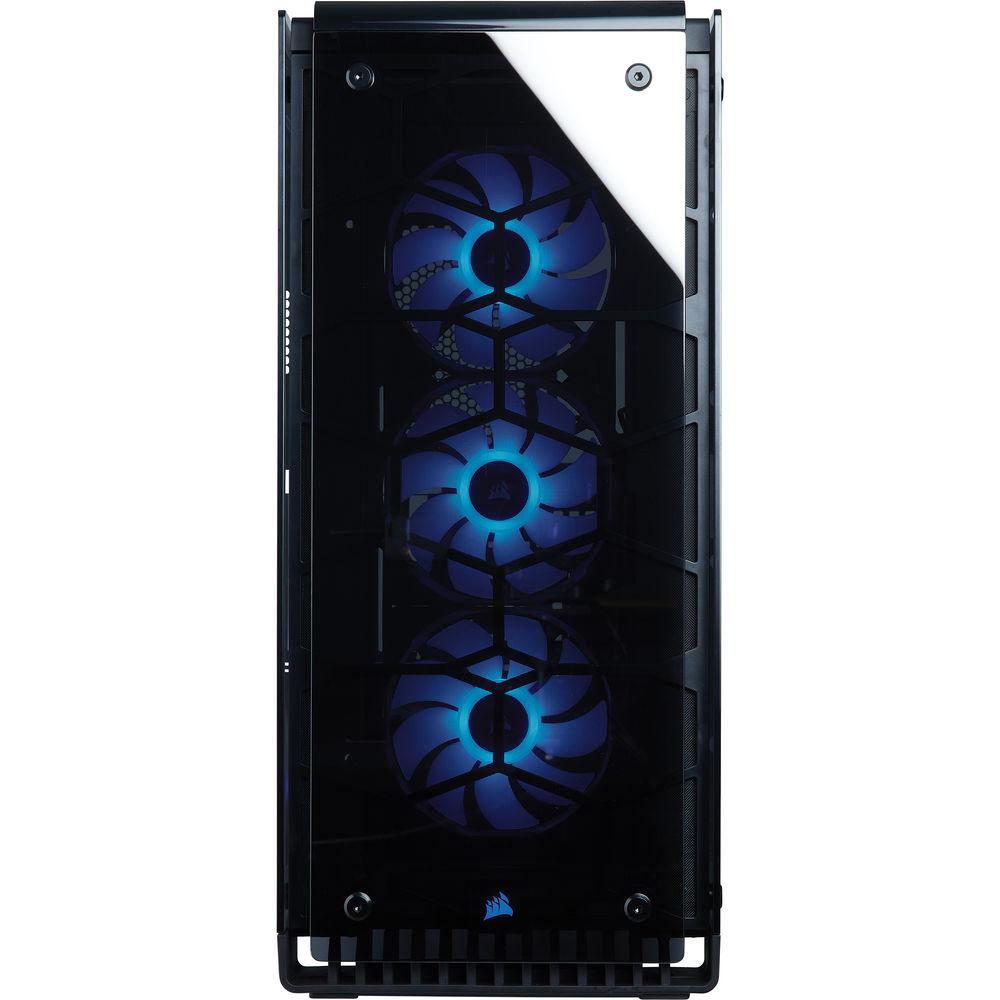

- RGB LED Lights
- Included with the Crystal 570X are three SP120 RGB LED fans and a built-in LED controller that light up your build and cool your components without making much noise.
- Cooling
- The 570X has room for up to 6 case fans, and is fully compatible with 360mm, 280mm, and 120mm radiators. The removable fan trays in the front and top of the case allow for additional space or mounting cooling externally.
- Direct Airflow Path
- The drive cages are moved up and out of the path of cool air from the front intake fans and high-temperature components.

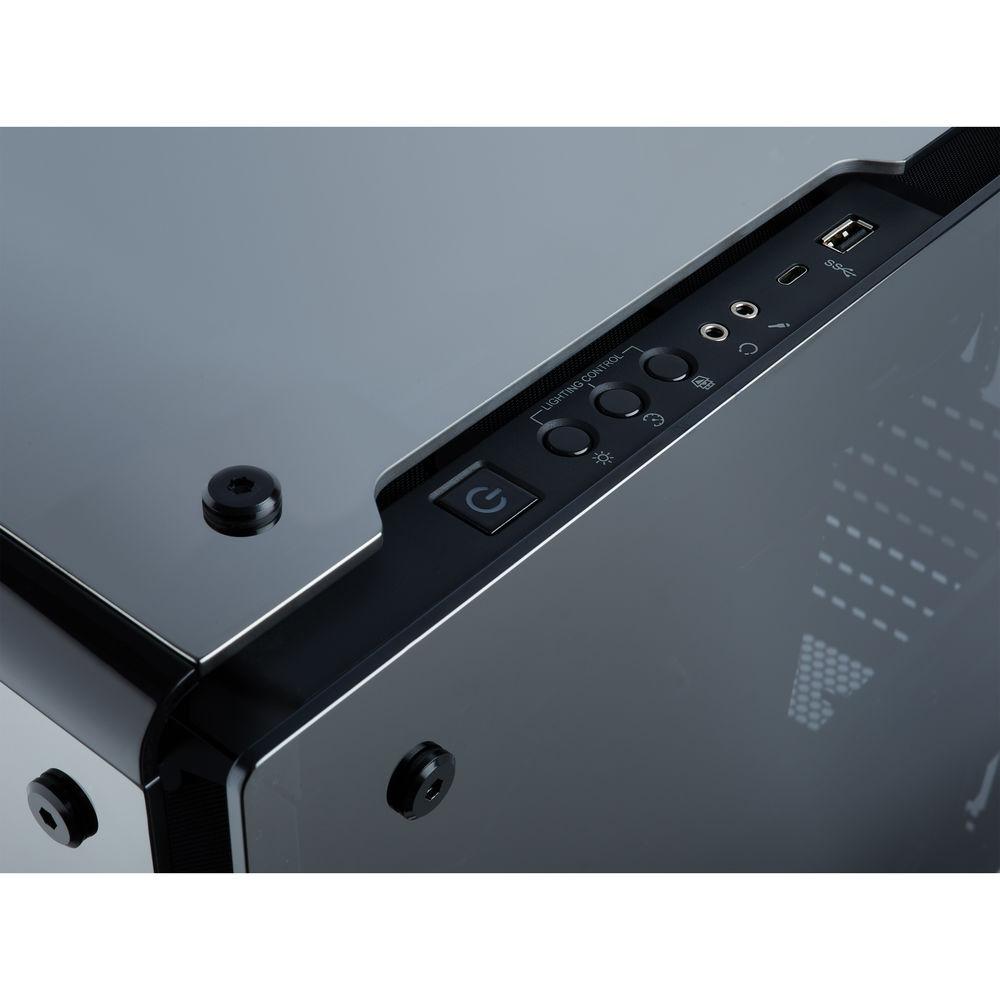

- USB 3.1 Type-C Port
- This case features a USB 3.1 Type-C port, which supports a reversible connector and data transfer rates up to 10 Gb/s.

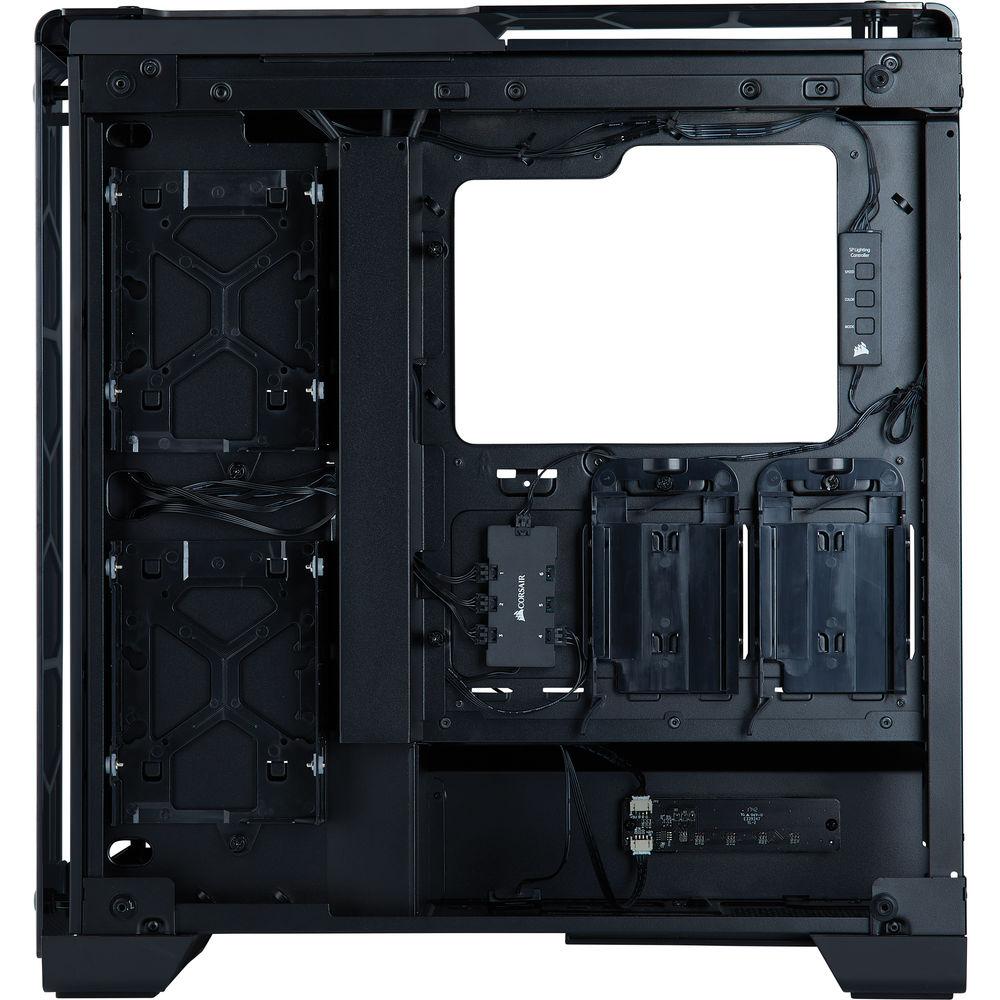

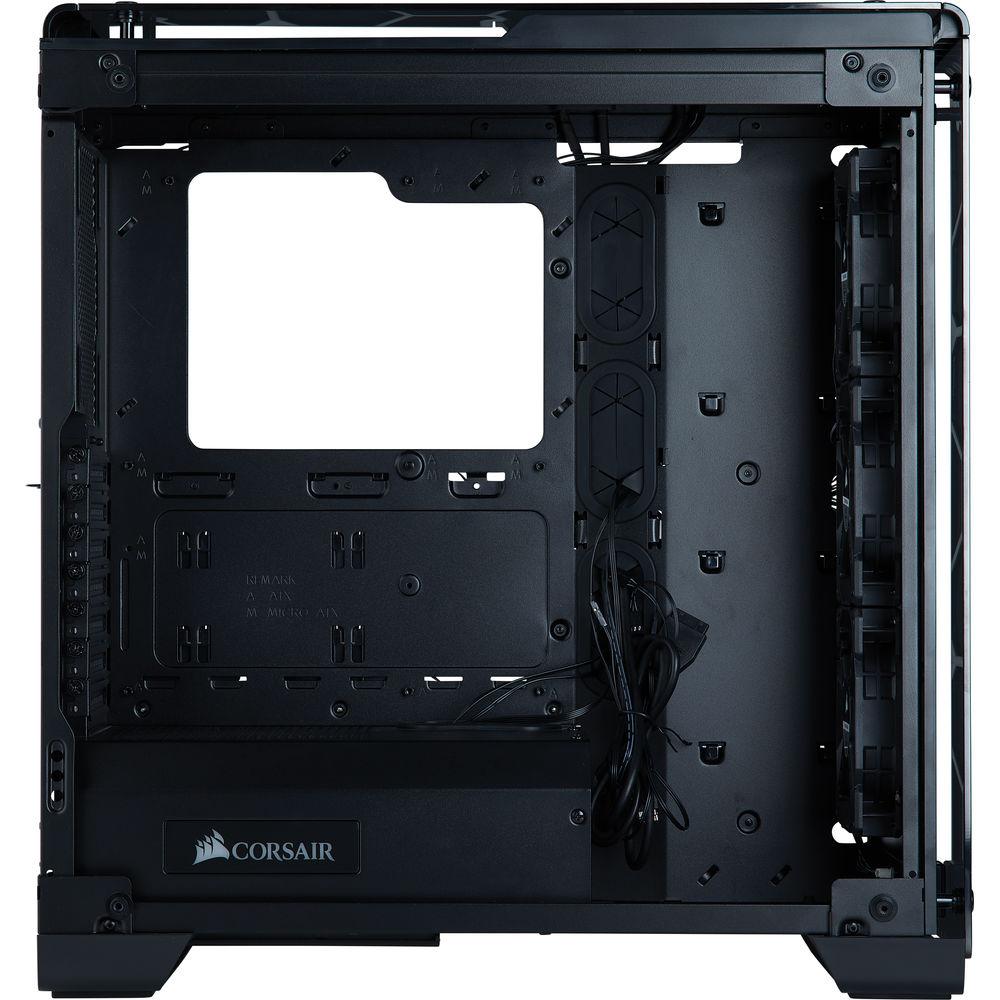

- Cable Management
- There are cable routing channels with included hook and loop fasteners for clean cable management.
- Minimal Setup
- With tool-free drive installation and three-point dust filter access, the Corsair Crystal 570X is easy to build and even easier to keep clean. You'll spend less time on setup and maintenance, and more time enjoying your PC.
UPC: 843591063111 In the Box Corsair Crystal Series 570X RBG Mid-Tower Case Accessory Kit Limited 2-Year Warranty INSTALLATION GUIDE PDF 5.2mb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Corsair Crystal Series 570X RBG Mid-Tower Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCorsair Crystal 570X Specs | | | Motherboard Support | ATX, Micro-ATX, Mini-ITX | | External Drive Bays | None | | Internal Drive Bays | 2 x 3.5"
2 x 2.5" | | Expansion Slots | 7 x Full Height | | Maximum GPU Length | 14.57" / 370 mm | | CPU Cooler Height | 6.69" / 170 mm | | Supported PSU Size | ATX | | Maximum PSU Length | 8.86" / 225 mm | | | | Fan Mounting (Front) | 3 x 120 mm
Or
2 x 140 mm
| | Fan Mounting (Rear) | 1 x 120 mm
| | Fan Mounting (Top) | 2 x 120 mm
Or
2 x 140 mm
| | Fan Mounting (Bottom) | None | | Fans Included (Front) | 3 x 120 mm LED | | Maximum Radiator Size (Front) | 360 mm | | Maximum Radiator Size (Rear) | 120 mm | | Maximum Radiator Size (Top) | 240 mm | | Fan Controller Included | No | | | | Connections | 1 x USB Type-C (USB 3.1)
1 x USB Type-A (USB 3.0) | | Audio Connections | 1 x 3.5 mm Input
1 x 3.5 mm Output | | Display Connections | None | | | | Windowed Panel | Yes | | Material | Tempered Glass, Steel | | Dimensions (W x H x D) | 9.2 x 20.2 x 18.9" / 234.0 x 512.0 x 480.0 mm | | Weight | 23.8 lb / 10.8 kg | | | | Package Weight | 30.95 lb | | Box Dimensions (LxWxH) | 24.5 x 23.5 x 13.25" |
